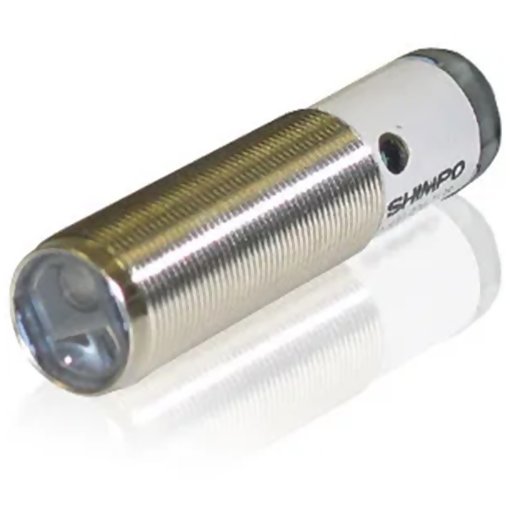

LS-S50MLR Photo Reflective Sensor

Photo-Reflective Sensor
LS-S50ML is a laser sensor that can be taught to recognize difference in colors
Price  $180.
Photo Reflective Sensor

LS-S50ML is a laser sensor that can be taught to recognize difference in colors. It is a class 1 red laser with switching frequency of 1.5KHZ. Contained in a metal housing with 6ft of cable, which can be utilized for different operations including stroboscopes, counters and panel tachometers. It includes a trimmer potentiometer that is located on the side for minimum and optimum sensitivity adjustments. Can be used in normally closed or normally open operation, NPN type of output, with a yellow LED for signal indication and a green LED for power.
line
reddot Features
line
bluedot Visible Red Light Source
bluedot Rugged Metal Housing
bluedot NPN or PNP Connection
bluedot Mounting accessories and cable included
line
reddot Related Products
line
DT-5TG
Multi-Purpose Panel Tachometer		 related

bluedot User-set Hi and Lo limits

bluedot Accepts various modules; works with a variety of sensors
line
reddot Specifications
line
Sensing Range 25 - 400 mm
Sensing Head Straight
Output NPN normally Open
NPN normally Closed
PNP normally Open
PNP normally Closed
Load Current 200 mA max
Voltage Drop
Short Circuit and Overload Protection Yes
Reverse Polarity Protection Yes
Supply Voltage 10 - 30 VDC
Voltage Ripple 10%
LED Indicators Yes (2)
Current Consumption <= 30 mA
Operating Mode Light on / Dark on
Response Time <= 1.0 ms
Switching Frequency 500 Hz
Protection (IEC) IP67
Light Spot Size ~0.5 mm at range of 170 mm
Ambient Light Resistance <= 30,000 Lux
Working Temperature -13 F to 158 F
Storage Temperature -22 F to 158 F
Housing Material Nickel-plated Brass
Weight 2.1 oz
Light Source Visible Red Laser 660 nm
Electrical Connection Quick Disconnect
line
reddot Download
line
manual  Instruction Manual  Click here to download
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

LS-S50MLR Photo Reflective Sensor - Model




  • Manufactured by: Shimpo
