Type: Contact Only Tachometer
Measuring Range: Contact - 0.10 - 25,000 rpm
Display Type: LCD
Warranty: 2 year

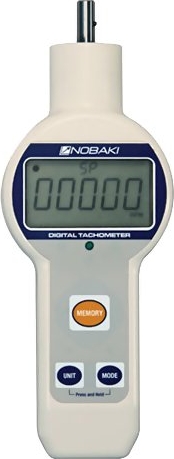

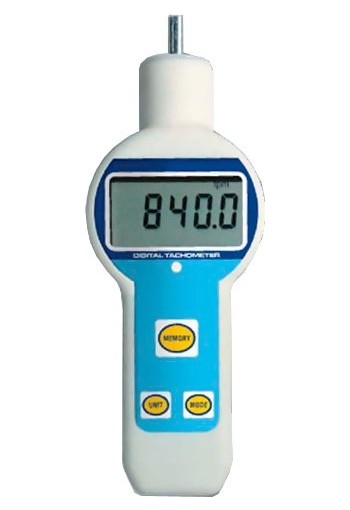

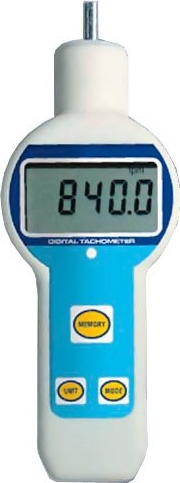

The Hoto EHT-600 Digital Tachometer / Length Meter features exceptional resolution at low speeds and statistics. It also features four measuring modes
Real time displays the current value, Maximum displays the highest value, Minimum displays the lowest value and Mean displays the average value taken during the test. It's built with a durable metal housing and operates on two standard AA batteries.
Kit Contents
- Hoto EHT-600 Digital Tachometer / Length Meter
- Cone adapter
- Funnel adapter
- 2-AA Batteries
- NIST traceable Certificate

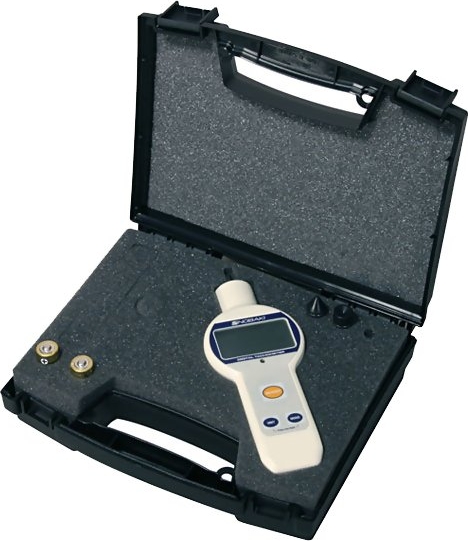

- Carrying case
Features
- Four measuring modes: Real time, maximum, minimum and mean
- Rugged metal housing
- Auto measuring range of 0 to 25,000 rpm with up to 0.01 rpm resolution up to 2,000 fpm using the optional 12" wheel
- 15 different measuring units: RPM, rev/sec, FPM, in/min, yd/min, in/sec, m/min, cm/min, cm/sec, revolutions, ft, in, yd, m, cm
- Last reading recall and 99 data memory
- Auto statistics: Max, Min and Mean
- Easy-to-read 5 digit 0.47" (12 mm) high LCD

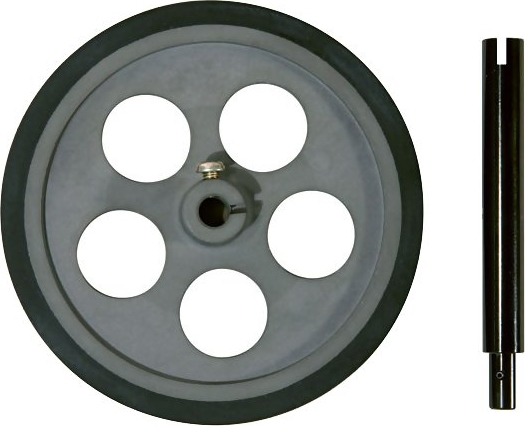

- Optional 12" wheel available for measuring surface speed and distance
Specifications
| Measuring Ranges | 0.40 - 25000 RPM (floating decimal point)
0.40 - 2000.0 ft/min (with optional 12" wheel) |
| Accuracy | 0.01% of reading ± 1 digit |
| Display | 5 digit LCD 12mm Character Height |
| Measuring Unit* | Speed Mode: RPM, rev/sec, FPM, in/min, yd/min, in/sec, m/min, cm/min, cm/sec
Counter Mode: revolutions, ft, in, yd, m, cm |
| Memory | Short Term Auto Memory: MAX, MIN, MEAN and last 9 data
Long Term On-Demand memory: 99 data |
| Display Update | 0.5 sec or 1.0 sec selectable |
| Power | 2 - AA Battery, Aprox. 60 hrs continuous operation |
| Indicators | LOW BATT, Units, MAX, MIN, MEAN and memory location |
| Operating Temp. | 0 - 45°C (32 - 113°F) |
| Construction | Die-cast aluminum housing |
| Standard Accessories | Cone adapter, funnel adapter, 2-AA Batteries, NIST traceable Certificate |
| Optional Accessories | 12" wheel (surface speed measuring wheel is necessary to measure linear speed), 3-1/2" Extension Shaft |
