Metal Hardness Testers
F.A.Q.
When should I choose an Ultrasonic (UCI) tester instead of a Leeb Rebound Tester?
- Choose a Leeb Rebound Tester (InnovaTest TIME5100, Checkline QH2, or Checkline QH5) when testing solid, heavy metal components weighing 5 kg (11 lbs) or more with a wall thickness of at least 5 mm (or 2–5 kg when supported on a solid base with coupling paste).
- Choose a UCI Ultrasonic Tester (SH-22A or Checkline SH-21) when testing lightweight parts, thin-walled pipes and plates, narrow weld heat-affected zones (HAZ), or gear tooth flanks where dynamic impact bounce would cause vibration errors.
- Choose a Combined Leeb + UCI Tester (Checkline QH7C) if your inspection team needs both technologies in a single rugged aluminum instrument.
What is the difference between Leeb impact devices D, DC, DL, C, and G?
- Type D (Standard): Universal probe for most steel, cast iron, and non-ferrous components (≥ 5 kg mass, ≥ 5 mm thickness).
- Type DC (Short): Same impact energy as Type D in a ultra-short housing for testing inside bores, pipes, and cylinders.
- Type DL (Slender Nozzle): Needle-shaped front nozzle (Ø 4.2 mm) for testing gear teeth, keyways, and recessed grooves (featured on the TIME5104 and QH5/QH7).
- Type C (Low Impact Energy): Uses 25% of Type D energy for surface-hardened layers, coatings, and thinner or polished parts (featured on the TIME5102).
- Type G (Heavy Impact Energy): Uses 9× the energy of Type D with a large 5 mm spherical tip for rough, heavy castings and Brinell-range forgings with less surface preparation.
How do I select between the 1 kg (SH-22A-E1), 2 kg (SH-22A-E2), and 4 kg (SH-22A-E4) UCI Probe Forces?
On the SH-22A Metal Hardness Tester, lower indenting forces (1 kg / 10 N on SH-22A-E1) produce the smallest microscopic Vickers indentation (~0.1 mm) for thin nitrided layers, precision bearings, and polished surfaces. Higher forces (2 kg / 20 N on SH-22A-E2 and 4 kg / 40 N on SH-22A-E4) penetrate deeper to average out grain structure on standard machined steel, welds, and structural components.
What is Cal-Tag technology on the QH5 and QH7 Series?
Cal-Tag is an intelligent digital chip embedded inside each QH5 and QH7 impact device or UCI probe. When you plug in a different probe (for example, switching from a Type D device to a Type DL or G device), the gauge automatically recognizes the probe type and loads its factory calibration parameters without requiring manual setup.

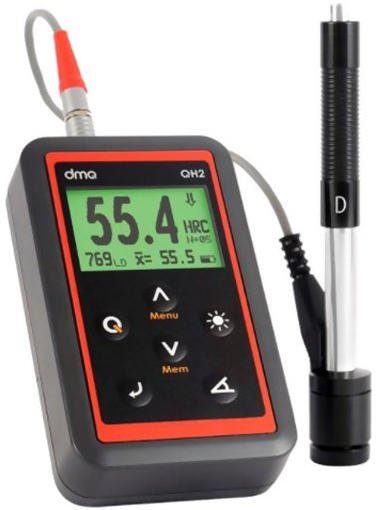

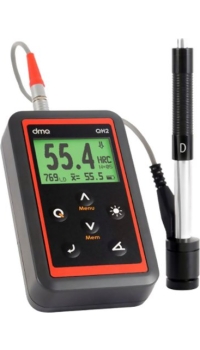

Checkline QH2 Portable Leeb Hardness Tester for Steel, Demeq
Call for Price
About this item

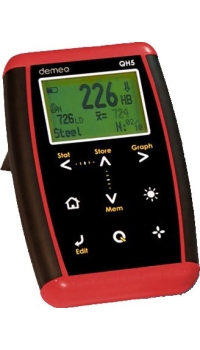

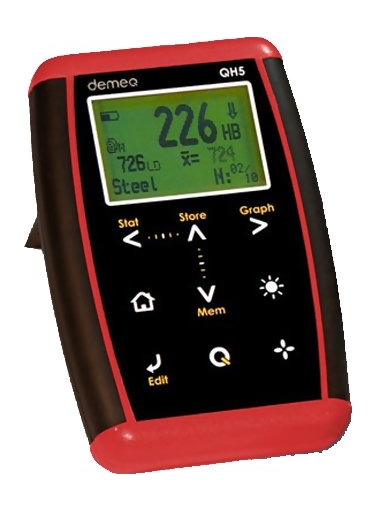

Checkline QH5 Leeb Hardness Tester, Rebound Hardness, Demeq
Call for Price
About this item
View More Details
- Checkline QH5 Leeb Hardness Tester, Rebound Hardness
- Accuracy of ± 4HL (0.5% at 800HL)
View More Details

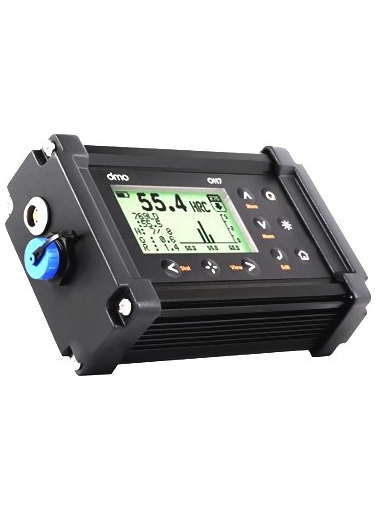

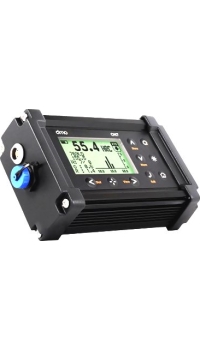

Checkline QH7 Heavy Duty Portable Hardness Tester, Demeq
Call for Price
About this item
View More Details
- Heavy Duty Portable Hardness Tester
- Available in Leeb, UCI, or both methods in one unit
View More Details

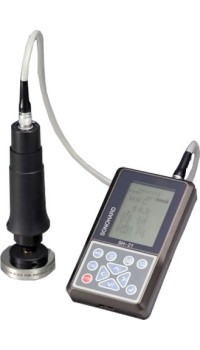

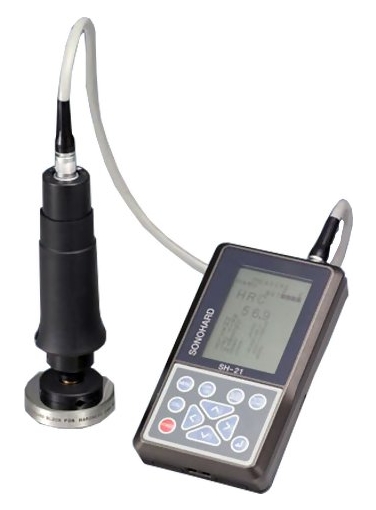

Checkline SH-21 Metal Hardness Tester - Rockwell HRC
$6,045.00 - $7,365.00
FREE Ground Shipping
About this item
View More Details
- Checkline SH-21 Metal Hardness Tester - Rockwell HRC
- Displays hardness in HV (Vickers), HRC (Rockwell), HS (Shore) and HB (Brinnel) units.
View More Details
SH-22A Metal Hardness Tester
$6,595.00
FREE Ground Shipping
About this item
View More Details
- Narrow / curved surface can be measured by small diameter probe (compared to the SH-21)
- Tiny indentation (Approx. 0.1mm)
- High durability, rated for over 1 million measurements
View More Details

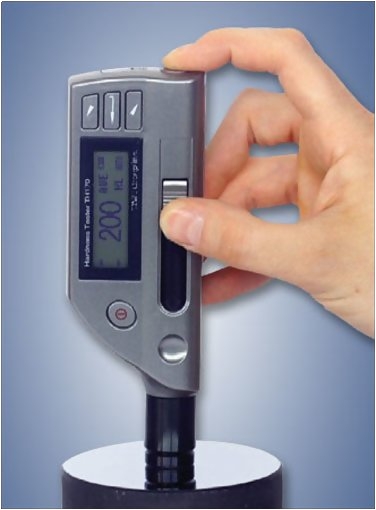

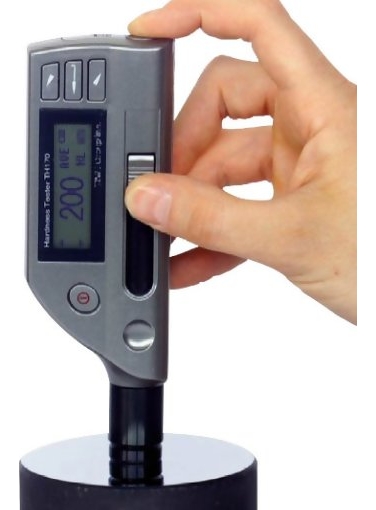

InnovaTest TIME5100 Metal Hardness Tester
$1,953.00 - $2,288.00
FREE Ground Shipping
About this item
View More Details
- InnovaTest TIME5100 Metal Hardness Tester
- Direct display of hardness values in Rockwell HRB, Rockwell HRC, Vickers HV, Brinell HB, Shore HS and Leeb HLD
View More Details
