Cable Tension Meters

Base Price: $ 2,595.00 to $4,525.00

---

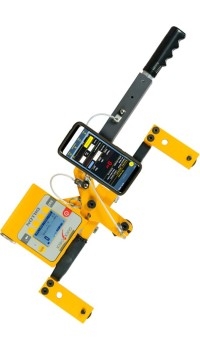

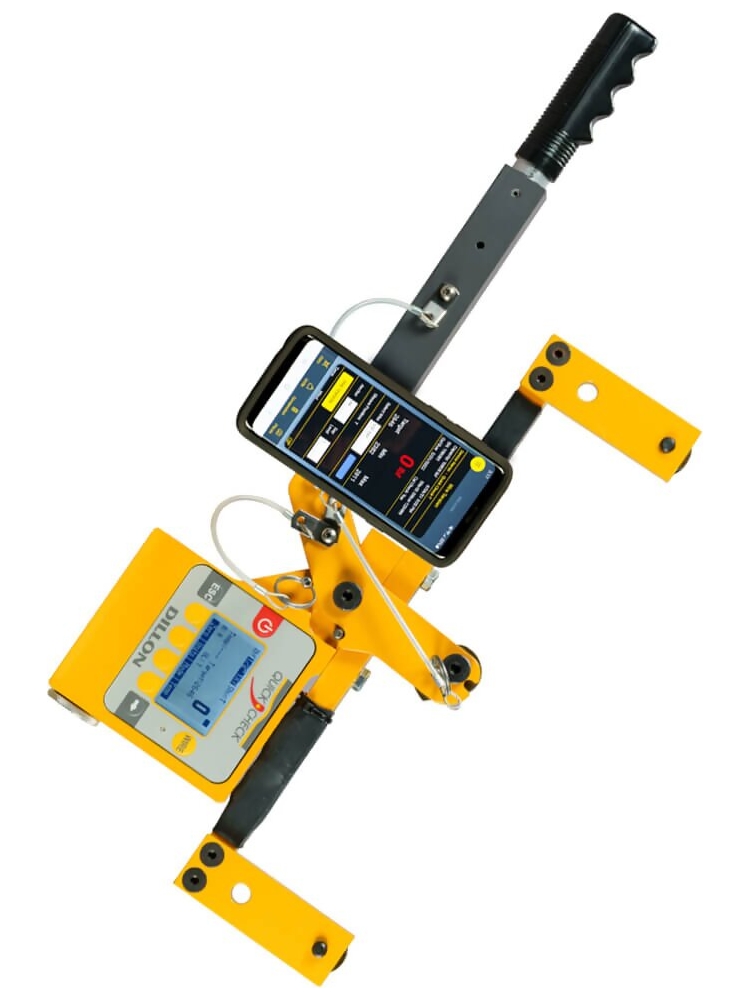

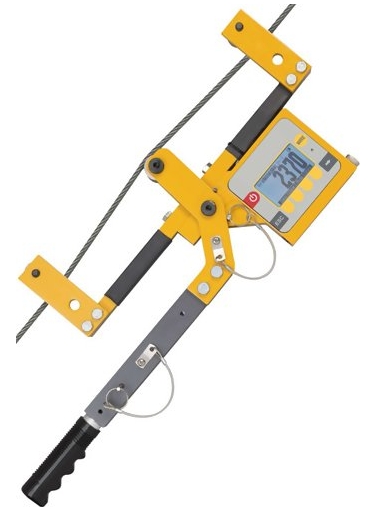

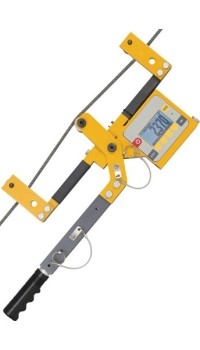

Dillon Quick-Check Cable Tension Meter for Wire Rope and Guy Wire

---

2 Ranges, up to 10,000lb Capacity

---

Measures cables from 3/16" to 1" / 5 mm to 25 mm (OD)

---

CTM2-2000 - 2000 lb / 10 kN / 1000 kg - PN AWT05-508112
CTM2-10000 - 10000 lb / 45 kN / 4500 kg - PN AWT05-508111

---

Price: $ 1,698.00 to $ 1,766.00

---

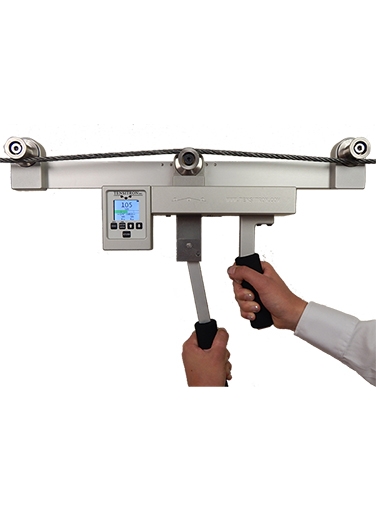

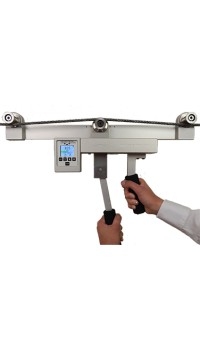

CX-1 Digital Cable Tension Meter for measuring static and slowly moving tensions in round configurations such as cable, wire, rope and guy wires as well as narrow rectangular wire, bands and straps.

---

Indicate tensions in Lbs, daN or KG in flexible cables with diameters up to ¾” and with tensions from 50 lbs to 2,000 lbs.

---

Price: $ 1,160.00 up to $ 1,289.00

---

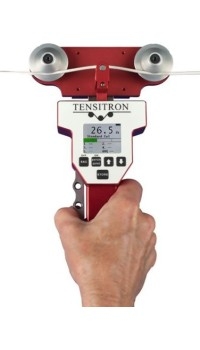

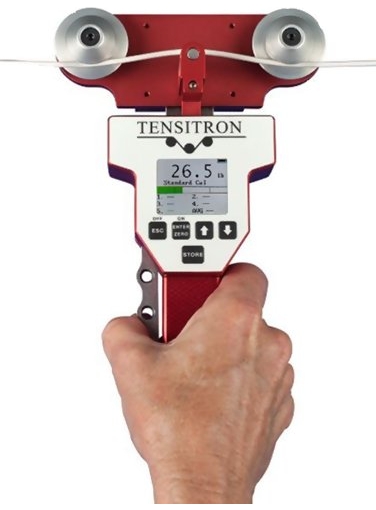

LX-1 Digital Wire Tension Meters used to measure tension on materials less than 5/32" in diameter.

---

Measure tension(s) on slightly larger, flexible cables, wires, filaments, tapes and ribbons where expected tensions range from 5 - 250 Lbs, or 25-500 Lbs

---

Display shows tension, description of material selected, dynamic color bar graph indicating changing tensions

---

Price: $ Call for Price

---

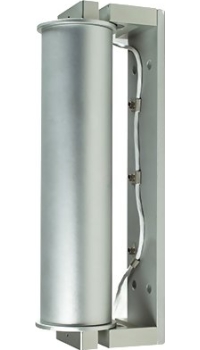

Radial force measuring axle

---

Price: $ Call for Price

---

Range: 0 - 60 mils (1500 µm)

---

Price: $ 1,093.00 to $ 1,182.00

---

Utilized extensively in major wire, textile, coil winding, EDM, fiber optic, and synthetic materials manufacturing and testing environments.

---

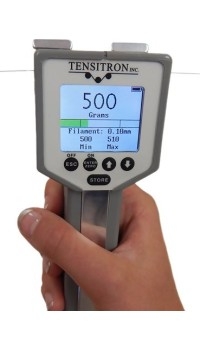

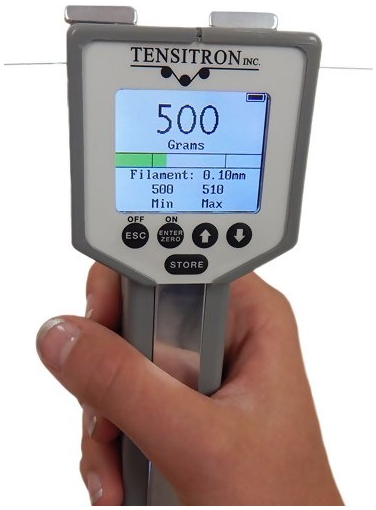

The TX-1 Digital Trigger Tension Meters are used to measure tension(s) on fine wires and filaments, where tensions do not exceed 5,000 grams

---

Price: Call for Price

---

13 Capacities up to 4,500 lbs / 20kN

---

For material diameters: 0.112" - 0.709" / 3 to 18mm

---

Manufacturer: Honigmann

---

Warranty: One Year

---

Price: Call for Price

---

Heavy Duty Tension Meter

---

12 Ranges 5kg up to 500kg

---

200% overload protection

---

Price: Call for Price

---

Wire / Cable Tension Meter

---

Designed for measuring wires and cables that are fixed at both ends (closed system)

---

5 Ranges up to 1000lbs / 500 Kg / 5000N

---

Price $8,995.00

---

4 Rangers up to 44,000 lbf Capacity

---

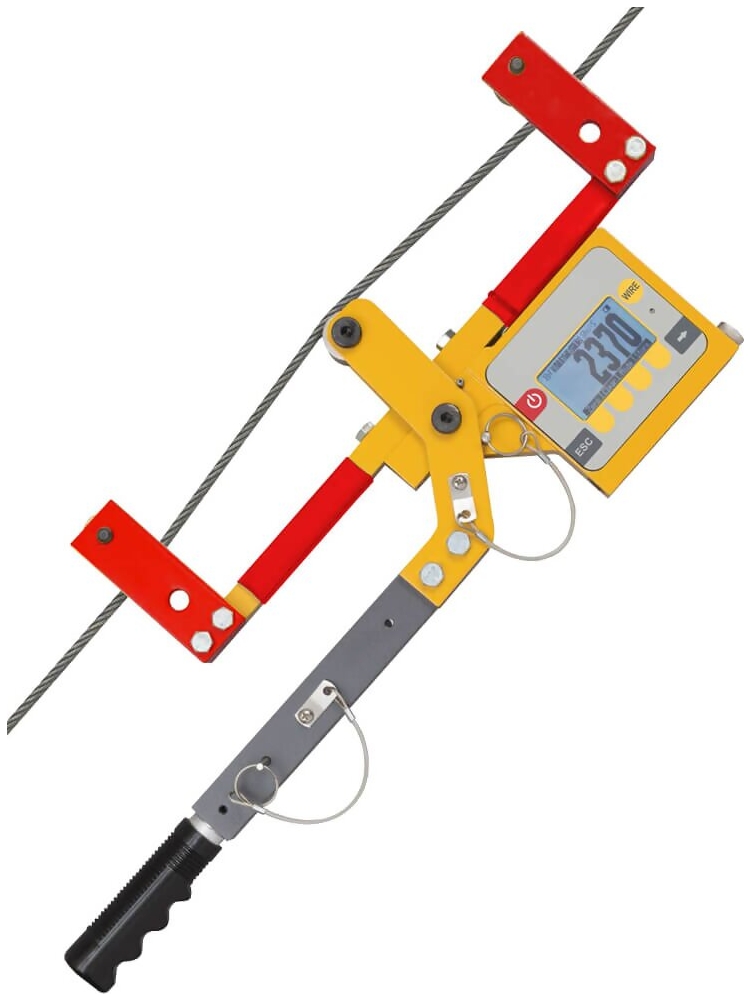

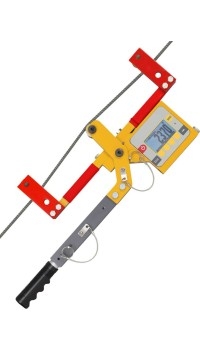

High-Capacity Cable Tension Meter

---

Manufacturer: Checkline

---

Warranty: One Year

---

Price: Call for Price

---

Fixed Cables, Wire Rope and Guy Wires

---

0-100 emperical unit scale

---

Calibration with measurement sample required

---

Price: $2,295.00

---

Dillon Quick Balance Elevator Cable Tension Meter Part No. AWT15-500844

---

Elevator Inspections
– Quickly balance wire ropes
– Measure total weight of car

---
