F.A.Q.
What is the difference between a link-style tension Dynamometer and a running line tensiometer?
A link-style Dynamometer (such as the Dillon EDXtreme or Crosby Straightpoint Radiolink Plus) is rigged inline between two shackles at a dead-end anchor or crane hook to measure static suspended loads or straight-line pulls. A running line tensiometer (such as the Straightpoint TIMH or CableSafe) uses a 5-sheave roller geometry that clamps onto a continuous wire or synthetic rope, measuring live line tension, speed, and distance while the cable is actively moving through a winch or capstan.
When should I choose a load shackle over a standard tension link Dynamometer?
Choose Straightpoint Shackle Load Cells (Loadshackles) when vertical headroom is restricted. A standard link Dynamometer requires two shackles (upper and lower), which adds vertical length to the rigging path. A load shackle integrates a shear-pin load sensor directly inside a Crosby 2130 or 2140 anchor shackle, saving substantial headroom in compact hoists, theatrical rigging, and offshore lifts.
Should I select Bluetooth or 2.4 GHz wireless telemetry for remote load monitoring?
- Bluetooth Load Cells (Dillon EDXtreme-Blue, Straightpoint BlueLink, CableSafe, ChainSafe) connect directly to iOS and Android smartphones or tablets at ranges up to 164–328 ft (50–100 m) without requiring a dedicated handheld receiver—ideal for mobile field crews and quick PDF/CSV site reporting.
- 2.4 GHz Long-Range Radio Systems (Crosby Straightpoint RLP and Dillon "Red" EDXtreme Radio) provide extended line-of-sight ranges from 600 ft (183 m) up to 3,280 ft (1,000 m) and allow simultaneous multi-point load summation on a dedicated handheld communicator (EDX-COMM-II or SW-HHP) or PC software (INSIGHT / SW-MWLC).
Do Dynamometers in this category include shackles and NIST-Traceable Calibration Certificates?
All Dillon AP, Dillon EDjunior, Dillon EDXtreme, and Dillon EDXtreme-Blue models up to 25,000 lbs (and most higher capacities) include a matched pair of shackles and a NIST-traceable calibration certificate as standard. On Crosby Straightpoint RLP Radiolink Plus listings, models with the -WS suffix include two Crosby shackles, while -TS models are supplied without shackles (which can also be ordered separately via our Straightpoint Crosby Shackles page).
Dillon AP Mechanical Dynamometer
$1,700.00 - $10,649.00
FREE Ground Shipping
About this item
View More Details
- Mechanical Dillon AP Dynamometers
- For tension, traction and weight measurement
- Available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons
View More Details

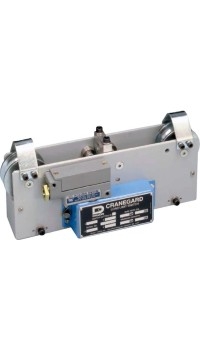

Dillon CraneGard Clamp-on Load Cell Cable Overload Protection
Discontinued Product
About this item
View More Details
- Clamp-on Load Cell Cable Overload Protection
- Clamps on cables for wire rope hoist, elevator and crane overload prevention and slackline detection.
- Installs in minutes with screwdriver and Allen wrench.
View More Details
Dillon EDjunior Dynamometer
$2,235.00 - $3,730.00
FREE Ground Shipping
About this item
View More Details
- Dillon Digital Dynamometer
- 4 Ranges up to 25,000 Lb-f/ 10,000 kgf / 100,000 N
- Manufacturer: Dillon
- Warranty: One Year
View More Details
Dillon "Red" EDXtreme Dynamometer
$3,155.00 - $77,950.00
FREE Ground Shipping
About this item
View More Details
- Dillon EDxtreme Dynamometer
- 10 Ranges up to 550,000 Lb-f/ 250,000 kgf
- High resolution and accurate repeatable readings
View More Details
Dillon BCS Digital Crane Scale
$857.00 - $981.00
FREE Ground Shipping
About this item
View More Details
- The BCS digital / electronic crane scale is a precision scale for industrial weighing applications for use up to 10,000 lb / 5,000 kg
View More Details
Dillon EDX-COMM-II Remote Communicator for EDXtreme
$2,410.00 - $4,531.00
FREE Ground Shipping
About this item
View More Details
- Dillon EDX-COMM-II Remote Communicator AWT05-506447 for EDXtreme
- Manufacturer: Dillon
- Warranty: One Year
View More Details
Dillon EDXtreme-Blue-Dynamometer Digital Dynamometer
$4,618.00 - $7,263.00
FREE Ground Shipping
About this item
View More Details
- 0.1% Accuracy Full Scale
- Capacities from 2,500-25,000lb (1,000-10,000kg)
- All models include 2 shackles that mate with most hooks and hardware
View More Details
Dillon AP Mechanical Dynamometer
$1,700.00 - $10,649.00
FREE Ground Shipping
About this item
View More Details
- Mechanical Dillon AP Dynamometers
- For tension, traction and weight measurement
- Available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons
View More Details
Dillon EDjunior Dynamometer
$2,235.00 - $3,730.00
FREE Ground Shipping
About this item
View More Details
- Dillon Digital Dynamometer
- 4 Ranges up to 25,000 Lb-f/ 10,000 kgf / 100,000 N
- Manufacturer: Dillon
- Warranty: One Year
View More Details
Dillon "Red" EDXtreme Dynamometer
$3,155.00 - $77,950.00
FREE Ground Shipping
About this item
View More Details
- Dillon EDxtreme Dynamometer
- 10 Ranges up to 550,000 Lb-f/ 250,000 kgf
- High resolution and accurate repeatable readings
View More Details
Dillon BCS Digital Crane Scale
$857.00 - $981.00
FREE Ground Shipping
About this item
View More Details
- The BCS digital / electronic crane scale is a precision scale for industrial weighing applications for use up to 10,000 lb / 5,000 kg
View More Details
Dillon EDX-COMM-II Remote Communicator for EDXtreme
$2,410.00 - $4,531.00
FREE Ground Shipping
About this item
View More Details
- Dillon EDX-COMM-II Remote Communicator AWT05-506447 for EDXtreme
- Manufacturer: Dillon
- Warranty: One Year
View More Details
Dillon EDXtreme-Blue-Dynamometer Digital Dynamometer
$4,618.00 - $7,263.00
FREE Ground Shipping
About this item
View More Details
- 0.1% Accuracy Full Scale
- Capacities from 2,500-25,000lb (1,000-10,000kg)
- All models include 2 shackles that mate with most hooks and hardware
View More Details
Dillon CraneGard Clamp-on Load Cell Cable Overload Protection
Discontinued Product
About this item
View More Details
- Clamp-on Load Cell Cable Overload Protection
- Clamps on cables for wire rope hoist, elevator and crane overload prevention and slackline detection.
- Installs in minutes with screwdriver and Allen wrench.
View More Details
