IRHD Hardness Testers
F.A.Q.
How does the IRHD dead-weight principle eliminate surface and operator errors compared to Shore Durometers?
In a spring-loaded Shore Durometer, the reading is referenced against the flat presser foot, which can be skewed by surface texture, curved geometries, or variable spring friction. In an IRHD Micro or IRHD Macro tester, a motorized mechanism lowers a minor preload weight (0.85 gf for Micro; 30.5 gf for Macro) onto the spherical indenter to establish the 100 IRHD zero reference directly on the specimen surface, and then lowers the major weight (15.63 gf for Micro; 581 gf for Macro) for 30 seconds. Measuring the differential penetration between these two gravity-driven loads guarantees exceptional lab-to-lab reproducibility.
Why is a centering device necessary when testing O-rings?
When measuring a small O-ring (especially cord diameters under 3 mm), the spherical indenter must strike the exact apex (crown) of the cross-section. If the indenter is off-center by even 0.1 mm, the ball will slide down the curved wall and produce an inaccurate reading. Mechanical self-centering V-blocks (like the Hildebrand IRHD-ORCD) or laser-guided turntables align the O-ring apex directly beneath the indenter axis.
When should I choose IRHD-MICRO versus IRHD-MACRO?
- Select the Hildebrand IRHD-MICRO for thin rubber sheets from 1.0 mm to 5.0 mm thick, small O-rings, gaskets, and thin-walled profiles.
- Select the Hildebrand IRHD-MACRO for standard laboratory test slabs and thick molded rubber parts 6.0 mm and greater.
What validation package is available for the Bareiss GELOMAT in pharmaceutical laboratories?
The Bareiss GELOMAT Automatic Capsule Hardness Tester is engineered specifically for regulated pharmaceutical QA/QC environments, offering FDA 21 CFR Part 11 compliant software (with user access levels, electronic signatures, and unalterable audit trails) along with a complete 3-Q Validation Report (IQ / OQ / PQ).

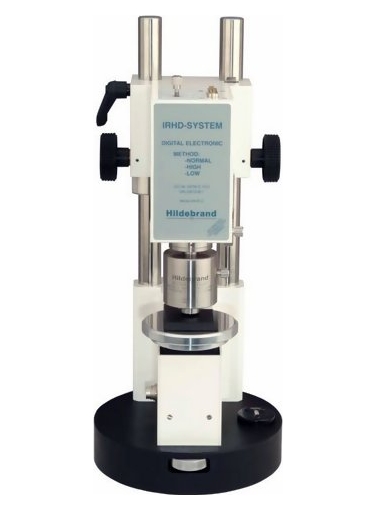

Hildebrand IRHD-MACRO Macro IRHD Hardness Tester
Call for Price
About this item
View More Details
- Macro IRHD Hardness Measuring System
- For material thickness 6mm and greater
- For testing according to ASTM D1415, DIN ISO 48, ISO 48 and DIN 53505
View More Details

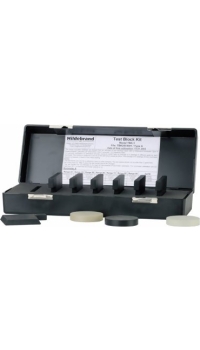

Hildebrand IRHD-MACRO-TB Test Block Set for Verification of IRHD-MACRO
Call for Price
About this item
View More Details
- Hildebrand IRHD-MACRO-TB Test Block Set for Verification of IRHD-MACRO
- Manufacturer: Hildebrand
- Warranty: One Year
View More Details

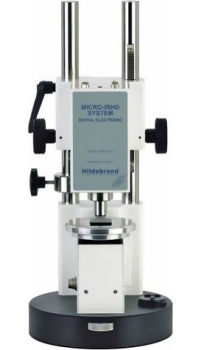

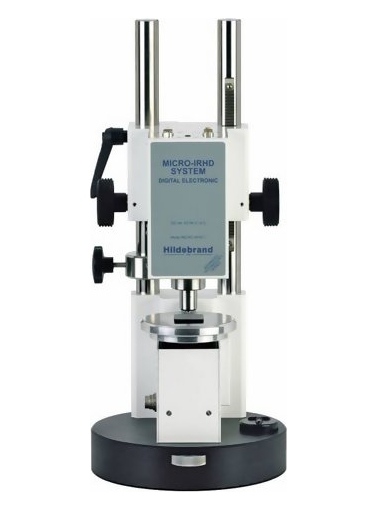

Hildebrand IRHD-MICRO IRHD Micro Hardness Tester
Call for Price
About this item
View More Details
- Hildebrand IRHD-MICRO IRHD Micro Hardness Tester
- For material thickness from 1 to 5 mm
- Measures according to DIN ISO 48, ISO 48, ASTM D 1415, BS 903: Part A26
View More Details
Hildebrand IRHD-MICRO-TB Test block
Call for Price
About this item
View More Details
- Hildebrand IRHD-MICRO-TB Test block for verification of IRHD-MICRO Measuring Device
- Manufacturer: Hildebrand
- Warranty: One Year
View More Details

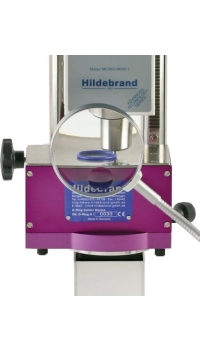

Hildebrand IRHD-ORCD O-Ring Centering Device for IRHD-MICRO
Call for Price
About this item
View More Details
- Hildebrand IRHD-ORCD O-Ring Centering Device for IRHD-MICRO
- Manufacturer: Hildebrand
- Warranty: One Year
View More Details

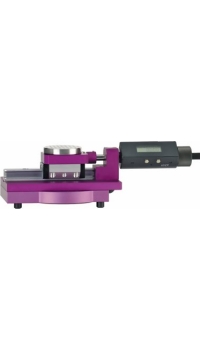

Hildebrand IRHD-XTCD X-Table Centering Device
Call for Price
About this item
View More Details
- Hildebrand IRHD-XTCD X-Table Centering Device
- Manufacturer: Hildebrand
- Warranty: One Year
View More Details

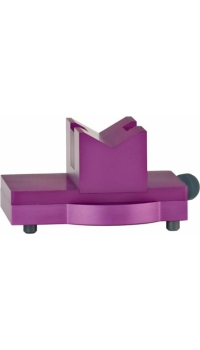

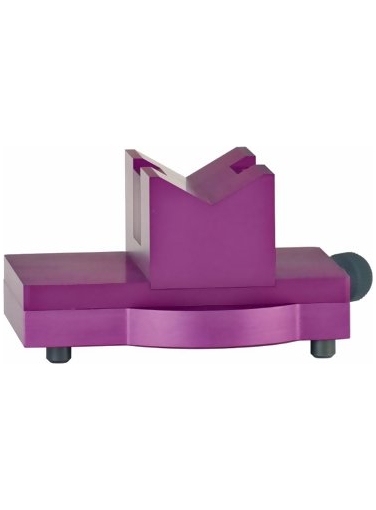

Hildebrand PRISM-CD Prism Centering Device for IRHD and Durometer Stands
Call for Price
About this item
View More Details
- Hildebrand PRISM-CD Prism Centering Device for IRHD and Durometer Stands
- Manufacturer: Checkline
- Warranty: One Year
View More Details

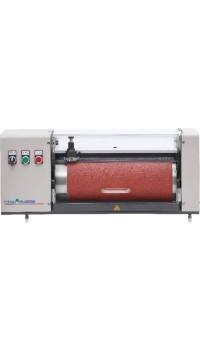

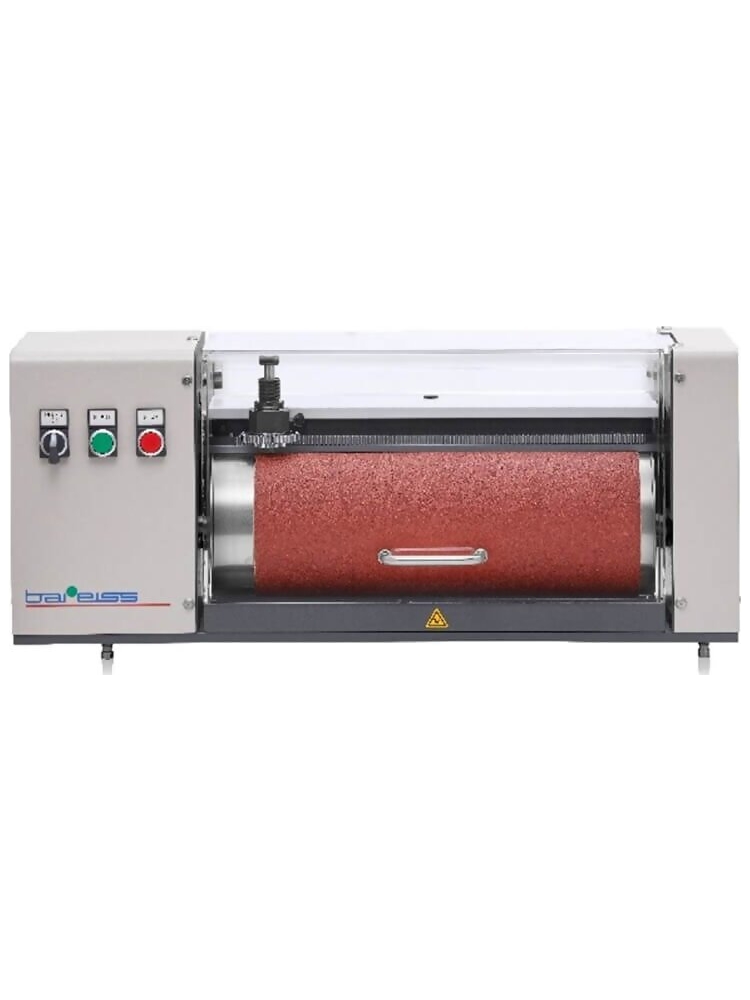

Bareiss Abrasion Tester Rubber Hardness Abrasion Testing Instruments
Call for Price
About this item
View More Details
- Abrasion tester for rubber products such as tires, conveyor belts, tubes, shoe soles, floor coatings, etc.
View More Details

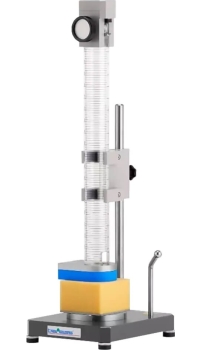

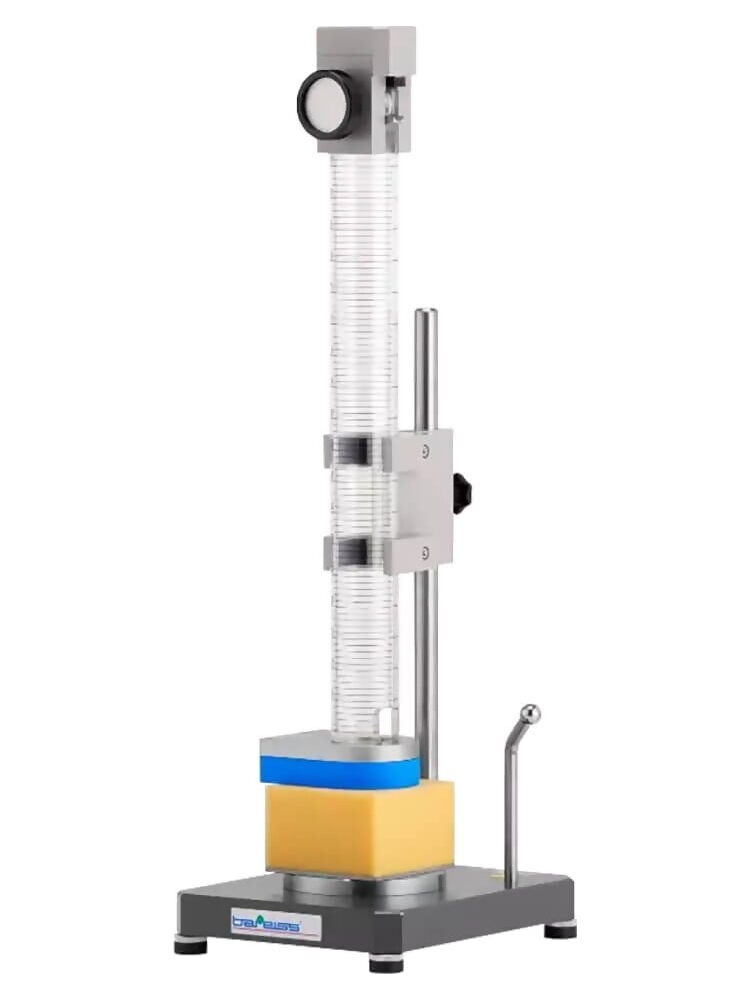

Bareiss Ball Rebound Tester - Polymer Foams Tester
Call for Price
About this item

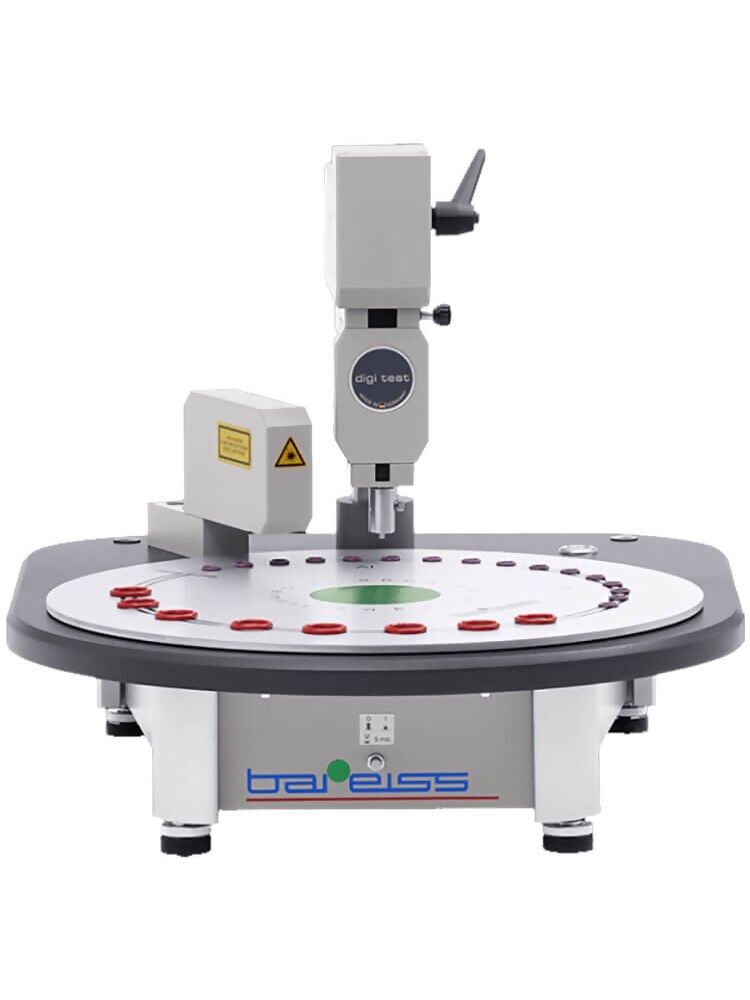

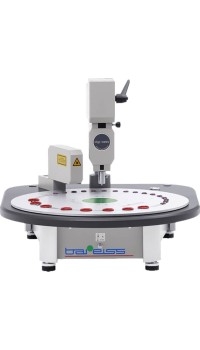

Bareiss BaRotation Automatic O-Ring Hardness And Thickness Tester
Call for Price
About this item

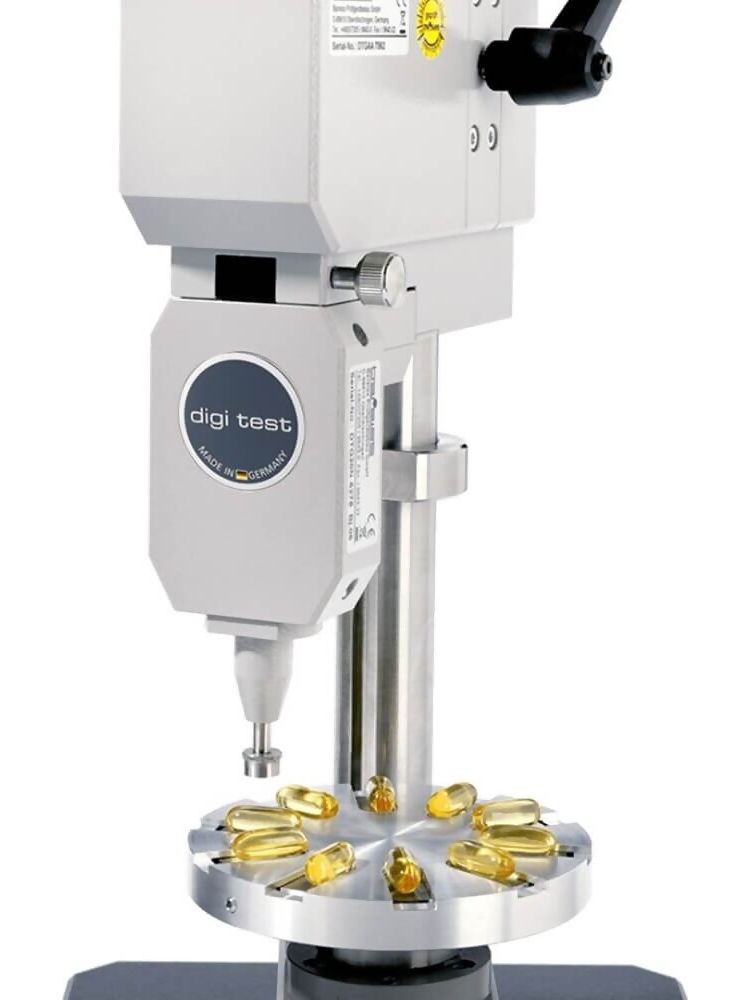

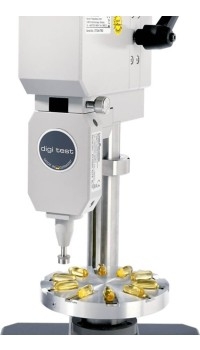

Bareiss GELOMAT Automatic Capsule Hardness Tester
Call for Price
About this item
View More Details
- Fully automatic gelatin capsule digital hardness test system
- FDA 21 CFR Part 11 Compliant with a 3-Q Validation Report
View More Details
