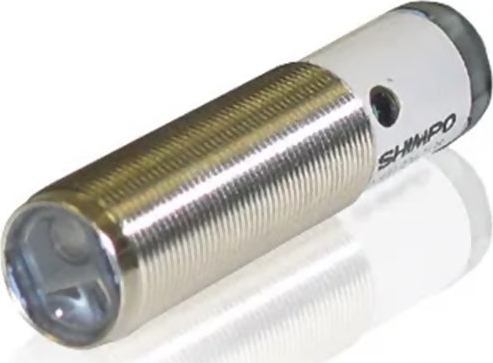

    Shimpo LS-S50MLR Photo Reflective Sensor


    LS-S50ML is a laser sensor that can be taught to recognize difference in colors

    The Shimpo LS-S50MLR Photo Reflective Sensor is a laser sensor that can be taught to recognize difference in colors. It is a class 1 red laser with switching frequency of 1.5KHZ. Contained in a metal housing with 6ft of cable, which can be utilized for different operations including stroboscopes, counters and panel tachometers. It includes a trimmer potentiometer that is located on the side for minimum and optimum sensitivity adjustments. Can be used in normally closed or normally open operation, NPN type of output, with a yellow LED for signal indication and a green LED for power


    line
    Features
    line

    • Visible Red Light Source
    • Rugged Metal Housing
    • NPN or PNP Connection
    • Mounting accessories and cable included


    line
    Specifications
    line

    Sensing Range25 - 400 mm
    Sensing HeadStraight
    OutputNPN normally Open
    NPN normally Closed
    PNP normally Open
    PNP normally Closed
    Load Current200 mA max
    Voltage Drop
    Short Circuit and Overload ProtectionYes
    Reverse Polarity ProtectionYes
    Supply Voltage10 - 30 VDC
    Voltage Ripple10%
    LED IndicatorsYes (2)
    Current Consumption<= 30 mA
    Operating ModeLight on / Dark on
    Response Time<= 1.0 ms
    Switching Frequency500 Hz
    Protection (IEC)IP67
    Light Spot Size~0.5 mm at range of 170 mm
    Ambient Light Resistance<= 30,000 Lux
    Working Temperature-13 F to 158 F
    Storage Temperature-22 F to 158 F
    Housing MaterialNickel-plated Brass
    Weight2.1 oz
    Light SourceVisible Red Laser 660 nm
    Electrical ConnectionQuick Disconnect


    line
    Downloads
    line

    LS-S50MLR Photo Reflective Sensor - Instruction Manual
