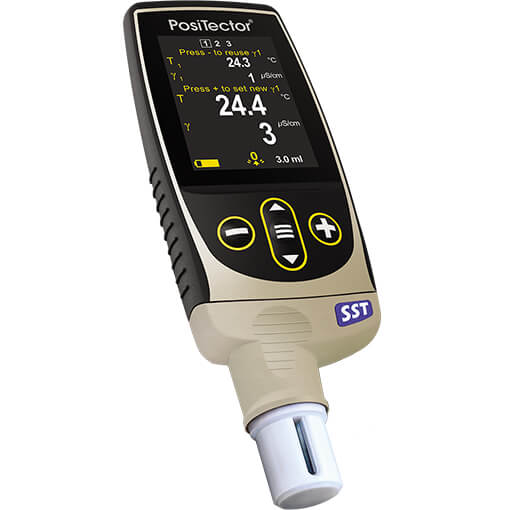

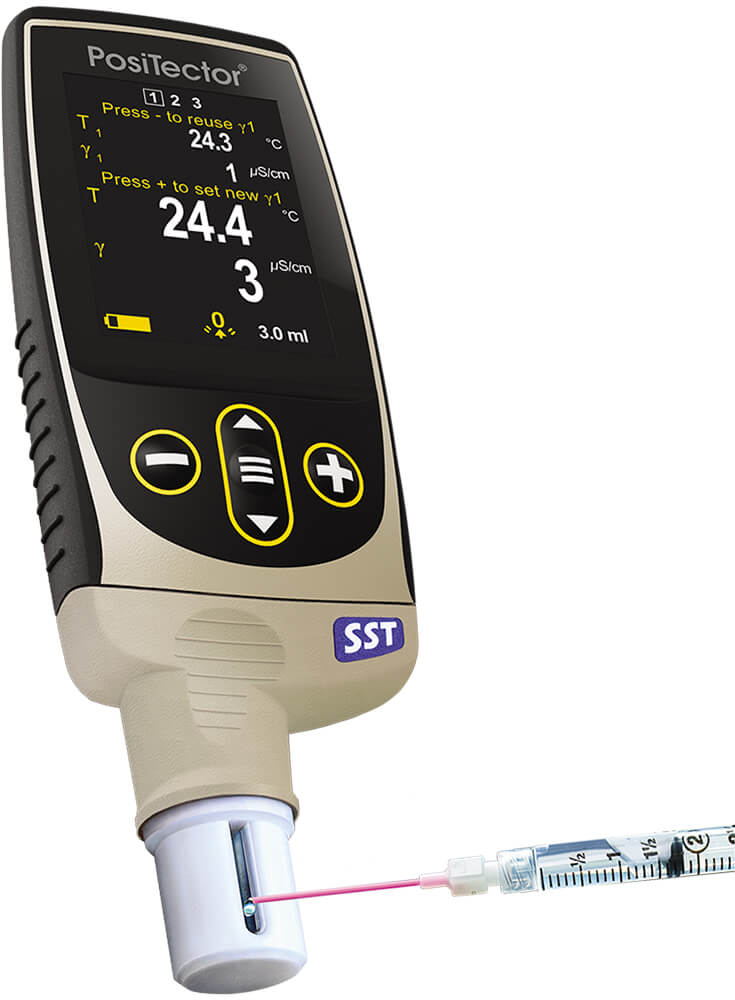

DeFelsko PosiTector SST


Soluble Salt Tester for measuring the concentration of soluble salts on metal surfaces

Measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9.

  • Conductivity probe specifically designed for ISO 8502-6, 9
  • Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
  • Easy 1-2-3 gage interface guides users through the Bresle test method
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • PosiTector interchangeable platform - attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, Navy NAVSEA 009-32, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940


line
DeFelsko PosiTector SST Standard Soluble Salt Tester: 5 Models Available
line

DeFelsko SST1 PosiTector Soluble Salt Tester Standard Body DeFelsko SSTKITP1 PosiTector Soluble Salt Tester PosiPatch Kit DeFelsko SSTKITPF1 PosiTector Soluble Salt Tester PosiPatch Kit DeFelsko SSTKITD1 PosiTector Soluble Salt Tester Adhesive Patch Kit DeFelsko SSTKITL1 PosiTector Soluble Salt Tester Latex Patch Kit
INCLUSIONS INCLUSIONS INCLUSIONS INCLUSIONS INCLUSIONS
PosiTector Standard Gage Body PosiTector Standard Gage Body PosiTector Standard Gage Body PosiTector Standard Gage Body PosiTector Standard Gage Body
PosiTector SST Probe PosiTector SST Probe PosiTector SST Probe PosiTector SST Probe PosiTector SST Probe
--- PosiPatch (5) PosiPatch (5) DeFelsko Adhesive Patch (25) Latex Adhesive Patch (25)
--- Standard Magnetic Ring Flexible Magnetic Ring --- ---
--- Syringe and Plastic Tip (2) Syringe and Plastic Tip (2) Syringe and Needle (2) Syringe and Needle (2)
--- 250 ml DI Water 250 ml DI Water 250 ml DI Water 250 ml DI Water
Nylon carrying case Cup (5) Cup (5) Cup (5) Cup (5)
with shoulder strap Hard-shell Carrying Case Hard-shell Carrying Case Hard-shell Carrying Case Hard-shell Carrying Case


line
DeFelsko PosiTector SST Advanced Soluble Salt Tester: 5 Models Available
line

DeFelsko SST3 PosiTector Soluble Salt Tester Advanced Body DeFelsko SSTKITP3 PosiTector Soluble Salt Tester PosiPatch Kit DeFelsko SSTKITPF3 PosiTector Soluble Salt Tester PosiPatch Kit DeFelsko SSTKITD3 PosiTector Soluble Salt Tester Adhesive Patch Kit DeFelsko SSTKITL3 PosiTector Soluble Salt Tester Latex Patch Kit
INCLUSIONS INCLUSIONS INCLUSIONS INCLUSIONS INCLUSIONS
PosiTector Advanced Gage Body PosiTector Advanced Gage Body PosiTector Advanced Gage Body PosiTector Advanced Gage Body PosiTector Advanced Gage Body
PosiTector SST Probe PosiTector SST Probe PosiTector SST Probe PosiTector SST Probe PosiTector SST Probe
--- PosiPatch (5) PosiPatch (5) DeFelsko Adhesive Patch (25) Latex Adhesive Patch (25)
--- Standard Magnetic Ring Flexible Magnetic Ring --- ---
--- Syringe and Plastic Tip (2) Syringe and Plastic Tip (2) Syringe and Needle (2) Syringe and Needle (2)
--- 250 ml DI Water 250 ml DI Water 250 ml DI Water 250 ml DI Water
Nylon carrying case Cup (5) Cup (5) Cup (5) Cup (5)
with shoulder strap Hard-shell Carrying Case Hard-shell Carrying Case Hard-shell Carrying Case Hard-shell Carrying Case


line
DeFelsko PosiTector SST Probe Only Soluble Salt Tester: 5 Models Available
line

DeFelsko PRBSST PosiTector Soluble Salt Tester Probe Only DeFelsko SSTKITP PosiTector Soluble Salt Tester Probe Only Kit DeFelsko SSTKITPF PosiTector Soluble Salt Tester Probe Only Kit DeFelsko SSTKITD PosiTector Soluble Salt Tester Probe Only Kit DeFelsko SSTKITL PosiTector Soluble Salt Tester Probe Only Kit
INCLUSIONS INCLUSIONS INCLUSIONS INCLUSIONS INCLUSIONS
PosiTector SST Probe Only PosiTector SST Probe Only PosiTector SST Probe Only PosiTector SST Probe Only PosiTector SST Probe Only
--- PosiPatch (5) PosiPatch (5) DeFelsko Adhesive Patch (25) Latex Adhesive Patch (25)
--- Standard Magnetic Ring Flexible Magnetic Ring --- ---
--- Syringe and Plastic Tip (2) Syringe and Plastic Tip (2) Syringe and Needle (2) Syringe and Needle (2)
--- 250 ml DI Water 250 ml DI Water 250 ml DI Water 250 ml DI Water
--- Cup (5) Cup (5) Cup (5) Cup (5)


lineDeFelsko PosiTector Gage Bodies: Feature Comparison Chartline

Feature Comparison Chart DeFelsko Positector 6000 Standard Body
Standard
DeFelsko Positector 6000 Advanced Body
Advanced
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
Easy 1-2-3 gage interface guides users through the Bresle test method
NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
NEW Auto rotating display with Flip Lock
NEW Screen Capture - save 100 screen images for record keeping and review
NEW Up to 30% longer battery life
Reading Storage Capacity 1,000 per probe 250,000 in up to 1,000 batches
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more ---
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates ---
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software ---
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols ---

For use with the: DeFelsko PosiTector 6000DeFelsko PosiTector 200DeFelsko PosiTector SPGDeFelsko PosiTector RTR HDeFelsko PosiTector RTR 3DDeFelsko PosiTector DPMDeFelsko PosiTector IRTDeFelsko PosiTector SST , DeFelsko PosiTector UTGDeFelsko PosiTector SHDDeFelsko PosiTector BHI


line
DeFelsko PosiTector SST Probe Only Soluble Salt Tester Videos
line


line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

  • PosiSoft Desktop
  • PosiSoft.net
  • PosiTector App
  • PosiSoft USB


lineDeFelsko Accessoriesline


Accessories for DeFelsko Inspection Instruments - Online Catalog


line
F.A.Q.line

Why is salt contamination measurement important?

The presence of soluble salts has been shown to have a significant negative effect on coating performance and leads to premature coating failure. Salts remaining beneath a protective coating create an osmotic force that draws water from the atmosphere through the paint layer. The pressure created by this water underneath the coating overcomes the adhesive bond between the coating and substrate, resulting in corrosion, osmotic blistering and eventual coating failure. It is therefore critical to ensure that a substrate is free from soluble salt contamination before painting.

What is measured with the PosiTector SST?

The PosiTector SST includes a certified and traceable conductivity probe specifically designed for ISO 8502-6,9. Included with each probe is a Long Form Certificate of Calibration. The following parameters are measured by the PosiTector SST:

  • Conductivity (μS/cm)
  • Sampling Temperature (C° or F°) normalized to 25°C
  • Test duration

Using the measured conductivity value and the sample test volume (set within the gage menu), the surface density of the salts (mg/m2 or μg/cm2) is automatically calculated in accordance with ISO 8502-9, saving the gage operator time and eliminating the chance of a calculation error.

What are some typical applications?

The PosiTector SST is ideal for:

  1. Testing substrates for the presence of soluble salts in accordance with ISO 8502-6,9 (the Bresle Method)
  2. Testing blast media in accordance with ASTM 4940 and ISO 11127-6 (determination of water-soluble contaminates in abrasives by conductivity measurement)
  3. Testing the conductivity of water within the range of 0-500 μS/cm
How is the PosiTector SST conductivity probe different than the conventional conductivity meters included with most other test kits?

The PosiTector SST conductivity probe is specifically designed for ISO 8502-6,9 and has a number of features not found in conventional conductivity meters including . . .

  • An onscreen user interface to walk users through the Bresle test method, simplifying the task
  • Tracking and reporting of test duration (the total time of contact between the solvent and substrate) as required by ISO 8502-6
  • Automatic calculation of surface density with adjustments for different patch volumes – works with ANY Bresle-type patch
  • Free software for viewing and reporting data
  • Long form certificate of calibration traceable to NIST included at no extra charge. A certificate also comes with the included conductivity standard (calibration solution).
  •  Automatic 25°C temperature normalization
  • Sample temperature recording as required by ISO 8502-9
  • Purpose-built, 1 ml test cell is optimized for the range, resolution and test volume of the Bresle Method
  • Rugged, stainless steel electrodes – ideal for industrial environments
  • Two year warranty

What information does the PosiTector SST save in its memory for each test?

What information does the PosiTector SST save in its memory for each test?.

  • Date and time of test
  • Test duration (the total time of contact between the solvent and substrate)
  • Background sample temperature (°C or °F)
  • Final sample temperature (°C or °F)
  • Increase in conductivity between background and final sample (μS/cm)
  • Calculated surface density of soluble salts (mg NaCl/m2, mg CL/m2, μg NaCl/cm2, or μg Cl/cm2)
Do your instruments require any formal training for use? Do you offer ‘demo’ models?

No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.

Does the PosiTector SST need to be calibrated prior to use?

The PosiTector SST arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST or PTB is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.

A Verification of Accuracy can be performed by the user by measuring known reference standards such as the supplied conductivity standard.

Does the PosiTector SST measure the concentration of individual salt ions?

The PosiTector SST measures the overall conductivity of the test solution, and using calculations specified in ISO 8502-9, converts this value into a total surface density of salts.

Does the PosiTector SST display readings in PPM of salt?

The PosiTector SST is built specifically for the Bresle test method which does not address PPM calculations. While empirical conversion factors exist for converting PPM to surface density, these are not recognized by any test method.

Can the PosiTector SST probe be immersed in the fluid it is testing?

Yes. By immersing only the test cell, the PosiTector SST is ideal for testing the conductivity of water within the range of 0-500 μS/cm.

Can the PosiTector SST be used to measure the salt concentration in blast media?

Yes. The PosiTector SST can be used as a conventional conductivity meter making it ideal for testing abrasive materials in accordance with ISO 11127-6 and ASTM D4940-15.

How often should the PosiTector probe be recalibrated?

PosiTector probes include a Certificate of Calibration with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.



  • DeFelsko SST1-G PosiTector SST1 Soluble Salt Tester Standard Kit

    DeFelsko SST1-G PosiTector SST1 Soluble Salt Tester Standard Kit
    Price: $ 645.00
    DeFelsko SST1-G PosiTector SST1 Soluble Salt Tester Standard Kit
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included.
  • DeFelsko SST3-G PosiTector SST3 Soluble Salt Tester Advanced Kit

    DeFelsko SST3-G PosiTector SST3 Soluble Salt Tester Advanced Kit
    Price: $1,045.00
    DeFelsko SST3-G PosiTector SST3 Soluble Salt Tester Advanced Kit
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included
  • DeFelsko PRBSST PosiTector SST Soluble Salt Tester Probe Only

    DeFelsko PRBSST PosiTector SST Soluble Salt Tester Probe Only
    Price: $ 365.00
    DeFelsko PRBSST PosiTector SST Soluble Salt Tester Probe Only (Gauge not Included)
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included

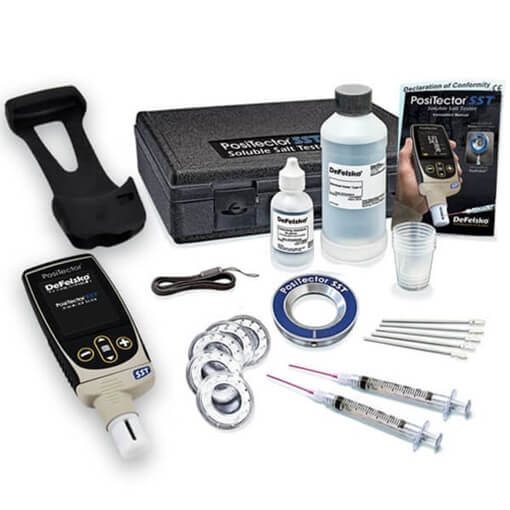

  • DeFelsko SSTKITP1-G PosiTector SST Soluble Salt Tester PosiPatch Standard Kit

    DeFelsko SSTKITP1-G PosiTector SST Soluble Salt Tester PosiPatch Standard Kit
    Price: $1025.00
    DeFelsko SSTKITP1-G PosiTector SST Soluble Salt Tester PosiPatch Standard Kit with PosiTector Standard Gage Body, PosiTector SST Probe, PosiPatch (5), Standard Magnetic Ring*, Syringe and Plastic Tip (2), 250 ml DI Water, Cup (5), Hard-shell Carrying Case
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
  • DeFelsko SSTKITP3-G PosiTector SST Soluble Salt Tester PosiPatch Advanced Kit

    DeFelsko SSTKITP3-G PosiTector SST Soluble Salt Tester PosiPatch Advanced Kit
    Price: $ 1,425.00
    DeFelsko SSTKITP3-G PosiTector SST Soluble Salt Tester PosiPatch Advanced Kit with PosiTector Advanced Gage Body, PosiTector SST Probe, PosiPatch (5), Standard Magnetic Ring*, Syringe and Plastic Tip (2), 250 ml DI Water, Cup (5), Hard-shell Carrying Case
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included.

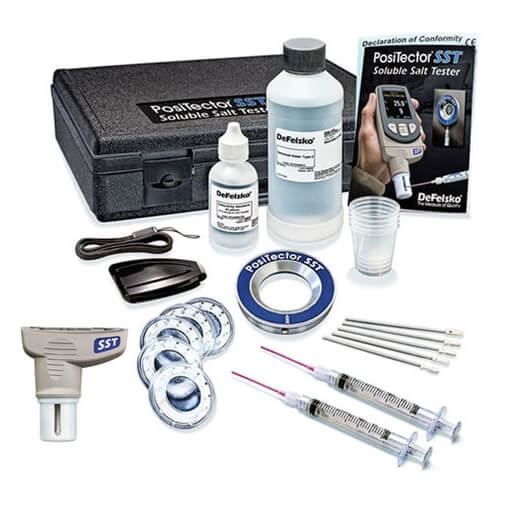

  • DeFelsko SSTKITP PosiTector SST Soluble Salt Tester PosiPatch Kit and Probe Only

    DeFelsko SSTKITP PosiTector SST Soluble Salt Tester PosiPatch Kit and Probe Only
    Price: $745.00
    DeFelsko SSTKITP PosiTector SST Soluble Salt Tester PosiPatch Kit & Probe Only (Gauge not Included)
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included.
  • DeFelsko SSTKITPF1-G PosiTector SST Soluble Salt Tester PosiPatch Standard Kit

    DeFelsko SSTKITPF1-G PosiTector SST Soluble Salt Tester PosiPatch Standard Kit
    Price: $1,025.00
    DeFelsko SSTKITPF1-E PosiTector SST Soluble Salt Tester PosiPatch Standard Kit with PosiTector Standard Gage Body, PosiTector SST Probe, PosiPatch (5), Flexible Magnetic Ring*, Syringe and Plastic Tip (2), 250 ml DI Water, Cup (5), Hard-shell Carrying Case
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
  • DeFelsko SSTKITPF3-G PosiTector SST Soluble Salt Tester PosiPatch Advanced Kit

    DeFelsko SSTKITPF3-G PosiTector SST Soluble Salt Tester PosiPatch Advanced Kit
    Price: $1,425.00
    DeFelsko SSTKITPF3-G PosiTector SST Soluble Salt Tester PosiPatch Standard Kit with PosiTector Advanced Gage Body, PosiTector SST Probe, PosiPatch (5), Flexible Magnetic Ring*, Syringe and Plastic Tip (2), 250 ml DI Water, Cup (5), Hard-shell Carrying Case
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof

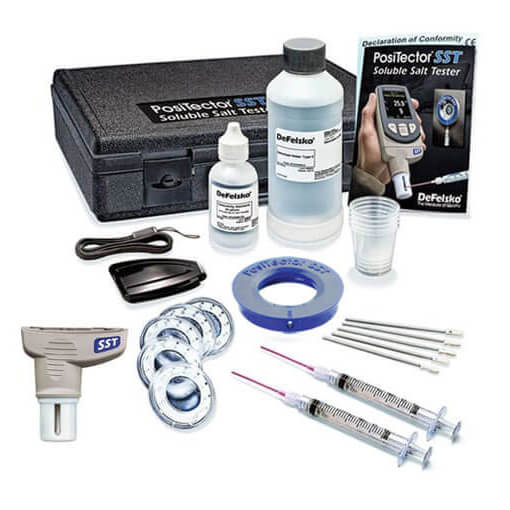

  • DeFelsko SSTKITPF PosiTector SST Soluble Salt Tester PosiPatch Kit and Probe Only

    DeFelsko SSTKITPF PosiTector SST Soluble Salt Tester PosiPatch Kit and Probe Only
    Price: $745.00
    DeFelsko SSTKITPF PosiTector SST Soluble Salt Tester PosiPatch Kit & Probe Only (Gauge not Included)
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included.

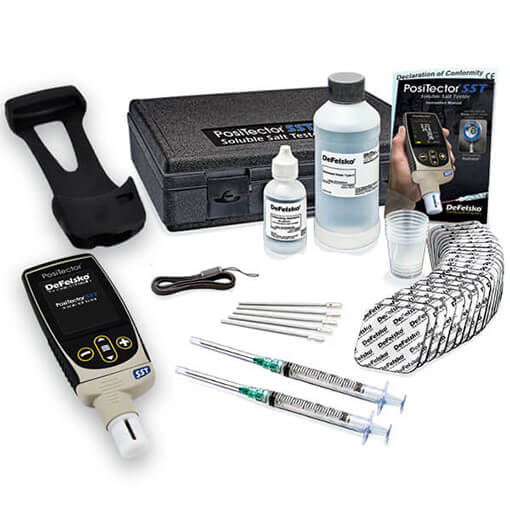

  • DeFelsko SSTKITD1-G PosiTector SST Soluble Salt Tester Adhesive Patch Standard Kit

    DeFelsko SSTKITD1-G PosiTector SST Soluble Salt Tester Adhesive Patch Standard Kit
    Price: $ 875.00
    DeFelsko SSTKITD1-G PosiTector SST Soluble Salt Tester Adhesive Patch Standard Kit with PosiTector Standard Gage Body, PosiTector SST Probe, DeFelsko Adhesive Patch (25), Syringe and Needle (2), 250 ml DI Water, Cup (5), Hard-shell Carrying Case
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included.
  • DeFelsko SSTKITD3-G PosiTector SST Soluble Salt Tester Adhesive Patch Advanced Kit

    DeFelsko SSTKITD3-G PosiTector SST Soluble Salt Tester Adhesive Patch Advanced Kit
    Price: $ 1,275.00
    DeFelsko SSTKITD3-G PosiTector SST Soluble Salt Tester Adhesive Patch Advanced with PosiTector Advanced Gage Body, PosiTector SST Probe, DeFelsko Adhesive Patch (25), Syringe and Needle (2), 250 ml DI Water, Cup (5), Hard-shell Carrying Case
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
    Long Form Certificate of Calibration showing traceability to NIST included.

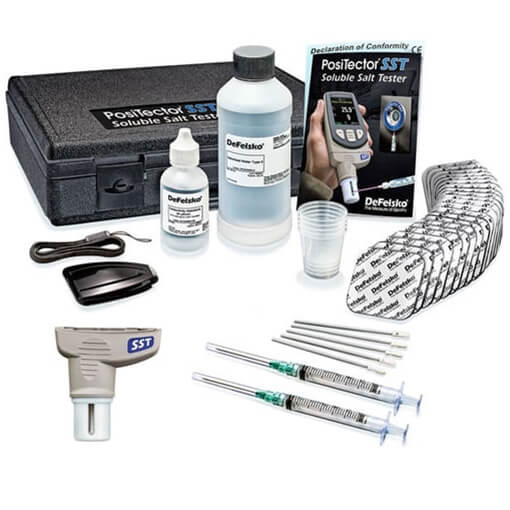

  • DeFelsko SSTKITD PosiTector SST Soluble Salt Tester Adhesive Patch Kit and Probe Only

    DeFelsko SSTKITD PosiTector SST Soluble Salt Tester Adhesive Patch Kit and Probe Only
    Price: $ 595.00
    DeFelsko SSTKITD PosiTector SST Soluble Salt Tester Adhesive Patch Kit & Probe only (Gauge not Included)
    Conductivity probe specifically designed for ISO 8502-6,9
    Solvent, acid, oil, water and dust resistant – weatherproof
