Hardness Testers and Durometers

Q: What is the difference between Shore A, Shore D, and Shore OO durometer scales?

All three scales comply with ASTM D2240 but use different spring forces and indenter tip geometries to match material stiffness: Shore OO uses a very light spring force (113 gf) and a spherical Ø 2.4 mm tip for ultra-soft foams, sponges, and gels. Shore A uses an 822 gf spring load and a blunt 35° frustum cone for normal soft-to-medium rubbers, elastomers, and soft PVC. Shore D uses a heavy 4,536 gf (10 lb) spring load and a sharp 30° cone for hard rubbers (above 90 Shore A) and rigid thermoplastics. When a specimen reads above 90 on the Shore A scale, ASTM D2240 recommends switching to a Shore D durometer; when a Shore D reading falls below 20, switch to Shore A.

Durometer Testers

IRHD Hardness Testers

Industrial Hardness Testers & Durometers for Elastomers, Plastics, Textiles & Metals

ABQ Industrial offers a comprehensive range of portable and laboratory Hardness Testers and Durometers organized across seven specialized subcategories: Barcol Hardness Testers, Durometers, Durometer Test Stands, Textile Durometers, IRHD Hardness Testers, Metal Hardness Testers, and Durometer Accessories. Partnering with world-class manufacturers including Checkline, Rex Gauge, Bareiss, Imada, Asker, Hildebrand, DeFelsko, Barber-Colman, and InnovaTest, our instruments deliver NIST-traceable compliance with ASTM, ISO, DIN, and NFPA standards.

F.A.Q.

What is the difference between Shore A, Shore D, and Shore OO durometer scales?

All three scales comply with ASTM D2240 but use different spring forces and indenter tip geometries to match material stiffness:

Shore OO uses a very light spring force (113 gf) and a spherical Ø 2.4 mm tip for ultra-soft foams, sponges, and gels.
Shore A uses an 822 gf spring load and a blunt 35° frustum cone for normal soft-to-medium rubbers, elastomers, and soft PVC.
Shore D uses a heavy 4,536 gf (10 lb) spring load and a sharp 30° cone for hard rubbers (above 90 Shore A) and rigid thermoplastics. When a specimen reads above 90 on the Shore A scale, ASTM D2240 recommends switching to a Shore D durometer; when a Shore D reading falls below 20, switch to Shore A.

Why should I choose an IRHD or Type M tester instead of Shore A for O-rings and thin sheets?

Standard Shore A durometers require a minimum flat specimen thickness of 6 mm (0.24"); on thinner sheets or curved O-rings, the indenter force penetrates through the rubber and senses the hard support table underneath, producing artificially high readings. IRHD Micro Hardness Testers (per ASTM D1415 / ISO 48) and Type M O-Ring Systems (like the Rex OTK-DG paired with the Rex OS-3 Stand) use micro indenters and low forces specifically designed to test materials from 0.030" (0.76 mm) to 5 mm and curved O-ring cross-sections without destructive cutting.

Why is a durometer test stand recommended for ASTM D2240 compliance?

Hand-held durometer readings vary between operators due to differences in pressing force, approach speed, and angular tilt. Mounting your durometer on a constant-load or motorized stand from our Durometer Test Stands subcategory—such as the Imada YMS Motorized Stand, Imada SY Lever Stand, or Rex OS-2H Hydraulic Dampened Stand—applies the exact ASTM D2240 mass (1 kg for Type A/B/E/O, 5 kg for Type C/D/DO, or 400 g for Type OO/OOO) at a controlled descent rate and strictly perpendicular contact angle.

How do I verify durometer accuracy in the field or laboratory?

Per ASTM D2240, durometers should be checked regularly against certified reference blocks to verify spring calibration and indenter condition. ABQ Industrial supplies Rex Durometer Test Block Kits (TBKC Series) with NIST-traceable certificates, Checkline TBK-HP / HP-PT Test Blocks, Hildebrand IRHD Test Block Sets, and the Rex RDC-1 Durometer Calibrator for full in-house spring-force calibration.

Bareiss Durometer Testers

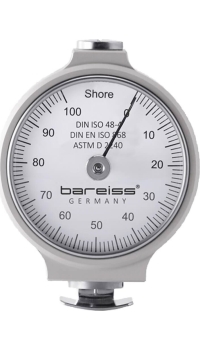

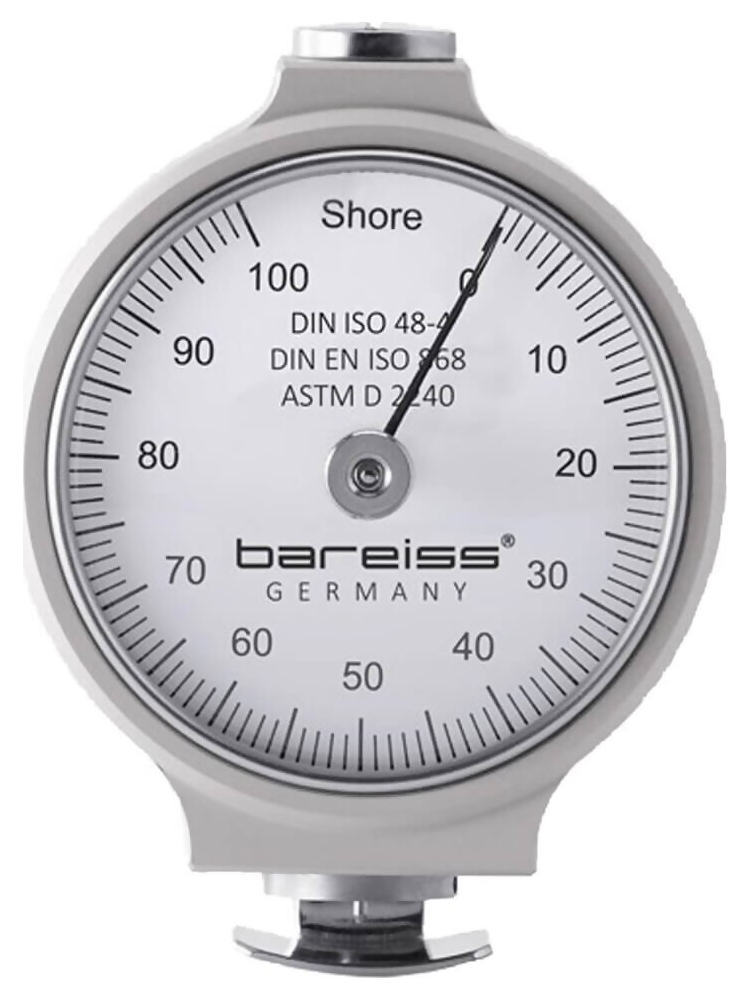

Bareiss HP Analog Durometer

$1,650.00 - $3,142.00

FREE Ground Shipping

About this item

Bareiss HP Analog Durometer

Bareiss HP Analog Durometer
Available Scales: A, D, O, B C, DO, AO, E, OO, OOO, OOOS, E & Asker C

View More Details

Bareiss HP-DIGITAL Basic Digital Durometer

$900.00 - $1,020.00

FREE Ground Shipping

About this item

Bareiss HP-DIGITAL Basic Digital Durometer

Conforms to ASTM D2240, DIN ISO 868 and 48-4
Adjustable Capture Time
Memory for 100 readings

View More Details

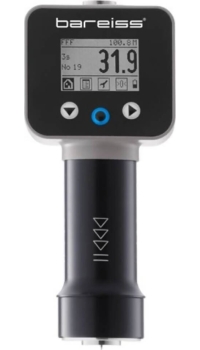

Bareiss HPE-III-Fff Fruit Firmness Tester

$7,188.00 - $7,914.00

FREE Ground Shipping

About this item

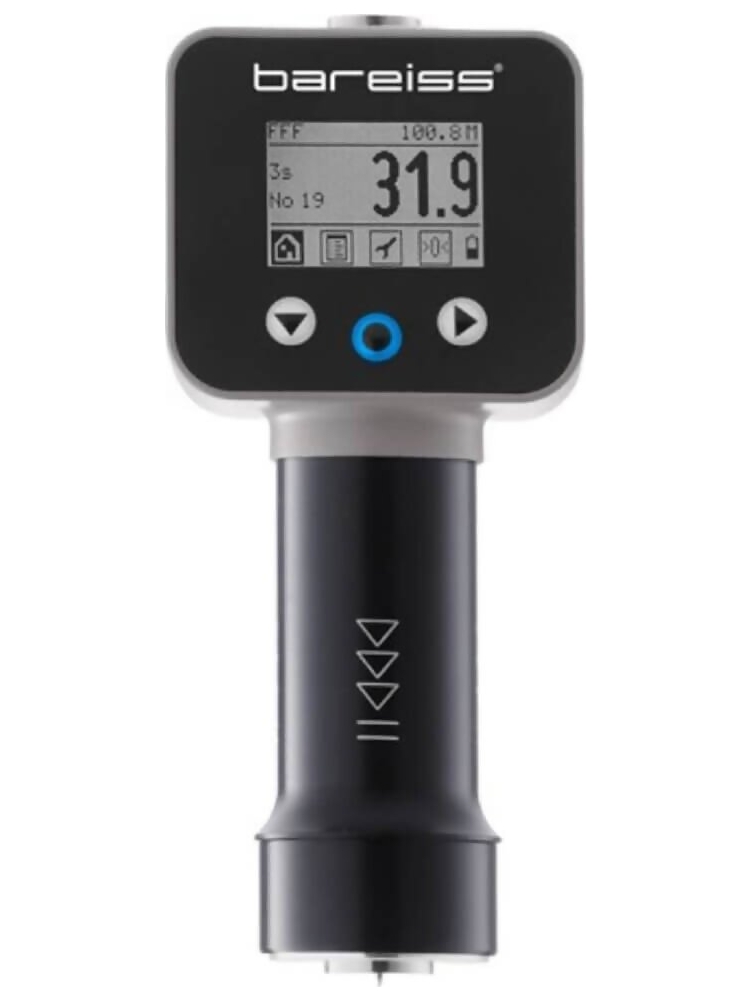

Bareiss HPE-III-Fff Fruit Firmness Tester

The HPE Fff is designed for testing the firmness / hardness of fruits, vegetables, meat, and fish.
Common applications include peaches, apricots, plums, cherries, tomatoes, strawberries, apples, avocados, kohlrabi, carrots, cucumbers, radish, and more.

View More Details

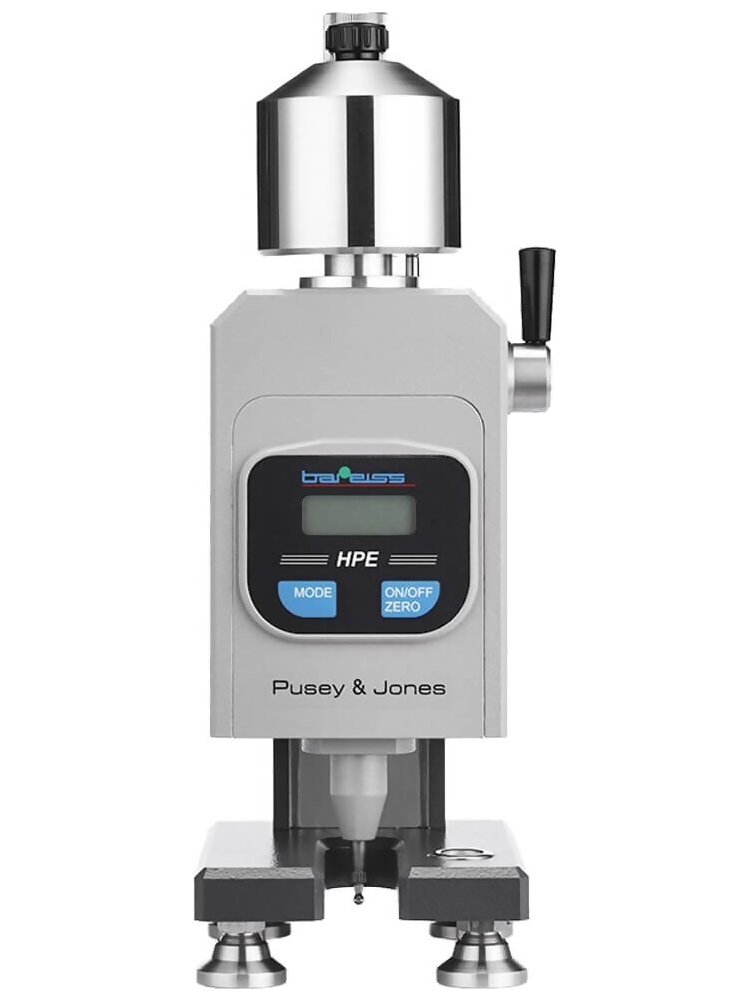

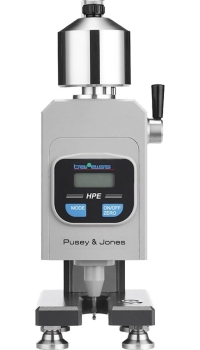

Bareiss HPE-PJ Pusey & Jones Hardness Durometer Tester Plastometer

$11,379.00

FREE Ground Shipping

About this item

Bareiss HPE-PJ Pusey & Jones Hardness Durometer Tester Plastometer

The HPE-PJ Pusey & Jones Plastometer is designed for testing the hardness of rubber and rubber-like materials. It is typically used for testing rubber rollers used by the paper industry.
Conforms to: ISO 7267-3, ASTM D 531

View More Details

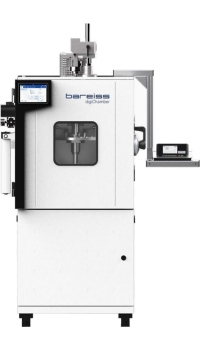

Bareiss Digi-CHAMBER-R Temperature Controlled Hardness Testing

Call for Price

About this item

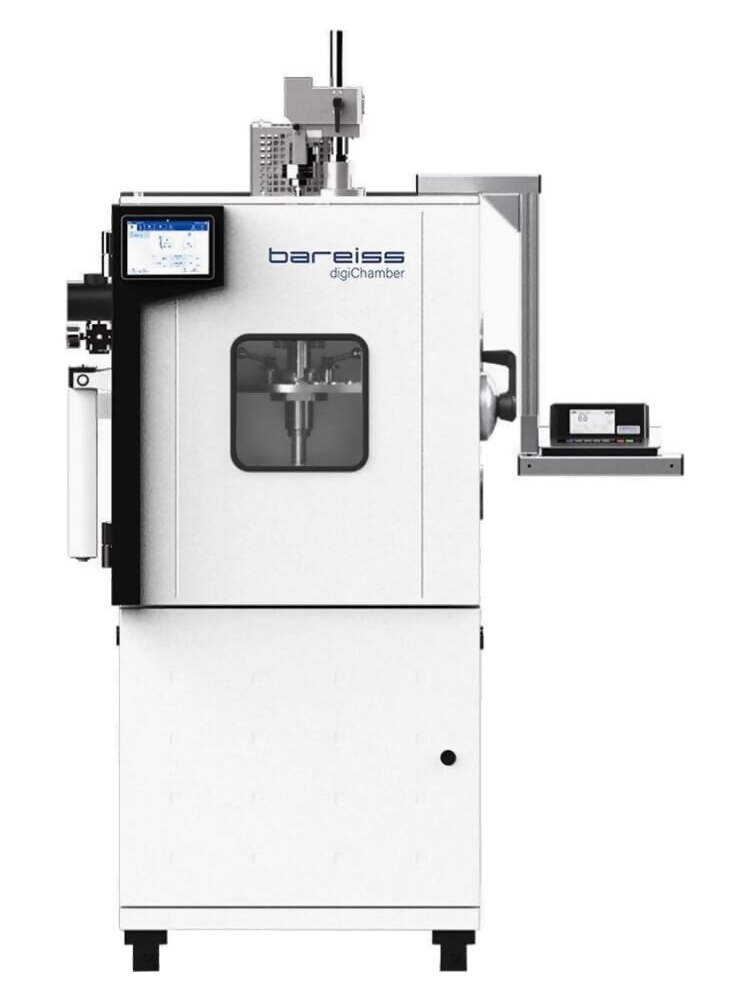

Bareiss Digi-CHAMBER-R Temperature Controlled Hardness Testing

Hardness Tester
Rubber Hardness Tester
Temperature Controlled Rubber Hardness Testing Instrument

View More Details

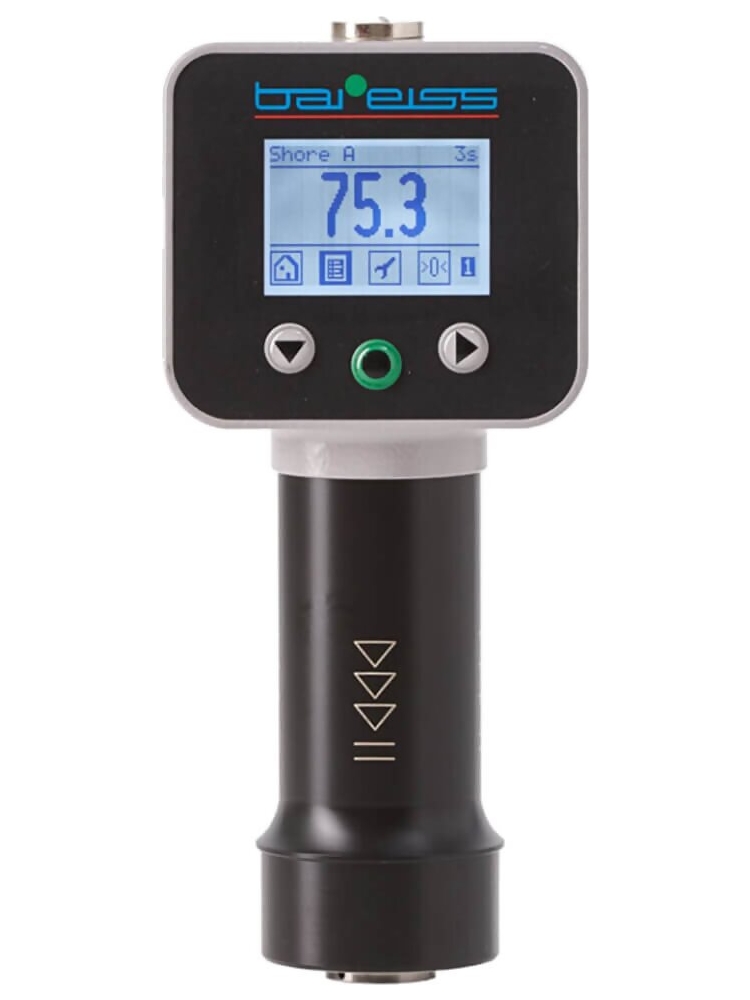

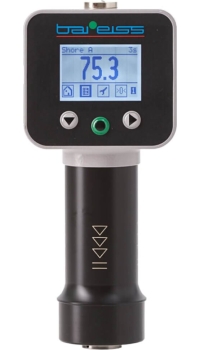

Bareiss HPE-III Digital Durometer

Call for Price

About this item

Bareiss HPE-III Digital Durometer

Ultra-Precision Digital Durometer Conforming to DIN ISO 7619, DIN EN ISO 868, ASTM D2240, NF EN ISO 868, JISK 6253
Adjustable timer function, temperature measurement, USB output
Available Scales A and D

View More Details

Displaying 1 to 6 (of 6 products)
