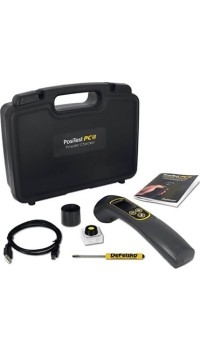

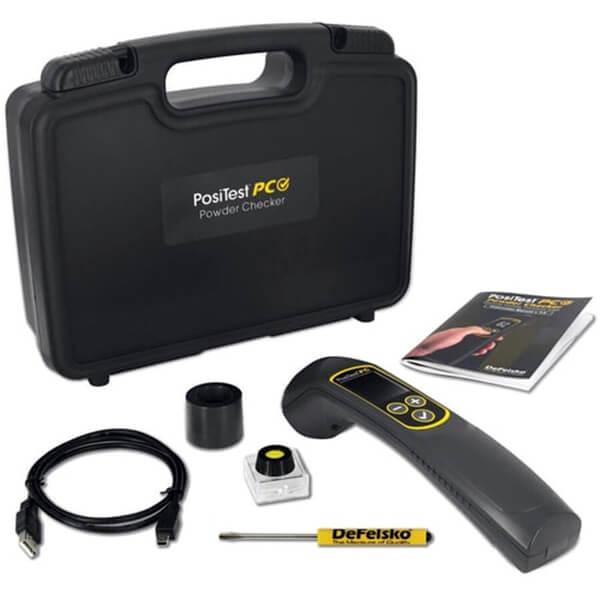

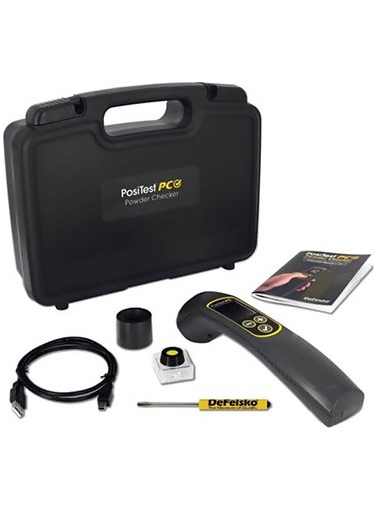

DeFelsko PosiTest PC

Non-contact Uncured Powder Thickness Gage

Affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness

  • Dedicated stand-alone unit is ready to measure right out of the box
  • Up to 4x faster measurement speed* - ideal for moving lines and swinging parts
  • No calibration adjustment required for most powders
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
  • Scan Mode continuously takes measurements - ideal for analyzing large areas

Conforms to ASTM D7378


Complete solutions for measuring powder coating before and after cure. Each kit contains the new PosiTest PC, two DeFelsko Powder Combs and your choice of dry film thickness gage. Select from 6 pre-configured kits or build your own.


lineDeFelsko PosiTest PC Powder Inspection Kits with PosiTector 6000: 4 Models Availableline

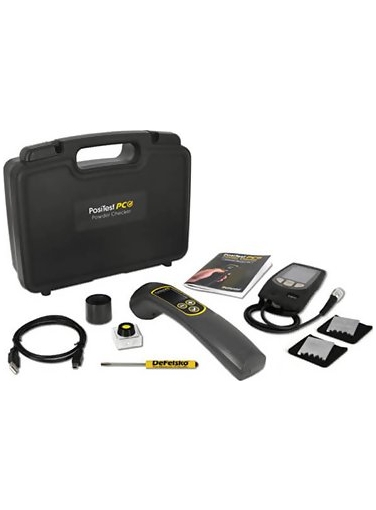

DeFelsko KITPCFS1
PosiTest PC Powder Inspection Kit

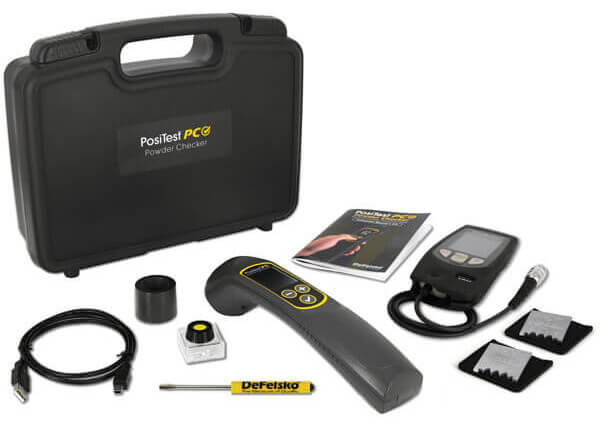

DeFelsko KITPCFS3
PosiTest PC Powder Inspection Kit

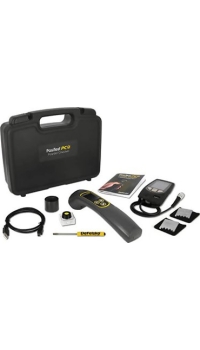

DeFelsko KITPCFNS1
PosiTest PC Powder Inspection Kit
DeFelsko KITPCFNS3
PosiTest PC Powder Inspection Kit
COATING THICKNESS GAGE COATING THICKNESS GAGE COATING THICKNESS GAGE COATING THICKNESS GAGE
PosiTector 6000 FS1 Standard (ferrous only) PosiTector 6000 FS3 Advanced (ferrous only) PosiTector 6000 FNS1 Standard (ferrous & non-ferrous) PosiTector 6000 FNS3 Advanced (ferrous & non-ferrous)

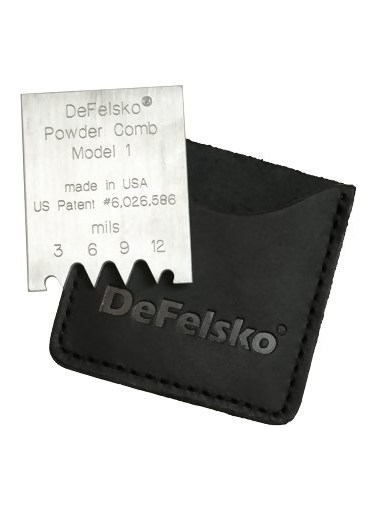

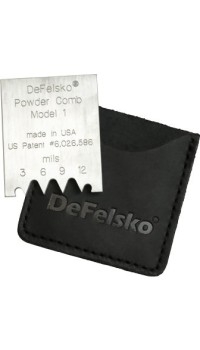

POWDER COMBS POWDER COMBS POWDER COMBS POWDER COMBS
Model 1
Model 4
Model 1
Model 4
Model 1
Model 4
Model 1
Model 4


line
DeFelsko PosiTest PC Powder Inspection Kits with PosiTest DFT: 2 Models Availableline

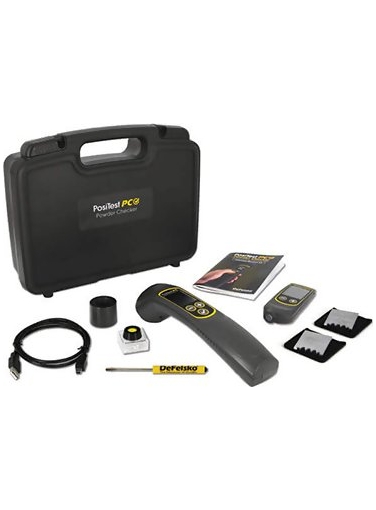

DeFelsko KITPCDFTF
PosiTest PC Powder Inspection Kit

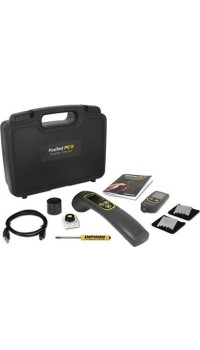

DeFelsko KITPCDFTC
PosiTest PC Powder Inspection Kit
COATING THICKNESS GAGE COATING THICKNESS GAGE
PosiTest DFT Ferrous Gage PosiTest DFT Combo Gage
POWDER COMBS POWDER COMBS
Model 1 Model 4 Model 1 Model 4


line
Videos
line




line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

  • PosiSoft Desktop
  • PosiSoft.net
  • PosiTector App
  • PosiSoft USB


lineDeFelsko Accessoriesline


Accessories for DeFelsko Inspection Instruments - Online Catalog


line
F.A.Q
line

What has changed from the previous version?

The PosiTest PC has been completely redesigned as a dedicated stand-alone unit and is now part of the PosiTest family of instruments. No PosiTector gage body required.

NEW Features

  • Up to 4x faster measurement speed for moving lines and swinging parts
  • Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
  • Ergonomic, one-handed unit is ready to measure right out of the box
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to
  • PosiSoft Desktop software.
  • Scan Mode continuously takes measurements - ideal for analyzing large areas
  • Easy-to-read digital display with simple, icon based menu
  • Target Grid simultaneously displays distance to the part and alignment, making measurements easy
  • Range: 20 to 100 µm (0.8 – 4.0 mils)
  • Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates. No calibration adjustment required for most powders.
  • USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC

Does the PosiTest PC conform to existing standards and test methods?

Yes. The PosiTest PC complies with ASTM D7378, “Standard Practice for Measurement of Thickness of Applied Coating Powders to Predict Cured Thickness”.

Why measure uncured powder?

Coatings must be applied within certain minimum and maximum dry film thickness specifications. But waiting to measure coating thickness after curing can result in product waste and production delays. Accurate measurement at the time of application:

  • Eliminates over usage
  • Improves quality
  • Controls set-up
  • Reduces rework & waste
  • Saves money!
How does it work?

The probe uses airborne ultrasound to non-destructively analyze applied powder in seconds.

Is a Certificate of Calibration included with the PosiTest PC?

No. Certificates of Calibration show traceability to a National Standard and no uncured powder thickness standard exists at this time. The PosiTest PC Powder Checker is an in-process tool. To validate the PosiTest PC’s readings and confirm the final thickness meets specifications, measure the cured coating with a PosiTector 6000 or PosiTest DFT dry film thickness gage. Our dry film thickness gages include a Certificate of Calibration.

Is the PosiTest PC suitable for on-line applications?

Yes. The PosiTest PC has the ability to stream positioning and measurement data via its USB port, and can be integrated into on-line, automated applications with appropriate fixturing. To ensure the USB cable stays reliably connected, the USB Retention Fixture accessory is recommended.

Does the PosiTest PC imprint or dimple the powder?

No. The PosiTest PC is a non-contact instrument and there are no cables to accidentally brush and disturb the powder

Do I have to hold the instrument steady during measurement?

No. In fact, the PosiTest PC performs best when there is slight movement. It was designed to measure moving parts on swinging hooks.

Can the PosiTest PC store or print data?

Yes. The PosiTest PC can store up to 999 readings in one batch. Stored readings can be downloaded to PosiSoft Desktop software for record keeping and review.

What types of batteries are used?

The instrument uses 4 “AAA” alkaline batteries(included) providing 16 hours of continuous measurement.

Do your instruments require any formal training for use? Do you offer ‘demo’ models?

No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.
