Best Prices on FGE / FGV Hand-Held Digital Force Gages

Price: $575.00

Digital Force Gauge

Accuracy ± 0.2%

8 Ranges up to 100lbs

Measure force in lbs, Kgs or N

Reversible display

Hand-Held Digital Force Gauges

FGE Standard Force Gauge

8 Ranges up to 100lbs
The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of ± 0.2%.

They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Optional Handle for FGE / FGV Force Gauge. FG-HANDLE

Features of the FGE Hand-Held Digital Force Gage

Includes NIST Calibration Certificate

Accuracy ± 0.2%

User-selected units of Pounds, Kilograms or Newtons

Display can be reversed for inverted use

Display "real-time" or "peak" force

200% overload protection

1 Year Warranty

Photo Gallery for the FGE Hand-Held Digital Force Gage - click any photo to enlarge

FGE Digital Force Gauge

Force Ranges

Model	Capacity	Resolution
FGE-0.5X	8.00 oz 200.0 g 2.000 N	0.01 oz 0.1 g 0.001 N
FGE-1X	16.00 oz 500.0 g 5.000 N	0.01 oz 0.1 g 0.001 N
FGE-2X	2.000 lb 1000 g 10.00 N	0.001 lb 1 g 0.01 N
FGE-5X	5.000 lb 2.000 Kg 20.00 N	0.001 lb 0.001 kg 0.01 N
FGE-10X	10.00 lb 5.000 Kg 50.00 N	0.01 lb 0.001 kg 0.01 N
FGE-20X	20.00 lb 10.00 Kg 100.0 N	0.01 lb 0.01 kg 0.1 N
FGE-50X	50.00 lb 20.00 Kg 200.0 N	0.01 lb 0.01 kg 0.1 N
FGE-100X	100.0 lb 50.00 Kg 500.0 N	0.1 lb 0.01 kg 0.1 N

Dimensions of the FGE / FGV Hand-Held Digital Force Gage

Note:
FGE / FGV-0.5X & FGE / FGV-1X - Shaft thread is M4
FGE / FGV-2X & Over - Shaft thread is M6

Related Products for the FGE / FGV Hand-Held Digital Force Gage

MESURgauge Mesurgauge Load & Travel Analysis Software
Sends data from a force or torque gauge and travel display to a PC for further analysis

Complete Kit of the FGE / FGV Hand-Held Digital Force Gage


Includes Force Gauge, AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head, extension rod, RS232 CABLE & Toriemon Software (FGV Only) in a foam fitted carrying case

Standard Attachments

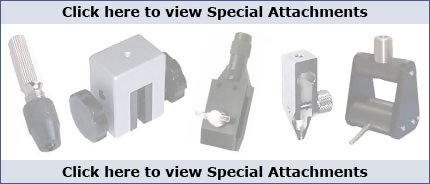

Special Attachments

Specifications of the FGE / FGV Hand-Held Digital Force Gage

Accuracy	±0.2% full scale
Display	4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 times per second
Overload Protection	200% of full scale

Power	Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Life	12 hours (when fully charged)
Recharge Time	Approximately 18 hours when fully discharged
Dimensions	5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight	1 lb (450 g)
Approvals	CE approved
Warranty	1 Year
