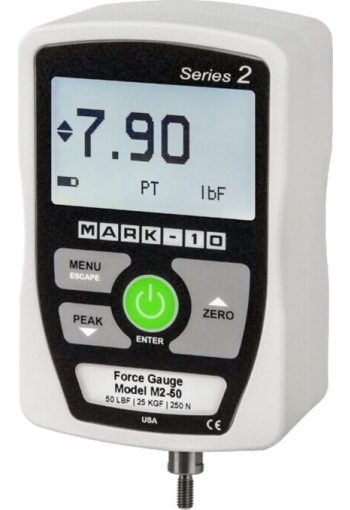

Mark-10 Series 2 Economical Digital Force Gauge
Measures Push and Pull Force
±0.5% accuracy
Attachments are Sold Separately
3 Year Warranty

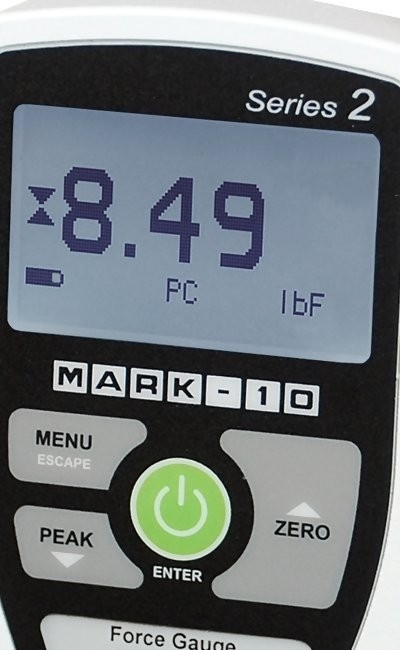

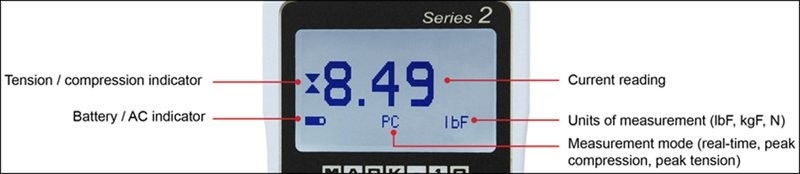

The Mark-10 Series 2 Economical Digital Force Gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

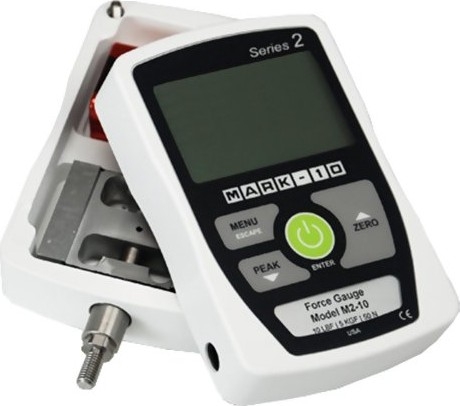

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

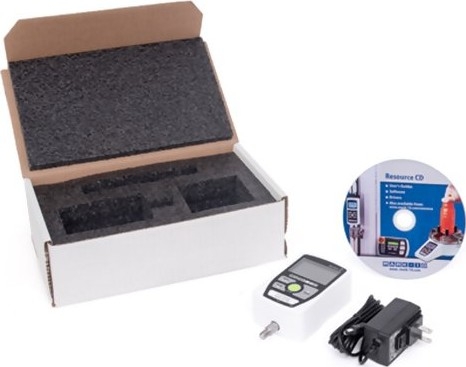

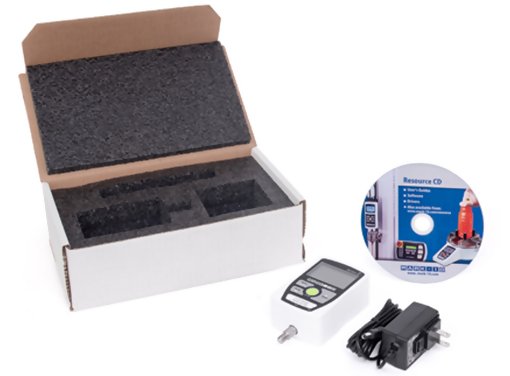

Kit Contents
- Mark-10 Series 2 Economical Digital Force Gauge
- AC Adapter
- Battery
- Resource CD
- Certificate of Conformance
- Carrying Case
- 3 Years Warranty
Attachments are Sold Separately
Features
- Calculates peak tension and compression values
- 3 selectable units of measurement
- Ultra-compact, ergonomic housing
- Configurable default measurement unit and mode
- 500 Hz sampling rate
- Large, backlit graphic display with auto-dimming
- Powered by rechargeable battery or AC adapter

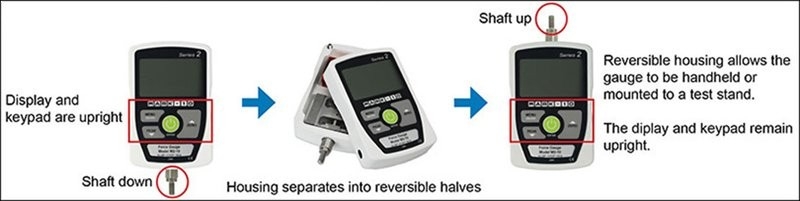

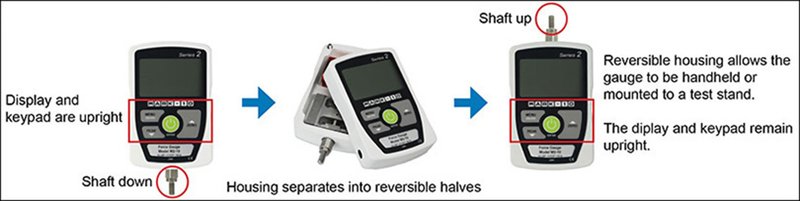

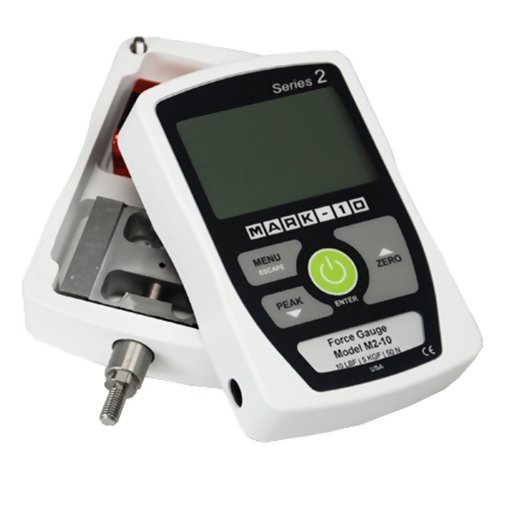

- Reversible housing for alternate load cell orientation
Specifications
| Accuracy | ±0.5% of full scale |
| Sampling rate | 500 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units | lbF, kgF, N |
| Safe overload | 200% of full scale (display shows "OVER" at 110% and above) |

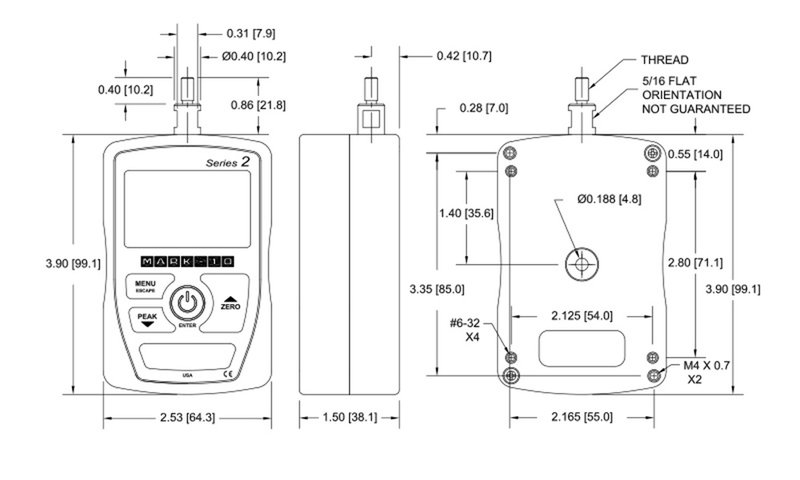

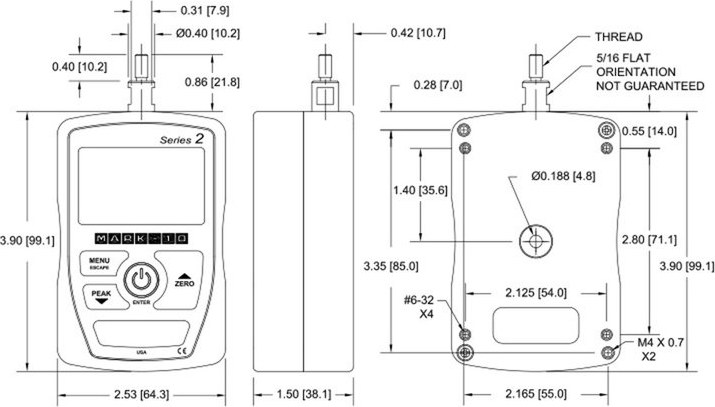

| Weight | M2-2 – M2-100: 0.7 lb [0.33 kg] M2-200 – M2-500: 0.9 lb [0.41 kg] |
| Included items | AC adapter, rechargeable battery, quick-start guide, resource CD, certificate of conformance |
| Environmental requirements | 40 - 100°F, max. 96% humidity, non-condensating |
| Warranty | 3 years (see individual statement for further details) |
Capacity x Resolution
| Model | lbF | kgF | N |
| M2-2 | 2 x 0.002 | 1 x 0.001 | 10 x 0.01 |
| M2-5 | 5 x 0.005 | 2.5 x 0.002 | 25 x 0.02 |
| M2-10 | 10 x 0.01 | 5 x 0.005 | 50 x 0.05 |
| M2-20 | 20 x 0.02 | 10 x 0.01 | 100 x 0.1 |
| M2-50 | 50 x 0.05 | 25 x 0.02 | 250 x 0.2 |
| M2-100 | 100 x 0.1 | 50 x 0.05 | 500 x 0.5 |
| M2-200 | 200 x 0.2 | 100 x 0.1 | 1000 x 1 |
| M2-500 | 500 x 0.5 | 250 x 0.2 | 2500 x 2 |
Optional Equipment
A wide range of test stands and gripping fixtures | Attachments - A variety of attachments and accessories are available. See Optional Accessories for details
| Certificate of calibration with data (CERT) | Mounting Plate - For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware
- Note: Gauge mounting plates are included with Mark-10 test stands
|
