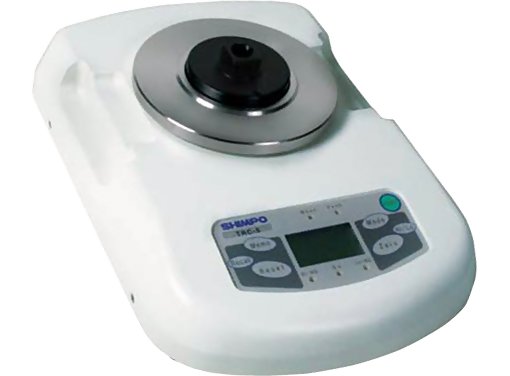

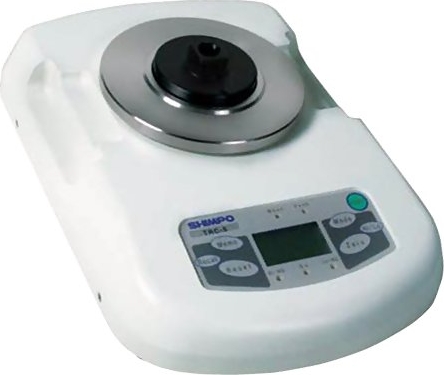

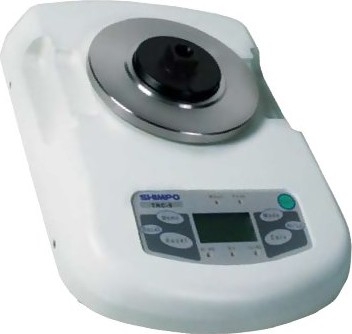

The SHIMPO TRC torque checker is a user friendly instrument for calibrating torque tools

---

Precise ± 0.5% F.S. ± 1 digit accuracy ensures exact results

---

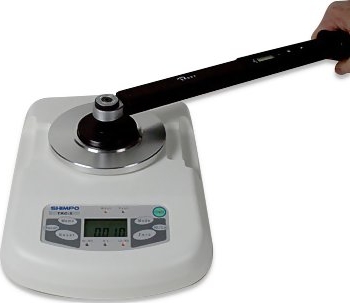

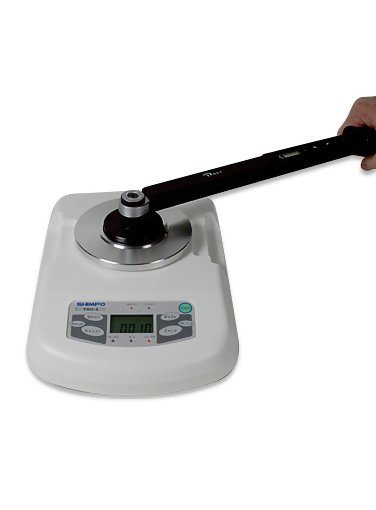

The SHIMPO TRC torque checker is a user friendly instrument for calibrating or measuring torque values. A single button process does it all. Zero, Test, Store, and repeat. In addition to Average, Maximum, Minimum, and Peak values, the TRC features Red/Green/Red LED's (HI-GO-LO) and audible alarm. It's wide 3,000 data points storage capacity makes large batch testing possible, insuring overall product quality.

The TRC torque Checker is USB capable for easy PC/Software interface. Combined with the free DigiTorque_TRC software, graphical display and statistical analysis are performed and collected automatically.

The TRC is a portable device powered with internal rechargeable batteries or through a universal AC adapter/charger. The TRC's small foot print saves valuable lab space. It's low profile, (3.82") rugged design, and NIST traceable calibration certificate promotes proper calibration procedures, insuring overall product quality.

Features

• Precise ± 0.5% F.S. ± 1 digit accuracy ensures exact results
• Variety of applications met with ranges from 17.7 in·lb (2 N·m) all the way to 88.5 in·lb (10 N·m)
• Memory function allows convenient storage of up to 3000 readings for later retrieval
• Large, easy to read LCD displays torque values in four selectable engineering units
• Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
• PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft® Excel
• Truly portable with compact, light-weight design and internal, rechargeable batteries
• Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use
• Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) & counterclockwise (CCW) directions
• Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances
• Includes Factory Certificate, CE Approval and 2 Year Warranty!

Specifications

Accuracy	±0.5% / F.S.
Display	Main display: 4-digit LCD display, Character height 0.5” (12 mm); Sub display: 3-digit, 0.29” (7 mm)
Comparator Display	LED indicates “NG”, “OK”, with adjustable alarm
Display Update Time	Select from 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)
Measuring Mode	MEAN: displays torque value in real time; PEAK: displays peak torque value
Overload	120% of full scale
Sampling	100 Hz
Memory	Total 3,000 data (10 sets with 300 data point per set)
Data Output	USB1.1 (data download by special software)
Power	NiMH rechargeable battery, and AC adapter 100-240vac, 50/60 Hz
Operating Environment	32 -104˚F (0 - 40˚C) 35 - 85%RH (non condensing)

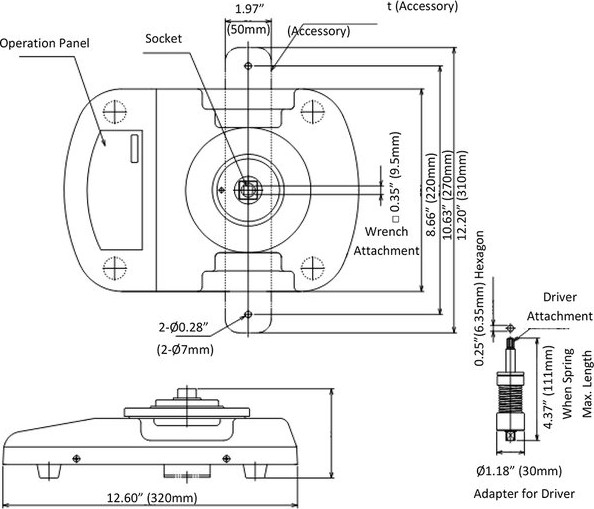

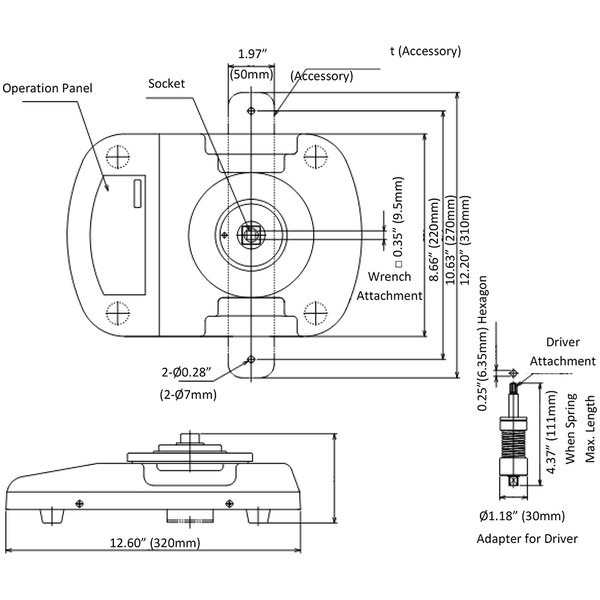

Dimensions	12.60” x 8.66” x 3.82” (320 x 220 x 97 mm)
Product Weight	Approx. 13.25 lb (6.0 kg)
Package Weight	Approx. 16.2 lb (7.35 kg)
Software	DigiTorque TRC Free Download from www.shimpoinst.com
Included Accessories	Torque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
Certifications	CE
Warranty	2 year

Ranges

Model	Capacity
TRC-2	17.70 in·lb | 20.39 kg·cm | 200.0 N·cm | 2.000 N-m
TRC-5	44.25 in·lb | 50.99 kg·cm | 500.0 N·cm | 5.000 N-m
TRC-10	88.5 in·lb | 102.0 kg·cm | 1000 N·cm | 10.00 N-m

Downloads

Shimpo TRC-2 Digital Torque Tester - Data Sheet

Shimpo TRC-2 Digital Torque Tester- Instruction Manual
