Mark-10 CAP-TT01 Cap Torque Tester With Data Output

See More Cap Torque Testers

Mark-10 CAP-TT01 Cap Torque Tester With Data Output

See More Cap Torque Testers
Price:
$1,610.00
    warrenty

    Product Description
    Mark-10 CAP-TT01 / Series TT01 Cap Torque Tester With Data Output
    6 Ranges up to 250 lb-in / 28 N-m
    Made in the USA

    6 Ranges up to 250 lb-in / 28 N-m
    Sample Diameters up to 7.5" (190 mm)

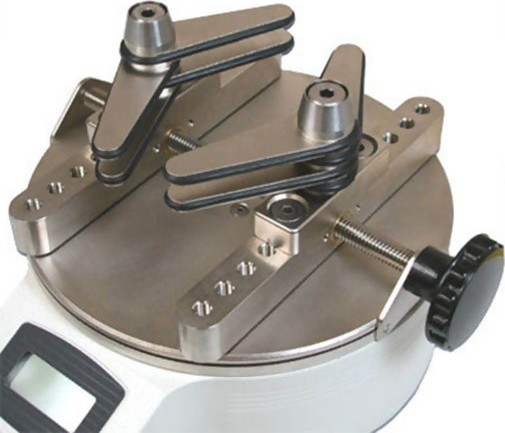

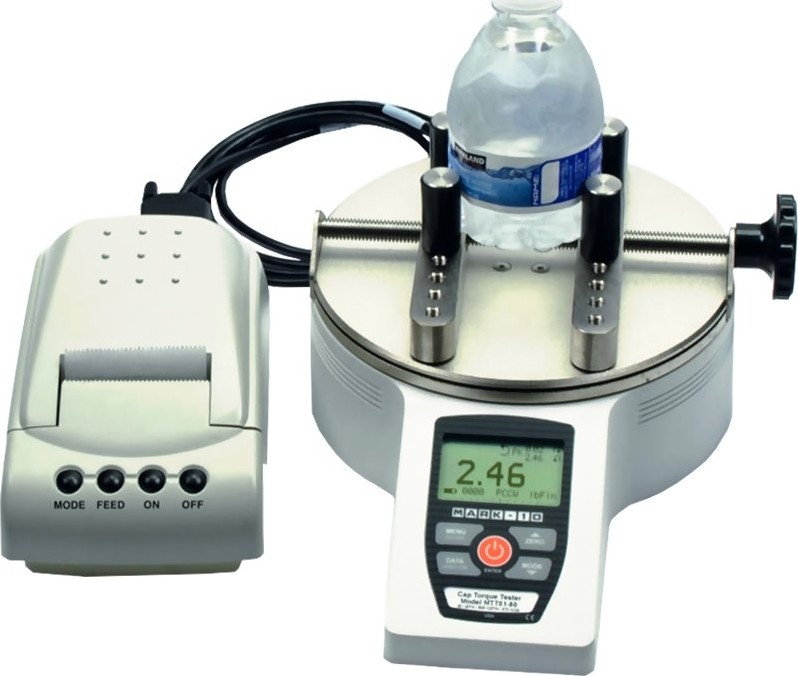

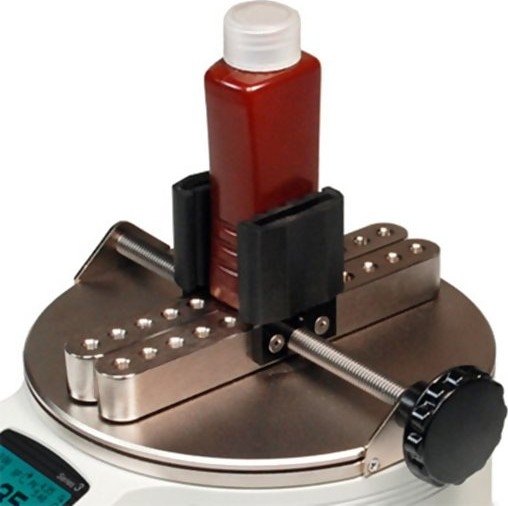

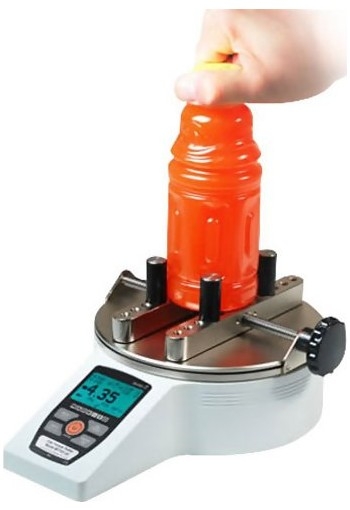

    The Mark-10 Cap Torque Testers Series TT01/ CAP-TT01 cap torque tester accurately measures application and removal torque of bottle caps up to 250 lb-in (28 Nm). The CAP-TT01 is supplied with adjustable pegs to effectively grip a wide range of container shapes and sizes, while optional flat and adjustable jaws are available to secure unique profiles. A rugged aluminum housing, and simple, operation allow for use in production, lab an field environments.

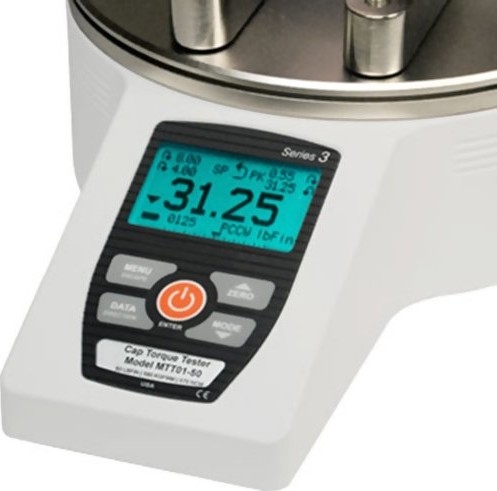

    Accuracy of ±0.3% and a sampling rate of 7,000 Hz ensure reliable and consistent test results. The CAP-TT01 can display torque in Oz-in, Lb-in, Kg-cm, N-m and N-cm units.

    The CAP-TT01 includes productivity-enhancing features, including USB, RS-232, analog outputs, automatic data output and zeroing, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

    CAP-TT01 testers include MESUR Lite data acquisition software. MESUR Lite collects continuous or single point data. Data stored in the CAP-TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.


    line

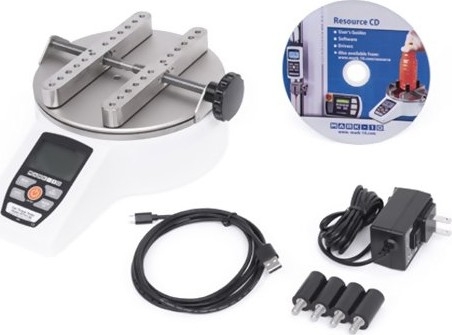

    Kit Contentsline

    • Mark-10 CAP-TT01 Cap Torque Tester With Data Output
    • Sample gripping posts (4 - four)
    • USB cable
    • AC adapter
    • Battery
    • Resource CD
    • Certificate of calibration without data


    line
    Features
    line

    • Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
    • Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
    • Password protection prevents unauthorized changes
    • High-speed 7,000 Hz sampling rate accurately captures peak torque values
    • 5 selectable units of measure including Oz-in, Lb-in, Kg-cm, N-m and N-cm
    • USB, RS-232, Mitutoyo, and analog outputs
    • 1,000-point data memory with statistics and outputs
    • Programmable set point indicators and outputs for pass/ fail determination
    • Configurable audio alarms and key tones
    • MESUR™ Lite data collection software included

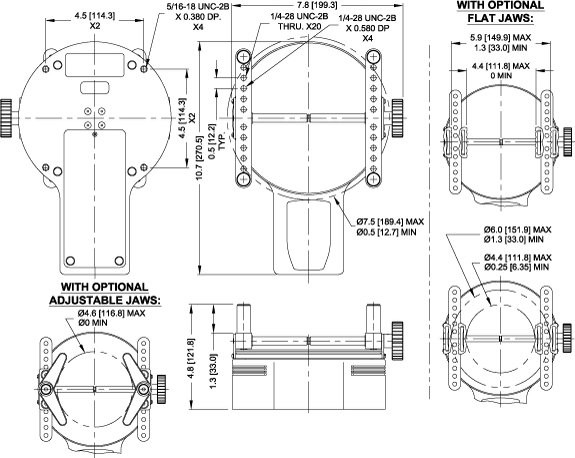

    • Measures container diameters from 0.5" to 7.5" (12.7-190 mm)
    • Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.
    • First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures


    line
    Specifications
    line

    Accuracy±0.3% of Full Scale
    Sampling rate7,000 Hz
    PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
    Battery LifeBacklight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
    Measurement unitsoz-in, lb-in, kg-cm, N-m, N-cm

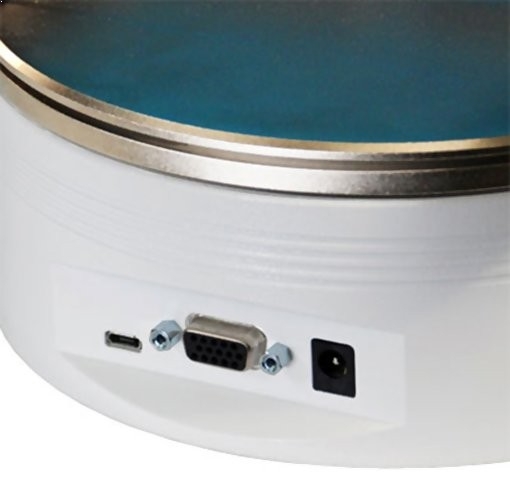

    OutputsUSB / RS-232: Configurable up to 115,200 baud.
    Mitutoyo:
     Serial BCD suitable for all Mitutoyo SPC-compatible devices.
    Analog:
     ±1V DC, ±0.25% of full scale at capacity.
    General
    Configurable SettingsDigital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
    Safe overload150% of full scale (display shows "OVER" at 110% and above)
    Weight8.4 lb (3.8 kg)
    Included itemsUniversal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
    Warranty3 years (see individual statement for further details)
    Container Diameter0.5" to 7.5" (12.7-190 mm)


    line
    Torque Ranges line

    ModelMTT01-12MTT01-25MTT01-50MTT01-100
    lbFin12 x 0.00525 x 0.0150 x 0.02100 x 0.05
    ozFin192 x 0.1400 x 0.2800 x 0.51600 x 1
    kgFcm14 x 0.0128 x 0.0258 x 0.05116 x 0.1
    Ncm135 x 0.1290 x 0.2570 x 0.51150 x 0.5
    Nm1.35 x 0.0012.9 x 0.0025.7 x 0.005 11.5 x 0.005


    line
    Related Productsline

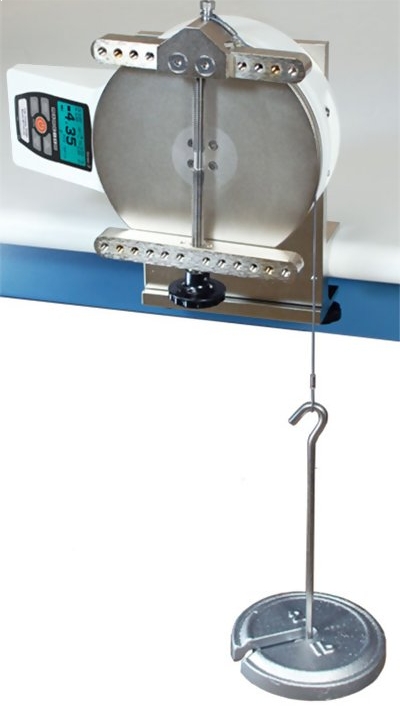

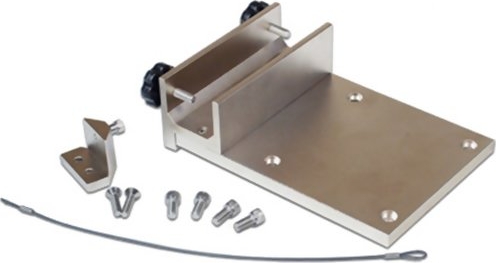

    AC1036Calibration Kit for CAP-TA
    • Calibration Kit

    line

    MESURgaugeMesurgauge Load & Travel Analysis Software
    • Windows 7 Compatible

    line

    CAP-TNPDigital Cap Torque Tester

    • ±0.5% F.S. Accuracy
    • USB interface including FREE Digitorq Software

    line

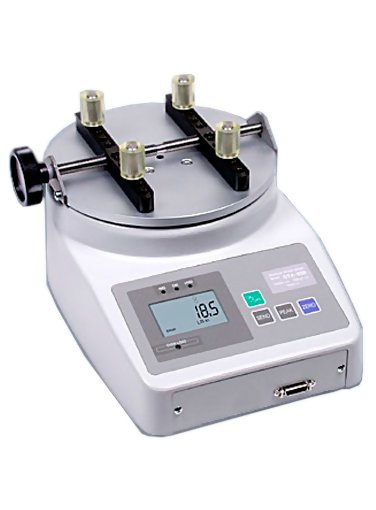

    CAP-DTXSDigital Cap Torque Tester

    • Test cap loosening (CCW) and tightening (CW) torque
    • 1000 data point memory capacity


    line
    Downloads
    line

    Mark-10 CAP-TT01 Cap Torque Tester With Data Output - User Guide
    Mark-10 CAP-TT01 Cap Torque Tester With Data Output - Instruction Manual
