This product has been replaced by the Mark-10 MTT03C
3 Ranges up to 100 lbf-in / 1150 Kg-mm / 1150 N-cm
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
Measures in "Continuous" or "Peak" mode
3 Ranges up to 100 In-lb

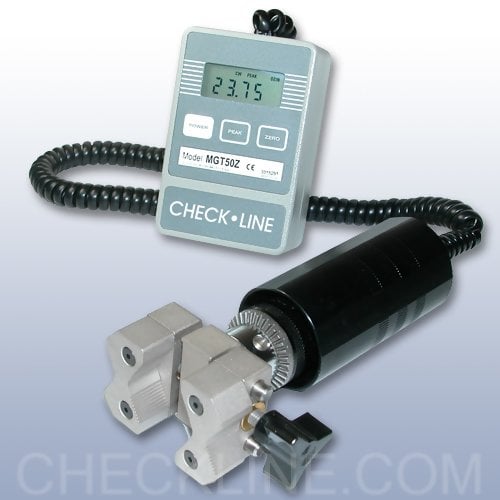

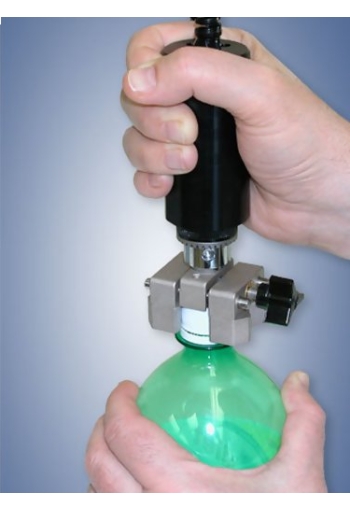

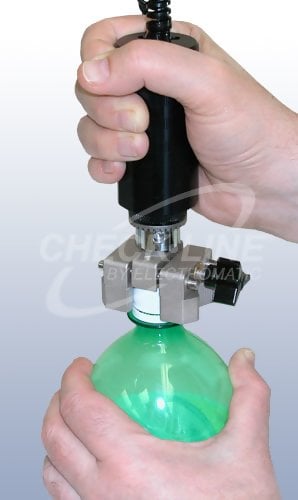

The CAP-HT is designed to measure the open and closure torque on bottles, vials, jars and more. This portable instrument eliminates the need to secure closures in a fixture or more elaborate testing system. Serrated jaws securely grip cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm). Measures Real-time or Peak torque on easy-to-read LCD display (clockwise and counter-clockwise directions), and is available in three capacities from 12 to 100 lbin (135 to 1150 Ncm).
Features

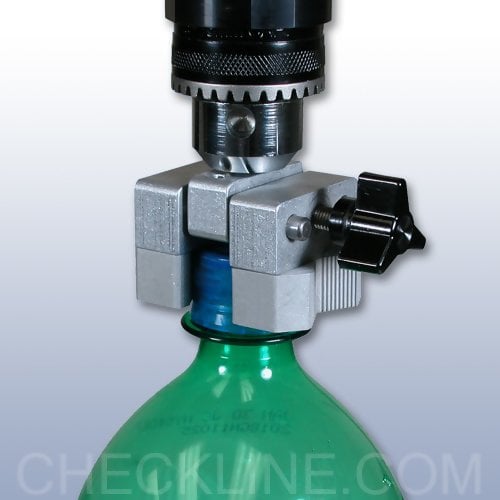

- For cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm)
- Supplied with NIST Calibration Certificate
- Battery or AC operation
- CE Certified
- 3 Year Warranty
Photo Gallery
Force Ranges
| Model | Capacity | Resolution | | CAP-HT-12 | 12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm | | CAP-HT-50 | 50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm | | CAP-HT-100 | 100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm |
Specifications
| Accuracy | ± 0.5% of full scale, ±1 least significant digit | Max. Sample
Diameter | 7.5" (189.4 mm) | | Sampling rate | 30 readings/sec | | Display | 4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation | | Power | Non-rechargeable 9V battery or AC operation with included adapter | | Battery Life | 30 hours of continuous use, LO BAT indicator | Overload
Protection | 150% or higher | | Weight | 10 lbs (4.5 kg) | | Warranty | 3 years |
