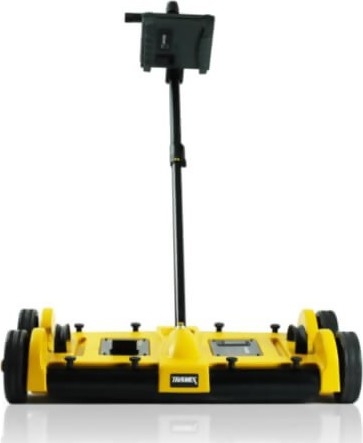

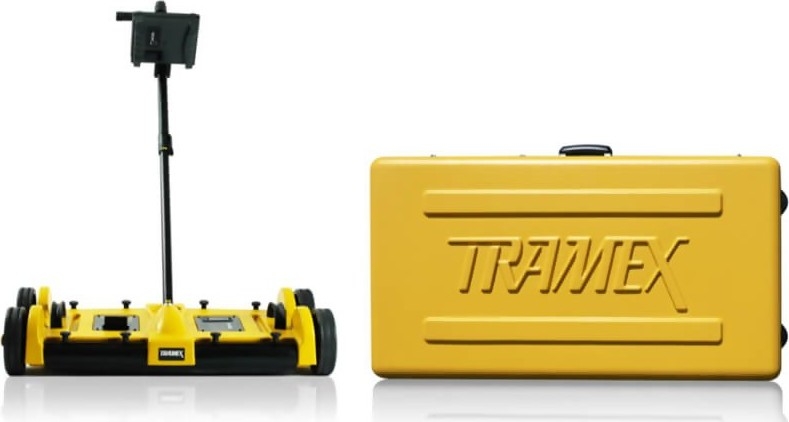

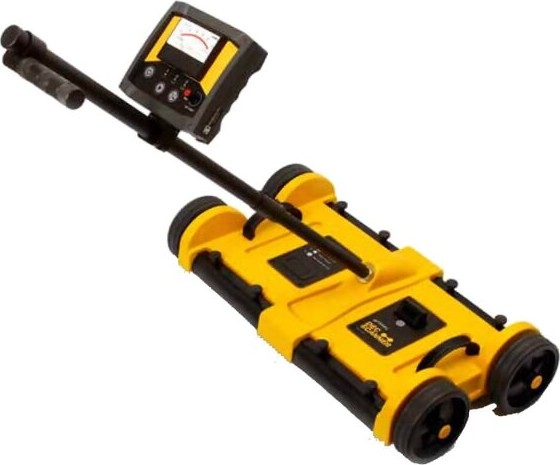

Tramex DSAL Dec Scanner Moisture Scanner for Roofing

Description
Price: $6,678.00
DSAL Roofing Moisture Scanner Detector - Tramex Dec Scanner
Measuring Range: 0 to 100 Comparative

Max. Range of Penetration: 6" ( 152 mm )

Industry: Commercial roofing

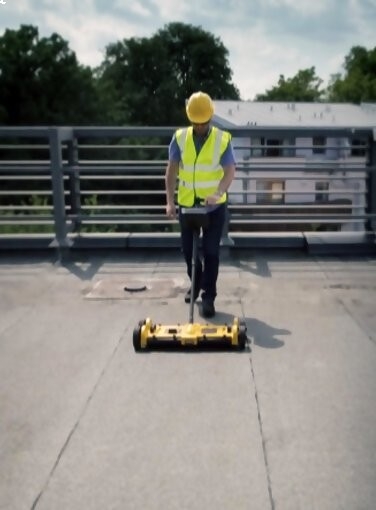

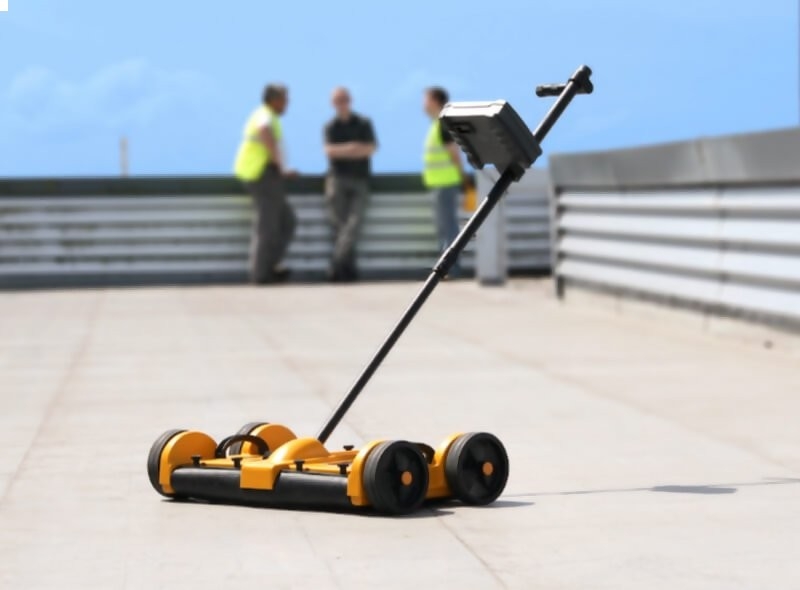

The Tramex DSAL Dec Scanner Moisture Scanner for Roofing is ideal for carrying out moisture testing to ASTM D7954, designed to perform instant, continuous scanning over a large roof area while being able to detect as little as 2% excess moisture to a depth of up to 6 inches, covering as much as 100,000sq ft in a normal working day. Multiple ranges of sensitivity provide the capability to scan a wide range of roof construction types, allowing inspection of even very thin structures. There is no need for a special permit and transport by road or by air is simple with our flight ready case.

line
Features
line

  • Moisture Scan up to 100,000 sq ft in 1 day.
  • No need for special user permit.
  • Transportation simple by road or air.
  • Can be used for inspection during business hours.
  • No need to clear the buildings occupants.

line
Specifications
line

Scanning Area24”W x 15.5”D (609mm x 394mm)
Maximum depth of penetration6” (152 mm)

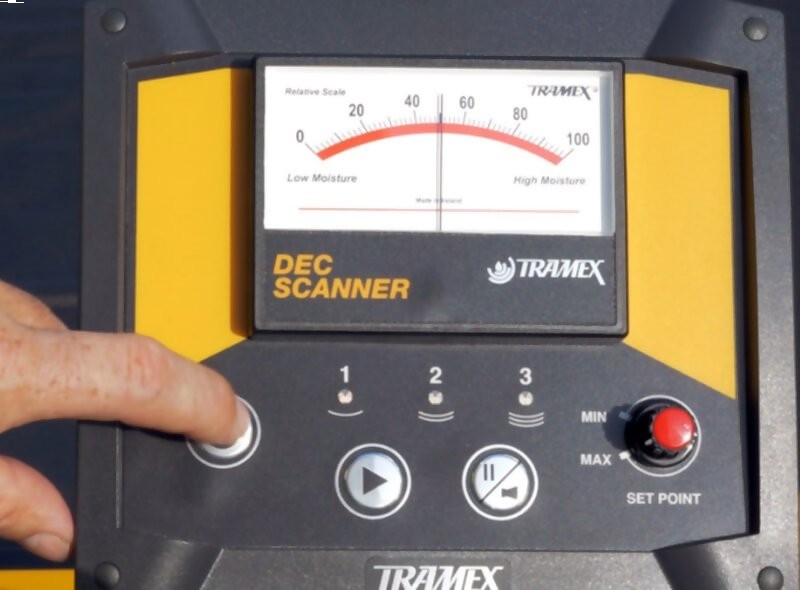

DisplayAnalogue
Measuring Range0 to 100 Comparative
Dec Scanner dimensions30”W x 153⁄4“D x 61⁄4”H (762mm x 400mm x 158mm)

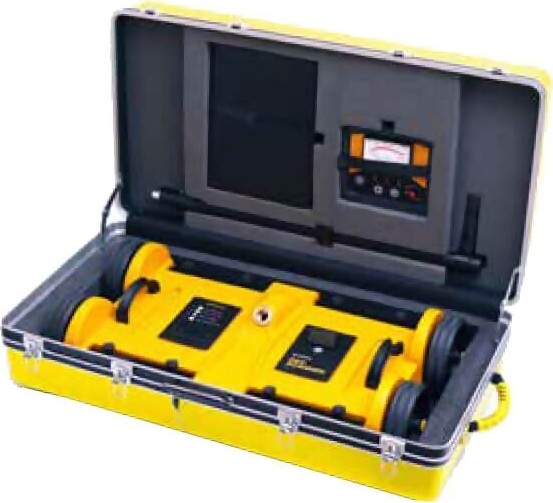

Carry case dimensions38”W x 20”D x 12”H (940mm x 508 mm x 305mm)
Dec Scanner weight24.6 lbs (9.95 Kg)
Total weight (inc. case)46.5 lbs (21.1 Kg)
Power Supply2 × 9 Volt PP3 Batteries (included)
Limitations Some EPDM, Butyl rubber roofing and other conductive roofing


line

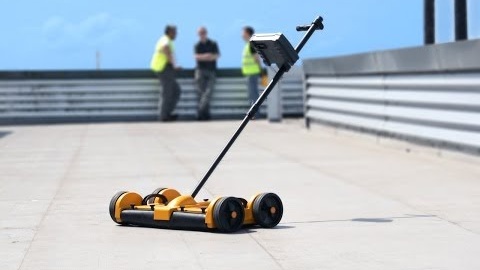

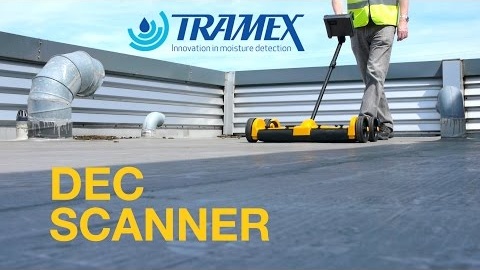

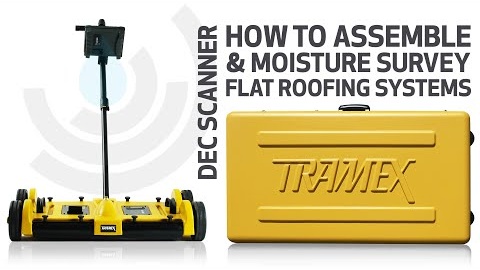

Video
line


line
ASTM D7954
line

Standard Practice for Moisture Surveying of Roofing and Waterproofing Systems Using Non-Destructive Electrical Impedance Scanners.

Significance and Use

  • Excess moisture trapped in roofing or waterproofing systems can adversely affect performance and lead to premature failure of roofing or waterproofing systems and its components. It also reduces thermal resistance, resulting in reduced energy efficiency and inflated energy costs. Impedance scans can be effective in identifying concealed and entrapped moisture within roofing or waterproofing systems.
  • This practice is intended to be used at various stages of the roofing and waterproofing system’s life such as: during or at completion of installation of roofing or waterproofing system to determine if there was moisture intrusion into the roofing or waterproofing system or underlying materials, at regular intervals as part of a preventative maintenance program, and to aid in condition assessment, or before replacement or repair work, or combinations thereof, to assist in determining the extent of work and replacement materials.
  • Referenced Documents (purchase separately)
    • ASTM Standards
    • C1616 Test Method for Determining the Moisture Content of Organic and Inorganic Insulation Materials by Weight
    • D1079 Terminology Relating to Roofing and Waterproofing
    • D7438 Practice for Field Calibration and Application of Hand-Held Moisture Meters
    • E2586 Practice for Calculating and Using Basic Statistics
    • F2659 Guide for Preliminary Evaluation of Comparative Moisture Condition of Concrete, Gypsum Cement and Other Floor Slabs and Screeds Using a Non-Destructive Electronic Moisture Meter
