Dillon EDjunior Dynamometer

See More Dynamometers Tension Load Cells

Dillon EDjunior Dynamometer

See More Dynamometers Tension Load Cells
Price:
$1,685.00 - $2,810.00
    warrenty

    Product Description

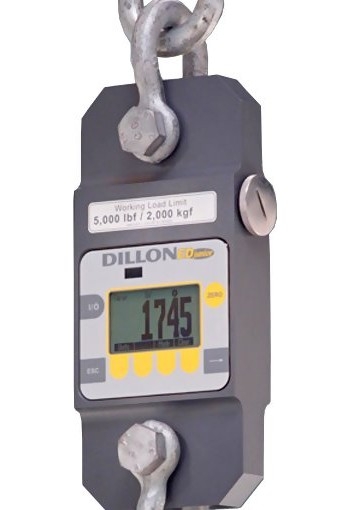

    Dillon Digital Dynamometer
    4 Ranges up to 25,000 Lbf / 10,000 kgf / 100,000 N

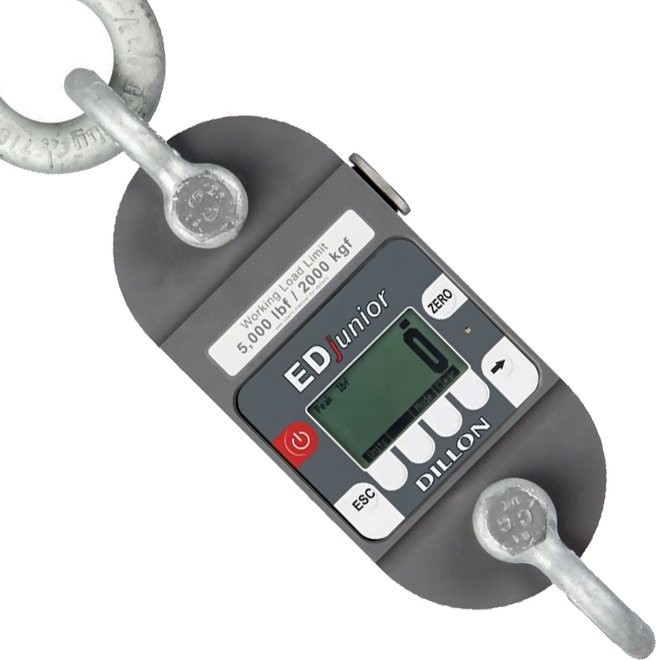

    The Dillon EDjunior dynamometer gets straight to the point - apply a load; take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.


    line
    Features
    line

    • Capacities from 2,500-25,000lb (1,000-10,000kg)
    • Generous shackle openings mate with most hooks and hardware
    • 0.2% accuracy
    • High specification materials on all load components. Heat treated to tight tolerances
    • Broadest range of capacities and resolutions are certain to fit your needs
    • NIST Traceable Certificate Included
    • Largest safety factor for overload protection and long life
    • 2 Year Warranty
    • Includes High strength case resists heavy blows
    • CE Certified


    line
    Specifications
    line

    Enclosure Designed to NEMA4X/IP55
    Suitable for continuous outdoor use.
    Accuracy 0.2% of capacity
    Repeatability 0.2% of capacity
    Proof load 150% of capacity
    Safe Overload 200% of capacity
    Display 128 x 64 dot-graphic LCD display shows all digits 1.0" (26 mm) high plus annunciators and softkeys.
    Display update rate 2 times per second
    Calibration Traceable to the NIST. Calibration card included.
    Battery life 320 hours typical use with two C-cell alkaline batteries.
    Operating Temperature -4° F to 140° F (-20° to 60° C)

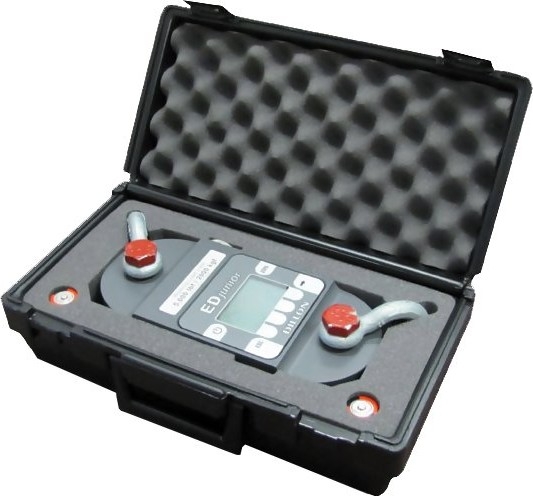

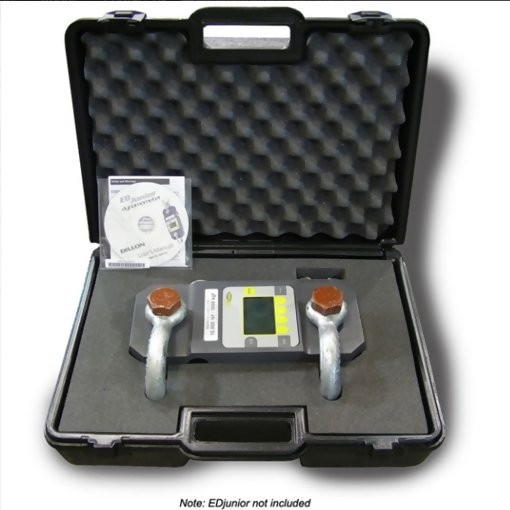

    Included with instrument Batteries, manual and calibration card. Now include carrying case
    CE Approved Yes
    Warranty 2 Years


    line
    Force Ranges
    line

    Model Capacity Resolution Body Construction
    EDjr-1T (36190-0038) 2,500 lbf
    1,000 kgf
    10,000 N
    2
    1
    10
    Aircraft quality
    2024 Aluminum
    700% overload max.
    EDjr-2T (36190-0046) 5,000 lbf
    2,000 kgf
    20,000 N
    5
    2
    20
    Aircraft quality
    2024 Aluminum
    700% overload max.
    EDjr-5T (36190-0053) 10,000 lbf
    5,000 kgf
    50,000 N
    10
    5
    50
    Aircraft quality
    2024 Aluminum
    700% overload max.
    EDjr-10T (36190-0103) 25,000 lbf
    10,000 kgf
    100,000 N
    20
    10
    100
    Aircraft quality
    E4340 Alloy Steel
    500% overload max.


    lineMeasurement Capabilitiesline

    The Dillon EDjunior provides peak detection as well as sustained load readings. Selectable units of measure include lbf, kgf and Newtons.

    • Accuracy - The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2%(full scale). This level of precision offers flexibility for use in a broad range of applications.
    • Resolution - Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required ofr critical lifting applications.


    lineControl Interfaceline

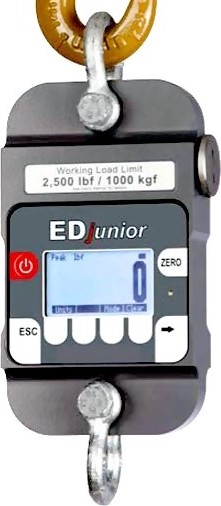

    The exclusive SOFTKEY interface provides direct access to setup and siplay functions without the typical confusing menu structure. The 6-digit-dot-matrix display features 1 inch(26 mm) high numerals for greater visibility. High Strength, Low WeightHeavy cumbersome tools make tough jobs even harder. THrough the use of aircraft quality materials, DIllon has made the EDjunior an easy-to-position, highly mobile instrument with exceptional strenght. It offer an impressive factor of safety at all capacities.


    lineBattery Operationline

    Power is supplied by two C-cell batteriees that are easily accessable through a side loading port. Baterry replacement, however, is a rare event. With the EDjunior's low power consumption, typical battery life is over 200 hours.


    lineAll Environmentsline

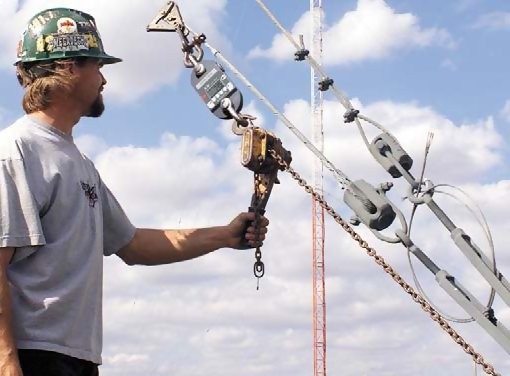

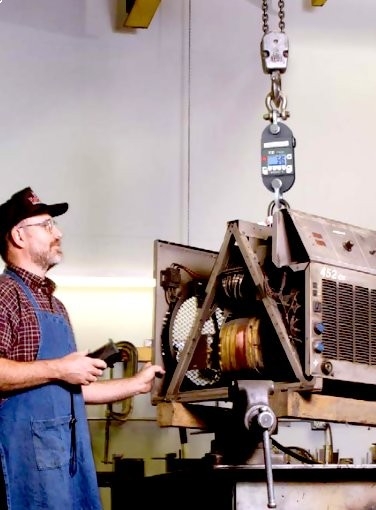

    With its NEMA4/IP55 design, the EDjunior is at home in virtually any enfironment and ideally-suited to exterior job-site applications as well as in-plant use. NIST Traceable - The EDxtreme comes with a NIST traceable calibration certificate.


    line
    Related Products
    line

    EDxtreme

    • Remote Communicator for EDXtreme
    related

    line

    AP Dynamometer
    Mechanical Dynamometer

    • Accuracy: ± 0.5% of full scale capacity for precise data
    • Broadest range of capacities and resolutions are certain to fit your needs
    related

    line
    Downloads
    line

    EDjunior Dillon Dynamometer - Instruction Manual
    EDjunior Dillon Dynamometer - Data Sheet

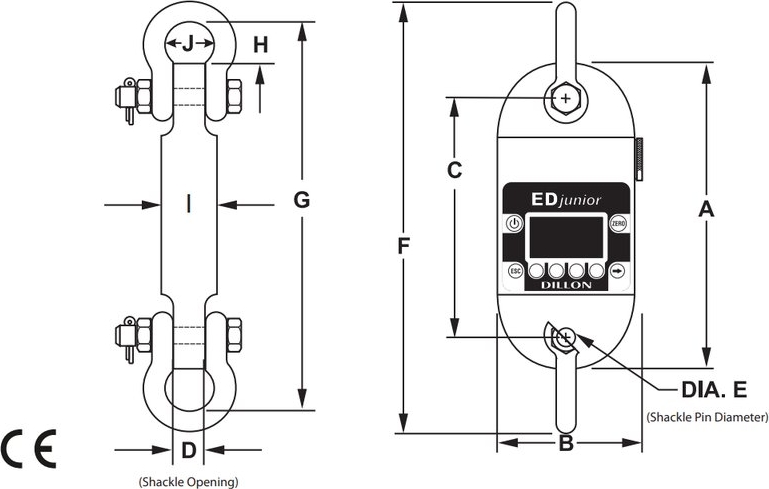

    EDjunior Dillon Dynamometer - Dimensional Drawing
