    Dillon EDX-COMM-II Remote Communicator for EDXtreme

    Communications unlock the full potential of the EDXtreme

    One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDXtreme offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC via an RS-232 connection for compilation and analysis or to generate hard-copy printouts.

    Remote control and radio communications are not new to the Dillon product line. In fact, it is the depth of Dillon’s experience in this area that led to meaningful innovations in the design of the EDXtreme and its optional remote Communicator.

    line
    Specifications
    line

    EnclosureDesigned to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use
    Dimensions9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).
    AccuracyNot applicable. Only sends and receives digital information
    Display128 x 64 dot-graphic LCD display can show full readings up to 5 instruments
    Battery LifeUp to 80 hours continuous radio using (4) AA alkaline batteries
    Operating Temperature-4° F to 158° F (-20° to 70° C)
    ConnectorsSealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer
    RS-232 CommunicationPrint or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
    Shipping Weight10
    Included with Remote:Carry case and batteries
    Shipping Dimensions18 x 12 x 8 Inches
    AccessoriesRubberized case protector sleeve, Remote wall mount bracket. Serial and remote cable assemblies
    ApprovalCE

    lineImproved radio performanceline

    Unlike the many products on the market today, the EDXtreme radio dynamometer utilizes leading-edge 2.4Ghz radio frequency technology to eliminate common interference issues. This spread spectrum technology will establish and maintain the strongest, most reliable communications.

    lineDynamic monitoring and controlline

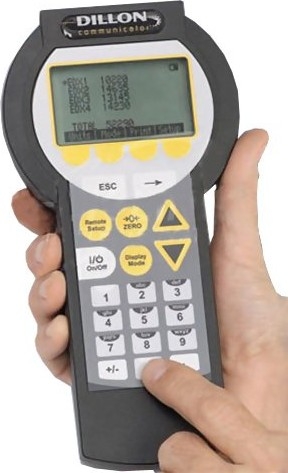

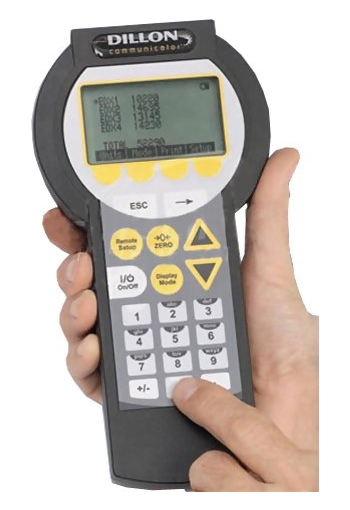

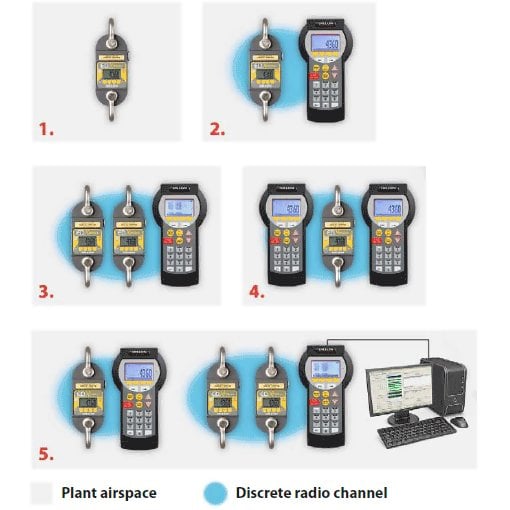

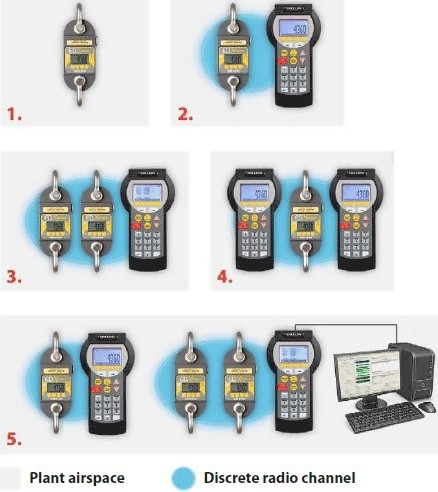

    The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display
