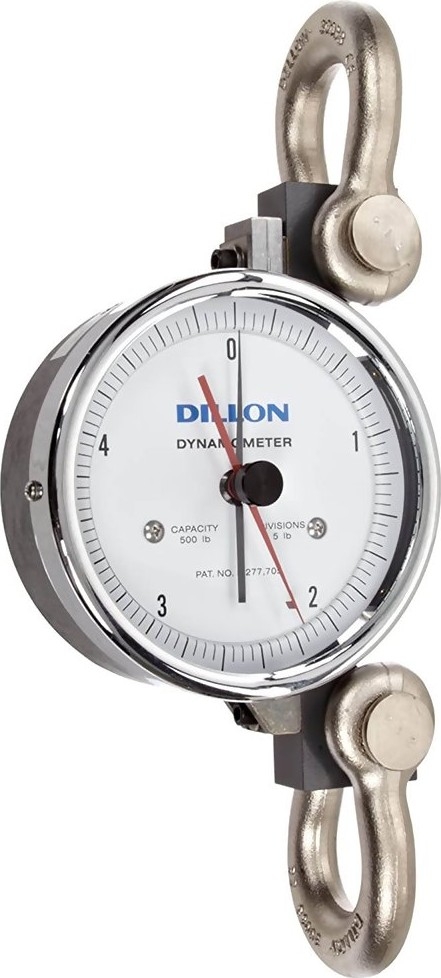

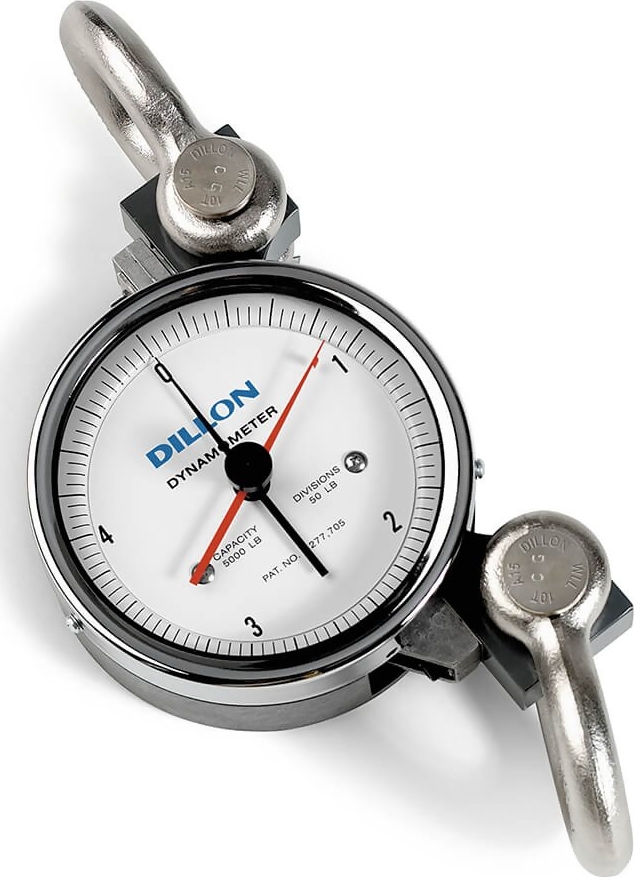

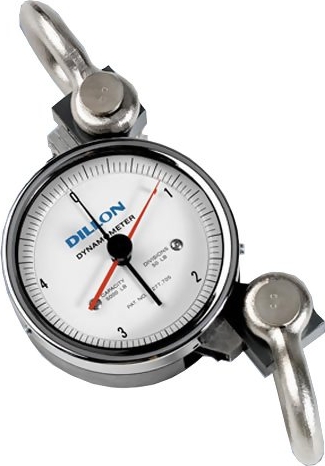

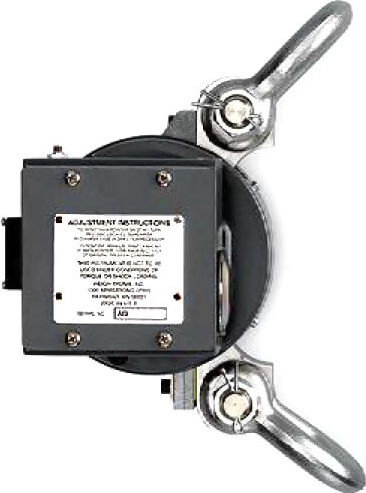

Dillon AP Mechanical Dynamometer

See More Dynamometers Tension Load Cells
Price:
$1,580.00 - $8,600.00
    warrenty

    Product Description
    Mechanical Dillon AP Dynamometers
    For tension, traction and weight measurement
    Available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons

    Originally designed to measure the tension on telephone wires, the Dillon AP Mechanical Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. The Dillon AP Mechanical Dynamometer is used for such diverse jobs as suspended weighing, mounting cables for bridges, adjusting tension on guy wires, field testing chain and rope as well as wire. Basically anything requiring precision force or tension measurement.

    Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications: the pounding aboard military vehicles, rough handling in field measurements and even use underwater (Dillon recommends short intervals in clean water followed with rinse and drain). Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.


    line
    Kit Contentsline

    5" (125 mm) diameter AP dynamometer includes a rugged ABS plastic carry case with die-cut foam inserts. Capacities of 30,000 lb (15,000 kg) and above are shipped in a heavy-duty reinforced plywood crate. An optional steel carry case is available for 10" (250 mm) diameter dynamometers up to 20,000 lb (10,000 kg) capacity.

    NIST Traceable Certificate Included with all models.

    A set of shackles are included with all models.

    line Features
    line

    • Broadest range of capacities and resolutions are certain to fit your needs
    • Large safety factor for overload protection and long life
    • No batteries required
    • Dial size choice for the best in portability or visibility
    • Anti-parallax dial and pointer produce accurate readings from any perspective
    • Maximum hand retains peak load point and is easily reset
    • High strength case resists heavy blows
    • Generous shackle openings mate with most hooks and hardware
    • Off set load beam eases tension measurement

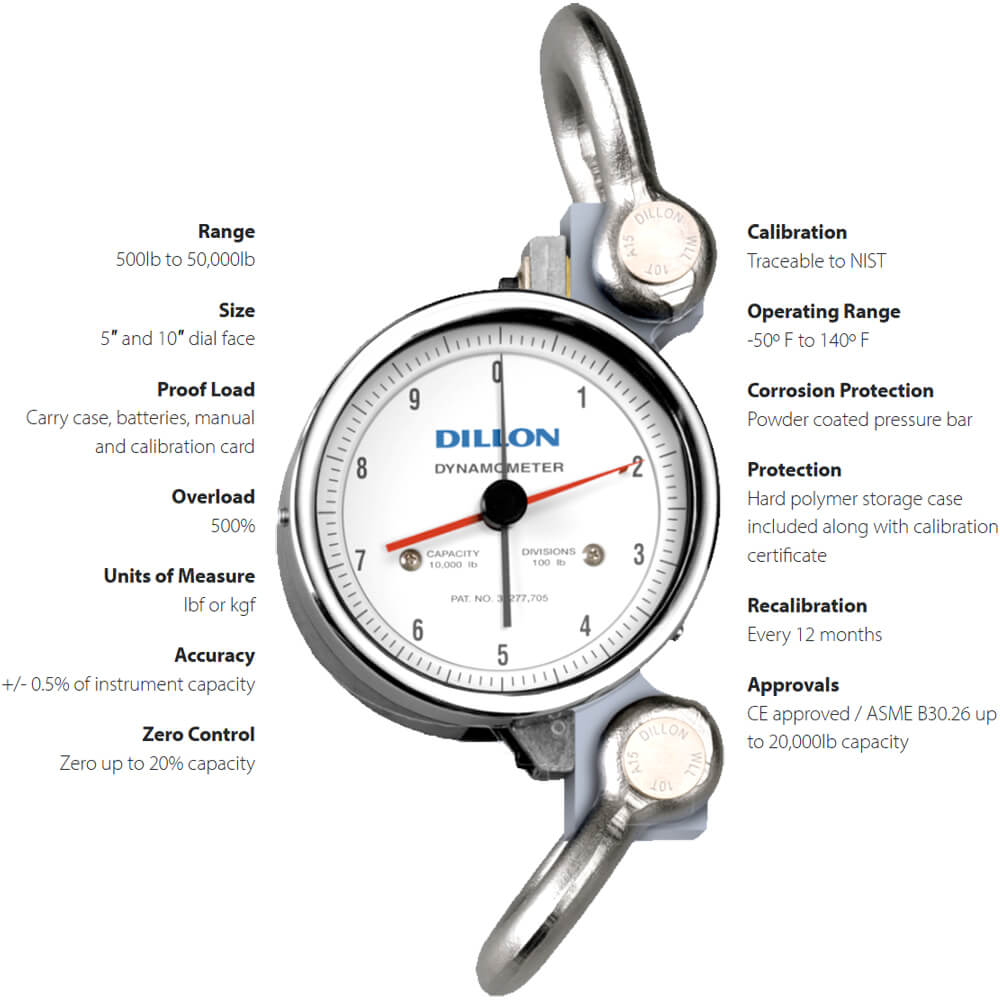

    lineSpecifications
    line

    Accuracy + 0.5% of capacity
    Temperature Range -50° to 140° F | -45° to 60° C
    Construction Pressure bar: High-grade E4340 alloy steel or 7075-T651 aluminum
    Shackles: A4140 forged steel (machined from E4340 steel)
    Shackle pins: Machined from E4340 steel
    Case Housing 5" models are equipped with high strength composite plastic case
    10" models use cast aluminum enclosure
    Corrosion Protection Pressure bar protected with durable powder coat paint
    Shackles and pins are electroless nickel plated
    All integral machining and fasteners are produced from noncorrosive materials or have suitable plating

    line
    Force Ranges
    line

    Model Capacity Resolution Dial Size
    AP5-500LB 500 lbs 5 5" (125 mm)
    AP5-1000LB 1,000 lbs 10 5" (125 mm)
    AP5-2000LB 2,000 lbs 20 5" (125 mm)
    AP5-4000LB 4,000 lbs 25 5" (125 mm)
    AP5-5000LB 5,000 lbs 50 5" (125 mm)
    AP5-6000LB 6,000 lbs 50 5" (125 mm)
    AP5-8000LB 8,000 lbs 50 5" (125 mm)
    AP5-10000LB 10,000 lbs 100 5" (125 mm)
    AP5-15000LB 15,000 lbs 100 5" (125 mm)
    AP5-20000LB 20,000 lbs 200 5" (125 mm)
    AP10-500LB 500 lbs 2 10" (250 mm)
    AP10-1000LB 1,000 lbs 5 10" (250 mm)
    AP10-2000LB 2,000 lbs 10 10" (250 mm)
    AP10-4000LB 4,000 lbs 20 10" (250 mm)
    AP10-5000LB 5,000 lbs 20 10" (250 mm)
    AP10-6000LB 6,000 lbs 25 10" (250 mm)
    AP10-8000LB 8,000 lbs 50 10" (250 mm)
    AP10-10000LB 10,000 lbs 50 10" (250 mm)
    AP10-15000LB 15,000 lbs 100 10" (250 mm)
    AP10-20000LB 20,000 lbs 100 10" (250 mm)
    AP10-30000LB 30,000 lbs 200 10" (250 mm)
    AP10-40000LB 40,000 lbs 200 10" (250 mm)
    AP10-50000LB 50,000 lbs 200 10" (250 mm)
    AP5-200KG 200 kg 2 125 mm (5")
    AP5-500KG 500 kg 5 125 mm (5")
    AP5-1000KG 1,000 kg 10 125 mm (5")
    AP5-2000KG 2,000 kg 20 125 mm (5")
    AP5-4000KG 4,000 kg 25 125 mm (5")
    AP5-5000KG 5,000 kg 50 125 mm (5")
    AP5-10000KG 10,000 kg 100 125 mm (5")
    AP10-200KG 200 kg 1 250 mm (10")
    AP10-500KG 500 kg 2 250 mm (10")
    AP10-1000KG 1,000 kg 5 250 mm (10")
    AP10-2000KG 2,000 kg 10 250 mm (10")
    AP10-4000KG 4,000 kg 20 250 mm (10")
    AP10-5000KG 5,000 kg 50 250 mm (10")
    AP10-10000KG 10,000 kg 50 250 mm (10")
    AP10-15000KG 15,000 kg 100 250 mm (10")
    AP10-20000KG 20,000 kg 100 250 mm (10")


    lineOptions
    line

    Zero positioning

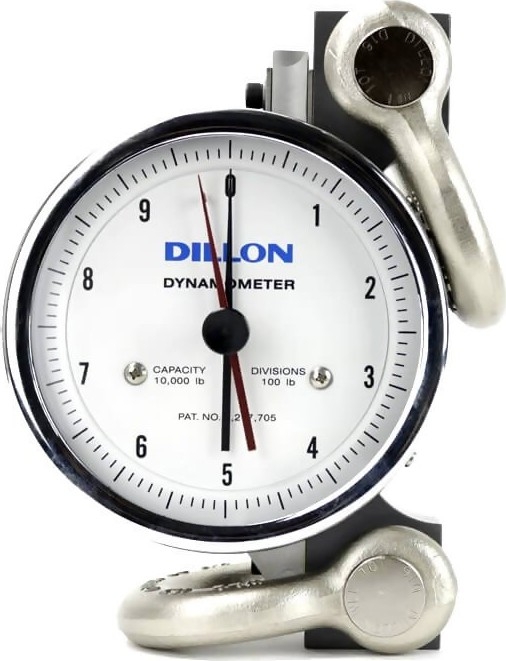

    The standard zero position is 9 o'clock for both the 5" and 10" dial sizes. Capacities up to 20,000 lb can be supplied with the zero at 12, 3 or 6. Photo shows a nonstandard position of 12 o'clock.

    Oversized shackle and pin assembly.

    Available with all AP5 models and up to AP10-20000LB/AP10-10000KG models only.
    Addition to standard shackle & pin (sold as an accessory at time of order or after sale)

    Steel storage case For 10" (250 mm) diameter model AP10-20000LB/AP10-10000KG and lower

    Hook Accessories

    Part # Hook Rating For Dynamometer Ratings
    AP-H3 3-ton 500-6,000 lb / 200-2,000 kg
    AP-H5 5-ton 8,000-10,000 lb / 4,000-5,000 kg
    AP-H10 10-ton 15,000-20,000 lb / 10,000 kg
