Force Gauge Attachments




Product Image Item Name
09-1090 Set Point Cable

09-1090 Set Point Cable

Price: $145.00

Set Point Cable
Stops / reverses motorized test stand at load set points

Sends a set point signal to an external device



11-1022 Hi / Lo limits indicator

11-1022 Hi / Lo limits indicator

   Price: $90.00

Hi / Lo Limits Indicator

Indicates pass or fail condition during a test
Compatible with force gauges and torque gauges with set point outputs



11-1042 Overload protection module

11-1042 Overload protection module

Price: $195.00

Overload Protection Module
Protects force gauges and torque gauges against overload

For use with motorized test stands


AC1003 Double Handle Grip

AC1003 Double Handle Grip

BP-6 Button Puller

BP-6 Button Puller

Price: $360.00

Button Puller

Capacity 30lbs

DB-1X - DB-2X Data Input Button

DB-1X - DB-2X Data Input Button

Price: $145.00 to $245.00

Data Input Button

Send data to a PC spread sheet with the touch of a button

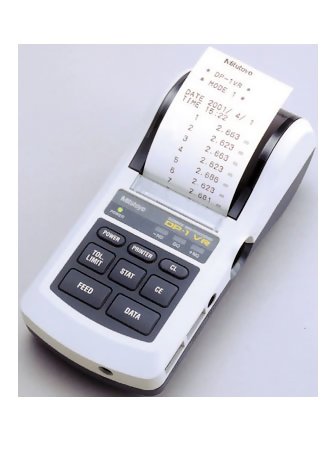

DP-1VR SPC Statistical Processor/Printer

DP-1VR SPC Statistical Processor/Printer

Price: $595.00

Mitutoyo SPC Statistical Processor/Printer

FC Thin Film Grip

FC Thin Film Grip

Price  $145.00

Thin Film Grip


Use these spring loades film grips to check tensile strength of thin film samples up to 2 mm thickness.

FG-CLV Clevis Grip

FG-CLV Clevis Grip

Price:  $88.00


Clevis Grip

Odd shaped parts, punched samples or tension springs are easily secured and tested. Concave shape to pins assures centering under load. Throat clearance with pin is .5" (12.7 mm) and can easily accept samples up to .375" (9.65 mm) wide.



FG-COMP Compression Plate

FG-COMP Compression Plate

Price  $70. up to $135.
Compression Plates

50 and 100MM steel compression plates for top load testing, large sample compression or crush testing, with polished finish. 50mm & 100mm plates available in M6 or M10 threading.



FG-FAB Fabric Grip

FG-FAB Fabric Grip

Price:  $330.00 to $365.00

Eccentrically mounted, serrated roller grip allow for self tightening of specimens up to 3" (76.20 mm) wide and .25" (6.4 mm) thick.

Fabric Grip



FG-FLM Film Grip

FG-FLM Film Grip

Film Grip

These heavy-duty, spring-loaded grips have serrated jaws for handling samples up to .39" (100 mm) thick and .79"(20 mm) or 1.97" (50 mm) wide.

Price:  $150.00

FG-HANDLE Force Gauge Handle

FG-HANDLE Force Gauge Handle

Price:  $100.00


Force Gauge Handle





FG-M10TEN7 Heavy-Duty Tensile Grip

FG-M10TEN7 Heavy-Duty Tensile Grip

Heavy-Duty Tensile Grip

Manually tightened jaw faces can accept samples 1.25” (31.75 mm) wide and .25” (6.35 mm) thick. Contact faces are serrated hardened tool steel.

Price:  $325.00

FG-M6FPG Grips fine and medium gauge wire, ribbon, tapes

FG-M6FPG Grips fine and medium gauge wire, ribbon, tapes

Perfect for testing fine and medium gauge wire, ribbon, tape and paper. Two jaw widths and load capacities are available; both can handle material thickness up to .04" (1 mm)

Price:  $150.00

FG-M6FTG20U Fat Chuck Tensile Grip

FG-M6FTG20U Fat Chuck Tensile Grip

Each serrated gripping face is .79" (20 mm) square and can accept samples up to .79" (20 mm) thick.

Capacity: 100 lb / 50 Kg / 500 N

Price:  $220.00

FG-M6JAC5U Jacob’s Chuck Grip

FG-M6JAC5U Jacob’s Chuck Grip

Jacob’s Chuck Grip

Designed for testing low gauge wire and rigid rods; accepts material diameters from .02" (.05 mm) to .20" (5 mm).

Price:  $160.00

FG-M6PIN Grips fine wires and filaments

FG-M6PIN Grips fine wires and filaments

Ideal for gripping fine wires and filaments; three ranges for checking samples of .02", .04", .08" (0.5, 1 and 2 mm) thick.

Price:  $120.00

FG-M6WTER100 Wire Terminal Test Fixture

FG-M6WTER100 Wire Terminal Test Fixture

Wire Terminal Test Fixture

Capacity: 100 lb / 50 Kg / 500 N

Designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end.

Price:  $485.00

FG-SP Spool Grip

FG-SP Spool Grip

Spool Grip

Ideal for hard-to-hold items like thread, filaments, etc. The sample is wrapped around the spool, anchored by friction.

Price:  $220.00

FG-TAP Tape Grip

FG-TAP Tape Grip

Tape Grip

Self tightening lever action makes this fixture perfect for testing rubber, tape and paper.

Price:  $250.00

FG-TWN Cord and Twine Grip

FG-TWN Cord and Twine Grip

Cord and Twine Grip

A unique figure 8 wrap of specimen assures a center break and non-locking pins permit quick installation and release. Throat and pin clearance is .375" (9.65 mm) wide with the throat width being .5" (1.7 mm)

Price:  $225.00 to $245.00

FG-WDG Wedge Grip

FG-WDG Wedge Grip

Wedge Grip

Two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied. Ideal for testing wires, strip material and plastic tape or films.

Price:  $400.00 to $410.00

FP Fine Point Grip

FP Fine Point Grip

Fine Point Grip

Grip for small wire, components in narrow spaces.

Price  $145.00



G1001 Wire Terminal Grip

G1001 Wire Terminal Grip

Price: $230.00

Wire Terminal Grip

Pull testing of wire and tube terminals, crimps, and other slender samples

200 lb capacity

G1002 Dual Roller Cam Grip

G1002 Dual Roller Cam Grip

Price $180.

Dual Roller Cam Grip

Pull testing of wires, tubes, and other slender samples

200 lb capacity

G1003 Miniature component grip

G1003 Miniature component grip

Price: $140.00

Mini Component Grip

For a variety of pull-off tests

30 lb capacity

G1008 / G1015 Film & Paper Grips

G1008 / G1015 Film & Paper Grips

Price: $250.00 to $350.00

Film & Paper Grip

Tensile testing of film, paper, and other thin materials

100 lb capacity

G1009 Compression Plates

G1009 Compression Plates

Price: $40.00 to $75.00

Compression Plates

G1010 Jacobs Chuck Pin Vise

G1010 Jacobs Chuck Pin Vise

Price: $100.00

Jacobs Chuck Grip (Force)

Secures a fixture or sample during tensile testing

30 lb capacity

G1011 Rubber Tip

G1011 Rubber Tip

Price: $30.00

Rubber Tip

Simulates a human finger in compression testing

50 lb capacity

G1013 Parallel Jaw Grip

G1013 Parallel Jaw Grip

Price: $190.00

Parallel Jaw Grip

General tensile testing

200 lb capacity

G1016 / G1017 Torque Sensor Attachments

G1016 / G1017 Torque Sensor Attachments

Price: $125.00 to $135.00

Series STH Attachments

Secures fixtures, bits, or samples during torque testing

100 lbin capacity

G1018 Swivel Adapters

G1018 Swivel Adapters

Price: $65.00

Swivel Adapters

Swiveling adapter, for use between gripping fixtures

200 lb / 500 lb capacity

G1019 / G1020 / G1021 Padded Attachments

G1019 / G1020 / G1021 Padded Attachments

Price: $40.00 to $80.00

Padded Attachments

Padded attachments for ergonomics analysis and job task analysis

500 lb capacity

G1022 Jacobs Chuck Grips

G1022 Jacobs Chuck Grips

Price: $180.00 to $220.00

Jacobs Chuck Grips For TSTM

Secures a fixture or sample during torque testing

100 lbin capacity

G1023 Bottle / Round Sample Grip

G1023 Bottle / Round Sample Grip

rice: $500.00

Bottle / Round Sample Grip

Torque and top-load testing of closures, bottles

100 lbin capacity

G1024 / G1031 Extension Rods

G1024 / G1031 Extension Rods

Price: $20.00 to $25.00

Extension Rods

For use between a force gauge and another attachment or grip

200 lb / 500 lb capacity



G1025 / G1032 Chisel Points

G1025 / G1032 Chisel Points

Chisel Points

For compressing or puncturing a variety of samples

200 lb / 500 lb capacity

Price  $20. up to $25.



G1026 / G1033 Cone Points

G1026 / G1033 Cone Points

Price: $20.00 to $25.00

Cone Points

For puncturing a variety of samples

200 lb / 500 lb capacity

G1027 / G1034 V-groove

G1027 / G1034 V-groove

Price: $20.00 to $25.00

V-grooves

For compression testing of round or odd shaped samples

200 lb / 500 lb capacity

G1028 / G1035 / G1038 / G1042 Tensile Test Hooks

G1028 / G1035 / G1038 / G1042 Tensile Test Hooks

Price: $15.00 to $30.00

Hooks

These hooks are ideal for a variety of tensile tests

Capacities up to 1,000 lb

G1029 / G1036 Flat Heads

G1029 / G1036 Flat Heads

Price: $20.00 to $25.00

Flat Heads

These attachments are ideal for compression testing of buttons, membrane switches, etc.

200 lb / 500 lb capacity

G1045 90° Peel Tester

G1045 90° Peel Tester

Price: $1200.00

Peel Testers

Typical applications include the testing of adhesives, films and packaging, such as foil seals found on yogurt containers, juice containers and others

Maintains a 90° angle between the table and the direction of the pull

Maximum table travel: 8.2 in (210 mm)

G1046 Pneumatic Film & Paper Grip

G1046 Pneumatic Film & Paper Grip

Price: $600.00

Pneumatic Film & Paper Grip

Tensile testing of film, paper, and other thin materials

100 lb capacity

G1053 Cap Grip

G1053 Cap Grip

Price: $325.00
Cap Grip
Secures bottle caps during torque testing
100 lb-in capacity

G1053-ADC Axial Displacement Compensator

G1053-ADC Axial Displacement Compensator

Price: $195.00

Axial Displacement Compensator



G1056 Multi-Jaw Grip

G1056 Multi-Jaw Grip

Price: $295.00

Multi-Jaw Grip

Capacity 100 lb

For gripping round and irregularly shaped items

G1058 Universal Cap Grip

G1058 Universal Cap Grip

G1061 Self-Tightening Wedge Grip

G1061 Self-Tightening Wedge Grip

Wedge Grip

General tensile testing
1200 lb capacities

Price $495.

G1062 Miniature Wedge Grip

G1062 Miniature Wedge Grip

Miniature Wedge Grip
100 lb [500 N] capacity

Price $240.00

G1076 Wire Terminal Grip

G1076 Wire Terminal Grip

Wire Terminal Grip
200 lb capacity
Price: $350.00


GC-1001 Heavy-duty flat chuck

GC-1001 Heavy-duty flat chuck

Flat Chuck

Square serrated face, heavy-duty flat chuck.

GC-5 / GC-15 For gripping shafts and rods

GC-5 / GC-15 For gripping shafts and rods

For gripping shafts and rods.

Grip shafts and rods.

Price  $145.00

GP-15 General Purpose Grip

GP-15 General Purpose Grip

Price: $85.00

General Purpose Grip

For film, paper, labels, packaging, and other thin materials for tensile and peel testing

Max Sample Thickness: 4mm / 0.16"

GR-30 / GR-2000 Cam Grip

GR-30 / GR-2000 Cam Grip

Cam Grip

Cam structure allows to easily grip materials as rubber, films etc. up to 2mm thickness.

Price:  $280.00 to $350.00

GT-30-1 90° Peel Test Fixture

GT-30-1 90° Peel Test Fixture

90° Peel Test Fixture
Maintains constant 90° angle during pull test
Price  $385. up to $1,390.


GT-30-M10 Vise Chuck

GT-30-M10 Vise Chuck

Price: $275.00

Vice Chuck

Capacity 220 lb



KC Heavy-Duty Wedge Grips

KC Heavy-Duty Wedge Grips

Wedge Grip

For tensile measurements of thick materials

Price:  $430.00 to $595.00

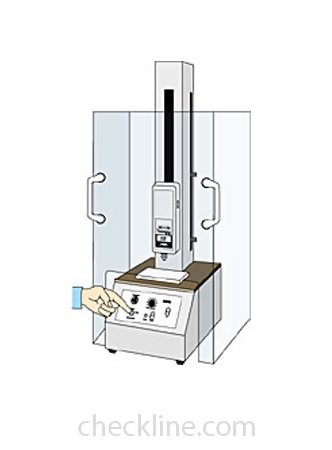

LP-99 Lexan Safety Shield

LP-99 Lexan Safety Shield

Price: $299.00
Lexan Safety Shield

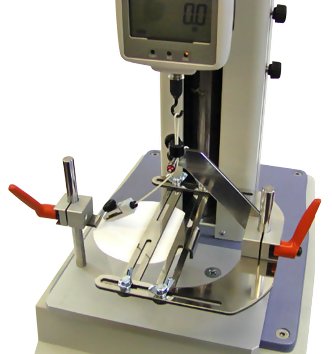

P45-50N 45 Degree Peel Tester

P45-50N 45 Degree Peel Tester

Peeling strength of a film cover of plastic container. For food and medical care etc.
Peeling angle is 45 degree, and this angle is nearly practical condition of opening cover
Price  $1,435.


PC Small Pin Grips

PC Small Pin Grips

Small Pin Grip

For gripping small diameter wires, pins, filaments etc.

Price:  $85.00

PF-1 / PF-2 Peeling Attachments

PF-1 / PF-2 Peeling Attachments

Peeling Attachment

To measure the peeling force of laminated materials or electronic components on circuit boards etc.

Price: $280.00

PG-2 / PG-4 Penetrating Pin

PG-2 / PG-4 Penetrating Pin

Penetrating Pin

Price:  $35.00

SC Small Chucks

SC Small Chucks

Small Chuck

Test wire, components, other pull tests.

Price:  $145.00

SW-1 Data Acquisition Software

SW-1 Data Acquisition Software

Price: $199.00

Data Acquisition Software for DS2, Z2 Force Gauges & DTX Torque Gauge

Full SPC and graphing capabilities



WC-30 / WC-2000 Wire Wrapping Grips

WC-30 / WC-2000 Wire Wrapping Grips

Wire Wrapping Grips

Price:  $280.00 to $350.00

WG-1 / WG-2 Wire Terminal Grips

WG-1 / WG-2 Wire Terminal Grips

Wire Terminal Grips

Price:  $155.00

WG-100 Vise Chuck

WG-100 Vise Chuck

Vise Grip

Screw tightened vise is ideal for slip-free attachment to base of test stand.

Note: the WG-100 replaced the GT-30 Vise Chuck

Price:
$150.00



WG-3 Wire Terminal Grip

WG-3 Wire Terminal Grip

Wire Terminal Grip

Multi terminal grip has 12 wire gauge apertures

Price:  $250.00

WG-300 Wire Cam Grip

WG-300 Wire Cam Grip

Wire Cam Grips

Price:  $175.00

G1012 Wedge Grips

G1012 Wedge Grips

Price: $495.00 to $529.00
Wedge Grip
General tensile testing
200 lb and 2000 lb capacities

Thread Adapters for Digital Force Gauges

Thread Adapters for Digital Force Gauges

Price: $15.00 to $20.00
Connect force gauges and attachments with different thread sizes. Use them with a force gauge and a test stand to create a complete testing system.


Copyright © 2013 Albuquerque Industrial. Developed by Marctin Technology
