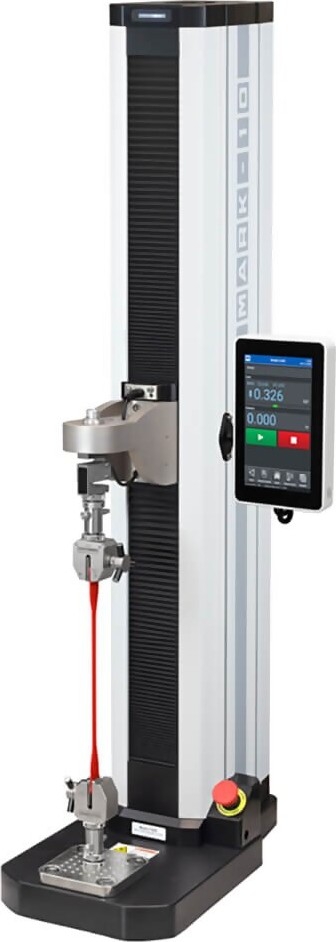

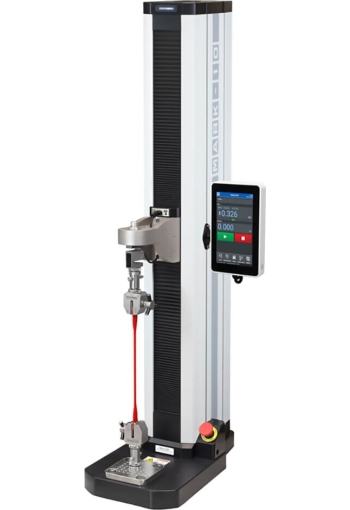

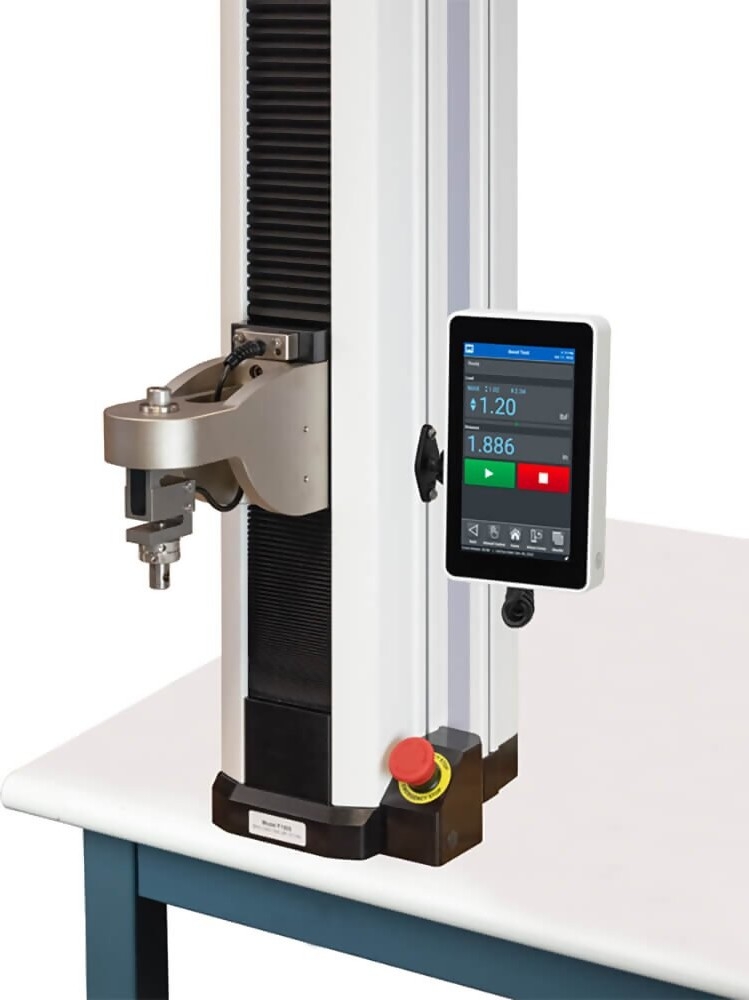

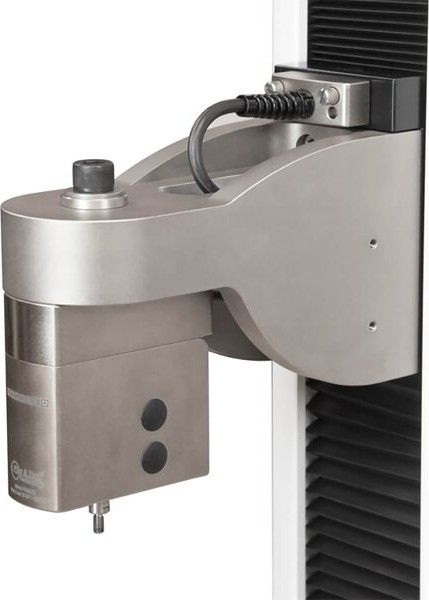

Name: Mark-10 EasyMESUR-HR Tension and Compression Test Frame - High Range
Brand: Mark-10
SKU: 2120

Capacities up to 1500 lbs / 6.7 kN

Force vs Distance Measurement, Break Detection, Load Holding, and many other features

Made in the USA, 3 Year Warranty

4 Models

Travel - 14.2in / 360mm
F755S - 750 lb / 3.4 kN
F1505S - 1500 lb / 6.7 kN

Travel - 32in / 813mm
F1505 - 1500 lb / 6.7 kN
F755- 750 lb / 3.4 kN

Load Cell and Grips Sold Separately

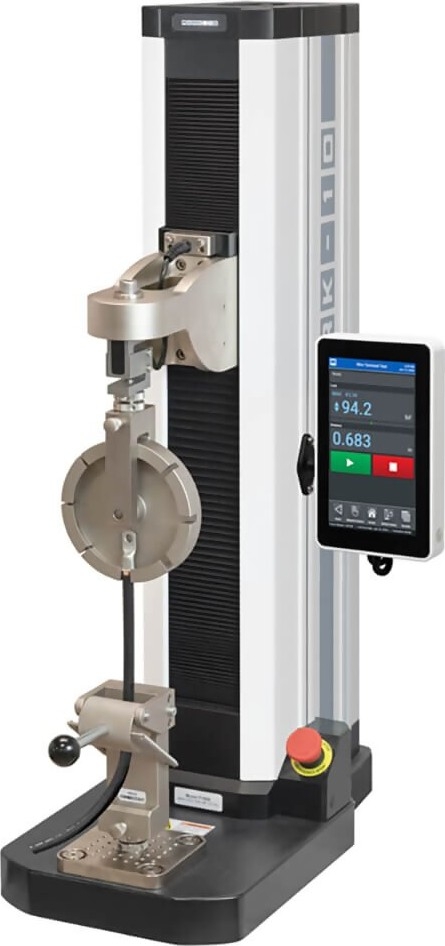

Series F test frames with EasyMESUR® are engineered to perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.

Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface – no PC or force gauge required. For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR®’s serial command library.

Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with large, simple controls – or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more. Purchase functions and packages at time of order or enable them in the field via activation codes. All testers are shipped in a 160-hour evaluation mode, in which all functions are available.

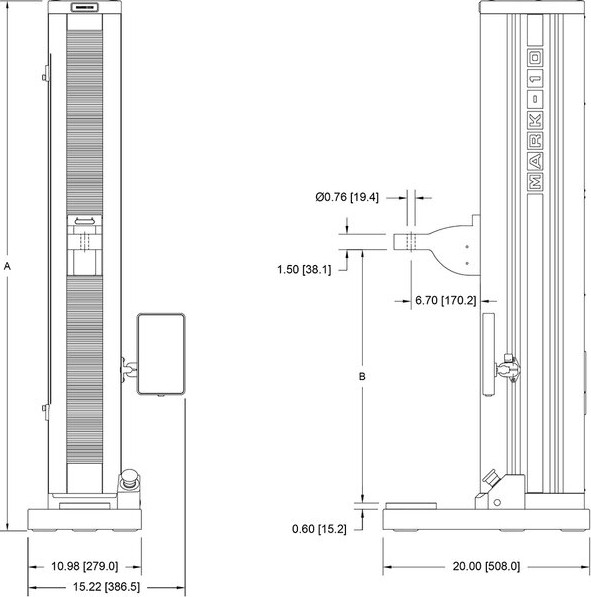

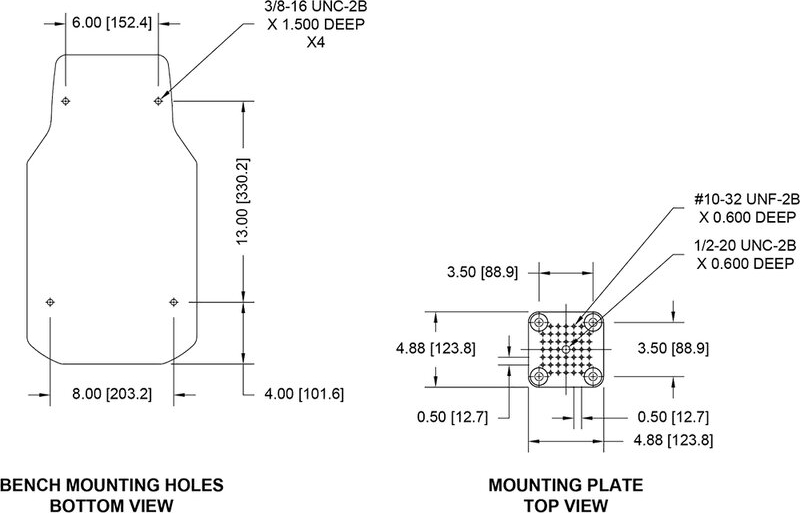

Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.

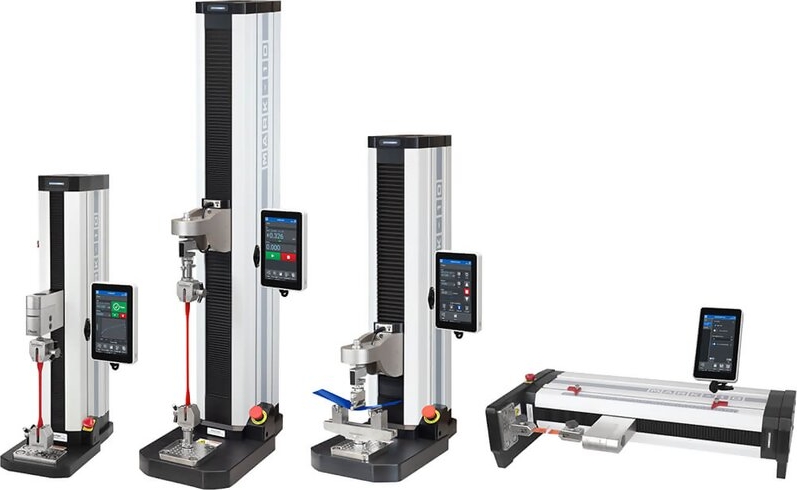

Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.

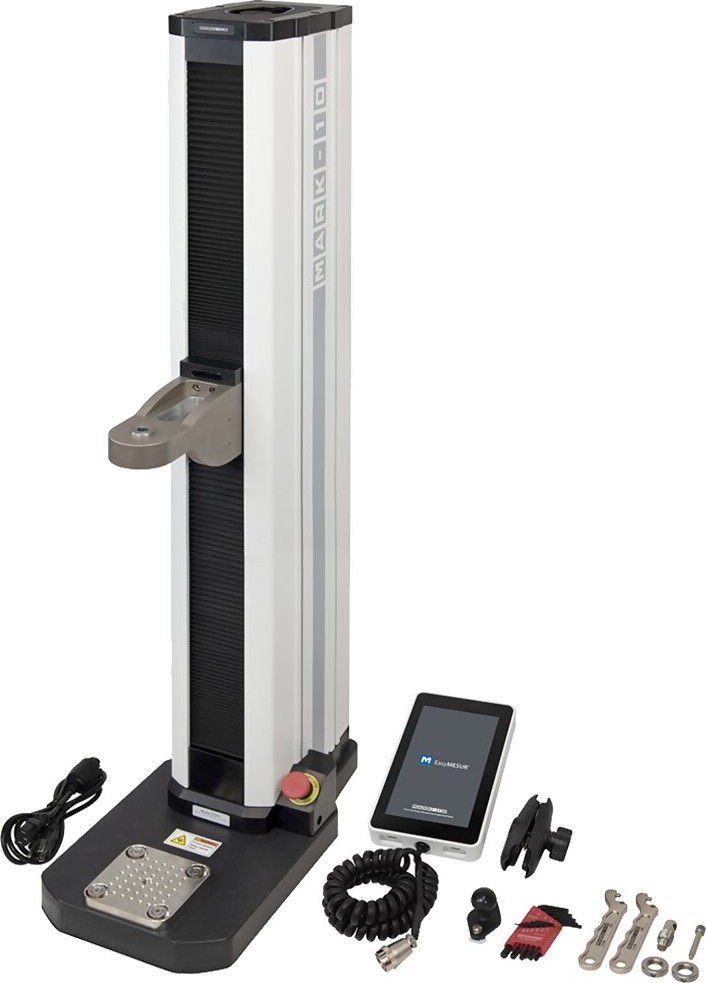

Kit Contents

Mark-10 EasyMESUR-HR Tension and Compression Test Frame - High Range
Control panel, mounting bracket, and hardware

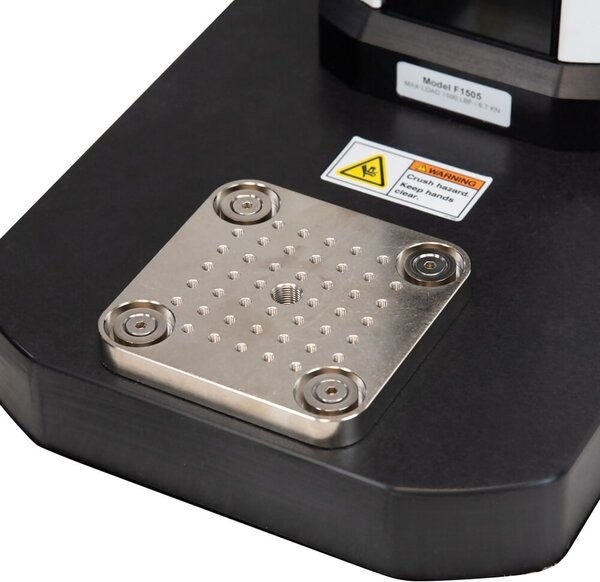

Eye end kit for base
2 Lock ring for eye end
2 Spanner wrench
Power cord
Allen wrench set

Click image to enlarge

Features

3 Year Warranty
Easy-To-Use Touch Screen Controller

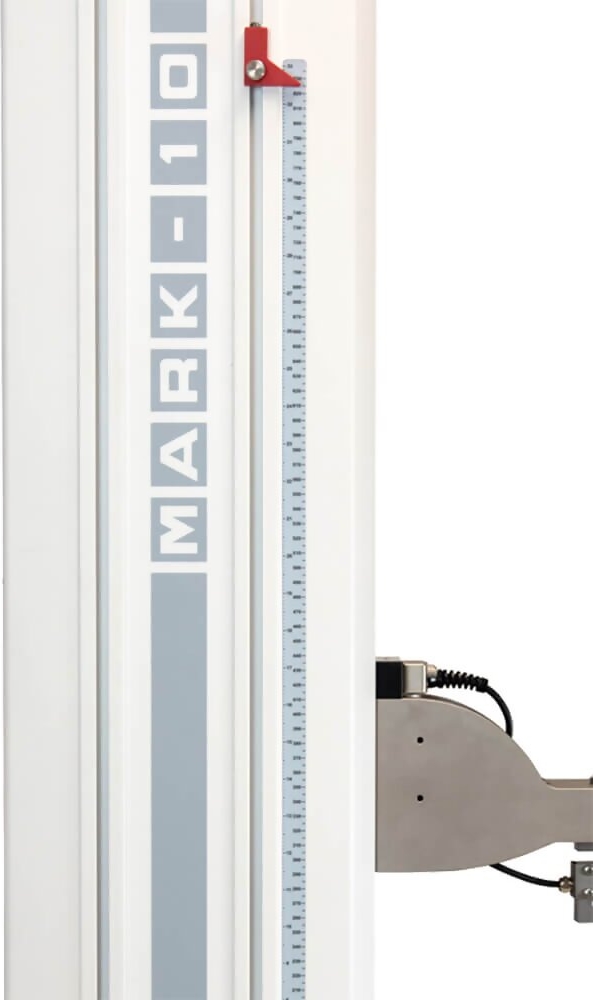

Adjustable upper and lower solid state limit switches
Easy-to-service electronics
Position accuracy of ±0.006 in / 0.15 mm under any load, at any position
Smooth, quiet operation, with virtually no speed variation under load
The EasyMESUR® integrated control panel centralizes test setup, test frame control, and data collection into one convenient place

Specifications

F755-EM

F755S-EM

F1505-EM

F1505S-EM

Load capacity*

750 lbF [3.4 kN]

1,500 lbF[6.7 kN]

Maximum travel

32 in [813 mm]

14.2 in [360 mm]

32 in [813 mm]

14.2 in [360 mm]

Standard speed range

0.5 - 24 in/min [10 - 600 mm/min]

Optional speed range

0.001 - 60 in/min [0.02 - 1,525 mm/min]

0.001 - 70 in/min [0.02 - 1,800 mm/min]

Load accuracy (% of full scale)

Test frame: ± 0.1%

Force sensor: Series FS05: ± 0.1% | Series FS06: ± 0.15% | Series R07: ± 0.15%

Load sampling rate

5,000 Hz

Data acquisition rate

100 Hz

Speed accuracy

± 0.2% of setting, virtually no variation with load

Distance accuracy

± 0.006 in [0.15 mm], at any load or position, factory-compensated

Distance resolution

0.001 in [0.02 mm]

Limit switch repeatability

± 0.001 in [0.03 mm]

Overload protection

Motor stops at 120% of full scale of the force sensor

Power

Universal input 100-240 VAC, 50/60 Hz, 300W

Universal input 100-240 VAC, 50/60 Hz, 450W

Fuse type

4A, 3AG, SLO BLO

Weight (test frame only)

184 lb [83 kg]

149 lb [68 kg]

197 lb [89 kg]

157 lb [71 kg]

Shipping weight

235 lb [107 kg]

195 lb [88 kg]

247 lb [112 kg]

205 lb [93 kg]

Environmental conditions

Indoor use only

Up to 6,500 ft [2,000 m] above sea level

Temperature range: 40 - 95°F [5 - 35°C]

Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing

Mains supply voltage fluctuations up to ± 10 % of the nominal voltage

Transient overvoltages up to the levels of Overvoltage Category II

Use in environments up to Pollution Degree 2

Conformance

CE, UKCA

Warranty

3 years [see individual statement for further details]

Load capacity is reduced at higher speeds, as follows:
- F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
- F505 / F505H: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min

Model No.	HS Code	ECCN	Country of Origin
F755-EM F755S-EM F1505-EM F1505S-EM AC1092-1 AC1092-2	9024900000	EAR99	USA
CERT-DS	9024800000	EAR99	USA

EasyMESUR

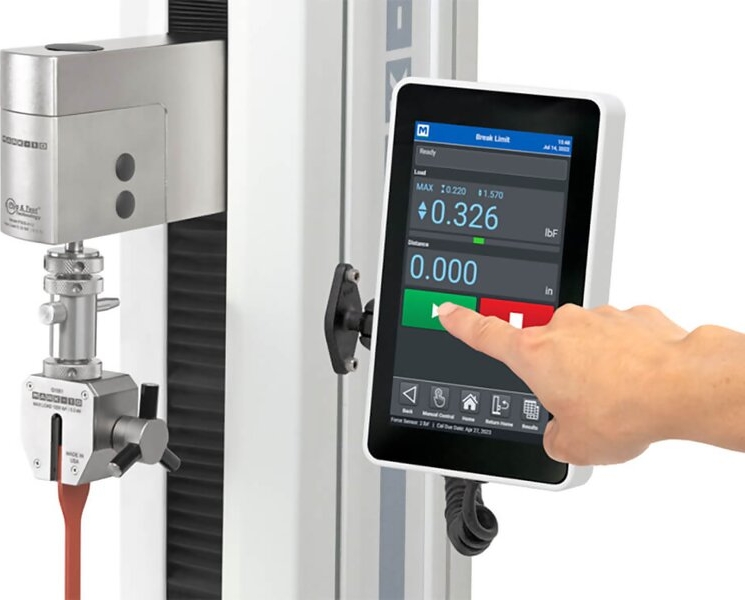

The EasyMESUR® integrated control panel centralizes test setup, test frame control, and data collection into one convenient place. Use the 7” touchscreen to create and run a wide range of tests, including:

Test to a load
Test to a sample break
Test to a distance

Load holding
Cycle testing
Average force testing

View data in graphical format or results tables. Save or export data as needed, or generate a report.

line What's your point of view?

Run a test via the Standard, Graph, or Results views, and switch views as needed. Pass / Fail indicator easily identifies problematic samples.

Standard View

Graph View

Results View

View large-format load and distance values, with pass/fail status.

Optional functions shown here:
Distance Measurement

View a graph of load vs. distance or time, with pass/fail status.

Optional functions shown here:
Distance Measurement, Graphing & Reporting

View results for each run, with corresponding statistics for the results.

Optional functions shown here:
Distance Measurement, Graphing & Reporting

line Test setup is easy as 1-2-3

Basic tests

Select a test type, and EasyMESUR® will guide you through the setup.


Load Limit	Distance Limit	Break Limit	Load Hold	Cycle	Averaging

Basic Test Settings Test direction Speed Test-specific parameters Data save preferences	Results Settings Select results Enable and configure pass/fail limits Set data collection rate Set auto-return to home	Graph Settings Single-point vs. continuous graphing Set force vs. time or vs. distance Graphing start threshold

line Robust data acquisition and management

Blazingly fast

Force sensor sampling rate of 5,000 Hz yields accurate peak measurements even in quick-duration events. EasyMESUR® collects load and travel data at up to 100 Hz, and allows up to 100,000 data points per run.

Standard reporting

Save a single result per run, such as maximum load to a USB flash drive or internal storage.
Save results as an EasyMESUR file for later viewing or export to a .csv file.
Each run includes the run number, pass/fail status, and result, such as a maximum compression load.

With the Graphing & Reporting function

View and save all data points collected during a run, including reading number, load, elapsed time, and distance (Distance Measurement function required).
View statistics for the results.
View a graph of load vs. time or load vs. distance (Distance Measurement function required).
Create and save a report, including results and graph. Save report templates for future use.

line Intelligent manual control

Manually control the test frame to obtain quick force and distance results, or manually position the crosshead prior to a test. Select from several actuation methods, including momentary (button-hold), maintained (button release) motion, jog mode with three distance presets, and FollowMe® force-based positioning.

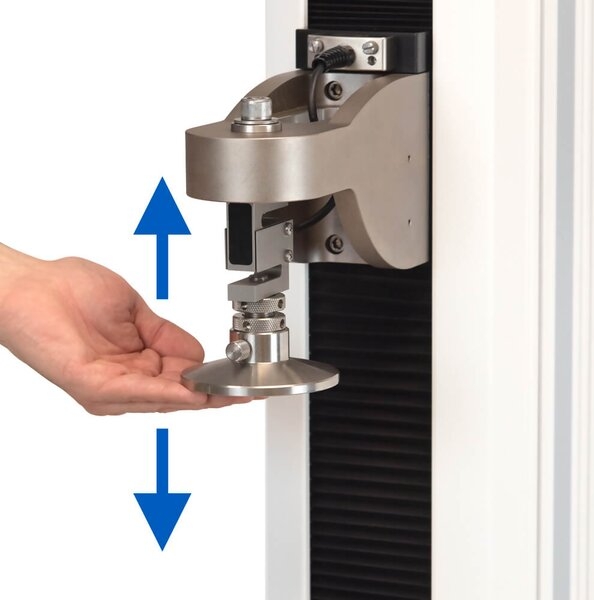

Push and pull on the force sensor to move the crosshead. Apply greater load to achieve faster motion. FollowMe® is responsive enough for quick positioning as well as fine adjustments.

FollowMe optional function required.

line Calibrate force sensors on the test frame or off-site

Calibrate force sensors in one of two ways:

Test frame

EasyMESUR® provides an integrated utility, with an intuitive step-by-step wizard. Manual controls allow the technician to use the test frame to apply tension and compression forces.
