Imada MX-500 Motorized Vertical Test Stand

See More Test Stands, Motorized

Imada MX-500 Motorized Vertical Test Stand

See More Test Stands, Motorized
This product has been discontinued

Product Description
This product has been replaced by the Imada MX2
The MX-500 has been replaced by the Imada MX2 High Performance Motorized Test Stand
Motorized Test Stand with FORCE CONTROL

500lb Capacity

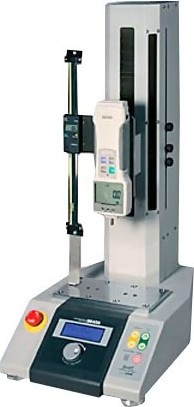

MX-500 Motorized Vertical Test Stand

MX-500 motorized test stands offer advanced force testing. The combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.

Speed control, quick return and emergency stop are standard features.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.


line
reddotFeatures
line
bluedotOne stand for both compression (push) and tension (pull) tests
bluedotStroke: 13"
bluedotJog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
bluedotMaximum load 500 lb
bluedotCombination of ball screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
bluedotWide speed range: 0.2 – 7 in/min (optional speed ranges available)

line
reddotDimensions
linedimensions

line
reddotRelated Products
line

ZP
Digital Force Gauge with USB Output
related

bluedotOverload protection 200 % full scale

___________________________________________


Z2
Digital Force Gauge
related

bluedotOutput signals (RS 232 C, analog and Mitutoyo Digimatic)

___________________________________________


SW-1
Data Acquisition Software for Force Gauges & Torque Gauges
related

bluedotFull SPC and graphing capabilities

bluedotAutomates your data collection

bluedotProvides a running log of all measurements along with a chart of the data as well as statistical information

___________________________________________


DB-1X - DB2-X
Data Input Button
related

bluedotSend data to the PC spread sheet with the touch of a button

bluedotSelect different acquisition rates

bluedotZero the gauge

___________________________________________


LP-99
Lexan Safety Shield
related

bluedotHelps protect personnel from injury by containing debris during testing

___________________________________________


NIST CAL
related


line
reddotSpecifications
line
Capacity500 lbs
Stroke13"
Travel Rate0.2 – 7 in/min
DimensionsSee Dimensions above
Compatible GaugesDS2, Z2, ZP, ZPH and DPSH
Warranty2 years
