Mark-10 AC1092 Shields for Test Frames provides pinch and sample debris protection for the operator

---

Safety shield for test frames

---

Rugged construction of frame and shield

---

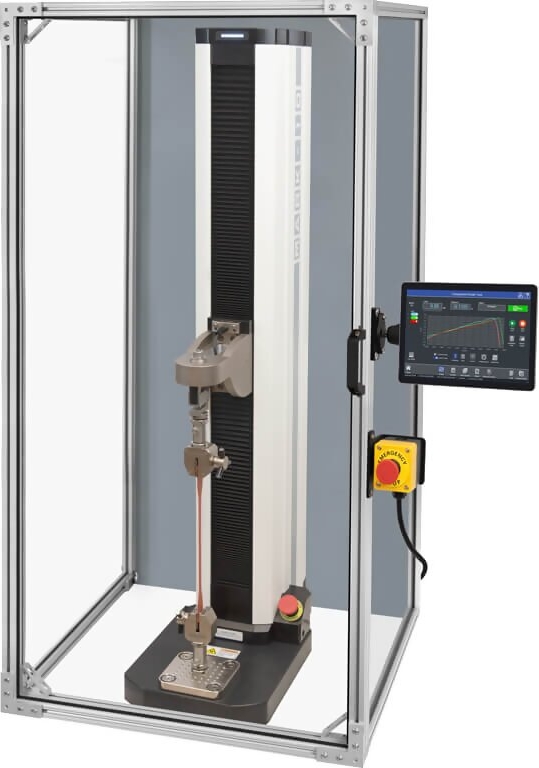

The Mark-10 AC1092 Shields for Test Frames provides pinch and sample debris protection for the operator. An electrical interlock prevents test frame operation while the door is open. The test frame’s control panel and remote emergency stop (applicable models, only) mount to the shield’s extruded frame. See Compatibility tab to select an appropriate shield for your test frame

Shields require an auxiliary limit connector in the rear of a Mark-10 test stand or frame. This connector is temporarily not installed due to supply constraints. However, a limited number of connectors are available for factory installation upon request, at time of order or as a retrofit.

Specifications

---

HS Code	9024800000
ECCN	EAR99

Compatibility

---

Test Frame Model	Shield Model

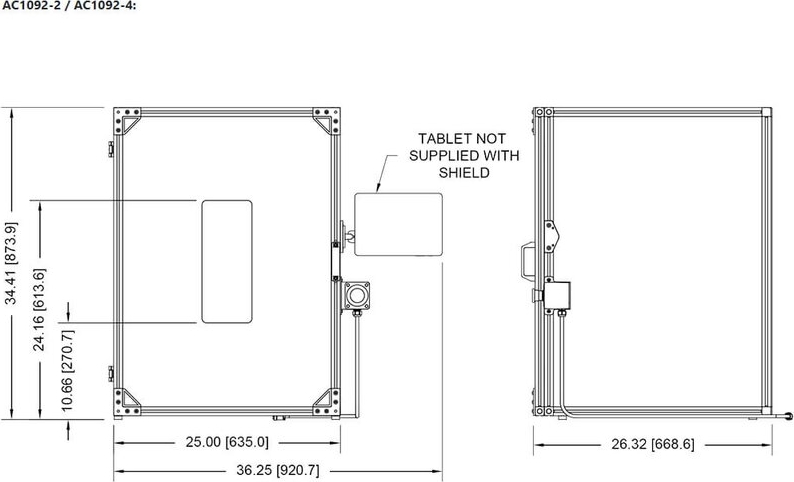

F105 / F305 / F505*	AC1092-2

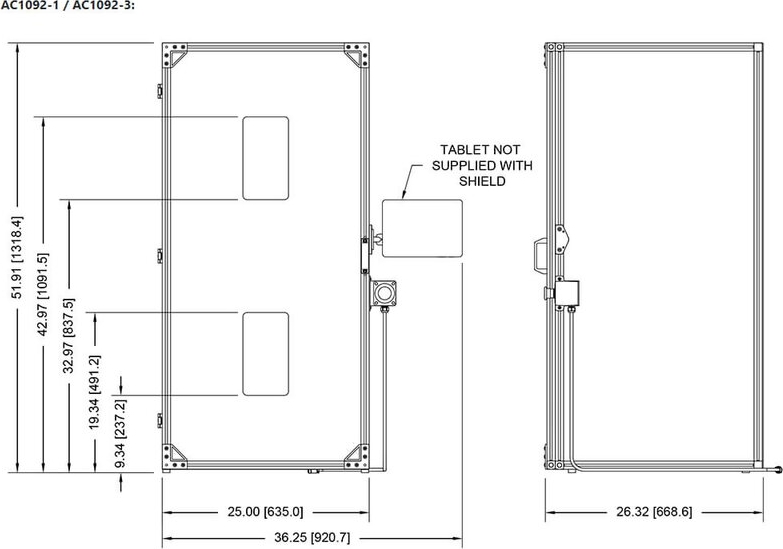

F105 / F305 / F505 + column extension up to 24”*	AC1092-1
F755*	AC1092-1
F755S*	AC1092-2
F1505*	AC1092-1
F1505S*	AC1092-2
ESM303	AC1092-4
ESM303 + column extension up to 24”	AC1092-3
ESM750	AC1092-1
ESM750S	AC1092-2
ESM1500	AC1092-1
ESM1500S	AC1092-2

* An emergency stop connector must be installed in the test frame, at the factory or in the field. See Ordering Information.

Downloads

---

Mark-10 AC1092 Shields for Test Frames - Instruction Manual
