Name: Mark-10 Series R07 S-Beam Force Sensor
Brand: Mark-10
SKU: 2060

Mark-10 Series R07 S-Beam Force Sensor

See More Force Sensors

20 ft Connecting Cable

Unique Plug & TestTM connector holds all calibration and configuration data

Measures tensile and compressive forces

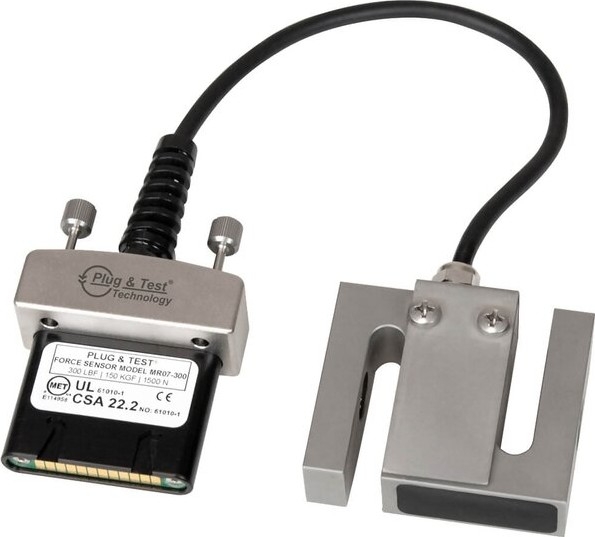

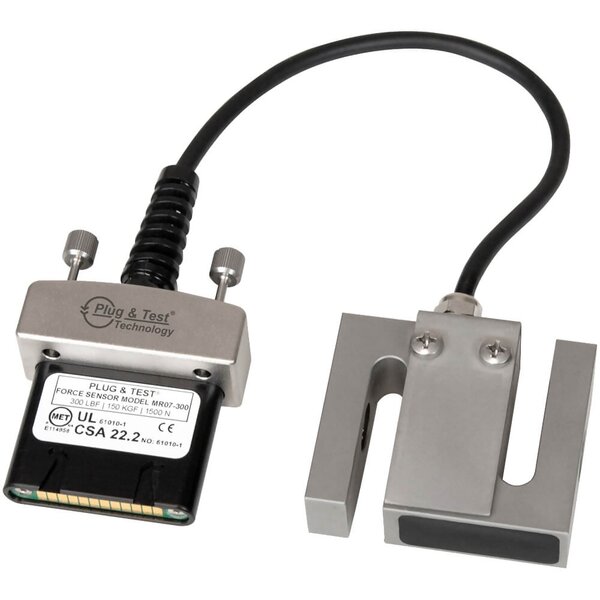

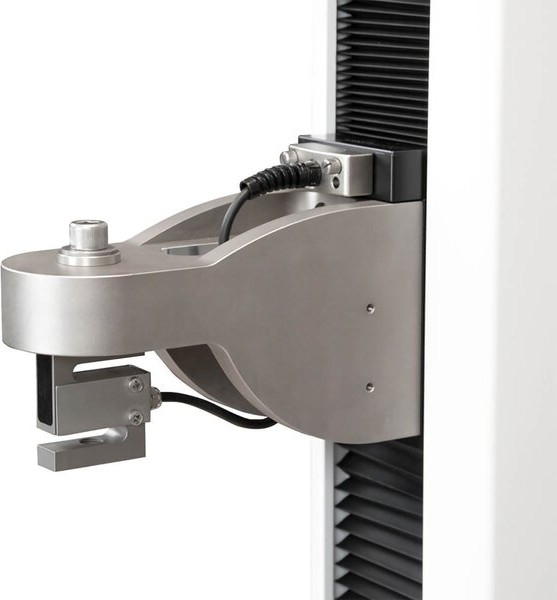

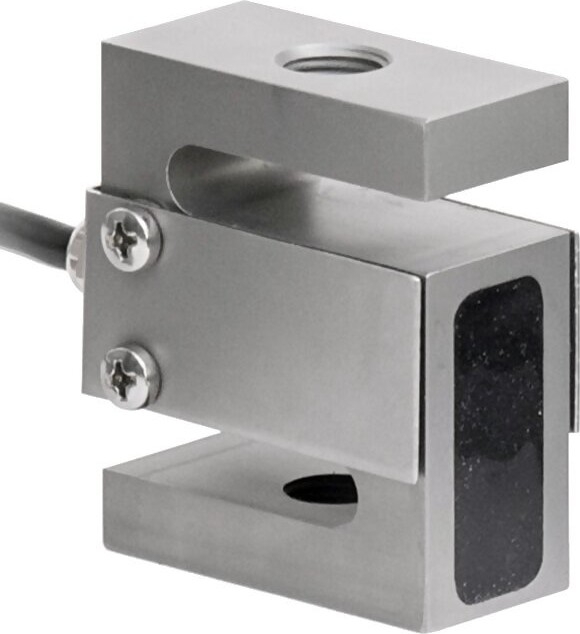

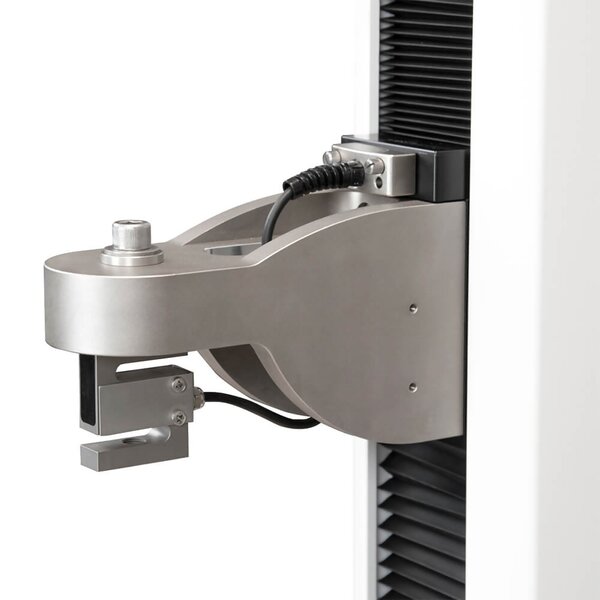

The Mark-10 Series R07 S-Beam Force Sensor is the designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator.

Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN].

Compatible with Models F755, F755S, F1505, and F1505S test frames. Not compatible with Models F105, F305, F505, and F505H.

line
Features
line

20 ft Connecting Cable
Unique Plug & TestTM connector holds all calibration and configuration data
Measures tensile and compressive forces
NIST-traceable certificate of calibration included
Warranty: 3 years

line
Specifications
line

	MR07-50	MR07-300	MR07-1500
Weight	MR07-200: 1 lbs [0.5 kg]	MR07-1000: 2 lbs [0.9 kg]	3 lbs [1.4 kg]
Accuracy	± 0.15% of full scale + indicator or test frame
Safe Overload	150% of full scale
HS code	MR07 (all models): 9024900000 \| AC1084: 9024800000
ECCN	EAR99

line
Force Ranges - capacity/resolution
line

Model	lbF	ozF	gF	kgF	N	kN
MR07-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	-
MR07-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	-
MR07-200	200 x 0.1	3200 x 2	-	100 x 0.05	1000 x 0.5	1 x 0.0005
MR07-300	300 x 0.2	4800 x 5	-	150 x 0.1	1500 x 1	1.5 x 0.001
MR07-500	500 x 0.2	8000 x 5	-	250 x 0.1	2500 x 1	2.5 x 0.001
MR07-750	750 x 0.5	12000 x 10	-	375 x 0.2	3750 x 2	3.75 x 0.002
MR07-1000	1000 x 0.5	16000 x 10	-	500 x 0.2	5000 x 2	5 x 0.002
MR07-1500	1500 x 1	24000 x 20	-	750 x 0.5	7500 x 5	7.5 x 0.005

line
Downloads
line

Mark-10 Series R07 S-Beam Force Sensor - Data Sheet

Mark-10 Series R07 S-Beam Force Sensor - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Mark-10 MR07-50 Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N View Model Details

$800.00

Mark-10 MR07-100 Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N View Model Details

$800.00

Mark-10 MR07-200 Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN View Model Details

$800.00

Mark-10 MR07-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN View Model Details

$800.00

Mark-10 MR07-500 Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN View Model Details

$800.00

Mark-10 MR07-750 Force sensor, 750 lbF / 12000 ozF / 375 kgF / 3750 N / 3.75 kN View Model Details

$800.00

Mark-10 MR07-1000 Force sensor, 1000 lbF / 16000 ozF / 500 kgF / 5000 N / 5 kN View Model Details

$800.00

Mark-10 MR07-1500 Force sensor, 1500 lbF / 24000 ozF / 750 kgF / 7500 N / 7.5 kN View Model Details

$800.00
