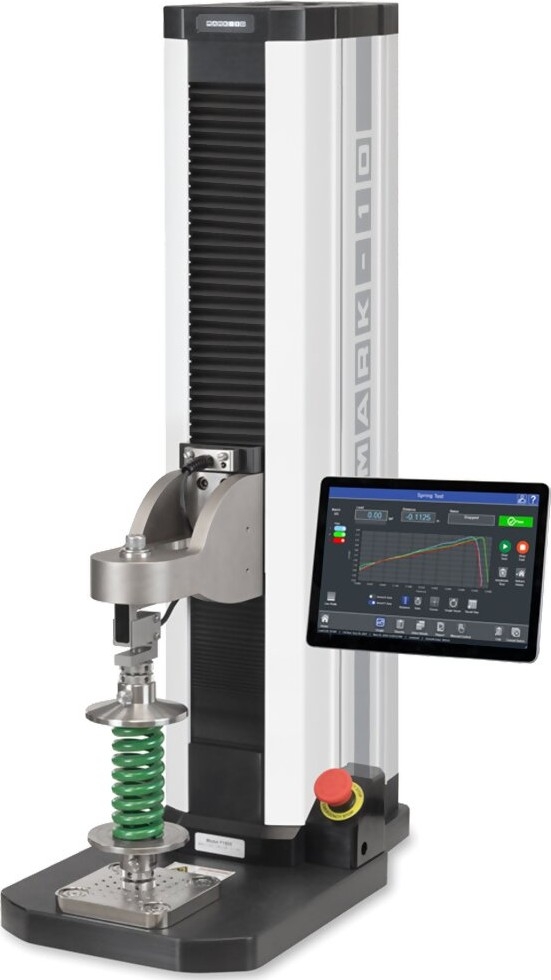

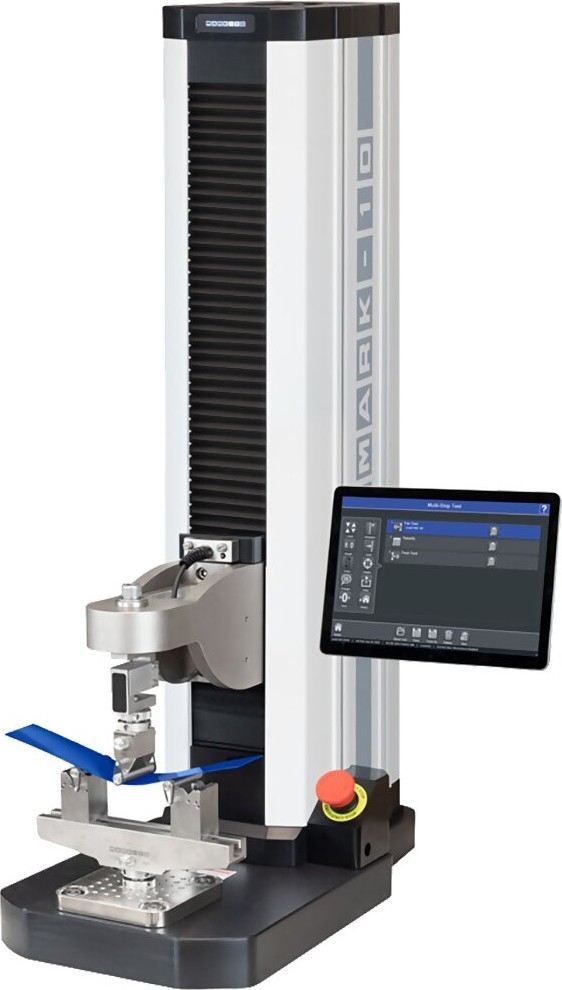

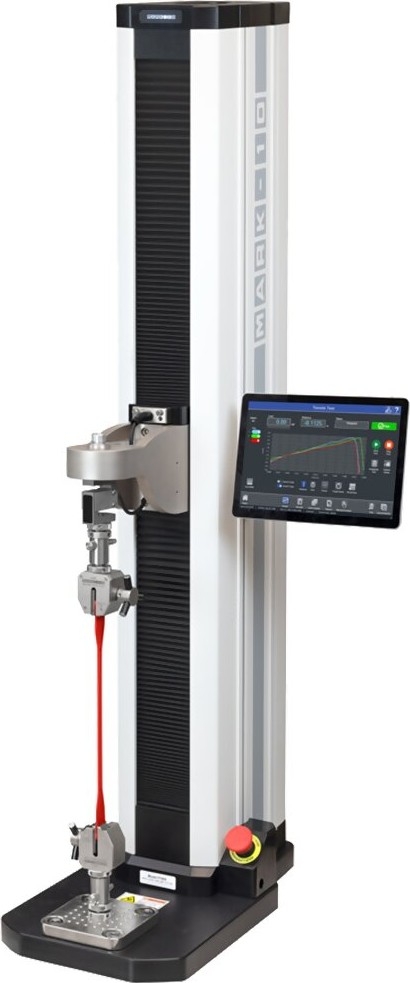

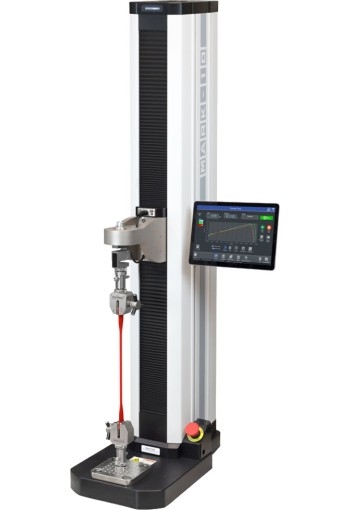

The Mark-10 F755 - F1505 Advanced Test Frames are designed for tension and compression force testing applications, with force capacities up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

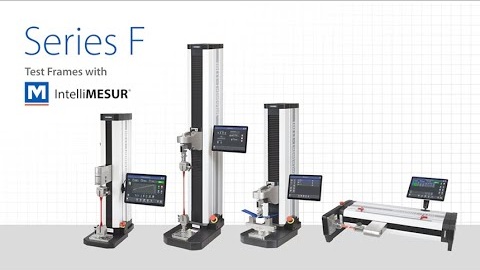

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

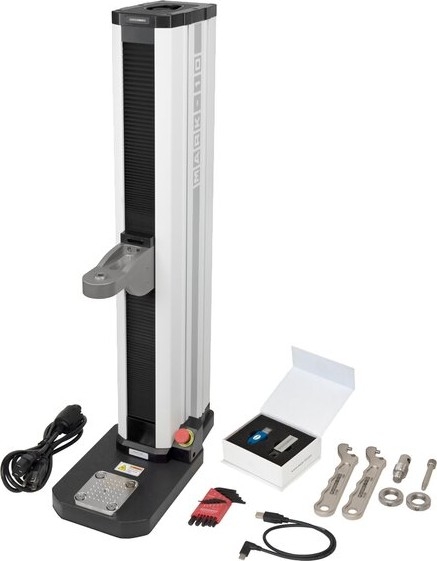

Kit Contents

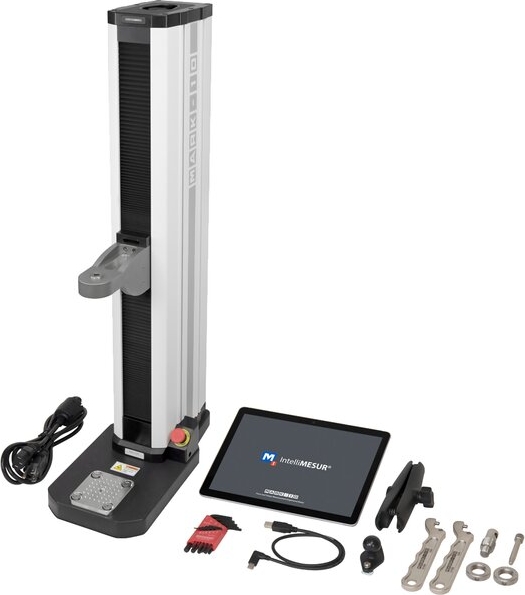

The F755-IMT, F755S-IMT, F1505-IMT, and F1505S-IMT advanced test frames include the following accessories:

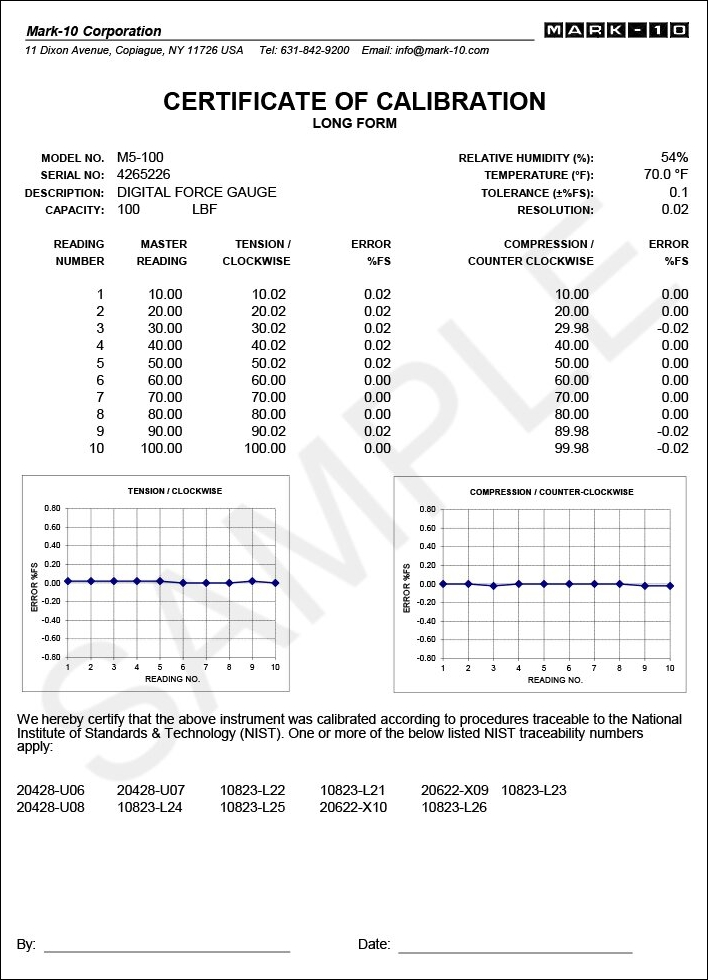

Control panel, mounting bracket, and hardware USB cable Eye end kit for base Includes: eye end, anchor pin, (2) lock rings 2 Spanner wrench Power cord Allen wrench set NIST-traceable certificate of calibration, force

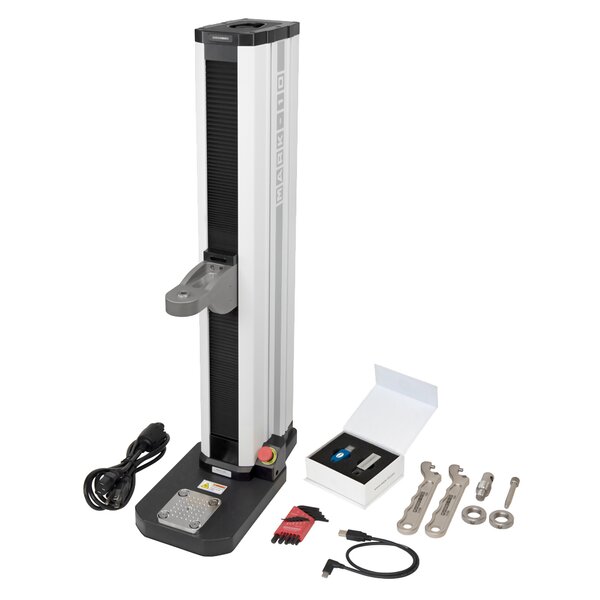

The F755-IM, F755S-IM, F1505-IM, and F1505S-IM advanced test frames include the following accessories:

USB flash drive containing software installation files USB dongle USB cable Eye end kit for base Includes: eye end, anchor pin, 2 - lock rings 2 - Spanner wrench Power cord Allen wrench set NIST-traceable certificate of calibration, force

Features

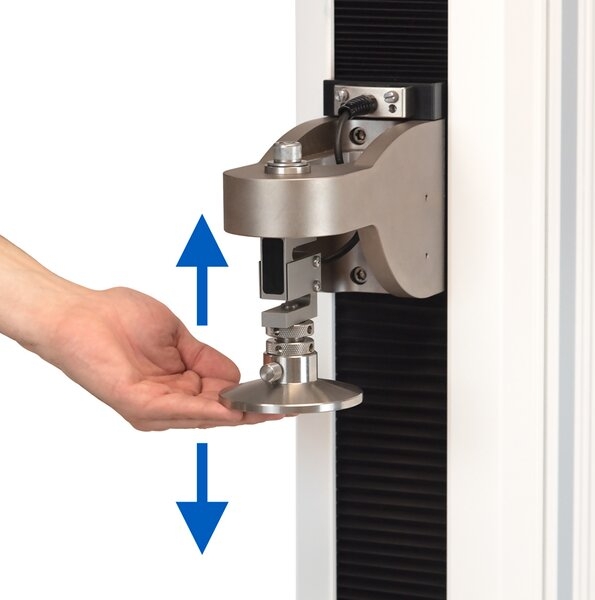

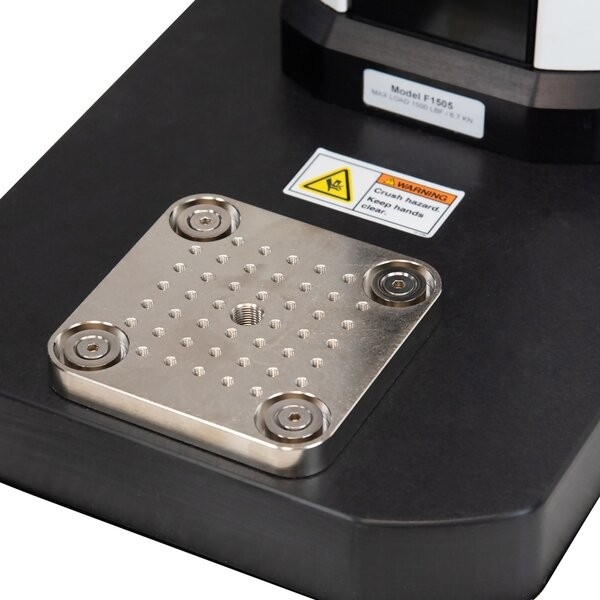

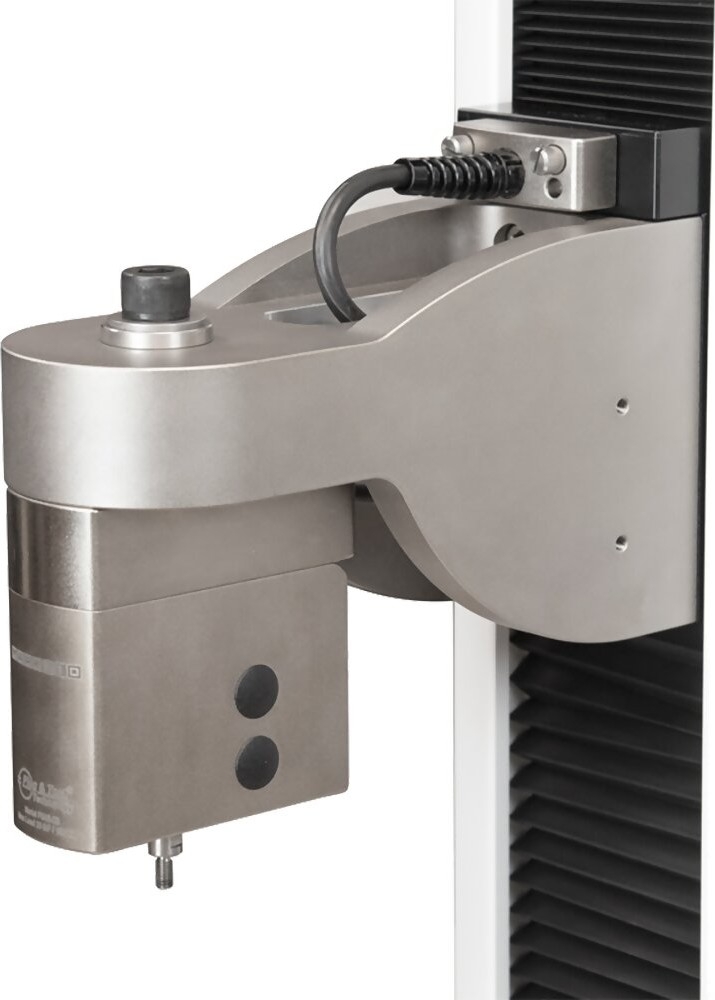

• Rigid and precise by design
  • Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position.
  • Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

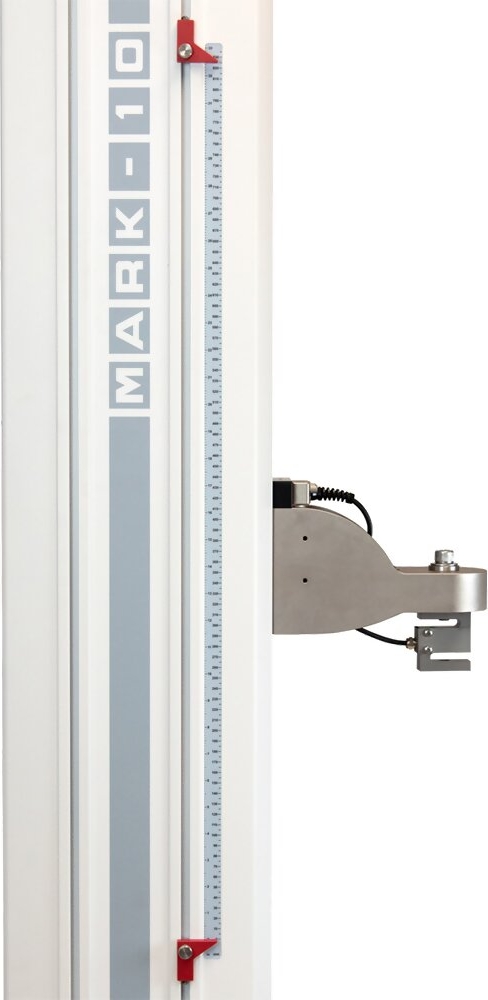

• External limit switches
  • Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
• Easy-to-service electronics
  • Most electronics are housed in an integrated module, easily replaced without special tools or processes.

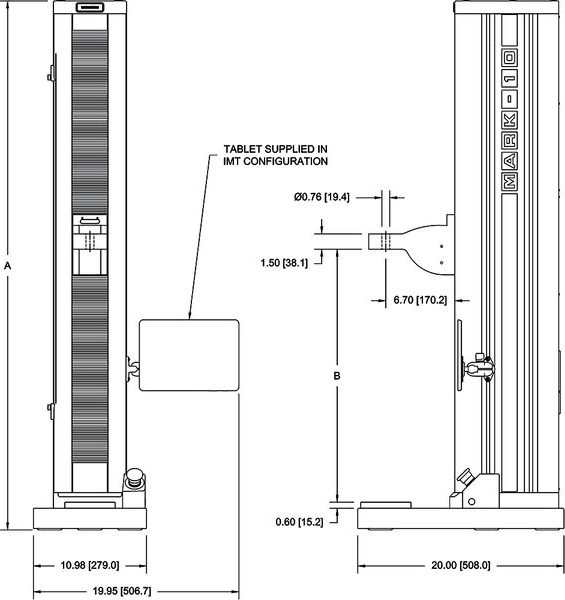

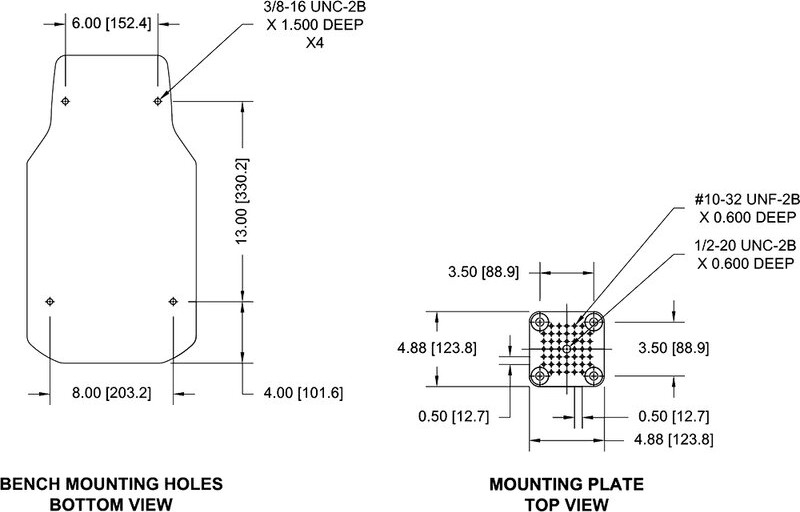

Specifications

1. Load capacity is reduced at higher speeds, as follows:
   • F755 / F755S: limited to 500 lbF [2.3 kN] above 35 in [900 mm]/min
   • F1505 / F1505S: limited to 1,000 lbF [4.5 kN] above 60 in [1,525 mm]/min
2. May be extended via single- or double-column extensions.

IntelliMESUR

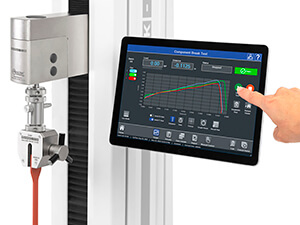

IntelliMESUR® software is an integrated solution running on Windows tablets and PCs. Select a pre-loaded 10.1” tablet with mounting bracket or use your own Windows device. With IntelliMESUR®, you can create and run a wide range of basic and multi-step tests, including:

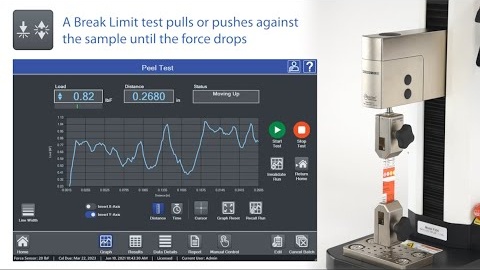

• Limit testing to a load, break, or distance
• Height measurement
• Load holding

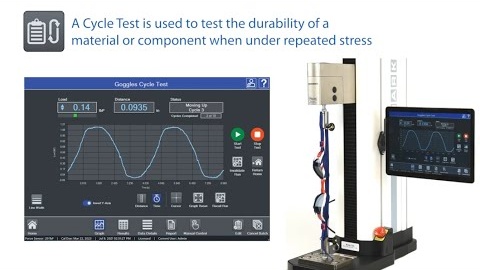

• Cycle testing
• Multi-step testing, utilizing any combination of the above functions

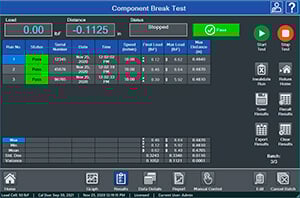

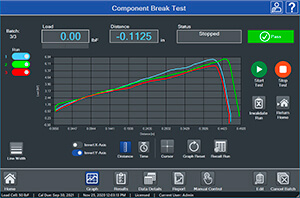

Run individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report.

From IntelliMESUR®’s home screen, quickly access up to 10 favorite tests. Associate an image with each favorite for easy identification. Basic tests - Select a test type, and IntelliMESUR® will guide you through the setup. Load Limit Distance Limit Break Limit Load Hold Cycle

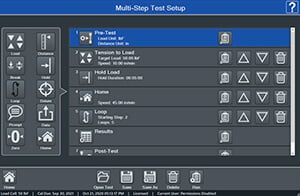

Multi-step tests - Building upon basic test wizards, easily incorporate any combination of steps, with the ability to loop a sequence of steps. Select from: Move to load Move to distance Move to break Hold a load or position

Hold a load or position Loop / cycle Datum Prompts Save current load or position Zero load or position Return to Home position

Model Description

Test Frame + Pre-configured Tablet Control Panel

Test Frame + Standalone Software (for customer installation on a Windows device)
