Precision Tension Meter
8 ranges 0 to 100 g - 0 to 4 kg
| Precision Tension Meter |
8 Ranges
0 - 100g up to 0 - 4,000g |

Features
Small wrap angle (15°) for minimum interaction with the product being measured |
Excellent long-term stability for highly reproducible measuring results |

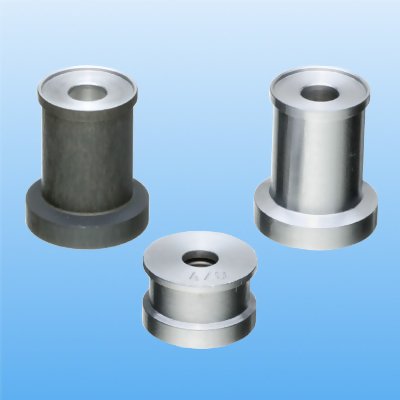

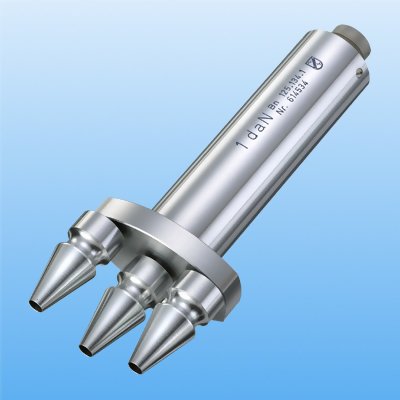

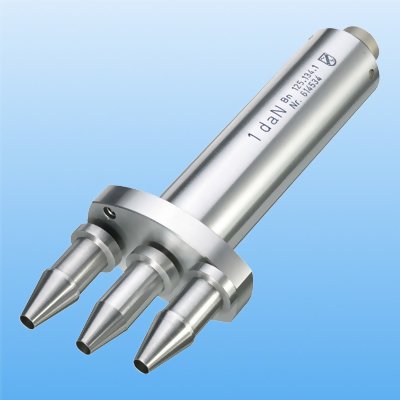

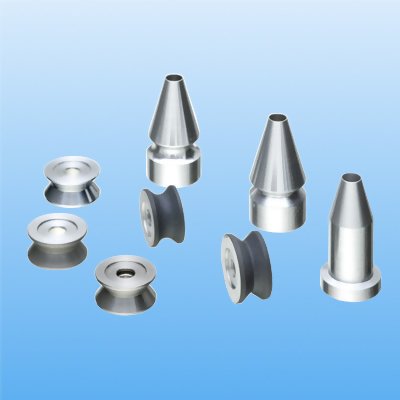

Interchangeable guide components |
|
For measurement of monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm Ø, woven tapes, belts, magnetic tapes |

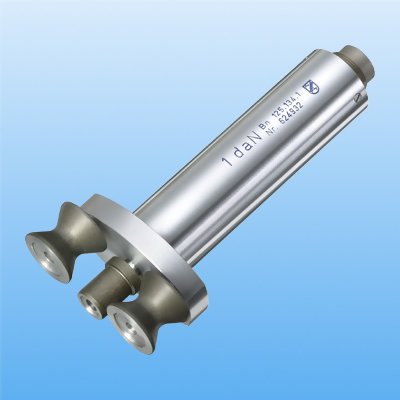

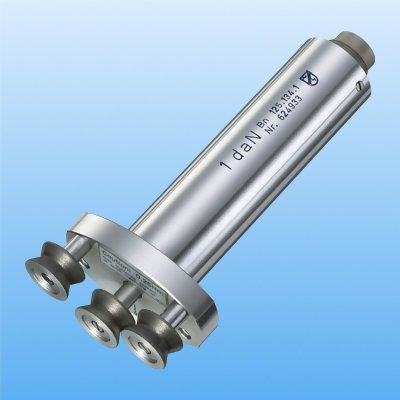

3 ball-bearing aluminium rollers with V-groove, root diameter 11mm with easy-running bearings |
|

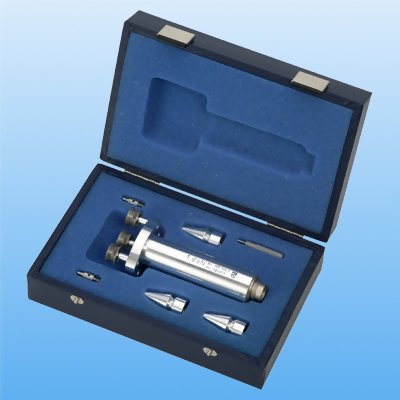

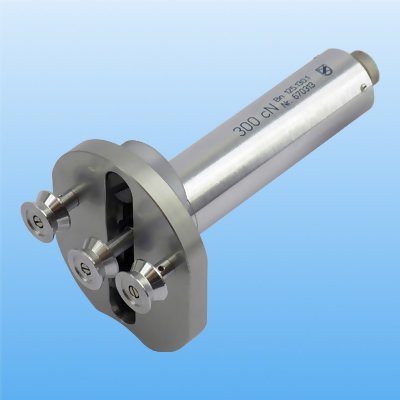

Photo Gallery - click any photo to enlarge

FFA
Shiftable thread guiding device FFA for 125-13
- comfortable, easy threading into the running process
- for smooth threading, gentle to the material
|
