ZF2 Tension Meter

See More Tension Meters, Mechanical

ZF2 Tension Meter

See More Tension Meters, Mechanical
Call for price
    warrenty

    Product Description
    Mechanical Tension Meter for low Tension Limited Access Fibers, Yarns and Fine Wires up to 100g
    7 Ranges, 1-5 g up to 10-100 g
    Handy Plastic Housing
    Miniature Rollers

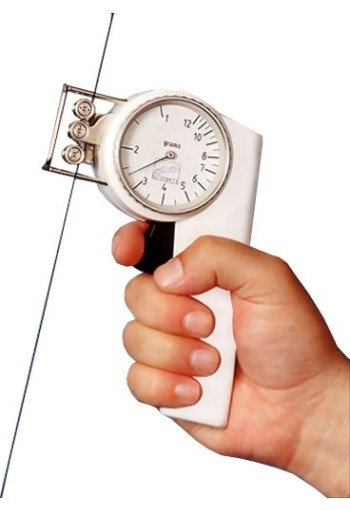

    Precision movement and light-weight, hard plastic housing makes the Type Z Series ideal for accurately checking the operating or static tensions of a wide variety of process material including delicate yarns, fibers, filaments, wires, etc


    line
    Features
    line

    • A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags.
    • Front filament loading permits the operator to observe the filament, rollers and dial at all times.
    • NIST-Traceable calibration available
    • ZF2 roller guides are rated for speeds up to 900 m/min or, optionally, up to 2000 m/min.
    • Each instrument is individually calibrated with each scale hand marked to provide the highest reading accuracy
    • Supplied in an attractive foam-fitted carrying case


    line
    Specifications
    line

    Accuracy±1% of Full Scale or
    ±1 graduation mark on scale
    Outer roller distance:c:22 mm (0.87")
    Diameter of Dial54 mm (2.13")
    Dimensions150 x 120 x 30 mm
    (5.9" x 4.7" x 1.2")
    Weight210 g (7.5 oz.)
    Roller MaterialStandard - Hard-coated aluminum
    Optional - Phenolic Plastic
    Maximum Linear SpeedStandard - 900 meters/min
    Optional - 2000 meters/min (K)
    Other OptionsCalibration for horizontal material path (rollers pointing down)(D)
    Memory pointer
    Optional AccessoriesZF2-ZD2-CALKIT - Calibration Cover for ZF2/ZD3 with 2 wrenches


    line
    Ranges
    line

    ModelRangeMeasuring Head Width*Calibration Material**
    ZF2-51-5 g43 mmFilament: 25 tex
    ZF2-101-10 g43 mmFilament: 25 tex
    ZF2-121-12 g43 mmFilament: 25 tex
    ZF2-202-20 g43 mmFilament: 25 tex
    ZF2-303-30 g43 mmPA: 0.12 mm ⌀
    ZF2-505-50 g43 mmPA: 0.12 mm ⌀
    ZF2-10010-100 g43 mmPA: 0.12 mm ⌀


    line
    Downloads
    line

    ZF2 - Tension Meter for Fibers, Yarns and Fine Wires - Instruction Manual
    ZF2 - Tension Meter for Fibers, Yarns and Fine Wires - Data Sheet
    ZF2 - Tension Meter for Fibers, Yarns and Fine Wires - How to Measure
