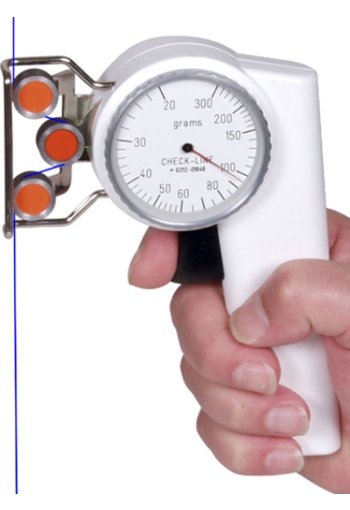

Mechanical Tension Meter for Fibers, Yarns and Fine Wires up to 300g
6 Ranges, 3-30 g up to 20-300 g
Handy Plastic Housing
Standard V-Grooved Rollers
Precision movement and light-weight, hard plastic housing makes the Type Z Series ideal for accurately checking the operating or static tensions of a wide variety of process material including delicate yarns,fibers, filaments, wires, etc.
Features
- A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags.
- Front filament loading permits the operator to observe the filament, rollers and dial at all times.
- NIST-Traceable calibration available.
- Each instrument is individually calibrated with each scale hand marked to provide the highest reading accuracy.
- Roller guides are rated for speeds up to 2000 m/min or, optionally, 5000 m/min.
- Supplied in an attractive foam-fitted carrying case
Specifications
| Accuracy | ±1% of Full Scale or
±1 graduation mark on scale |
| Outer roller distance:c: | 33 mm (1.5") |
| Diameter of Dial | 54 mm (2.13") |
| Dimensions | 150 x 120 x 30 mm
(5.9" x 4.7" x 1.2") |
| Weight | 230 g (8.2 oz.) |
| Roller Material | Standard - Hard coated aluminum
See DX2 specifications |
| Maximum Linear Speed | Standard - 2000 meters/min
Optional - 3500 meters/min (K)
Optional - 5000 meters/min (U) |
| Other Options | Calibration for horizontal material path (rollers pointing down)(D)
Memory pointer |
| Optional Accessories | ZF2-ZD2-CALKIT - Calibration Cover for ZF2/ZD3 with 2 wrenches |
Ranges
| Model | Range | Measuring Head Width* | Calibration Material** |
| ZD2-30 | 3-30 g | 63 mm | PA: 0.12 mm ⌀ |
| ZD2-50 | 5-50 g | 63 mm | PA: 0.12 mm ⌀ |
| ZD2-100 | 10-100 g | 63 mm | PA: 0.12 mm ⌀ |
| ZD2-150 | 20-150 g | 63 mm | PA: 0.12 mm ⌀ |
| ZD2-200 | 20-200 g | 63 mm | PA: 0.12 mm ⌀ |
| ZD2-300 | 20-300 g | 63 mm | PA: 0.20 mm |
Other tension ranges available on request.
* Width of filament guide
** Suitable for 95 % of applications - PA = Polyamide Monofilament
