Warps

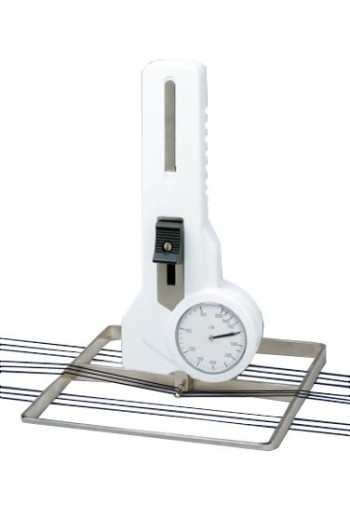

Frame rests on warp while center pin scoops up ends for measurement
A reference frame makes it easy to scoop up the selected number of ends for measurement and keeps the unit perpendicular while it rests on the warp. K10, K30 & EX ranges are supplied with a 10 mm sensing pin. For the 200 and 500 range codes select either a 17 or 34 mm sensing pin
Features
- Width of the sensing pin 10 mm (34 mm optionally available)
- Roller shifting mechanism ensure easy acquisition of the running material
- Large reference frame (15 x 17 cm) is placed on the warp threads allowing the safest and most accurate mesaurements possible.
- Finger Support: We recommend mounting a finger support for higher tension ranges
Ranges
| Model | Range |
| K10 | 5-100 g |
| K30 | 20-300 g |
| EX | 100-1000 g |
| 200 | 200-2000 g |
| 500 | 500-5000 g |
The complete model number include KXB plus range code, e.g. KXB-200 and 500 models add length of sensing pin, e.g. eg., KXB-200/17
Options
Memory Pointer (M)
- Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial.
- Model TX2-50 is not available with memory pointer
