ZD2 Tension Meter

See More Tension Meters, Mechanical

ZD2 Tension Meter

See More Tension Meters, Mechanical
Call for price
    warrenty

    Product Description

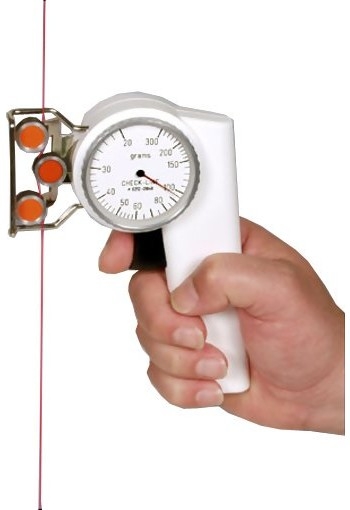

    Mechanical Tension Meter for Fibers, Yarns and Fine Wires up to 300g
    6 Ranges, 3-30 g up to 20-300 g
    Handy Plastic Housing
    Standard V-Grooved Rollers

    Precision movement and light-weight, hard plastic housing makes the Type Z Series ideal for accurately checking the operating or static tensions of a wide variety of process material including delicate yarns,fibers, filaments, wires, etc.


    line
    Features
    line

    • A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags.
    • Front filament loading permits the operator to observe the filament, rollers and dial at all times.
    • NIST-Traceable calibration available.
    • Each instrument is individually calibrated with each scale hand marked to provide the highest reading accuracy.
    • Roller guides are rated for speeds up to 2000 m/min or, optionally, 5000 m/min.
    • Supplied in an attractive foam-fitted carrying case


    line
    Specifications
    line

    Accuracy±1% of Full Scale or
    ±1 graduation mark on scale
    Outer roller distance:c:33 mm (1.5")
    Diameter of Dial54 mm (2.13")
    Dimensions150 x 120 x 30 mm
    (5.9" x 4.7" x 1.2")
    Weight230 g (8.2 oz.)
    Roller MaterialStandard - Hard coated aluminum
    See DX2 specifications
    Maximum Linear SpeedStandard - 2000 meters/min
    Optional - 3500 meters/min (K)
    Optional - 5000 meters/min (U)
    Other OptionsCalibration for horizontal material path (rollers pointing down)(D)
    Memory pointer
    Optional AccessoriesZF2-ZD2-CALKIT - Calibration Cover for ZF2/ZD3 with 2 wrenches


    line
    Ranges
    line

    ModelRangeMeasuring Head Width*Calibration Material**
    ZD2-303-30 g63 mmPA: 0.12 mm ⌀
    ZD2-505-50 g63 mmPA: 0.12 mm ⌀
    ZD2-10010-100 g63 mmPA: 0.12 mm ⌀
    ZD2-15020-150 g63 mmPA: 0.12 mm ⌀
    ZD2-20020-200 g63 mmPA: 0.12 mm ⌀
    ZD2-30020-300 g63 mmPA: 0.20 mm

    Other tension ranges available on request.
    * Width of filament guide
    ** Suitable for 95 % of applications - PA = Polyamide Monofilament


    line
    Downloads
    line

    ZD2 Economical Tension Meter for Fibers, Yarns and Fine Wires - Instruction Manual
    ZD2 Economical Tension Meter for Fibers, Yarns and Fine Wires - Data Sheet
    ZD2 Economical Tension Meter for Fibers, Yarns and Fine Wires - How to Measure
