Description

Zivy Portable Tension Meter - Economical General Purpose
12 Ranges 0.5 - 3 cN up to 50 - 170 cN, Accuracy: +/- 2% Full Scale or +/- 1 digit
Easy To Use

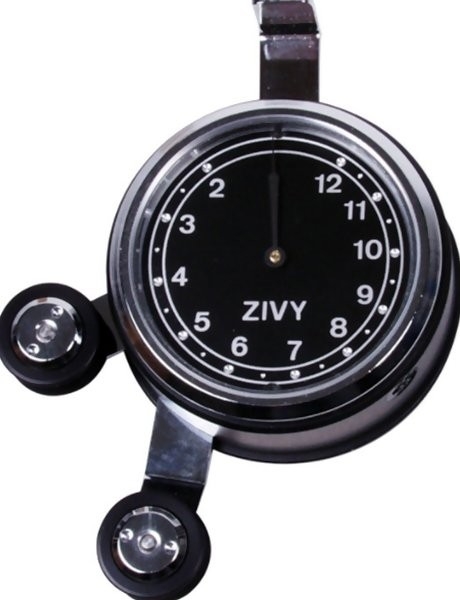

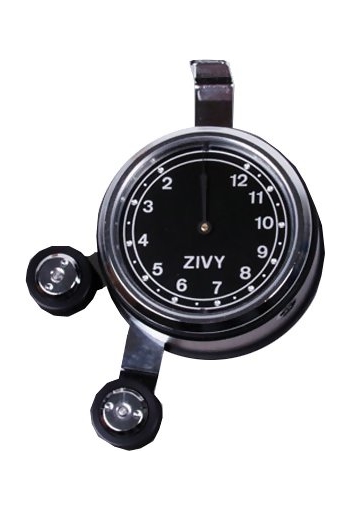

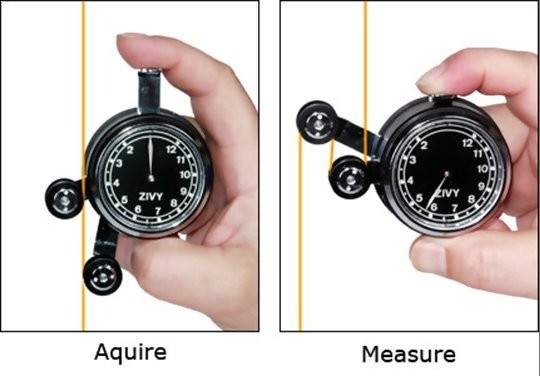

The Zivy hand-held Tension Meters accurately measure the running line tension of yarns and fibers. Well-known and used worldwide for circular knitting and similar applications, the ZIVY TEN model tension meter pocket-sized is the favorite for mechanics and machine operators.

The Zivy Tension Meter features two precision ball-bearing mounted V-grooved rollers capable of measuring high line speeds. The Zivy offers 12 models starting at 0.5 - 3 cN up to 50 - 170 cN.


line

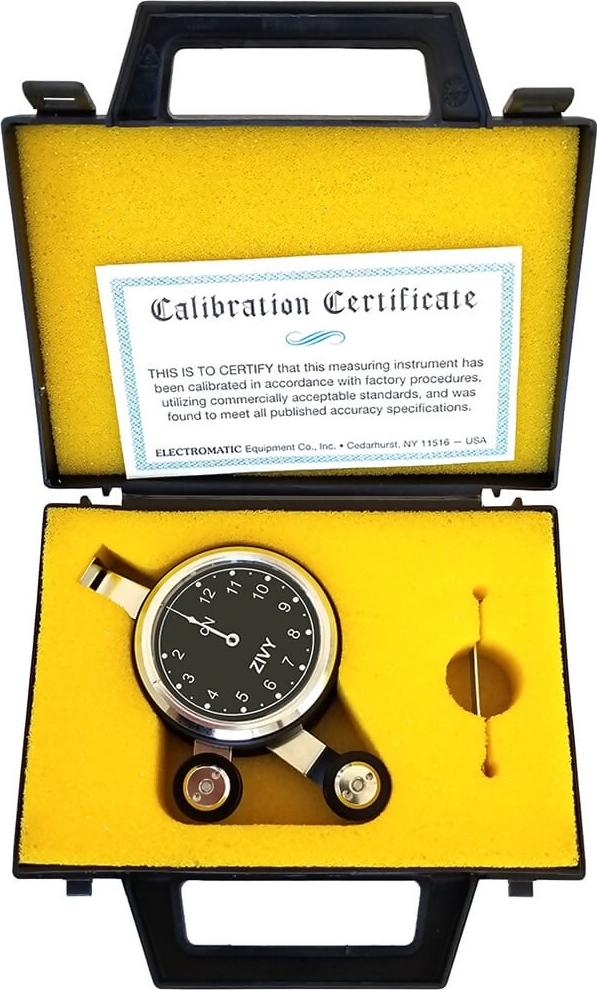

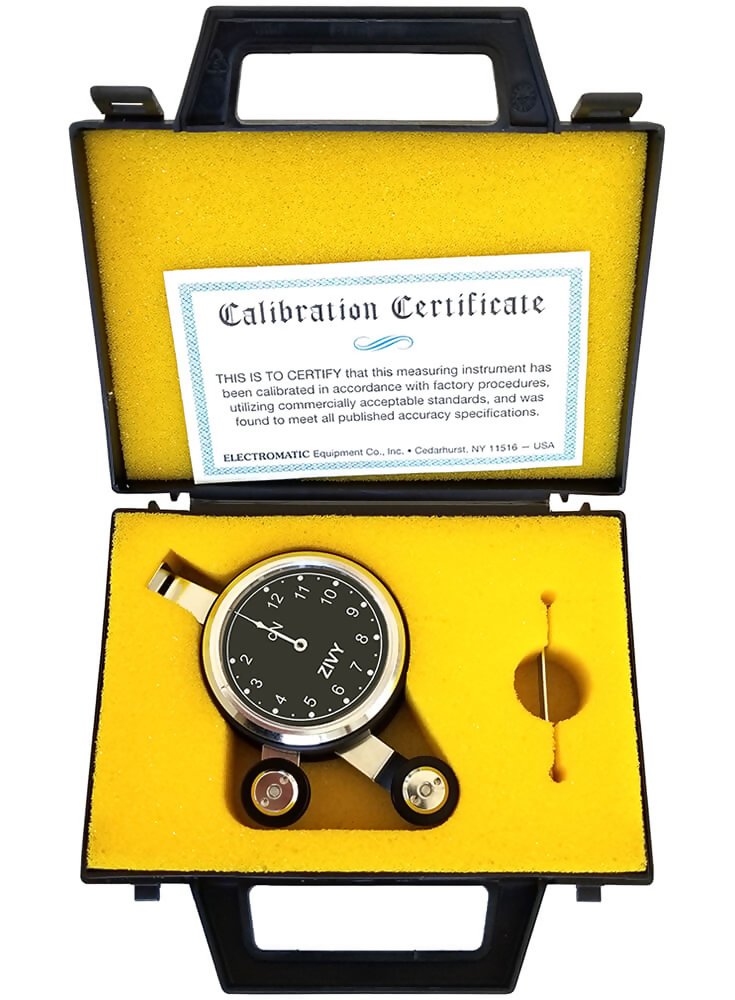

Kit Contents
line

  • Zivy Portable Tension Meter
  • Foam-fitted plastic carrying case
  • Instructions
  • spanner wrench to remove the roller (if neccessary)
  • NIST-Traceable Calibration Certificate SOLD SEPARATELY


line
Ranges
line

ModelRange
ZIVY 3 (TEN-3K).5 - 3 cN
ZIVY 5 (TEN-5K) 1 - 5 cN
ZIVY 10 (TEN-10K) 2 - 10 cN
ZIVY 12 (TEN-12K) 2 - 12 cN
ZIVY 20 (TEN-20K) 5 - 20 cN
ZIVY 30 (TEN-30K) 5 - 30 cN
ZIVY 40 (TEN-40K) 10 - 40 cN
ZIVY 50 (TEN-50K) 10 - 50 cN
ZIVY 60 (TEN-60K) 10 - 60 cN
ZIVY 70 (TEN-70K) 10 - 70 cN
ZIVY 120 (TEN-120K) 20 - 120 cN
ZIVY 170 (TEN-170K) 50 - 170 cN


line
Related Products
line

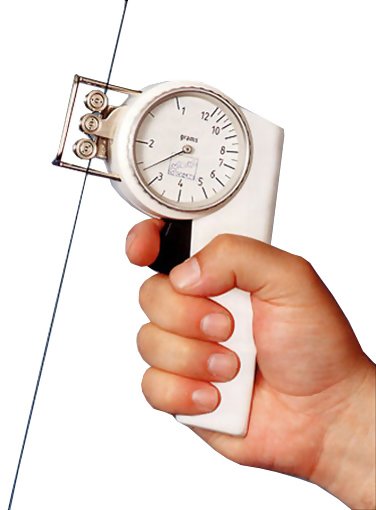

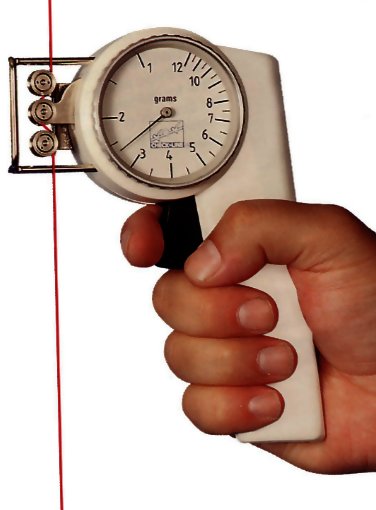

ZF2
Tension Meter for Fibers, Yarns and Fine Wires

  • A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags.
  • Front filament loading permits the operator to observe the filament, rollers and dial at all times.
related


line
Downloads
line

Zivy Portable Tension Meter - Data Sheet
Zivy Portable Tension Meter - Instruction Manual
Zivy Portable Tension Meter - Dimensions
