Checkline PD765-6R3-20 Digital Tension Indicator 4-Digit Display

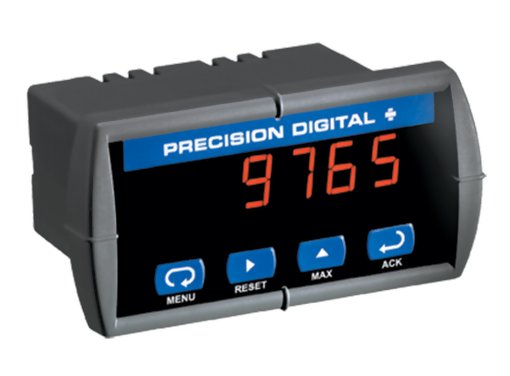

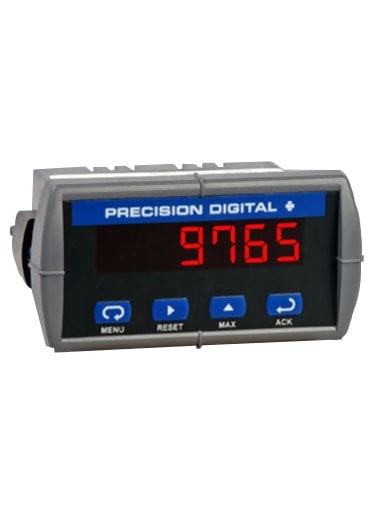

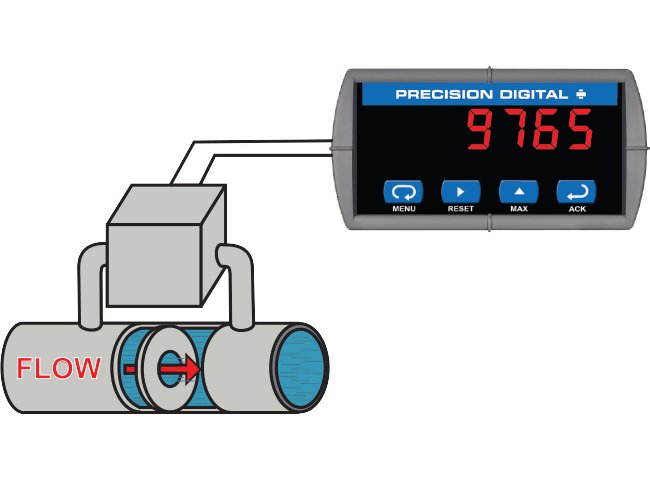

The Checkline PD765 Digital Indicator is designed to work with Check-Line tension sensors providing a large, bright LED display of real-time tension values. It is easy to set up and permits flush panel mounting in a 1/8 DIN cutout. The PD765-6R3-20 offers 4-20 mA output for external recording and data-logging purposes. Hi/Lo limits and relay contacts can be optionally specified on PD765-6R5-10 supplied instead of the 4-20 mA analog output. The standard model PD765-6R3-20, operates from all worldwide AC-Power (85-265V AC). 0-10V DC output is not available

Features

Can be scaled to any engineering units desired with user-set decimal point.
4-20 mA analog output for recording and control purpose (No analog output provided on PD765-6R5-10)
Requires 85-265V AC Power, provides regulated power for the tension sensor
Hi/Lo Limits and relay contacts provided on PD765-6R5-10 (supplied instead of 4-20ma output)
User-set filters can be used to adjust signal sensitivity to reduce fluctuations of tension values

Specifications

Display Range

-1999 to 9999

Display

4-digit Red LED, 14.2 mm high

Display Intensity

Eight user selectable levels

Front Panel

NEMA 4X, IP65; panel gasket provided

Programming Methods

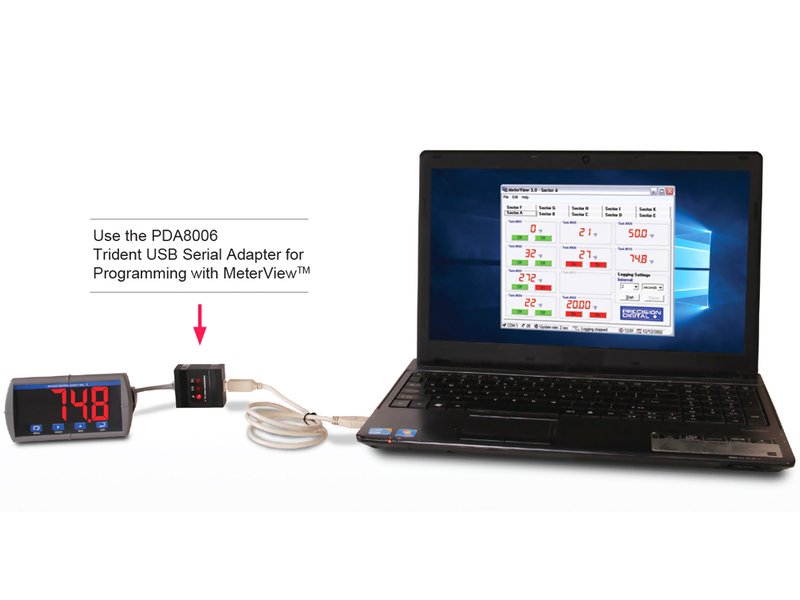

Four front panel buttons, cloning with Copy feature, PC with MeterView or LavVIEW software and Modbus registers. Certified LabVIEW driver available.

Noise Filter

Programmable 2 to 199 (0 will disable filter)

Display Update Rate

Process/RTD: 3.7-5/sec; TC: 1.8-2.5/sec

Overrange

Display flashes 9999

Underrange

Display flashes -1999

Recalibration

All inputs are calibrated at the factory; recalibration is recommended at least every 12 months.

Min/Max Display

Stored until reset by user or meter is turned off

Password

Restricts modification of programmed settings

Non-Volatile Memory

Settings stored for a minimum of 10 years

Power Options

85-265 VAC; 12-36 VDC

Required Fuse

UL Recognized, 5 A max, slow-blow; up to 6 meters may share one fuse

Normal Mode Rejection

64 dB at 50/60 Hz

Isolation

4 kV input/output-to-power line; 500 V input-to-output or output-to-24 VDC supplies. -6R5 models only: 100 V output-to-24 VDC supply

Operating Temperature

0 to 65°C

Storage Temperature

-40 to 85°C

Relative Humidity

0 to 90% non-condensing

Connections

Power & Signal: removable screw terminal blocks accept 12 to 22 AWG. Serial: RJ11 header, standard on all meters

Enclosure

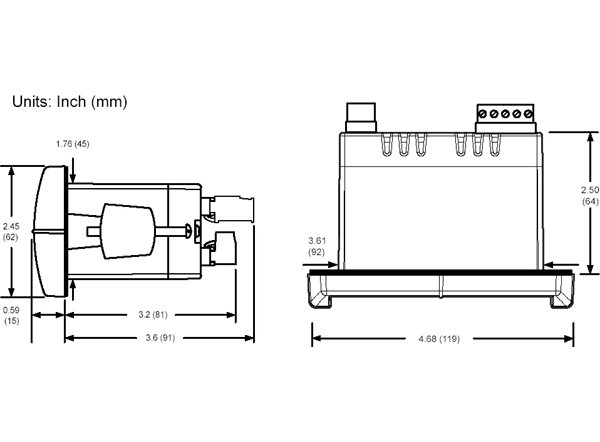

1/8 DIN, high impact plastic, 94 V-0, color: gray

Weight

9.5 oz (269 g) (including options)

Warranty

3 years

Accuracy

±0.05% FS ±1 count; square root: ±0.1% FS ±2 counts

Function

Linear or square root

Low-Flow Cutoff

0 to 9999 (0 disables cutoff function)

Decimal Point

Up to 3 decimals

Calibration

Scale without signal or calibrate with signal source

Calibration Range

User programmable over entire range of meter

Input Inpedance

Voltage range: greate than 1MΩ, Current range: 50-100 Ω, varies with resettable fuse impedance

Input Overload

Protected by automatically resettable fuse

Temperate Drift

±50 PPM/°C

Transmitter Supply

Isolated, one or two transmitter supplies:
P1: 24 VDC ±10% @ 200 mA max (-10 option)
P1 & P2: 24 VDC ±10% @ 200 mA & 40 mA max (-20 option)

Realays (Model PD765-6R5-10 ONLY)

Rating	Form C (SPDT); rated 3 A @ 30 VDC or 3 A @ 250 VAC resistive load; 1/14 HP (≈50 watts) @ 125/250 VAC for inductive loads such as contactors, solenoids, etc.
Deadband	0 - 100% FS, user selectable
High or Low Alarm	User may program any alarm for high or low
Relay Operation	1. Automatic (non-latching) 2. Latching 3. Pump alternation control
Relay Reset	User selectable via front panel buttons or PC 1, Automatic reset only (non-latching) 2. Automatic plus manual reset at any time (non-latching) 3. Manual reset only, at any time (latching) 4. Manual reset only after alarm condition has cleared (latching)
Automatic Reset	Relays reset when input passes the reset point
Manual Reset	Front panel button, MeterView, Modbus registers
Time Delay	0 to 199 seconds, on and off delays; programmable
Fail-Safe Operation	Programmable, independent for each relay. Relay coils are energized in non-alarm condition. In case of power failure, relays will go to alarm state.
Auto Initialization	When power is applied to the meter, relays will reflect the state of the input to the meter

Isolated 4-20 MA Transmiter Output

Scaling Range	1.00 to 23.00 mA; reverse scaling allowed
Calibration	Factory calibrated 4.00 to 20.00 mA
Accuracy	±0.1% FS ±0.004 mA
Temperature Drift	50 PPM/°C Note: Analog output drift is separate from input drift
Isolation	500 V input-to-output or output-to-24 VDC supplies; 4 kV output-to-power line
Output Loop Resistance	24 VDC: Minimum - 10Ω Maximum - 700Ω 35 VDC (external): Minimum - 100Ω Maximum - 1200Ω

Ordering Guide

PD765-6R3-20 - Digital Tension Indicator 4-Digit Display for connection to tension Sensors. Provides regulated power for the sensor, includes 4-20mA Analog output. Requires 85-265V AC-Power

PD765-6R5-10 - Digital Tension Indicator 4-Digit Display for connection to tension Sensors. Provides regulated power for the sensor, includes 2 Alarm Limits & Relays. No analog output provided. Requires 85-265V AC-Power

PD6000-6R3 Digital Tension Indicator 4-Digit Display for connection to tension Sensors. Provides regulated power for the sensor, includes 4-20mA Analog output. Requires 85-265V AC-Power
