DPM502 Digital Tension Indicator

See More Tension Indicators & Amplifiers

DPM502 Digital Tension Indicator

See More Tension Indicators & Amplifiers
Call for price
    warrenty

    Product Description

    Digital Tension Indicator


    Designed to connect to the TS621 or TS481 Strain Gauge Amplifier, as well as the RFSE Tension Sensor

    The DPM502 is designed to connect to the TS621 or TS481 Strain Gauge Amplifier, as well as the RFSE Tension Sensor.

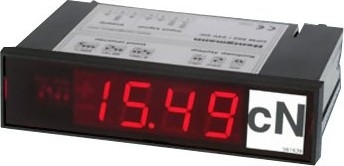

    It incorporates built-in calibration adjustments to scale the tension values into display units. The 3-1/2 LED display has a user-set decimal point and will display values up to 1999. Faceplate is easily removed to make calibration adjustments


    line
    Features
    line

    • Selectable “damping function” reduces display fluctuations
    • scaling by means of 2 multiturn trimmers (rough / coarse)
    • Easy snap-in installation
    • 24V DC power supply with galvanic isolation


    line
    Specifications
    line

    Display3 1 /2 - digit LED (1999 max.) 14mm height
    Decimal PointUser-Selected
    Damping Rate0.2 to 4 sec.
    Display Update Rate0.5 sec.
    Power Required24 VDC @ 50 mA (approx)

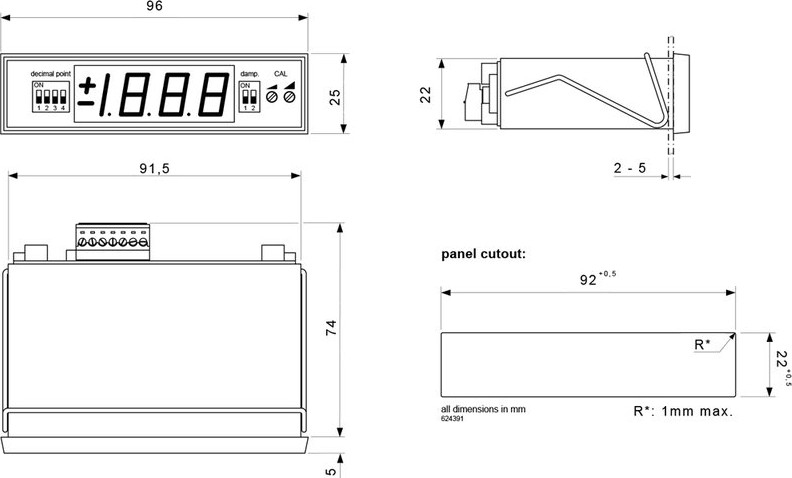

    Panel Cutout92 x 22mm
    Weight3.5 ounces (100 g)

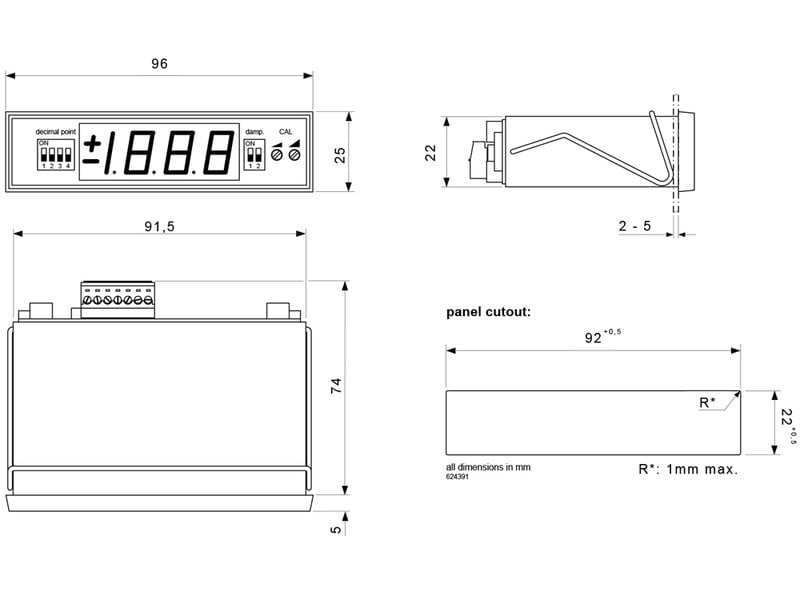

    Dimensions3.7" W x 3" D x 1" H (96 x 77 x 24mm)


    line
    User Controls
    line

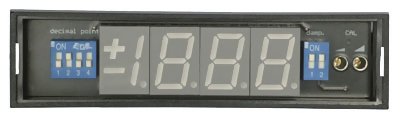

    User control pots & dip switches are accessed behind display panel


    line
    Related Products
    line

    RFS
    On-Line Tension Sensor

    • Resolution of 0.1% and better
    • Rugged stainless steel housing is environmentally sealed
    • Overload protection up to 800%
    related

    line

    TS481
    Strain Gauge Measurement Amplifier

    • Galvanic Isolation minimizes the chance for signal interference, including ground faults
    • Provides accuracy of ±0.1%
    • User-enabled "damping function" eliminates tension fluctuations
    related

    line


    TS621
    Strain Gauge Amplifier

    • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
    • 0-10VDC analog output
    related

    line


    MU621
    Tension Indicator/Amplifier Console

    • for strain gauge sensors
    • 1 to 4 measuring channels
    related


    line
    Downloads
    line

    DPM502 Digital Tension Indicator - Data Sheet
    DPM502 Digital Tension Indicator - Specifications
