For use with sensors providing mV/V output
Provides ZERO and GAIN Adjustment Pots for Calibration purposes
Requires 15-24V DC power source
Strain gauge amplifier for sensors without integrated amplifier (mV/V output)
Convenient for all sensors of TS2, TSC and SF series Tension Sensors
Designed for DIN Rail Mounting
Kit Contents

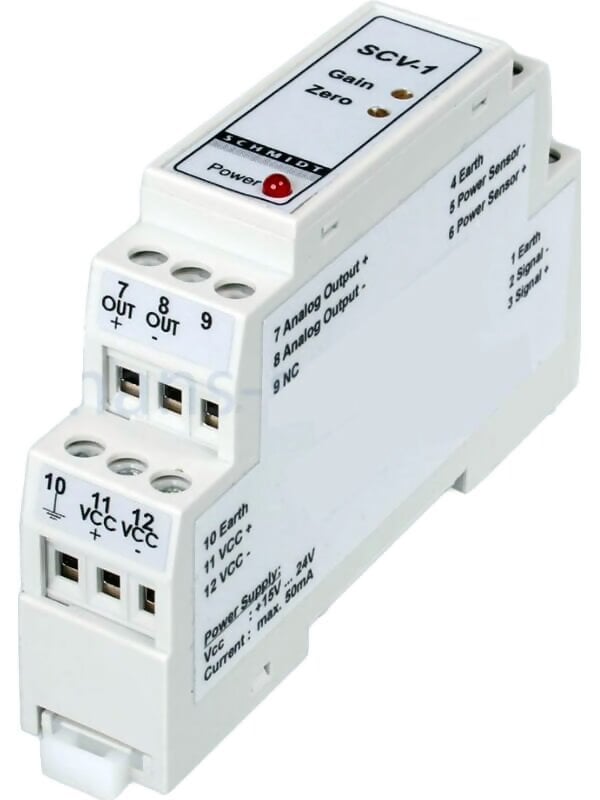

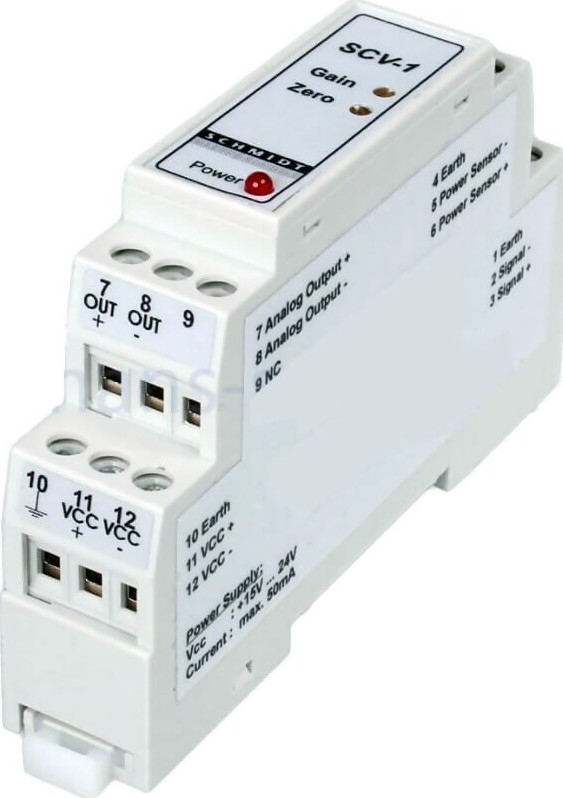

- Hans-Schmidt SCV-1 Amplifier Tension Indicators & Amplifiers
- Certificate of Compliance with the order 2.1 according EN 10204 free of charge
- Operating Instruction
Features
- For use with sensors providing mV/V output
- Provides ZERO and GAIN Adjustment Pots for Calibration purposes
- Output signals: Analog: 0 - 1 V DC (standard) | Analog: 0 - 10 V DC (option A2) | Current: 4 - 20 mA (option A3)
- DIN Rail Mounting
- Requires 15-24V DC power source
- CE certified with sensor connected
- LED Indicator shows Power to Amplifier
Specifications
| Output signal | analog: 0 - 1 V DC /R (Last) ≥ 5kΩ
analog 0 - 10 V DC (option)
4 - 20 mA instead of 0 - 10 V DC |
| Input signal | mV/V |
| Power supply | 15 - 24 V DC, 50 mA |
| Temperature range | 10 - 45° C |
| Air humidity | 85 % RH, max. |
| Housing | Plastics |

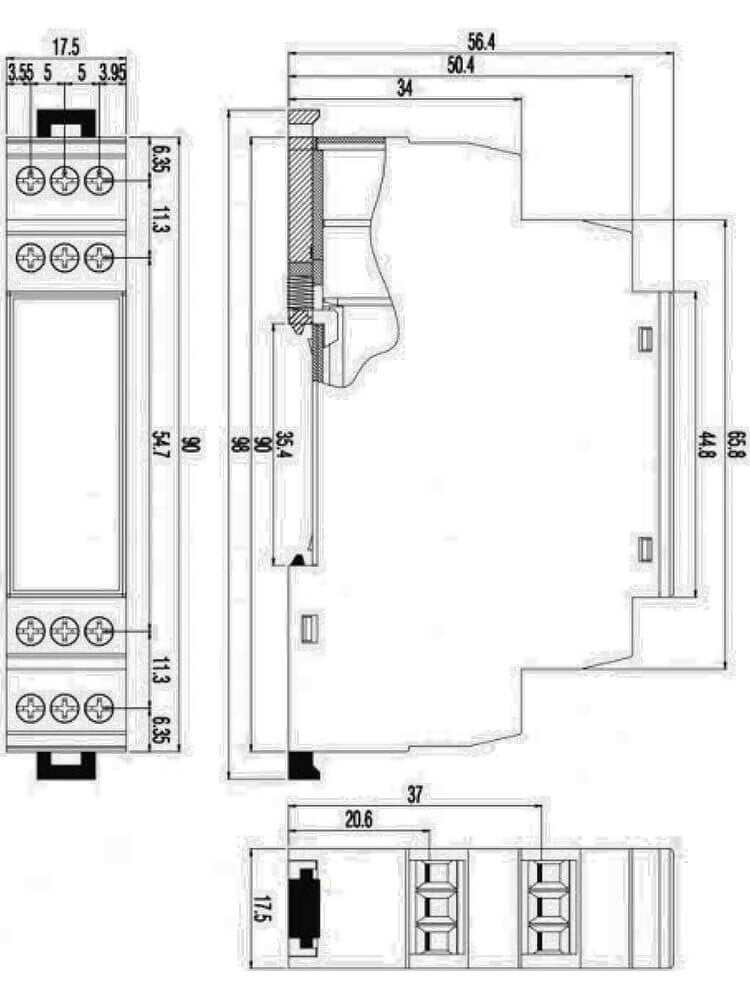

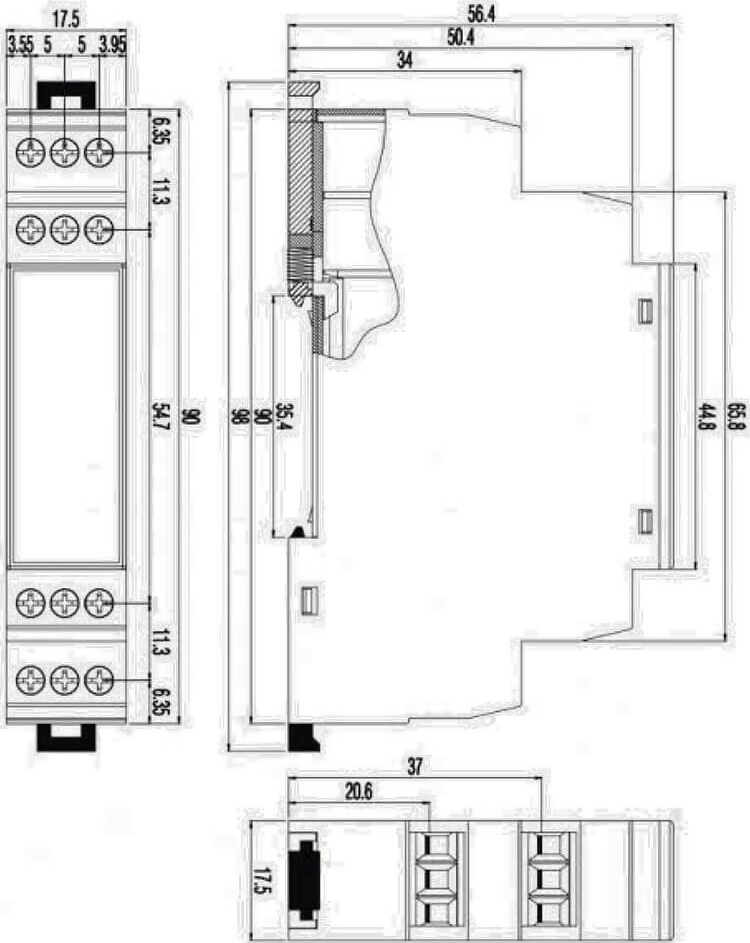

| Dimensions | 90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box |
| Weight, net (gross) | Approx. 53 g |
