    Product Description

    Display Unit


    3 different calibrations for customer supplied material can be saved at this display unit

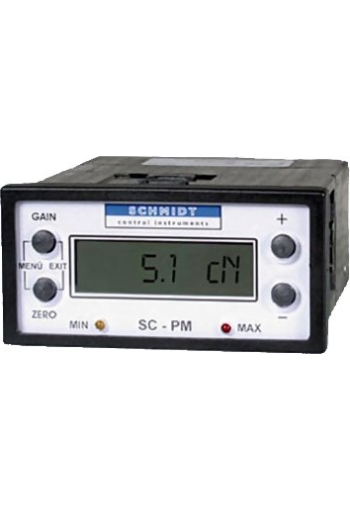

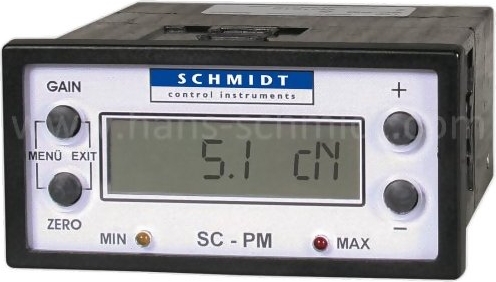

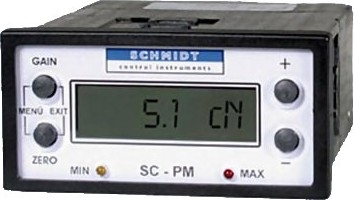

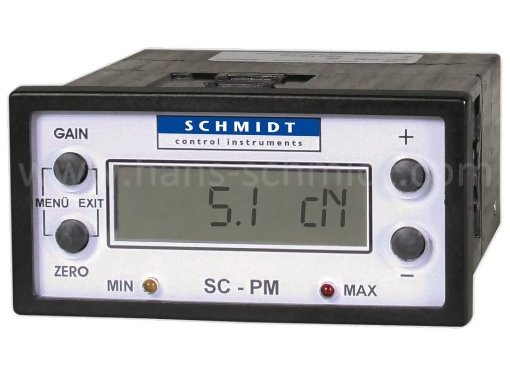

    Panel mount digital tension indicator (1/8 Din Cutout) with analog output and user-set MIN and MAX alarm limits. RS-232 output is optional. Can be used with all 3-roller tension sensors TE, TF, TSW, TS2 and other sensors that provide an analog output signal 0 - 1V DC.

    3 different calibrations for customer supplied material can be saved at this display unit

    Available with RS232 or RS422 output for direct connection to PC

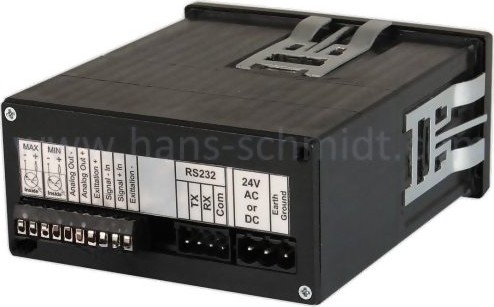

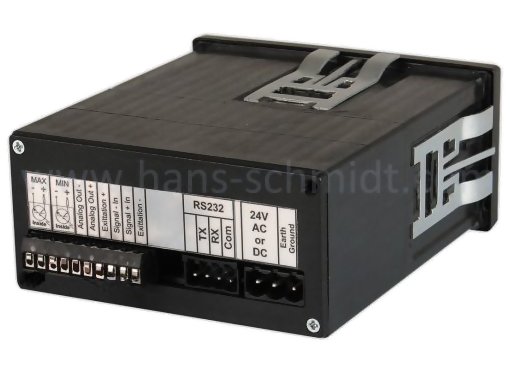

    Rear Panel of Indicator: Terminal strip for power supply, output signals (RS 232, 0 - 10 V DC, Open Collector)


    line
    Kit Contents
    line

    • SC-PM Display Unit
    • operating instruction
    • transport packaging


    line
    Features
    line

    • Connection of series TE, TF, TSW, TS2 and other with analog output 0 - 1 V DC, optionally series without integrated amplifier
    • User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit
    • Adjustable damping for easier reading if tension fluctuates
    • Panel mounted digital display
    • Display unit with Dotmatrix LCD display, 12 mm high with backlight
    • Interfaces:
      • Analog: 0 - 10 V DC (standard)
      • Digital (optional): RS 232 or RS 422
      • Current (optional): 4 - 20 mA (instead of 0 - 10 V DC output)
    • Can store up to three (3) separate calibrations for 3 different materials
    • CE certified
    • Scale to desired engineering units of grams, Kg, Lbs, cN, daN


    line
    Specifications
    line

    Digital displayDotmatrix LCD, 12 mm high with backlight
    Measuring UnitscN, daN, g, kg or lb, user- selectable depending on range
    Selectable Damping9 adjustable settings (electronic damping, moving averaging)
    Output signalanalog: 0 - 10 V DC /R (Last) ≥ 5 kΩ
    digital (option): RS 232 or RS 422 (19200, 8, N, 1), 100 measurings/s
    current (option): 4 - 20 mA instead of 0 - 10 V DC
    Input signal0 - 1 V DC, option mV
    Alarm limitsProgrammable MIN/MAX limits with LED
    Alarm outputOpen Collector max. 30 V DC, 10 mA
    AdjustmentStorage for 3 different materials (standard adjustment + 2 customer supplied materials)
    Power RequiredSC-PM: 15 - 24 V DC, 100 mA (Regulated)
    SC-PM-AC: 100-240V AC, using AC/DC Adapter (plugs into AC wall outlet)
    Temperature range10 - 45° C
    Air humidity85 % RH, max.
    HousingPlastics
    Dimensions115 x 95 x 48 mm (LxWxH), mounting cut out 92 x 44 mm
    Weight, net (gross)Approx. 300 g (Approx. 1000 g)


    line
    Output Signal
    line

    Standard
    analog 0 - 10 V DC
    open collector
    Code A3
    4 - 20 mA instead of 0 - 10 V DC
    open collector
    Code 232
    digital RS-232
    analog 0 - 10 V DC
    open collector
    Up to 100 readings can be transfered per second
    Code 422
    digital RS-422
    analog 0 - 10 V DC
    open collector
    Up to 100 readings can be transfered per second
