Three wire DC normally open NPN (sinking) type proximity switch

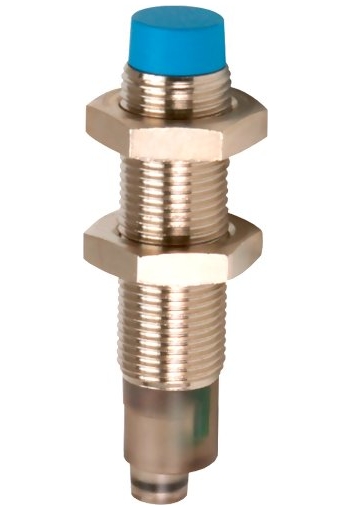

The Shimpo BI2-S12 Proximity Sensor is a three wire DC normally open NPN (sinking) type proximity switch which features:
- Short circuit and overload protection
- LED output indicator
- NEMA 1, 3, 4, 6, 13 and IEC IP67 rated
- Use 4.7 kñ pull-up resistors if an open collector input is not available
Features
- NPN (NO) sinking output 1.5 kHz frequency
- LED indication
- 6.5' (2 m) cable
- 0.08" (2 mm) sensing distance
- NEMA 6 (IP67) rating
Specifications
| Power | 10 – 30VDC (Positive) |
| Switching Frequency | 1.5k HZ max |
| Sensing Distance | 2 mm |
| Cable Length | 2 meters |
| Operating Temperature | - 25 to + 70 °C (-13 to 158 °F) |
