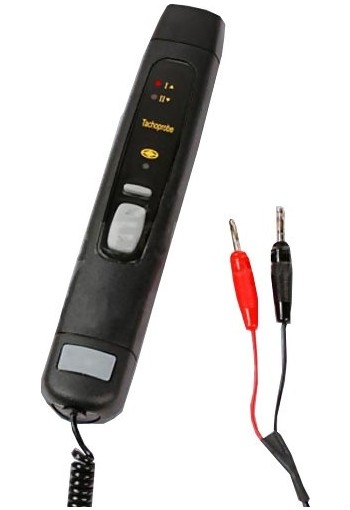

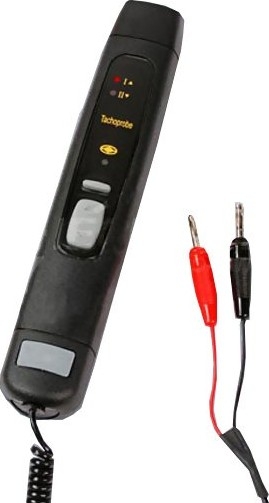

Compact A2108 Handheld Non-contact Tachometer with Analog Output

---

The Compact A2108 Non-Contact Tachometer converts RPM into an analog (voltage) output signal allowing you to use any Digital Multimeter, Data Acquisition System or Voltage Recorder as an RPM display. Optional Contact adapter allows you to measure contact RPM or surface speed

Kit Contents

---

Features

---

• Long optical range – up to 2 metres (6ft)
• Very wide speed range – up to 60,000 rpm
• Optical and Contact measurement with Adaptor
• Handheld, bracket or tripod mounting

Specifications

---

Speed Range 1 Speed Range 2	100 - 6000 RPM 1000 - 60,000 RPM
Resolution	+/- 1.5mV
Accuracy	+/- 0.5%
Optical Range	50 - 1000mm
Optical angle	+/- 45 deg.
Light Source	Red LED
Optical Angle	+/- 45 Degrees

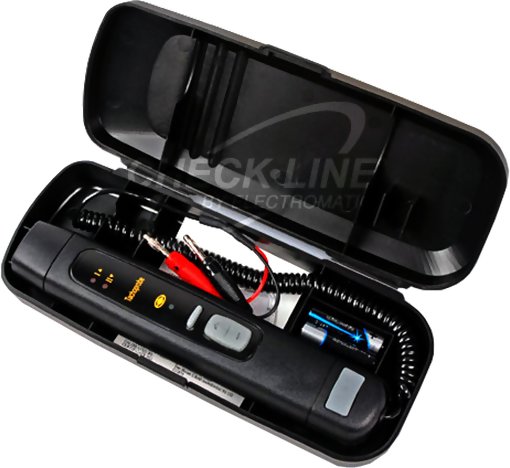

Carry Case	Included
Contact Adapter	Optional
Voltage Output	-6 vdc Both Ranges

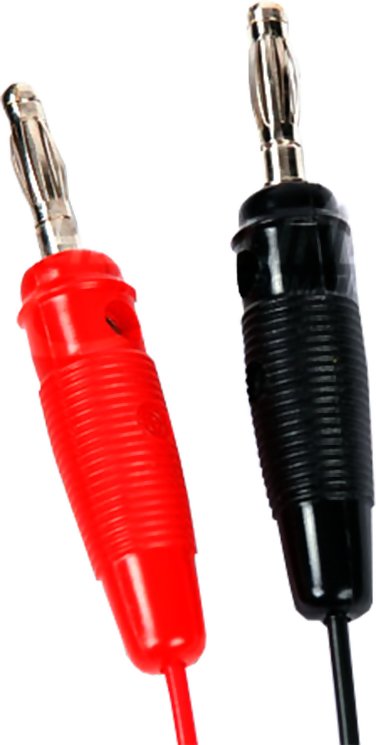

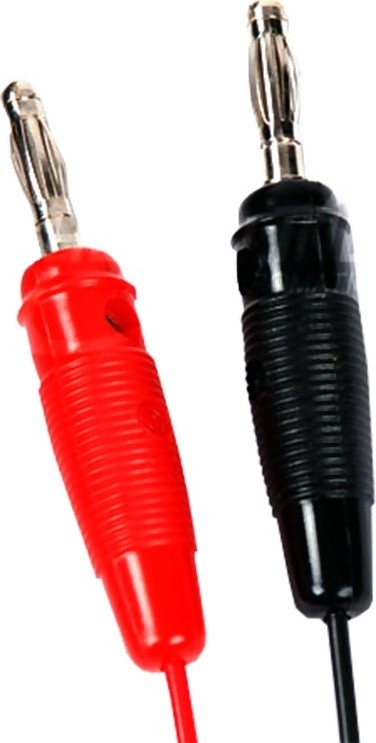

Connections	Coiled cable with 2 x 4mm plugs fitted

Downloads

---

Compact A2108 Handheld Non Contact Tachometer Analog Output - Instruction Manual
