Checkline PLT-5000 Handheld Laser Tachometer
Combination Contact & Non-Contact Tachometer
Measuring Range: Non-Contact - 1.00 - 99,999 rpm | Contact - 1.00 - 25,000 rpm
Display Type: LCD
Housing Material: Plastic
Warranty: 1 years
The Checkline PLT-5000 Pocket Laser Tachometer accurately measures RPM and Surface speed using contact or non-contact measurement techniques. This battery-powered unit is extremely compact for convenient portable use and is supplied in a rugged and attractive plastic housing that is ergonomically designed for optimum comfort.

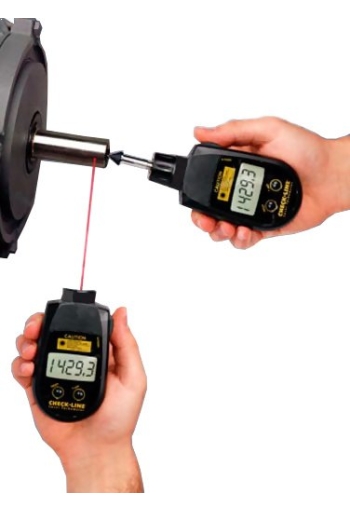

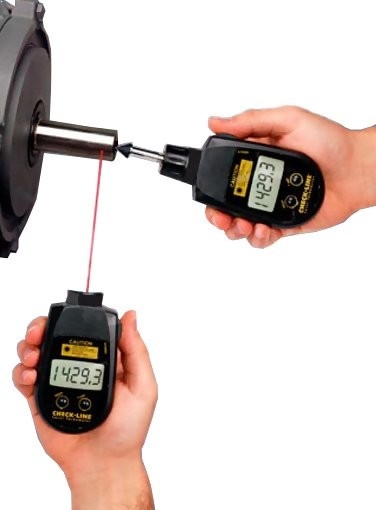

When measuring RPM in the non-contact measuring mode, the PLT-5000 emits a precision laser beam that is aimed at a small piece of reflective tape, which is affixed to the rotating target.
The Checkline PLT-5000 is extremely easy to operate and quickly converts from non-contact operation to contact operation by screwing the contact adapter in place. In addition to RPM's, a wide variety of engineering units for surface speed and length are user-selected via the front panel buttons. Units include; feet per minute, meters/min, yards per minute, inches per minute and more.
A built-in memory stores up to 10 measurements plus minimum, maximum, average and last.

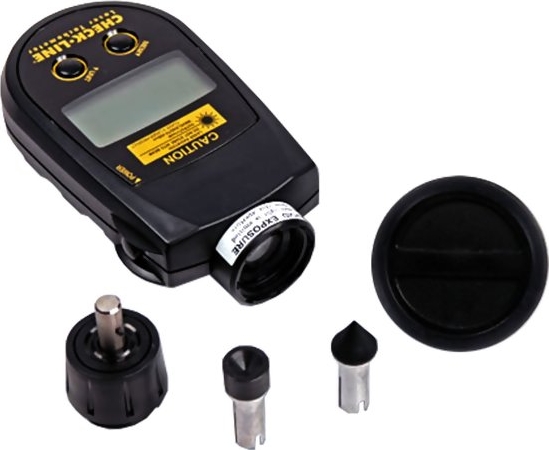

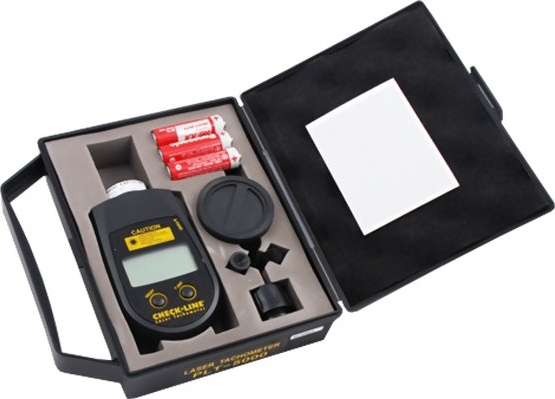

Kit Contents
- PLT-5000 Handheld Laser Tachometer
- 6" circumference wheel
- Funnel Adapter
- Cone Adapter
- Contact Adapter
- Three (3) AA Batteries
- Reflective tape
- NIST certificate
- Instruction manual
Features
- FREE NIST-traceable calibration certificate
- Sharp Visible Laser Beam
- Up to 60" (150 cm) Range
- Measures RPM & surface speed and length
- 14 memories
- Converts Metric & English Readings
- One year warranty
- Simple One Button Operation
Specifications
| Display | 5 digit 0.47" (12mm) height LCD |
RPM Measuring
Range | Contact, 6.0 - 20,000 (limited for safety reasons)
Non-Contact; 6.0 - 99,999 |
Surface speed
6" Wheel | (m/min) 1.0-3,810, (yards/min) 1.0-4,166.4
(inch/min) 36-99,999 ( feet/min) 3 |
Length- ( Using
6" wheel) | (M) 0.2-99,999-(yards) 0.2-99,999 -(feet) 0.5-99,999 |
| Total RPM | 1-99,999 |
| Accuracy | Revolution 6.0-599.9 rpm ± 1rpm, 600-99,999 rpm: ±
0.006% & ± 0.5 digit |
Surface speed,
length | 0.4% and ± 1 digit |
| Memory function | 14 Reading are stored in memory and retained for five minutes - Last, Max, Min |
| Update time | One Second |
| Detection | Laser Diode |
| Auto Power Off | 5 Minutes |
| Batteries | 3 AA 1.5V |
Low Battery
Indicator | Flashing "LO BAT" in display |
Over Range
Indicator | Flashing "OVR" display |
| Operating Temp | 32-110°F (0-45° C) |
| Case construction | ABS Resin |
| Dimensions | 4.55" L x 2.52" W x1.24"H (115.5 mm x 64 mm x 3.15 mm) |
| Weight | 6 ounces (160 g), including batteries |
| Accessories | Storage Case, Cone Adapter, Funnel Adapter, Master Wheel ( 6") Contact adapter, three (3) AA Batteries, 25 reflective tapes, NIST Certificate, Instructions |
