    Product Description

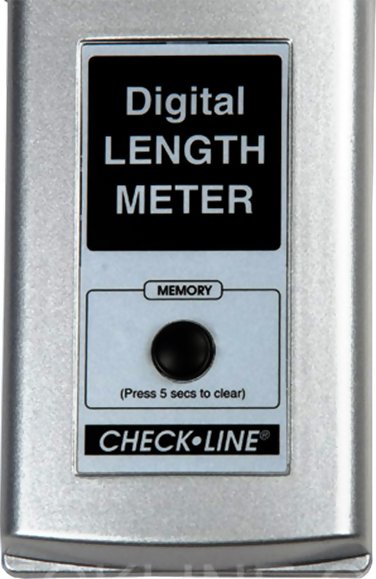

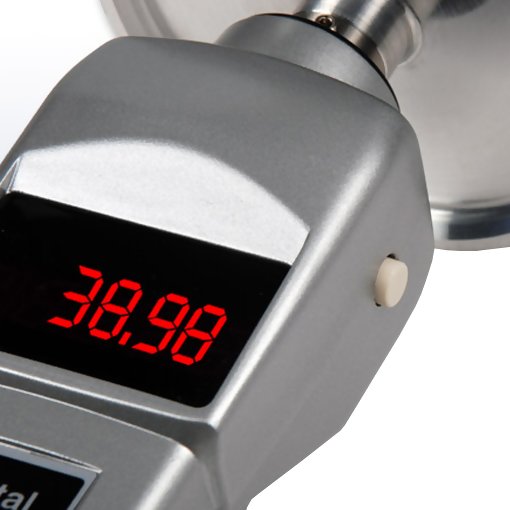

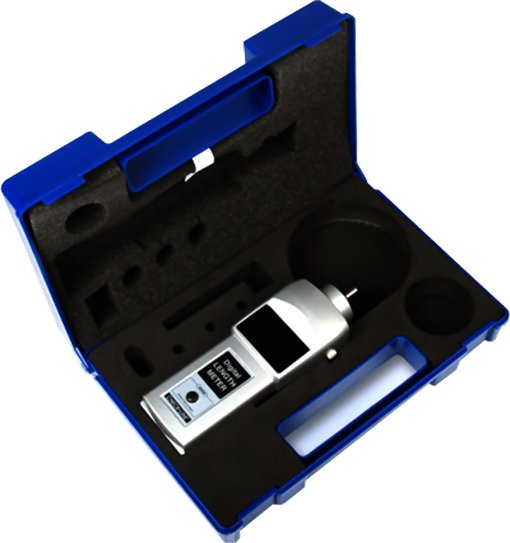

    Shimpo DLM-107A Digital Length Meter
    Digital Length Meter
    Display readings in feet or meters

    The Shimpo DLM-107A accurately measures running length. Built-in selector switch permits the user to display readings in feet or meters.

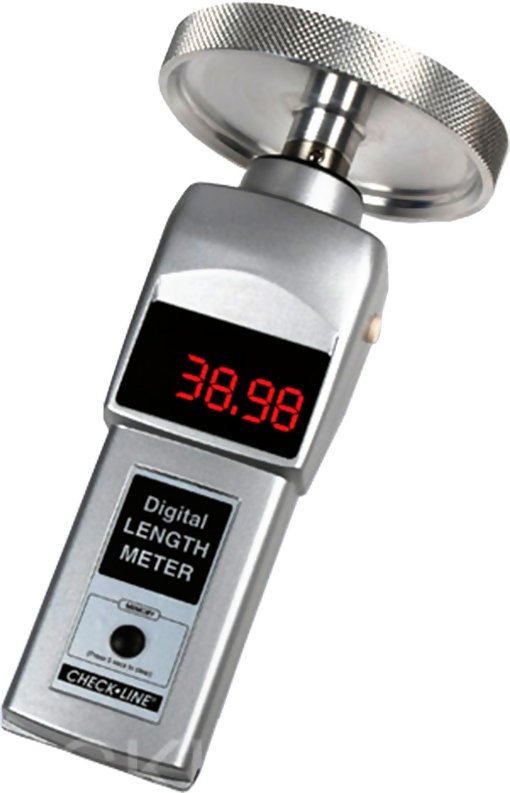

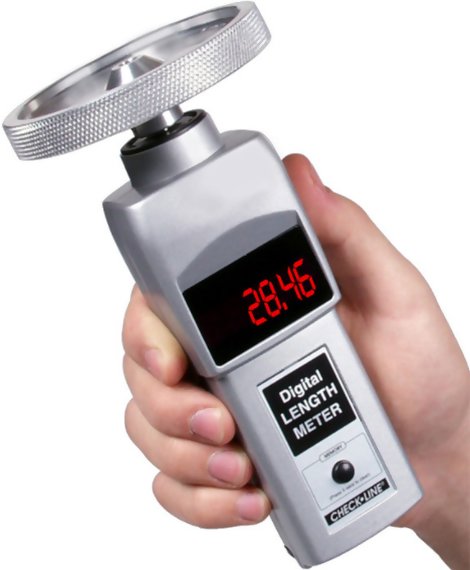

    Note: Shown with Optional Knurled Aluminum Wheel - LMA-3

    Features

    • Built-in memory for last, maximum, minimum and 10 separate readings
    • Rugged cast aluminum housing
    • Free NIST calibration certification

    Specifications

    Display Range0.10 to 25,000 rpm with floating decimal
    Accuracy0.10 to 999.99 rpm: ±0.06 rpm
    1,000.0 to 9,999.9 rpm: ±0.6 rpm
    10,000 to 25,000 rpm: ±0.006% rpm
    Measurement UnitsTotal Feet or Total Meters
    Memory System13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
    Over-Range IndicatorFlashing numerals
    DetectionOptical coupler, 60 pulses/rev
    Update Time1 second (typical)
    BatteriesSize: 2 1.5 V AA
    Life: Approx. 65 hrs. (DT-105A)
    Life: Approx. 40 hrs. (DT-107A)
    Low Voltage
    Indicator    		Flashing "LO BAT" display (DT-105A)
    "B" display (DT-107A)
    Operating Temp32° to 113° F (0 to 45° C)
    Weight0.9 pounds (400 grams)
    Dimensions7.3" L x 2.4" W x 1.8" H
    Warranty1 year

    User-selected engineering units

    Linear SpeedLengthRevolutions
    feet/minfeetrpm
    meters/minmeters
    inches/mininches
