Checkline CDT-1000HD Non-Contact Only Tachometer
Measuring Range: 1.00 - 99,999 rpm
Display Type: LCD
Housing Material: Plastic with rubber protective shell
Warranty: 5 years

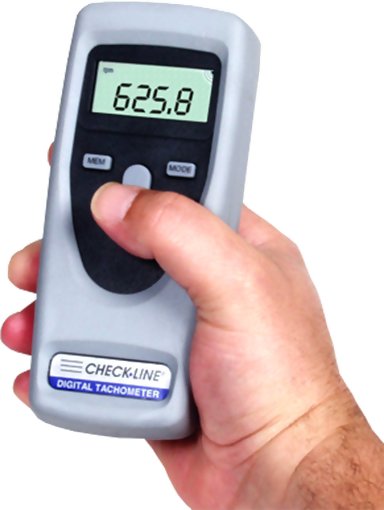

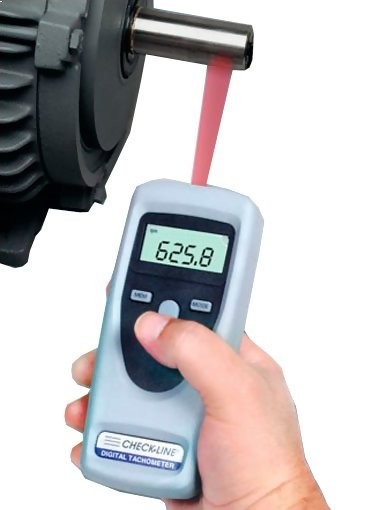

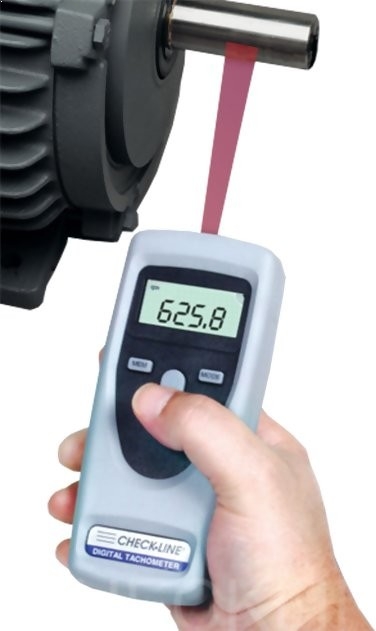

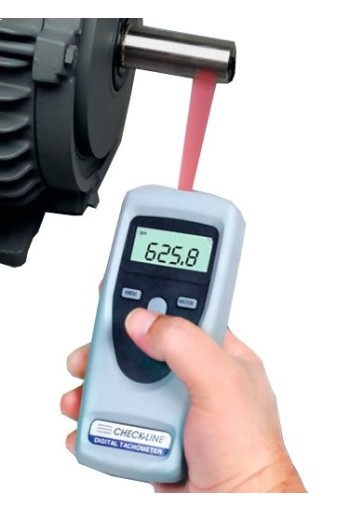

The Checkline CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches (60 cm) away from the small piece of reflective tape that is affixed to the rotating element.
The Checkline CDT-1000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

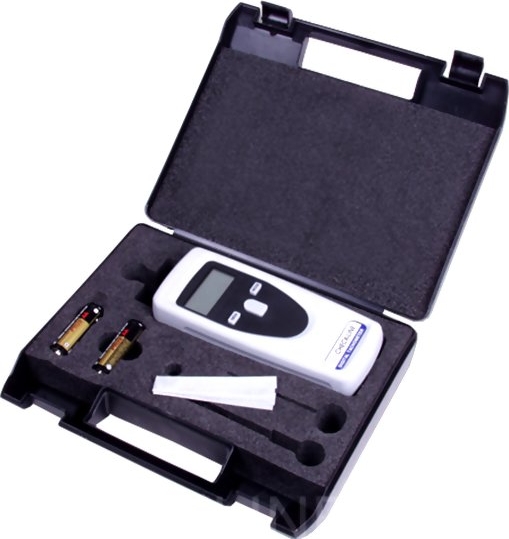

Kit Contents
- CDT-1000HD Handheld Laser Tachometer
- Reflective Tape
- Two (2) AA Batteries (1.5 V)
- Operating Instruction Manual
- NIST certificate
- Carrying Case
Features
- Measures speeds from as low as 1.00 rpm up to 99,999 rpm
- Accuracy of 0.02% with a resolution of 0.01 RPM
- Includes NIST calibration Certificate
- Built-in memory stores maximum, minimum, average and last reading for recall to the display
- NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
LCD Display:
- Units of Measure Indicators show the user-selected units of measure
- Low Battery Indicator alerts the operator if the batteries are low
- On-Target Indicator confirms that the measurements are reliable
- Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing
Specifications
| Measuring Range | 1.00 - 99,999 rpm |
| Resolution | 0.01 from 0 - 100
0.1 from 100 - 1,000
1 from 1000 - 99,999 |
| Display | 5 - Digit LCD, 10mm high |
| Accuracy | ± 0.02% of reading or 1 digit |
| Decimal Point | Automatic |
| Memory System | Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
| Measurement System | Visible LED light beam |
| Sensing Distance | Up to 24 inches (60 cm) |
Display Update
Time | Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C)
Special high temperature probes are optionally available |
| Auto Power Off | After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
| Battery Life | 40 hours continuous use |
| Battery | 2 AA (1.5 V) or rechargeable |
| Weight | 6 ounces (170 grams) |
| Operating Temp | 32 to 122° F (0 to 50° C) |
| Storage Temp | -4 to 150° F (-20 to 70° C) |
| Accessories | 10 Strips of 1/2 x 4 inch reflective tape |
| Warranty | 5 Years |
