Tramex CMEX5 Concrete Moisture Encounter X5

See More Tramex Moisture Meters

Tramex CMEX5 Concrete Moisture Encounter X5

See More Tramex Moisture Meters
Price:
$875.00
    warrenty

    Product Description
    Tramex CMEX5 Concrete Moisture Encounter X5
    4 Modes of Measurement
    8 Simple Membrane Keypad Controls
    Display Digital

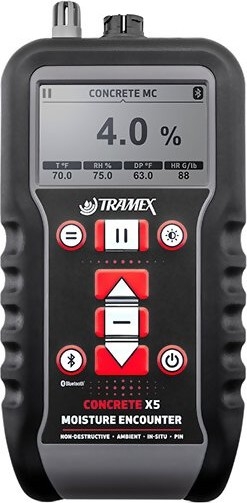

    The Tramex CMEX5 Concrete Moisture Encounter X5 is a non-destructive digital multi moisture meter for concrete floors and slabs providing instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The Tramex CMEX5 Concrete Moisture Encounter X5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659. Incorporating plug-in ports for the optional Hygro-i2® relative humidity probe testing per ASTM F2170 and heavy-duty pin-type wood probes, this moisture meter transforms into the ideal all-in-one instrument for the flooring professional.

    The CMEX5 concrete moisture meter determines instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. This concrete moisture meter tests the concrete to a depth of approximately 20mm (3⁄4") into the slab. The CMEX5 also provides quantitative Carbide Method equivalent readings for Concrete and Anhydrite/Gypsum substrates and screeds. In addition, the CMEX5 has two reference scales for comparative readings making this moisture meter suitable to perform a concrete moisture test as per ASTM F2659.

    This top quality concrete moisture meter with its Hygrometer and optional external pin and RH probe functionalities, is the ultimate tool for testing of concrete and flooring for professionals in the concrete coatings, wood flooring or water damage restoration industry to help prevent moisture problems on concrete floors.

    The use of the CMEX5 can be extended with the optional Concrete Moisture Probe which measures in-situ quantitative moisture content within the concrete to an extendable depth of up to 4" (100mm).


    line
    Kit Contents
    line

    The Tramex CMEX5 Concrete Moisture Encounter X5 includes everything needed for testing:


    line
    Features
    line

    • 4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer and optional external in-situ hygrometer and wood pin probe.
    • 8 simple membrane keypad controls.
    • Moisture readings and scale are displayed on a large, clear easy-to-read clear digital display: 2.3" x 1.4" (58mm x 35mm).
    • The built-in Hygrometer probe provides Relative Humidity (RH) readings, temperature, dew point temperature and Humidity Ratio.
    • Wood pin probe mode is automatically selected when the probe is plugged into the Concrete Moisture Encounter X5.
    • When the external Relative Humidity (RH) Hygro-i2 probe is connected to the Concrete Moisture Encounter X5, the instrument automatically switches to RH mode. Ambient or In-Situ Relative Humidity readings, probe temperature, dew point temperature and Humidity Ratio are automatically displayed (Hygrometer Mode).
    • When the battery requires replacement a LOW BATTERY icon is shown on the display.

    line
    Specifications
    line

    Moisture content for Concrete0 → 6.9 %
    Comparative for Gypsum floor screed0 → 12
    CM Equiv Anhydrite/Concrete0→2.7 / 0→ 4.3
    Reference scale0 → 100
    Relative Humidity0 → 99% (with optional Hygro-i2 ® probe)
    Humidity accuracy0% → 99%RH +/- 2% @ 25°C / 77°F
    Moisture content for wood5→ 30 % (with optional wood pin probes)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayDigital
    Depth of penetration in concreteapprox. ¾" (20mm)


    line
    More Info
    line

    The Determinator is also available as part of the following kits:

    • The Tramex CDK Concrete Determinator Moisture Probe, which includes the CMEX5 Concrete Moisture Meter for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659.

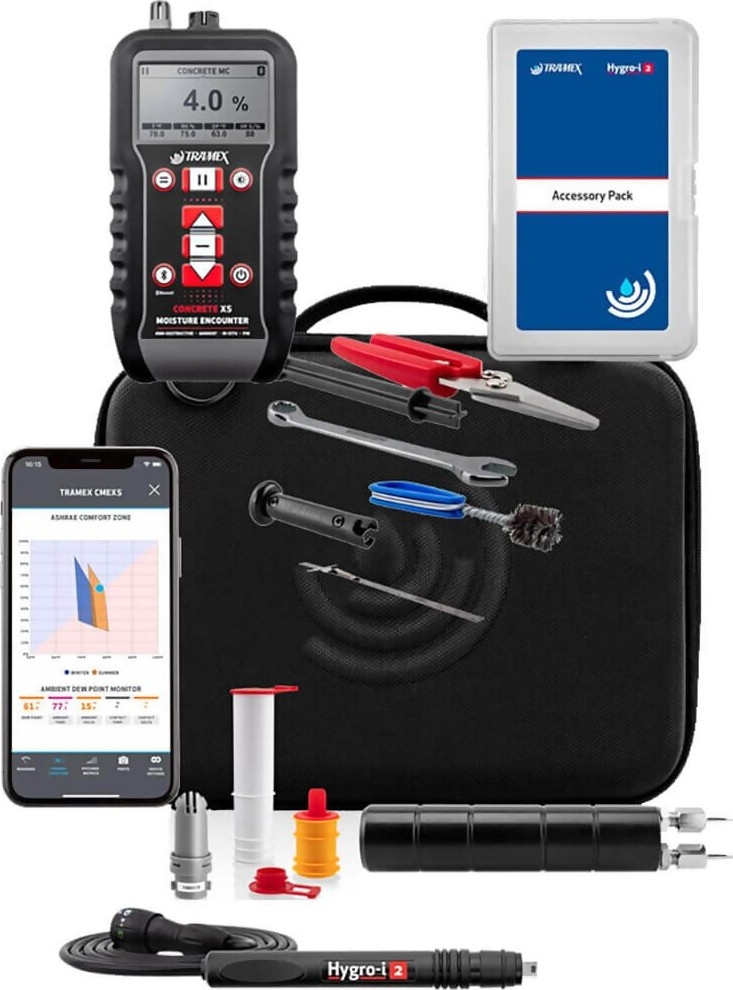

    • The Tramex CDTK Concrete Determinator Tech Kit is the complete kit for instant and precise testing of both Surface and In-Body Concrete Moisture Content in floors and slabs using a unified gravimetric-based testing method. It includes the CMEX5 digital concrete moisture meter, the reusable Concrete Moisture Probe, a reusable plug-in Hygro-i2 ® RH probe for in-situ testing of concrete as per ASTM F2170, an infrared surface thermometer for surface temperature and dew point conditions when used in conjunction with the CMEX5 hygrometer and the CMEX5 extension handle.

    Moisture Mapping & Data Documentation

    Concrete moisture test results can be visualized with the Tramex Meters App and turned into moisture maps, reports and charts for sharing. Bluetooth connectivity to mobile devices also helps to GeoTag test results, create, save and share photos.

    Measurements Modes

    1. Non-destructive test (NDT) mode: The Tramex Concrete Moisture Encounter X5 is a non-destructive digital multi moisture meter for concrete floors and slabs providing instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and anhydrite/gypsum substrates and screeds, as well as comparative readings as per ASTM F2659.
    2. Hygrometer mode: The Tramex Concrete Moisture Encounter X5's built-in Ambient Relative Humidity Sensor measures Ambient Relative Humidity, Temperature, Dew Point, and Humidity Ratio (or Mixing Ratio) of the environment.
    3. Equilibrium Relative Humidity mode (optional plug-in probe): Using the optional plug-in Hygro-i2 RH probes, the CMEX5 concrete moisture meter will measure Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials. A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods (International Standards: ASTM F2170 & BS 8201, 8203, 5325). Relative Humidity Probes can also be used for ambient RH measurements within air spaces.
    4. PIN Meter mode (optional plug-in probe): The Tramex CMEX5 concrete moisture meter becomes a resistance type meter and measures the percentage moisture content (%MC) of wood when used with the optional plug-in PIN meter. International wood standards or pre-programmed wood species can be selected. PIN meter mode can also be used for Drywall and WME (Wood Moisture Equivalent) readings for other building materials.

    Concrete Moisture Meter Design

    Tramex Concrete Moisture Encounter X5 detects and evaluates the moisture conditions within the slab or screed by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material. The Concrete Moisture Encounter X5 determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear digital dial.


    line
    Related Products
    line

    Tramex WDIK Water Damage Restoration Inspector Kit

    • Industry: Water Damage Restoration
    related

    line

    Tramex WDMK Water Damage Restoration Master Kit

    • Industry: Water Damage Restoration
    related

    line

    Tramex RIK Roofing Inspector Kit

    • Non-destructive checking of moisture conditions in roofing
    related

    line

    Tramex RMK Roof Master Kit

    • Non-destructive checking of moisture conditions in roofing
    related

    line

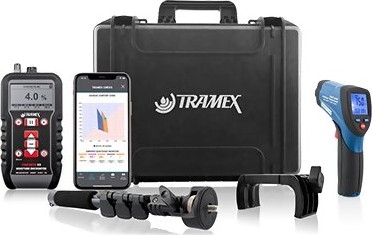

    Tramex CCIK Concrete Coatings Inspector Kit

    • Industry: Flooring Inspection, Concrete Coatings, Water Damage Restoration
    related

    line

    Tramex FIK Flooring Inspector Kit

    • Industry: Flooring Inspection, Flooring Installation.
    related

    line

    Tramex FMK Flooring Master Kit

    • Industry: Flooring Inspection, Flooring Installation.
    related

    line

    Tramex Hygro-i2 Relative Humidity Probe

    • Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test
    related

    line

    Tramex Heavy-duty Pin-type Wood Probe with Cable and Pins

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    related

    line

    Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    related

    line

    Tramex CALCRH Calibration Check for CME5, CMEX5

    • The Tramex CALCRH is a calibration check plate used to easily verify if moisture meters yield proper moisture readings, or if or needs to be sent to a calibration lab.

    related

    line

    Tramex HA21SP52 Hammer-Action Pin-Type Electrode

    • Hammer-action pin-type electrode (With Cable And Pins) for use with CMEX5, MRH3.
    • Order Code: HA21SP52 (For use with MRH3)
    • Order Code: HA21SP52B (For use with CMEX5)
    related

    line

    Tramex SP200 Spare 7" Pins for Pin Probe HH14SP200

    • Heavy-Duty Electrode with Cable and 7" (200mm) Long Pins for use with CMEX5, MRH
    • Order Code: HH14SP200 For use with MRH3
    • Order Code: HH14SP200B For use with CMEX5
    related

    line

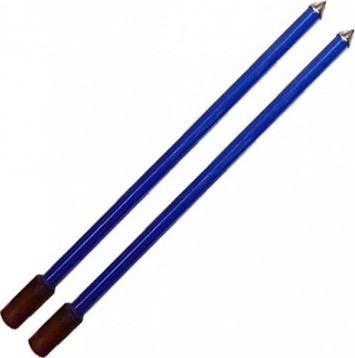

    Tramex CALCRH Calibration Check for CME5, CMEX5

    • Heavy-duty Pin-type Electrode with Cable and 3" pins for use with CMEX5, MRH3
    • Order Code: HH14SP90 For use with MRH3
    • Order Code: HH14SP90 For use with CMEX5
    related

    line

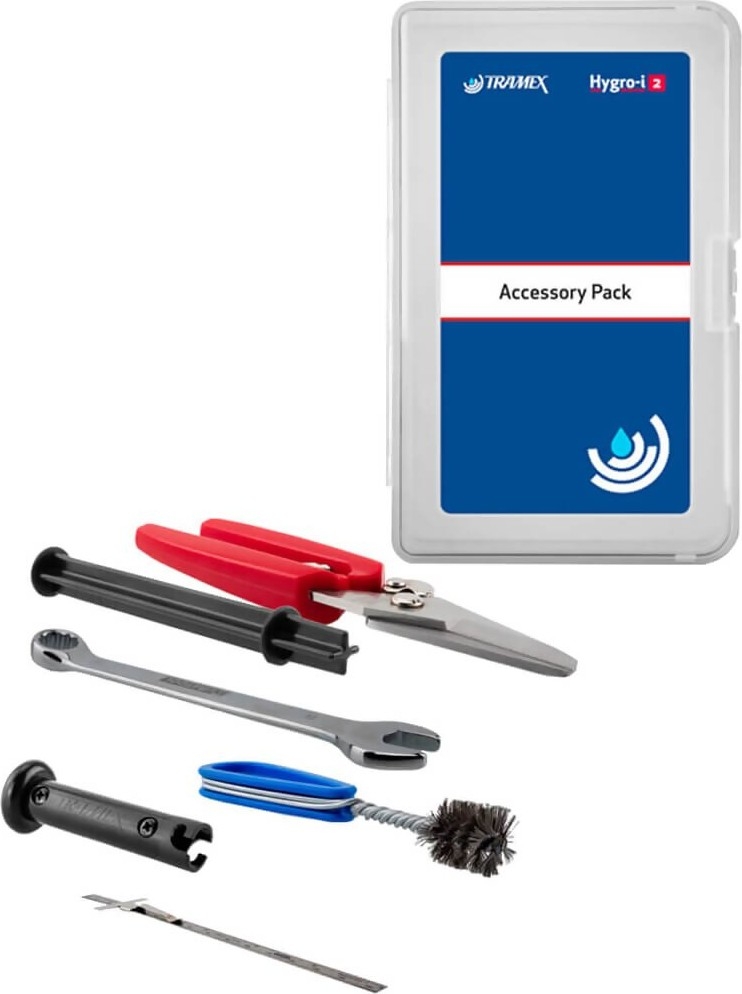

    Tramex ASTM F2170 Accessory Pack
