Tramex FIK Flooring Inspector Kit

See More Tramex Moisture Meters
Price:
$1,760.00
    warrenty

    Product Description
    Tramex FIK Flooring Inspector Kit
    Industry: Flooring Inspection, Flooring Installation.

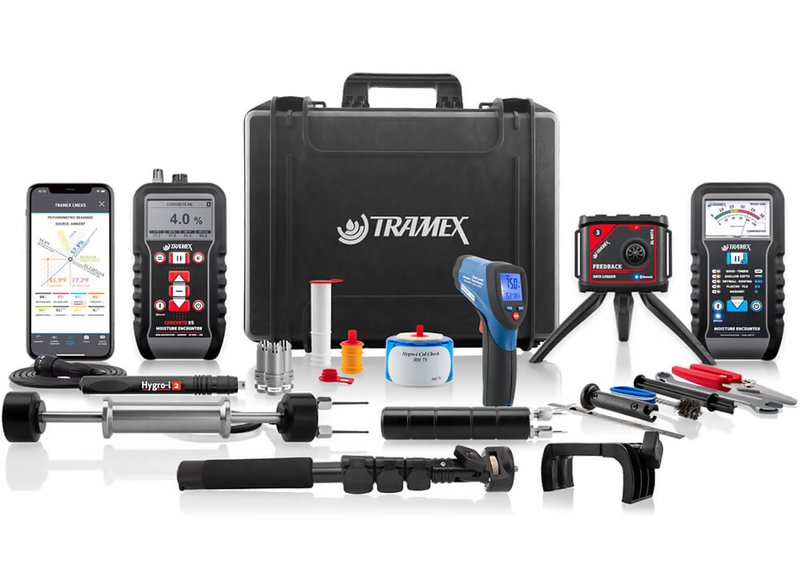

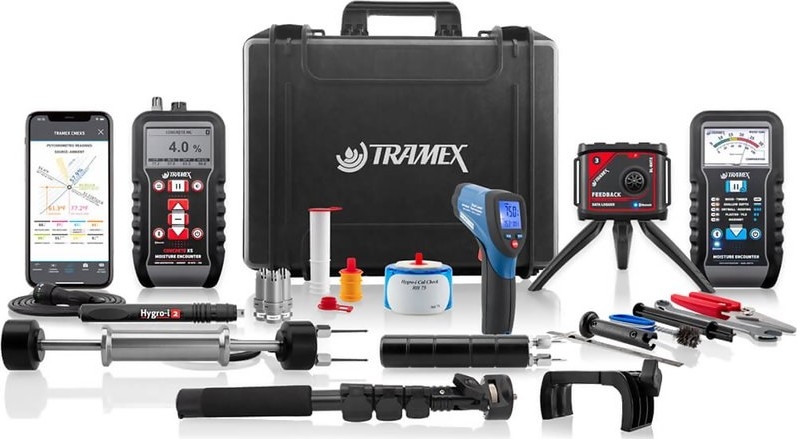

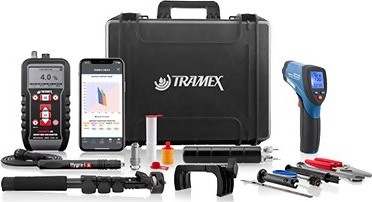

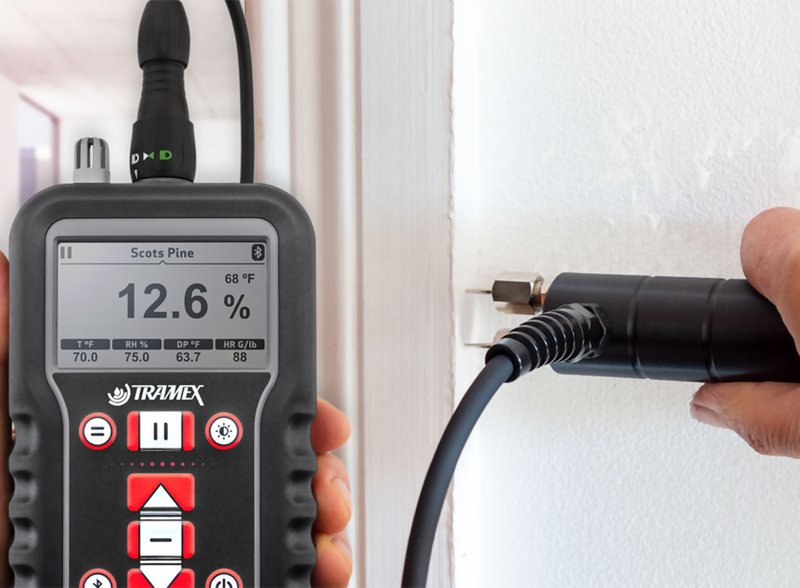

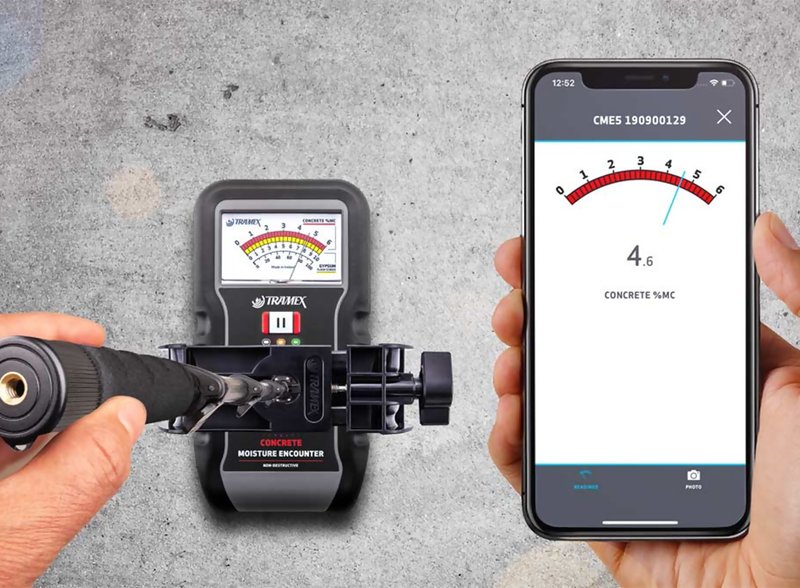

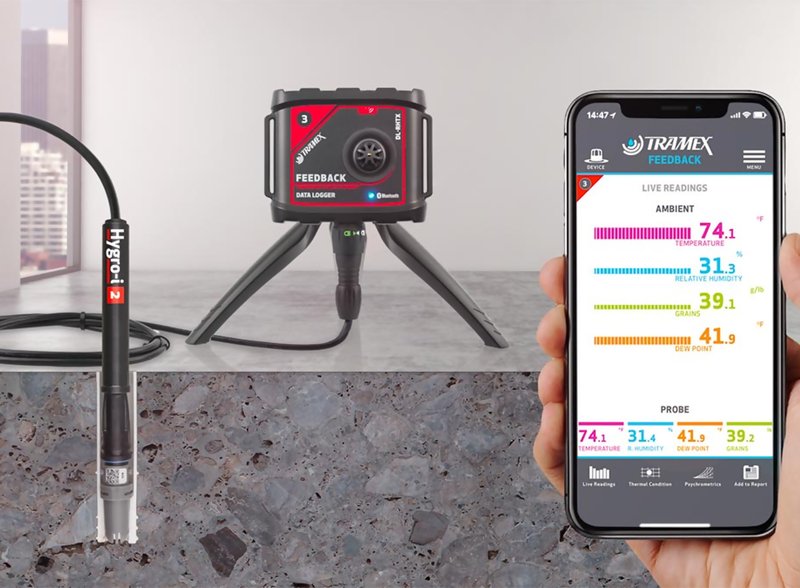

    The Tramex FIK Flooring Inspector Kit is the ultimate kit for pre & post-application moisture testing of concrete slabs, wood and various other floor covering materials. Featuring the Tramex Tramex CMEX5 Concrete Moisture Encounter X5 for non-destructive quantitative and comparative testing of concrete and ambient conditions. The Tramex Tramex CMEX5 Concrete Moisture Encounter X5 digital moisture meter allows for non-destructive quantitative testing of concrete using Gravimetric testing as a baseline and comparative testing per ASTM F2659. Plug-in reusable Tramex Tramex HIPP Hygro-i2 Relative Humidity Probe allow for performing ASTM F2170 for relative humidity readings in concrete slabs. The Tramex heavy-duty wood pin-probe measures the moisture content of wood. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Tramex Flooring Inspector Kit comes with an extension handle in a heavy duty Tramex travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.


    line
    Kit Contents
    line


    line
    Specifications
    line

    Size17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm)
    Weight8.6 lbs (3.9kg)
    Power2 x AA batteries, 1 x 9 volt PP3 battery

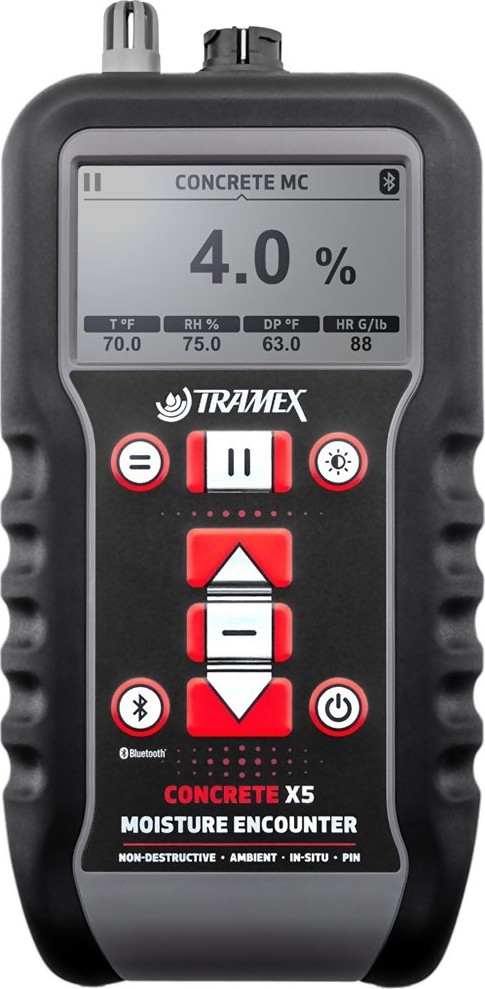

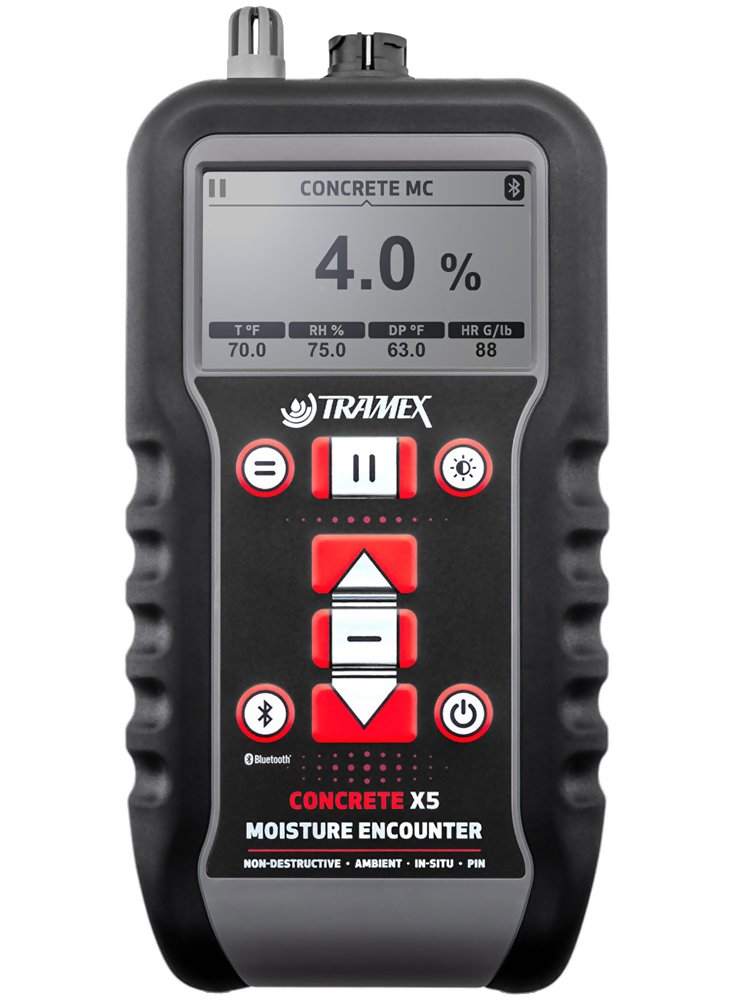

    Tramex CMEX5 Concrete Moisture Encounter X5

    Moisture content for Concrete0 → 6.9 %
    Comparative for Gypsum floor screed0 → 12
    CM Equiv Anhydrite/Concrete0→2.7 / 0→ 4.3
    Reference scale0 → 100
    Relative Humidity0 → 99% (with optional Hygro-i2 ® probe)
    Humidity accuracy0% → 99%RH ± 2% @ 25°C / 77°F
    Moisture content for wood5→ 30 % (with optional wood pin probes)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayDigital
    Depth of penetration in concreteapprox. ¾" (20mm)

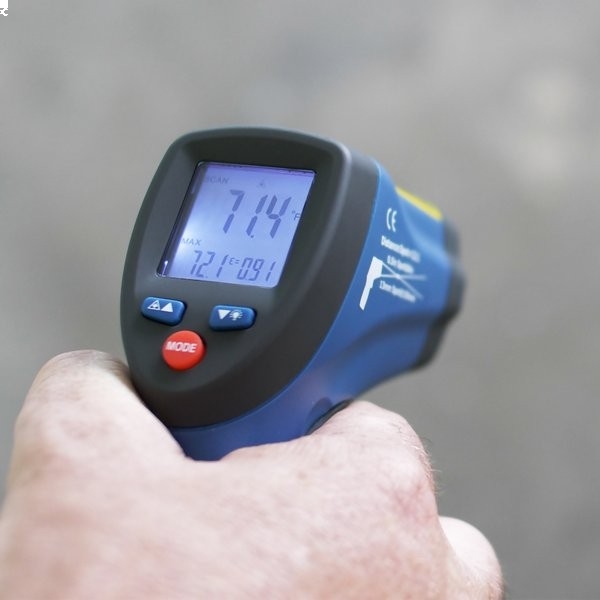

    Tramex IRT2 Infrared Surface Thermometer

    Temperature range

    -58°F ~ 1202°F (-50 to 650 °C)
    Distance to Spot ratioD:S = 12:1
    Display resolution0.1 °F(0.1°C)   <1000 1°C   >1000

    Accuracy for targets

    Assumes ambient operating temperature of  73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C)  ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C)  ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5%

    Repeatability

    -58~68°F (-50~20°C)  :  ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C)

    Response time

    150ms

    Spectral response

    8~14um

    Emissivity

    Digitally adjustable from 0.10 to 1.0

    Over range indication

    LCD will show "----"

    Polarity: Automatic (no indication for positive polarity)

    Minus (-) sign for negative polarity

    Diode laser output

    <1mW,Wavelength 630~670nm, Class 2 laser product

    Operating temp.

    32 to 122°F ( 0 to 50°C)

    Storage temp.

    14 to 140°F (–10 to 60°C)

    Relative humidity

    10%~90%RH operating, <80%RH storage

    Power supply

    9V battery, NEDA 1604A or IEC 6LR61, or equivalent

    Safety"CE" Comply with EMC
