Tramex WDMK Water Damage Restoration Master Kit

See More Tramex Moisture Meters

Tramex WDMK Water Damage Restoration Master Kit

See More Tramex Moisture Meters
Price:
$2,975.00
    warrenty

    Product Description
    Tramex WDMK Water Damage Restoration Master Kit
    Industry: Water Damage Restoration

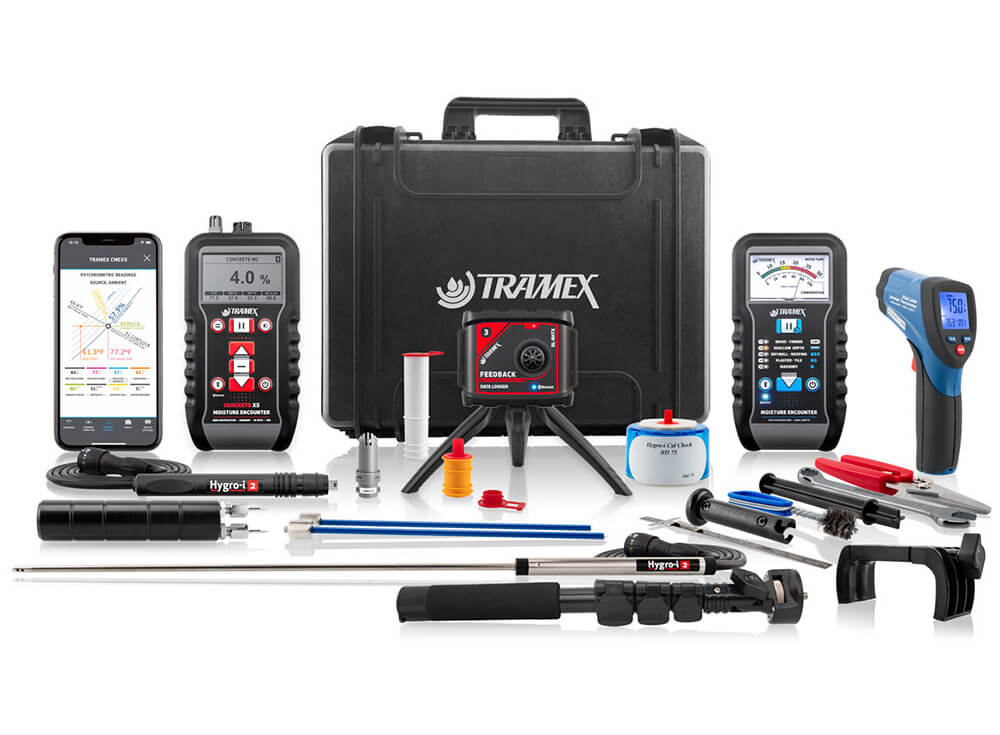

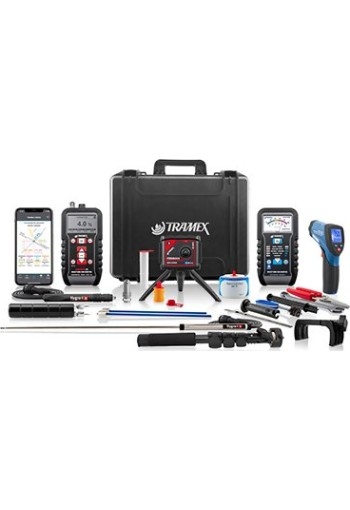

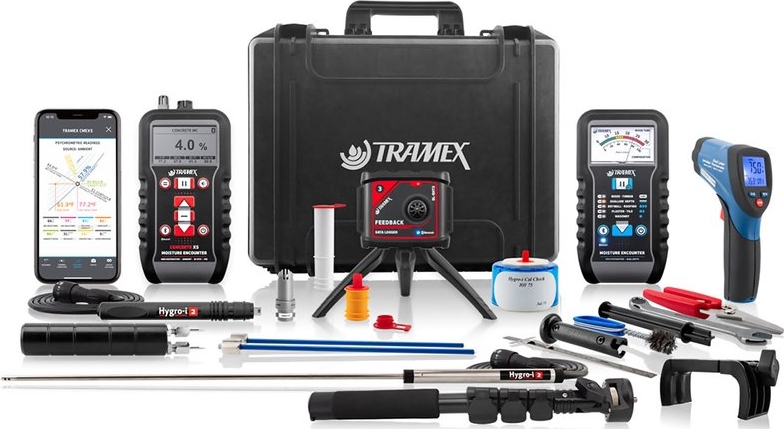

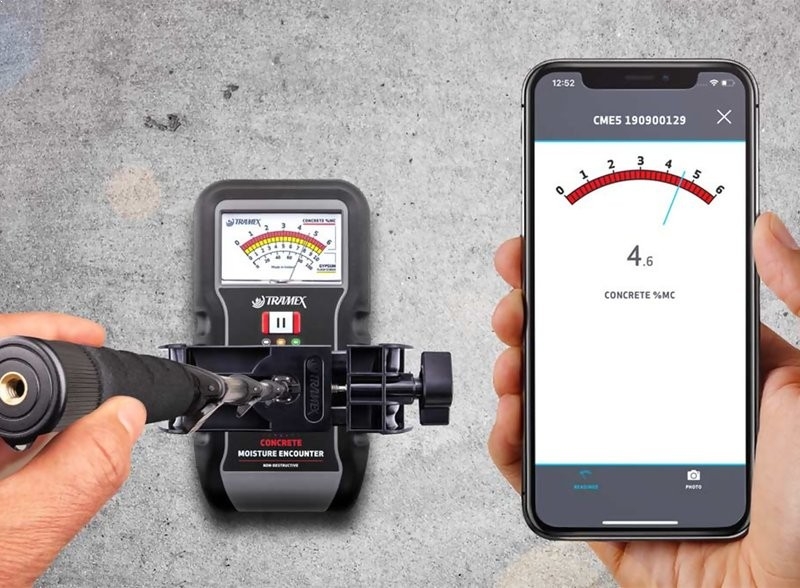

    The Tramex WDMK Water Damage Restoration Master Kit is ideal for moisture and relative humidity testing and monitoring of buildings and building materials. Featuring the Tramex ME5 Moisture Encounter Non-Destructive Moisture Meter for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The Tramex CMEX5 Concrete Moisture Encounter X5 for non-destructive quantitative and comparative testing of concrete and ambient conditions. The CMEX5 incorporates a plug-in heavy-duty pin-probe measures Moisture Content in wood or WME in other building materials. The CMEX5 also incorporates plug-in RH probes for in-situ testing of concrete, building materials, structures and air spaces. These probes can be used with the Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in the environment and in materials and air spaces. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Water Damage Restoration Master Kit comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.


    line
    Kit Contents
    line


    line
    Specifications
    line

    Kit:

    Size20.5” x 18.9” x 5.9” (52cm x 48cm x 15cm)
    Weight10.8 lbs (4.9kg)
    Power5 x AA batteries, 1 x 9 volt PP3 battery

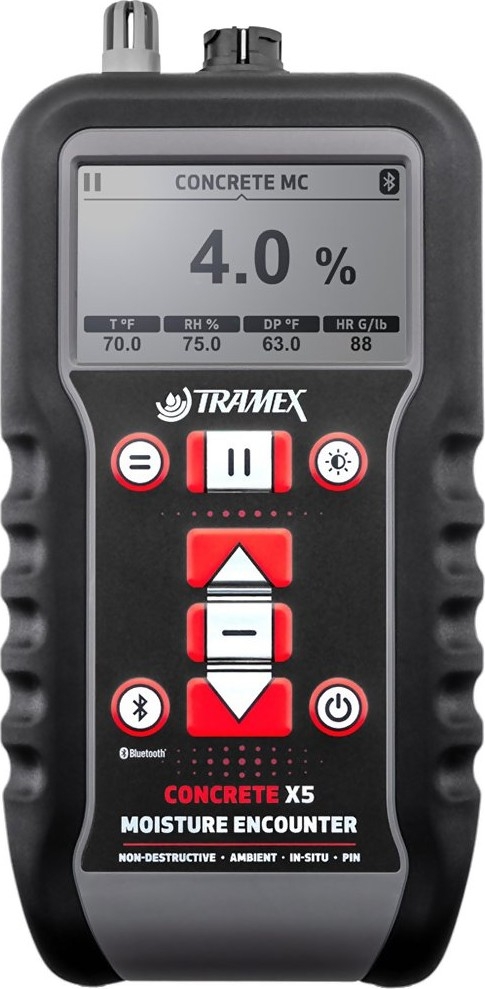

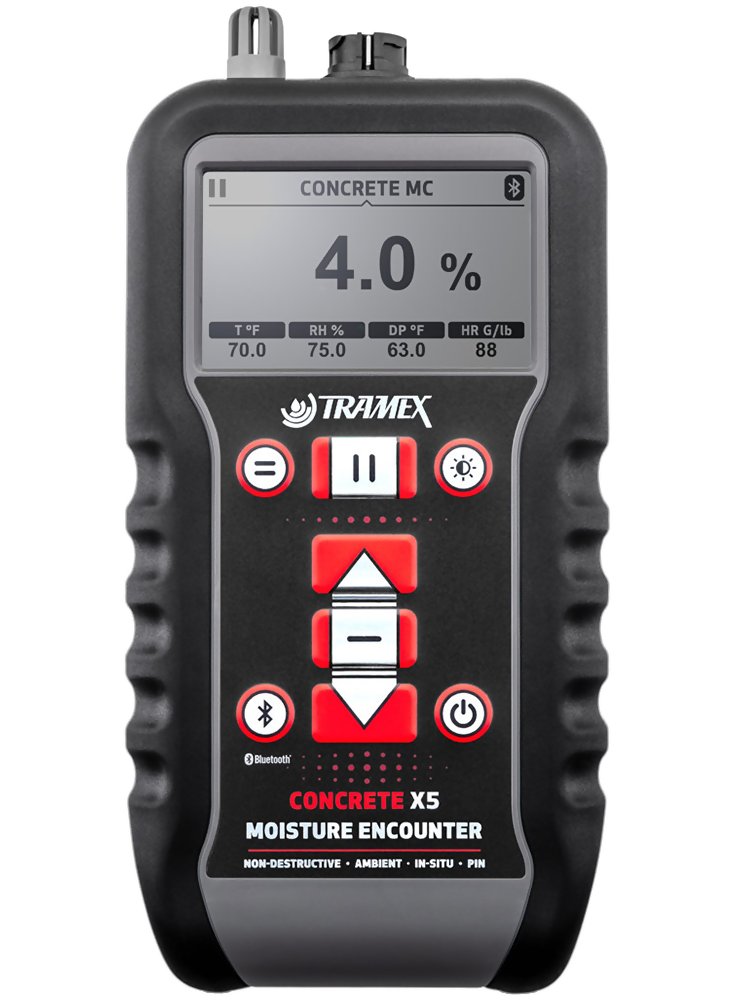

    Tramex CMEX5 Concrete Moisture Encounter X5:

    Moisture content for Concrete0 → 6.9 %
    Comparative for Gypsum floor screed0 → 12
    CM Equiv Anhydrite/Concrete0→2.7 / 0→ 4.3
    Reference scale0 → 100
    Relative Humidity0 → 99% (with optional Hygro-i2 ® probe)
    Humidity accuracy0% → 99%RH ± 2% @ 25°C / 77°F
    Moisture content for wood5→ 30 % (with optional wood pin probes)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayDigital
    Depth of penetration in concreteapprox. ¾" (20mm)

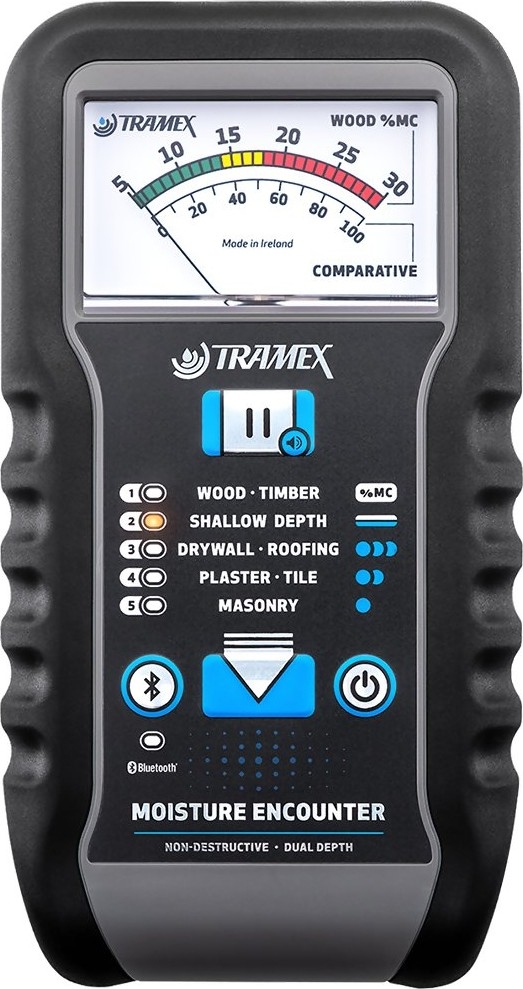

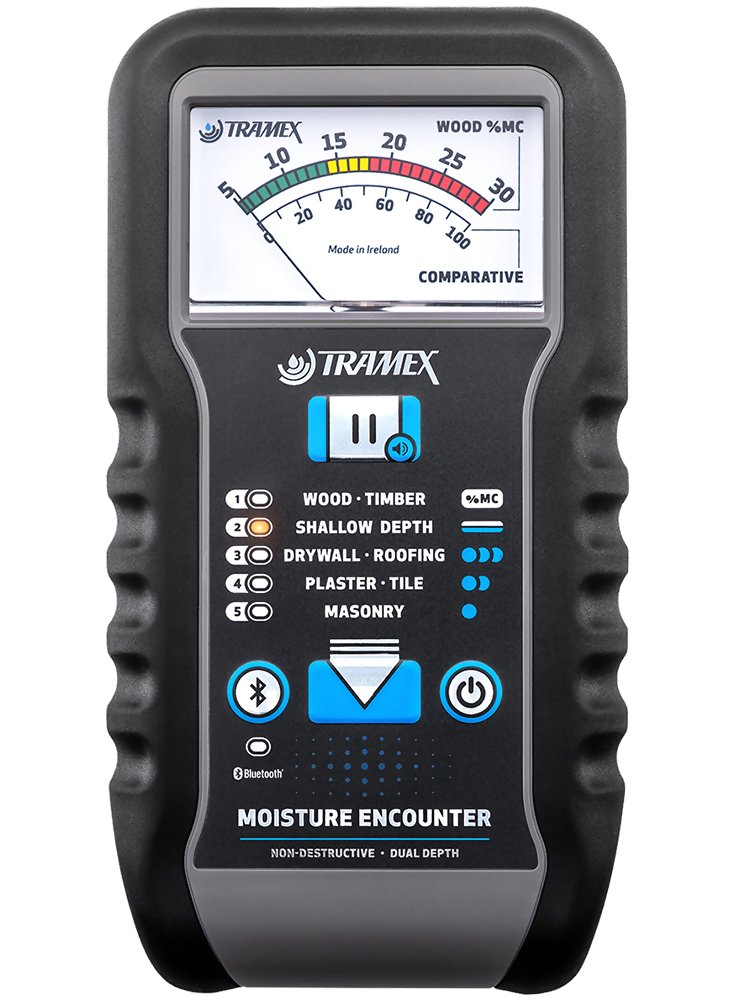

    Tramex ME5 Moisture Encounter Non-Destructive Moisture Meter:

    Size6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm)
    Weight 9.5oz (270g)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayAnalogue
    Depth of penetrationShallow signal: up to 0.40" (10mm)
    Deep signalup to 1.25" (30mm)
    Wood Moisture Content5 to 30%
    Reference scale for building materials0 to 100

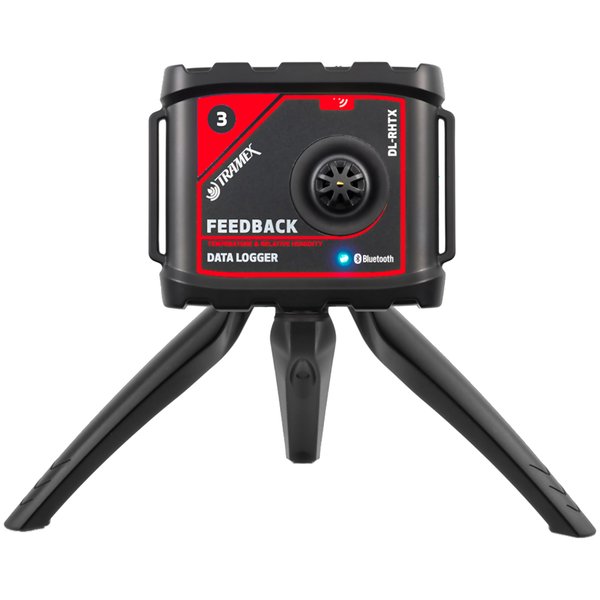

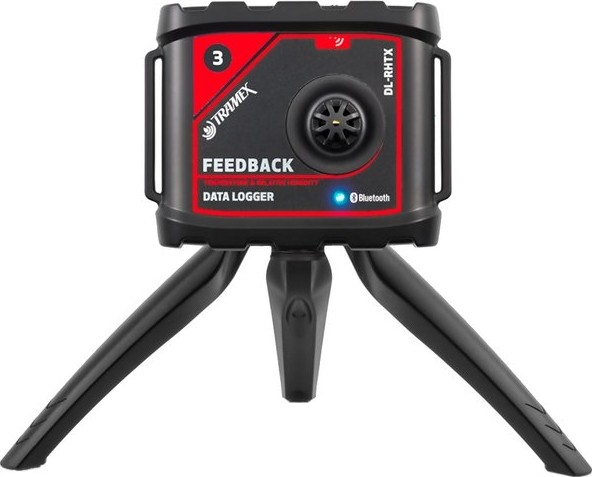

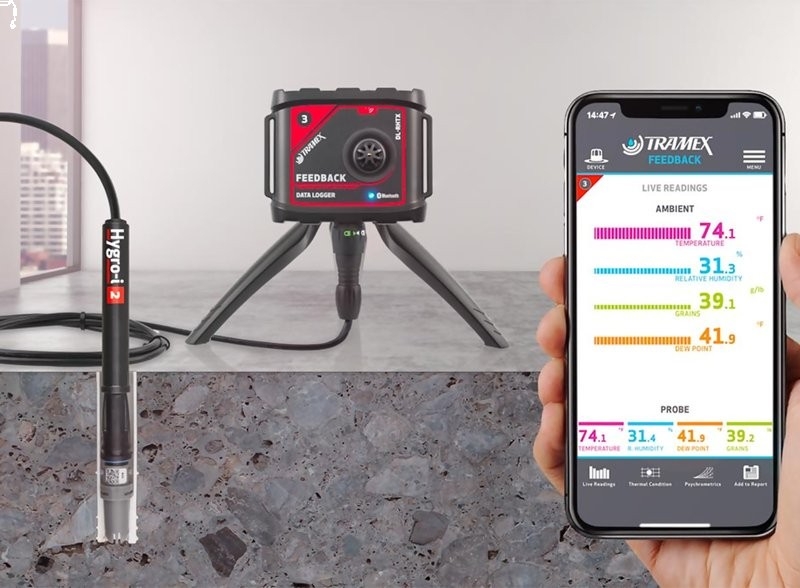

    Tramex DL-RHTX Feedback DataLogger:

    Size3.94" x 3.54" x 1.38" (100mm x 90mm x35mm)
    Weight3.53oz (100g)
    Construction ABS enclosure Power1 x AA type battery 1.5 Volt
    Memory100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
    Logging RateLogger interval adjustable between 5 minutes and 1 hour
    Transmission RangeUp to 165ft (50m) line-of-sight Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising Included: Wall Mounting and Tripod Stand


    Tramex RHIE2Hygro-I Electronic Interface Cable

    Range

    0 to 100% RH
    Accuracy±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77°F (25°C))
    Resolution0.1% over the complete range
    Drift<0.25%RH per year


    Tramex IRT2 Infrared Surface Thermometer

    Temperature range

    -58°F ~ 1202°F (-50 to 650 °C)
    Distance to Spot ratioD:S = 12:1
    Display resolution0.1 °F(0.1°C)   <1000 1°C   >1000

    Accuracy for targets

    Assumes ambient operating temperature of  73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C)  ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C)  ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5%

    Repeatability

    -58~68°F (-50~20°C)  :  ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C)

    Response time

    150ms

    Spectral response

    8~14um

    Emissivity

    Digitally adjustable from 0.10 to 1.0

    Over range indication

    LCD will show "----"

    Polarity: Automatic (no indication for positive polarity)

    Minus (-) sign for negative polarity

    Diode laser output

    <1mW,Wavelength 630~670nm, Class 2 laser product

    Operating temp.

    32 to 122°F ( 0 to 50°C)

    Storage temp.

    14 to 140°F (–10 to 60°C)

    Relative humidity

    10%~90%RH operating, <80%RH storage

    Power supply

    9V battery, NEDA 1604A or IEC 6LR61, or equivalent

    Safety"CE" Comply with EMC
