Bluetooth BLE enabled for use with mobile devices
Up to 100,000 data point entries. Instant set up and start modes
Precise Ambient Relative Humidity and Temperature logging

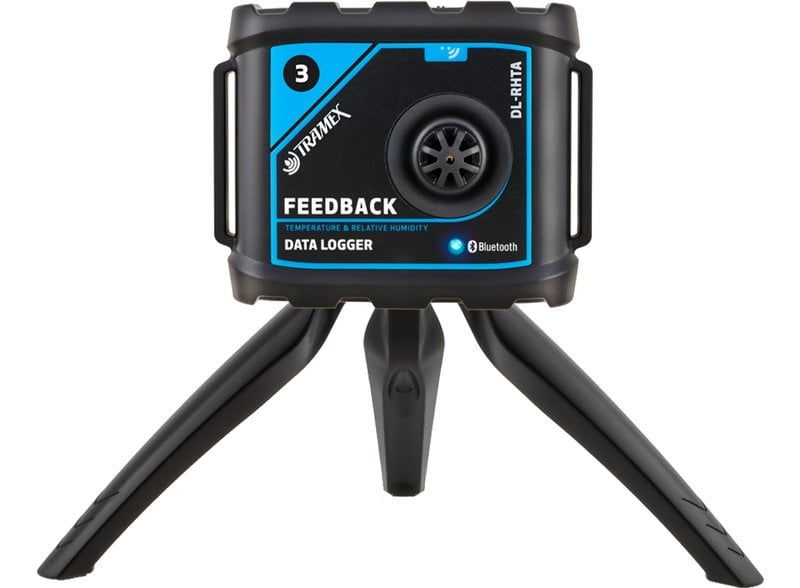

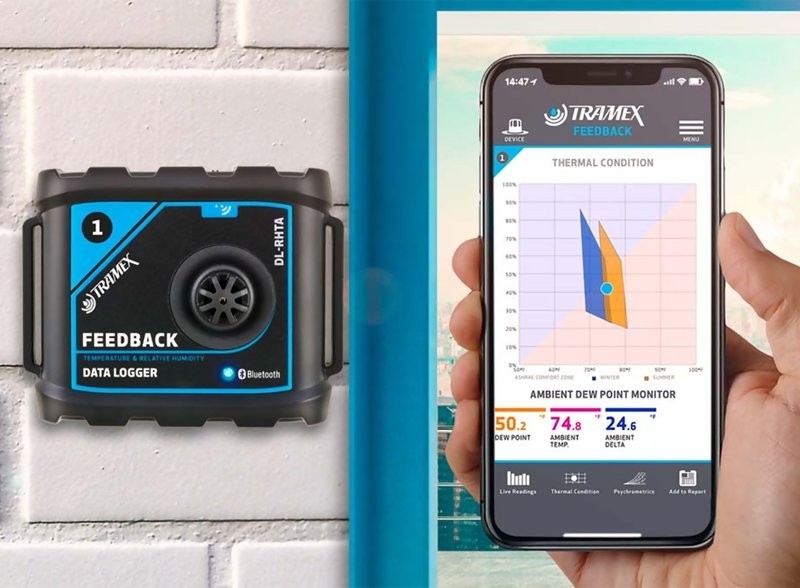

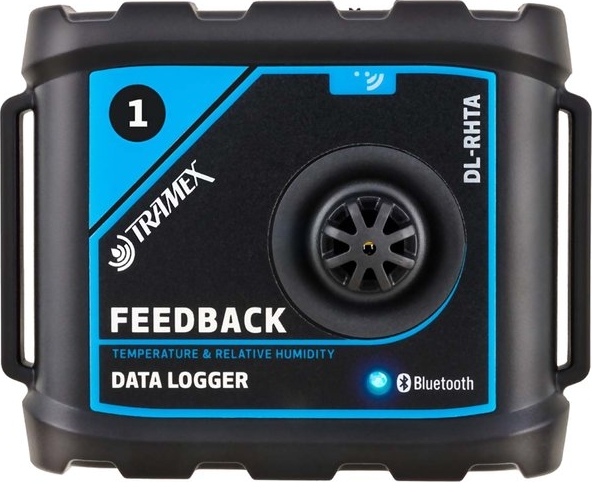

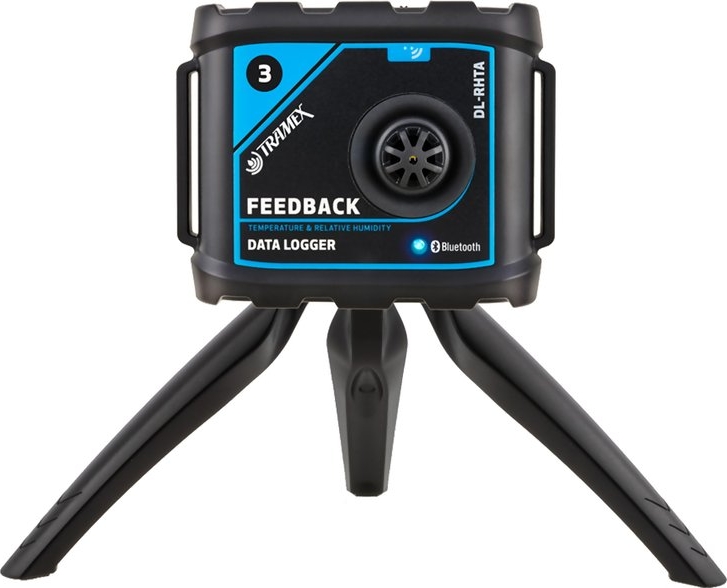

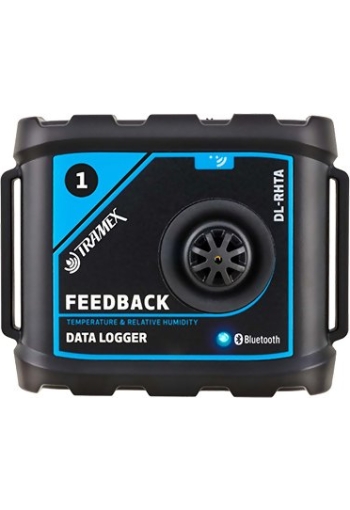

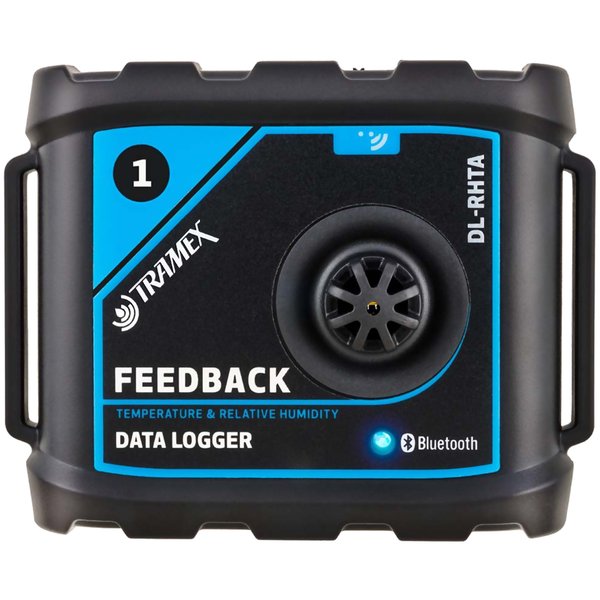

The Tramex Feedback DataLogger and App have been designed and developed by Tramex for professionals who depend on accurate, reliable readings using the very best, state of the art technology. The Feedback DataLogger and App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualise Live Readings, Thermal Conditions and Psychrometric Charts as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Feedback Data Logger App and a compatible iOS or Android mobile device.
Kit Contents
Features
- Bluetooth BLE enabled for use with mobile devices
- Up to 100,000 data point entries. Instant set up and start modes
- Precise Ambient Relative Humidity and Temperature logging
- Intuitive and instructive App interface
- Adjustable Interactive chart, spreadsheet, report and easy export functions
- Connectivity up to 165ft (50 meters) for highly accessible data downloads
- Supported measurements:
- Ambient Relative Humidity, Temperature, Dew point, Grains per pound
- Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point
- Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
Specifications
With built-in Ambient RH + Temperature sensor; Plug-in Contact Temp Probe (optional) providing the best available accuracy tolerances of 1.5%RH & 0.1ºF.
| Size | 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm) |
| Weight | 3.53oz (100g) |
| Construction ABS enclosure Power | 1 x AA type battery 1.5 Volt |
| Memory | 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature) |
| Logging Rate | Logger interval adjustable between 5 minutes and 1 hour |
| Transmission Range | Up to 165ft (50m) line-of-sight Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising Included: Wall Mounting and Tripod Stand |
Humidity specifications:
| Range | 0 to 100%RH |
| Accuracy | ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC)) |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Temperature specifications:
| Range | -40ºF to 257ºF (-40ºC to 125ºC) |
| Accuracy | ±0.1ºF Range 68ºF to 140ºF (±0.1 ºC Range 20ºC to 60ºC) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust Drift: <0.04ºF (0.03ºC) per year |
Contact temperature probe (optional):
| Units | ºF (ºC) |
| Temperature Range | -20ºF to +175ºF (-30ºC to +80ºC) |
| Accuracy | ±0.9ºF from 14ºF to 185ºF (±0.5ºC from -10ºC to +85ºC) |
| Resolution | 0.1% over the complete range |
Battery:
| Power supply | 1 x AA type battery 1.5 Volt |
| Battery life | Over 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied |
