Rex DD-4 Precision Digital Shore Durometer RX-DD

See More Durometers

Rex DD-4 Precision Digital Shore Durometer RX-DD

See More Durometers
Price:
$1,145.00 - $1,545.00
    warrenty

    Product Description

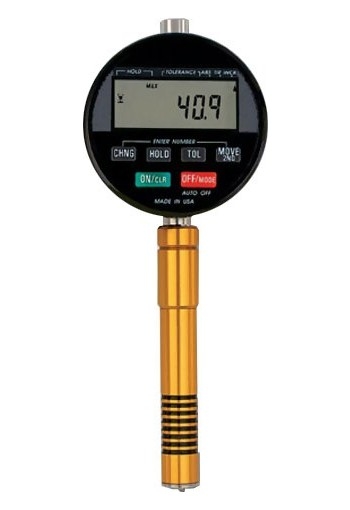

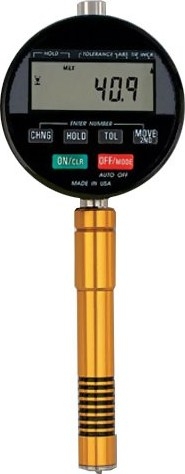

    Rex DD-4 Precision Digital Shore Durometer RX-DD
    Available Scales: A, AO, B, C, D, DO, E, M, O, OO, OOO (Asker, ISO, DIN & JIS Scales also available, inquire)
    Conforms to ASTM D-2240
    Includes NIST Calibration Certificate

    Available Scales: A, B, C, D, DO, M, O, OO, OOO

    The Rex DD-4 Precision Digital Shore Durometer RX-DD is ideal for laboratory use. It features a large direct drive LCD display, RS232 data ports for computer compatibility, a locking feature to prevent accidental erasure of tolerances, automatic shutoff, low battery warning, and accessories such as MTI and SPC type printers, audio attachments and software.

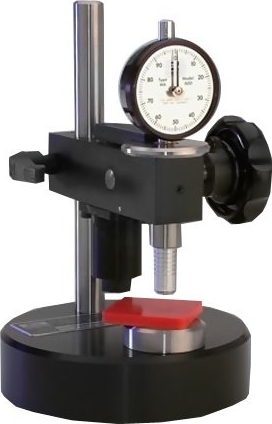

    Type M Durometers require test stand OS-3 per ASTM D2240


    line
    Kit Contents
    line

    • Rex DD-4 Precision Digital Shore Durometer RX-DD
    • AC adapter
    • Instruction manual
    • Carrying case


    line
    Features
    line

    • High and low buttons for setting tolerance limits
    • Solid state circuitry with LCD display
    • One year warranty
    • Holds Peak reading until reset
    • 0.1 Unit Resolution
    • Supplied in custom fit carrying case
    • Includes NIST Calibration Certificate
    • Conforms to ASTM D-2240


    line
    Specifications
    line

    Resolution 0.1 Units
    Dimensions 2.25" x 6.125"
    Weight 7.15 oz.

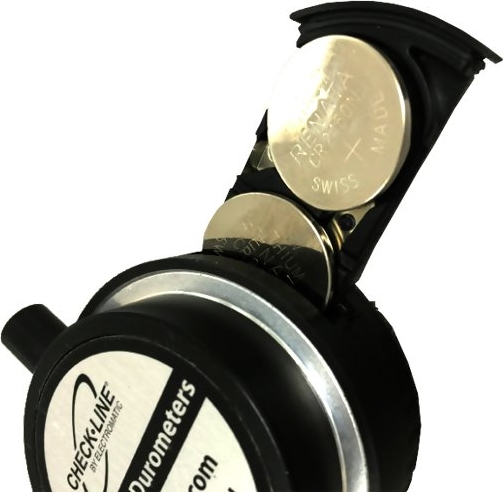

    Power Supply (2) 3V CR-2450 Batteries AC Adapter Optional
    Warranty 1 year


    line
    Slim Probe Durometers
    line

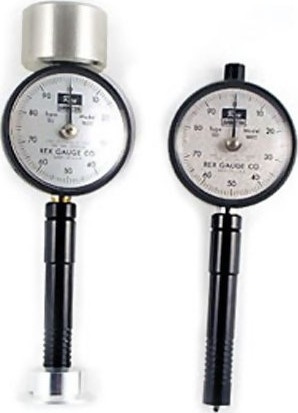

    We offer custom slim probe versions of most durometer models and types. The slim probe attachment can be modified to fit your specific needs or applications.


    line
    Related Products
    line


    RX-DD-MS
    Digital Multi-Scale Durometer

    • Digital Multi-Scale Durometer allows user to measure in a variety of scales with one guage
    related

    line

    SWC-1
    RX Lab Durometer Software

    • Provides a running log of all measurements along with a chart of the data as well as statistical information
    • Includes RS-232 Cable
    related

    line


    Durometer Test Block Kits
    Test Function Of Durometers

    • Enables user to perform a quick check for proper durometer operation
    related

    line

    RX-BF
    "Big Foot" Durometer Foot Adapter

    • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter
    related

    line

    RX-CLW
    Constant Load Weight for Types A, B, O, OO & OOO

    • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg
    related


    line
    Downloads
    line

    Rex RX-DD Precision Digital Shore Durometer With Memory Data Output - Instruction Manual
    Rex RX-DD Precision Digital Shore Durometer With Memory Data Output - Data Sheet
    Rex RX-DD Precision Digital Shore Durometer With Memory Data Output - Technical Information
