This product has been discontinued
Product Description
The RX-1700 has been replaced by the RX-2000.

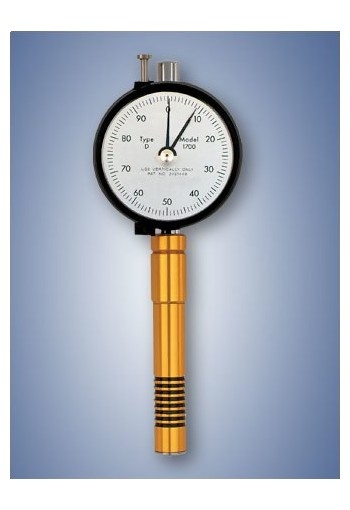

Precision Dial Shore Durometer With Memory Pointer
Available Scales: A, B, C, D, DO, O
Conforms to ASTM D-2240
Includes NIST Calibration Certificate

Available Scales: A, B, C, D, DO, O

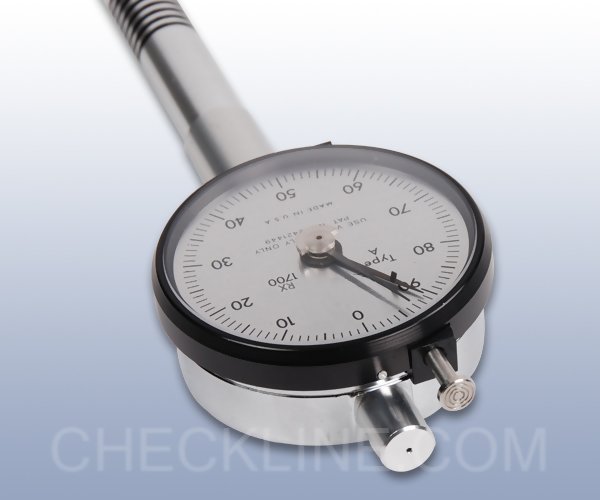

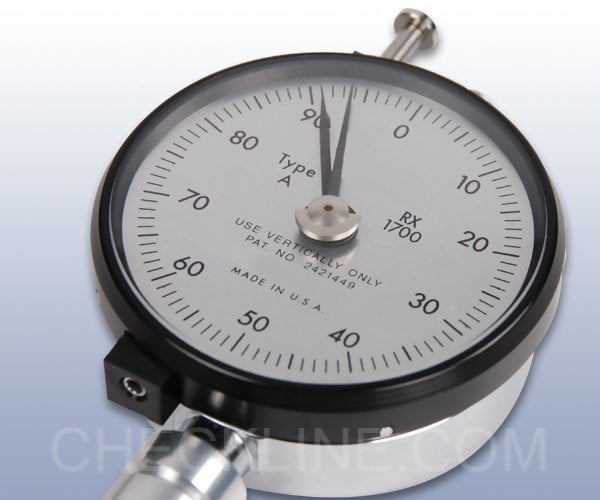

Introduced in 1965, the Model 1700 was designed to enable the user to observe and measure the "creep" present in a specimen. Creep refers to the tendency of the durometer indentor to continue to penetrate a specimen over time, giving lower durometer readings. For example, if the durometer is held against a specimen in full contact and with constant pressure, the durometer reading will decrease over a period of seconds after the initial reading is taken. So, in a specimen with creep, the initial reading may be 35.0 durometer points, while the reading after three seconds may be 33.5 durometer points. The Model 1700 features a max- hand and an active hand so that creep may be observed. The max hand holds the maximum reading while the active hand can be observed creeping down the scale. The 1700 is equipped with a max-hand reset button on the top left of the gauge.

Features


  • Includes NIST Calibration Certificate
  • Reads maximum and creep
  • Unique foolproof reset
  • Conforms to ASTM D-2240
  • Custom made carrying case
  • Holds reading until reset

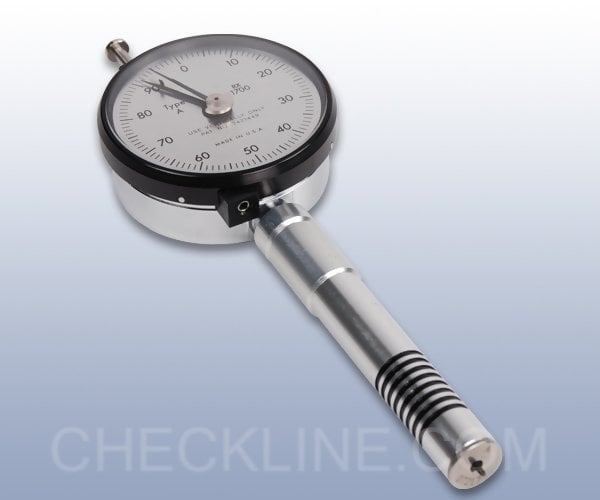

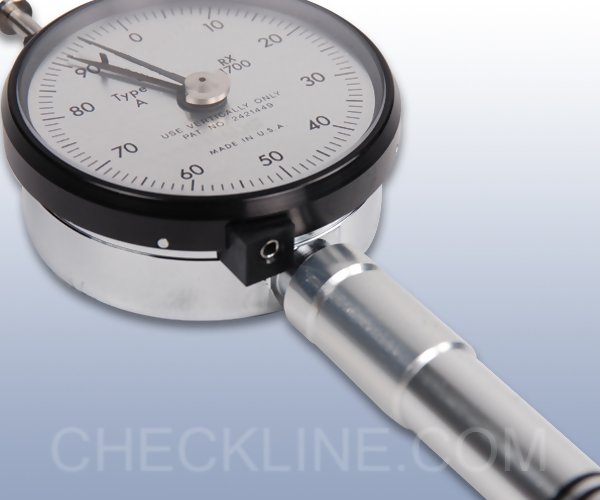

Photo Gallery


Related Products


RX-DD
Digital Durometer

  • Includes NIST Calibration Certificate
  • Conforms to ASTM D-2240
related
Click image for more info
Durometer Test Block Kits
Test Function Of Durometers

  • Enables user to perform a quick check for proper durometer operation
related
Click image for more info
ORF-1
O-Ring Fixturing Set

  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
related
Click image for more info
RX-BF
"Big Foot" Durometer Foot Adapter

  • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter
related
Click image for more info
RX-CLW
Constant Load Weight for Types A, B, O, OO & OOO

  • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg
related
Click image for more info

Dimensions


dimensions

Slim Probe Durometer


SlimProbe Durometers

We offer custom slim probe versions of most durometer models and types. The slim probe attachment can be modified to fit your specific needs or applications.

Complete Kit

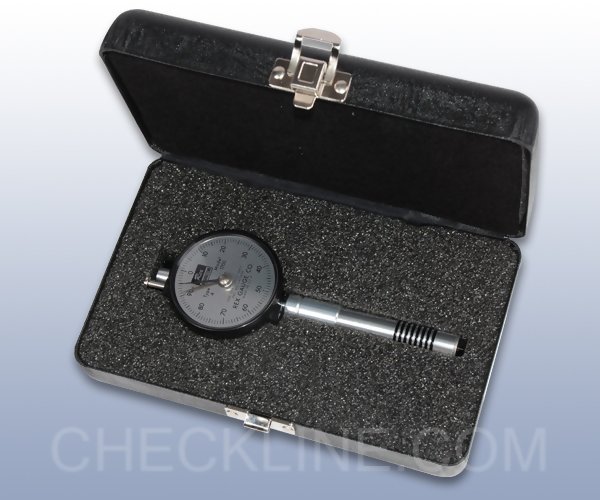

The RX-1700 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.

complete kit

Specifications


Accuracy ±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Dimensions 2.25" x 6.125"H
Weight 6 oz.
