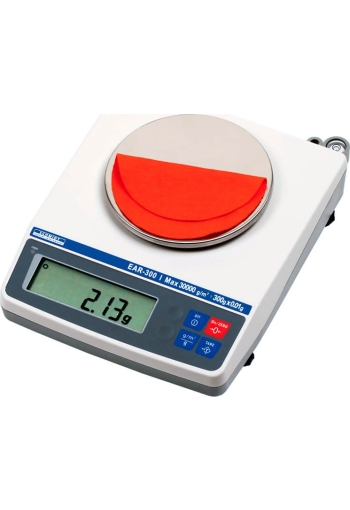

Hans-Schmidt EAR-300 Area Weight Balance
Range: 30000 g/m² or 300 g
Range: 30000 g/m² or 300 g
The Hans-Schmidt EAR-300 Area Weight Balance is ideal to determine the gsm substance or determinate weight in grams of textilies as woven fabrics, fabrics, fleece, paper etc.
2 Measuring modes:
- g/m² for fabric, paper or similar materials
- g to determine weight

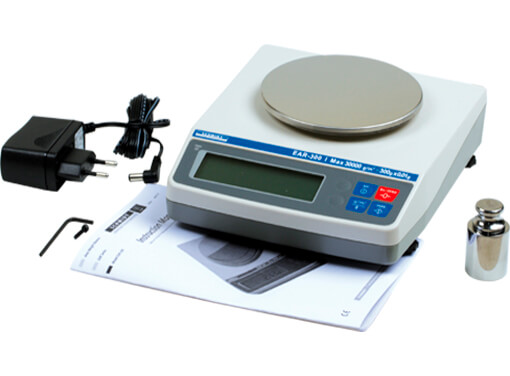

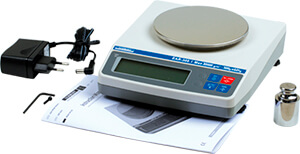

Kit Contents
- EAR-300 Area Weight Balance
- Calibration weight 200 g
- AC Adapter 100 – 240 V AC
- Operating Instructions
Features
- Automatic zero tracking and tare function
- Powered by supplied AC adapter or integrated rechargeable battery
- Supplied with calibration weight for recalibration
- Built in calibration routine
Specifications
| Capacity | 30000 g/m² Area weight mode
300 g Weight mode |
| Resolution | 1 g Area weight mode (g/m²)
0.01 g Weight mode |
| Sample Size | 100 cm² |
| Power Supply | DC 9 V - 500 mA, accumulator
(12 hr continuous use, recharge time 12 hr) |
| AC Adapter | 100 – 240 V AC |
| Platform size Ø | 120 mm |
| Temperature range | 50 - 113 °F (10 - 45 °C) |
| Weight, net (gross) | Approx. 1700 g (2700 g) |
| Dimensions | 211x 185x 59mm (LxWxH) |
