Product Description

Checkline HP Textile Durometer, Yarn Package Durometer Hardness Tester
Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators

The Checkline HP Textile Durometers can accurately measure the winding density of textile bobbins, beams, spools, spindles, cones, quills, dye packages, rolls, etc.


line
Features
line

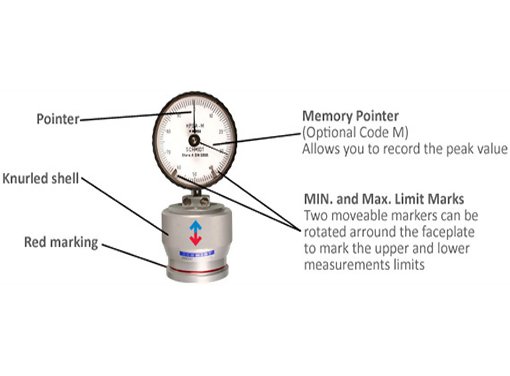

  • Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators.

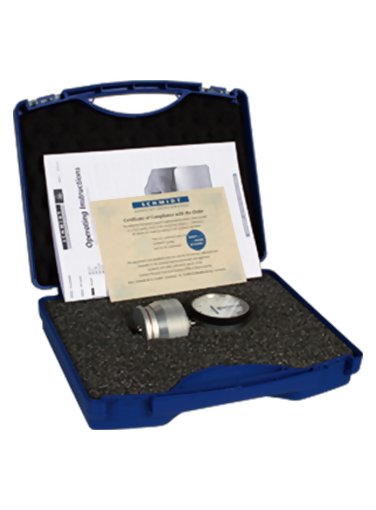

  • Supplied in a foam-fitted carrying case.

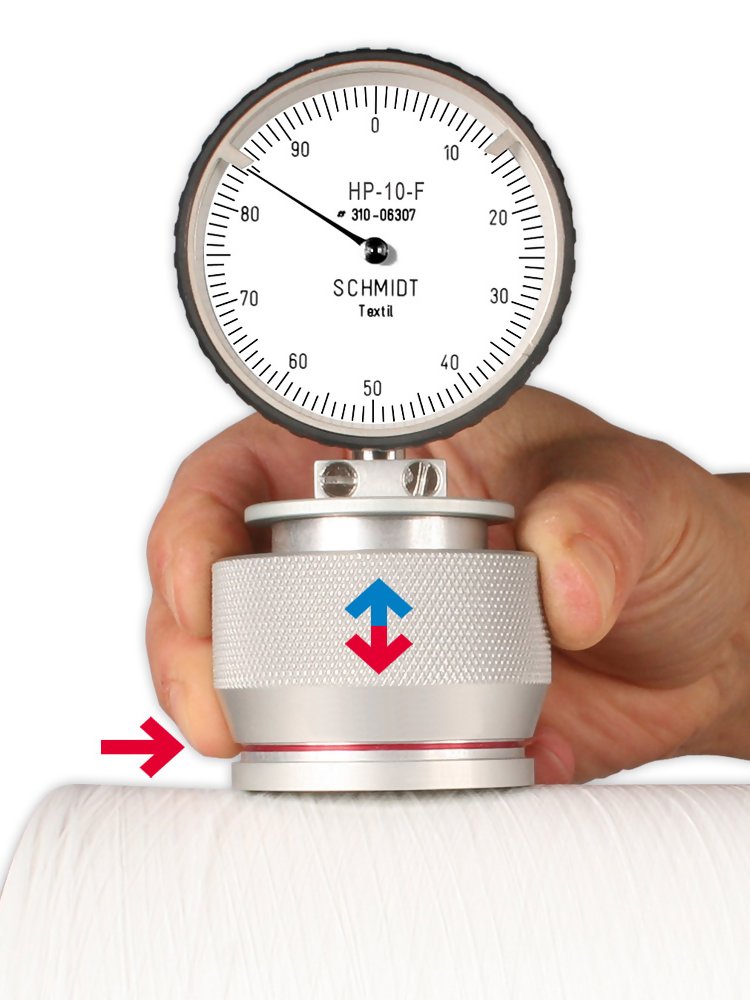

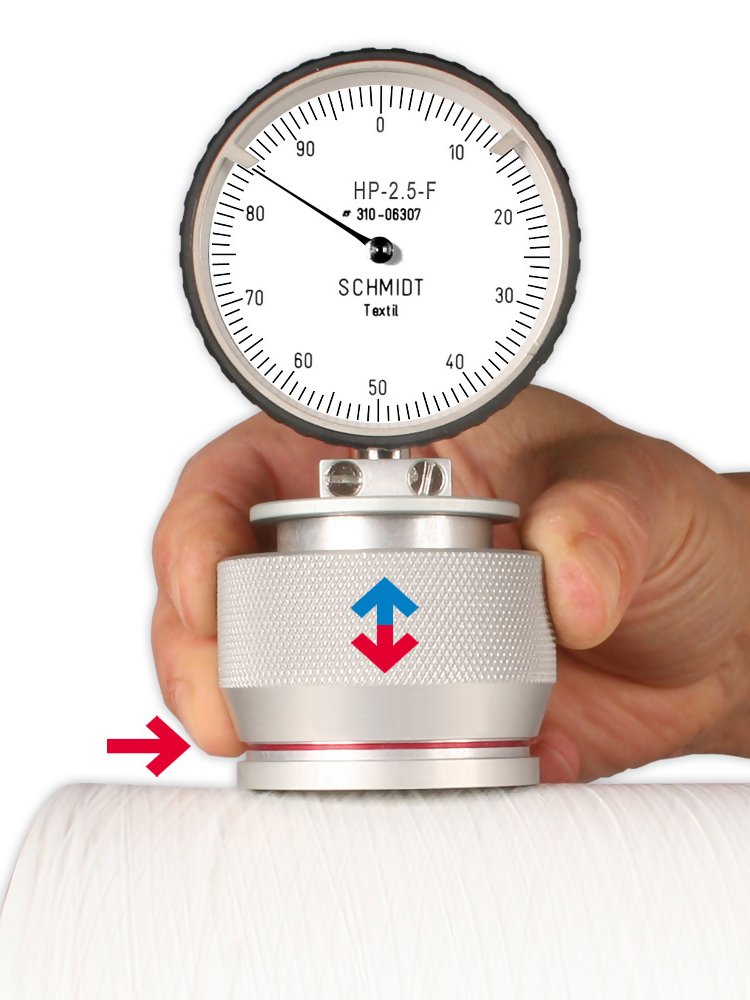

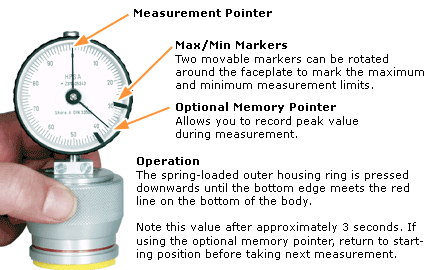

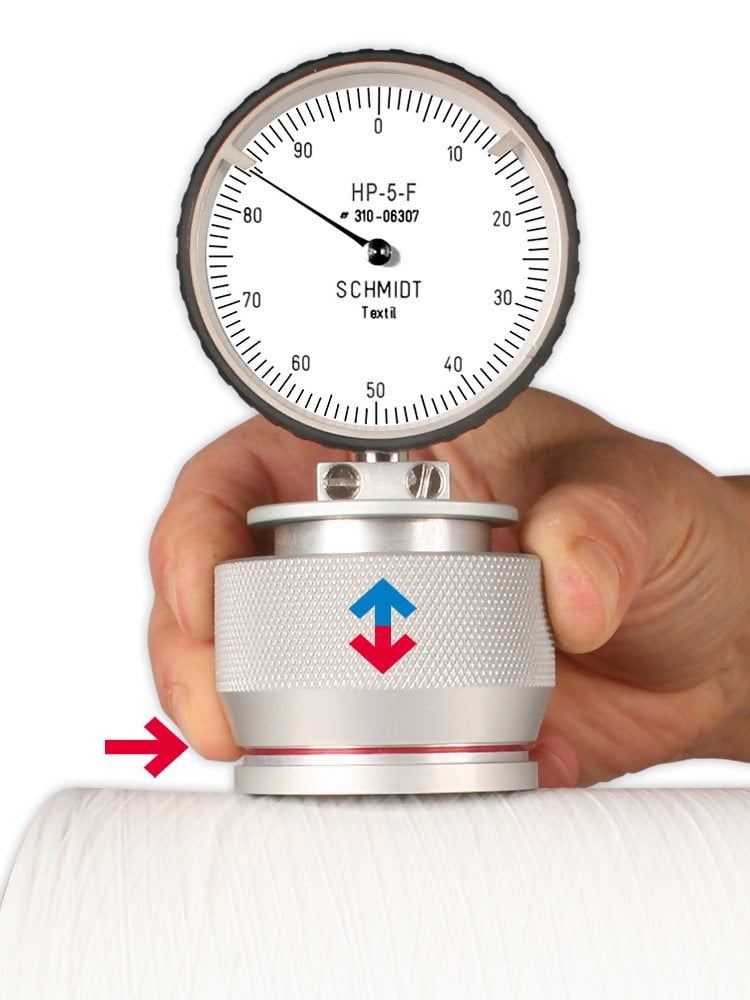

  • Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.


line
Specifications
line

Indenter Cone 35°, 1.3 mm Ø
Depth of indentation0 - 2.5 mm
Test pressureapprox. 12.5 N
Measuring spring force0.55 - 8.065 N
Display range0 - 100 Scale
Scale diameter56 mm
Weight, net (gross)approx. 300g (500g)
Dimensions50 x 50 x 110 mm (L x W x H)


line
Optional Accessories
line

Model
Number
Indentor
Ball Size
Typical Application

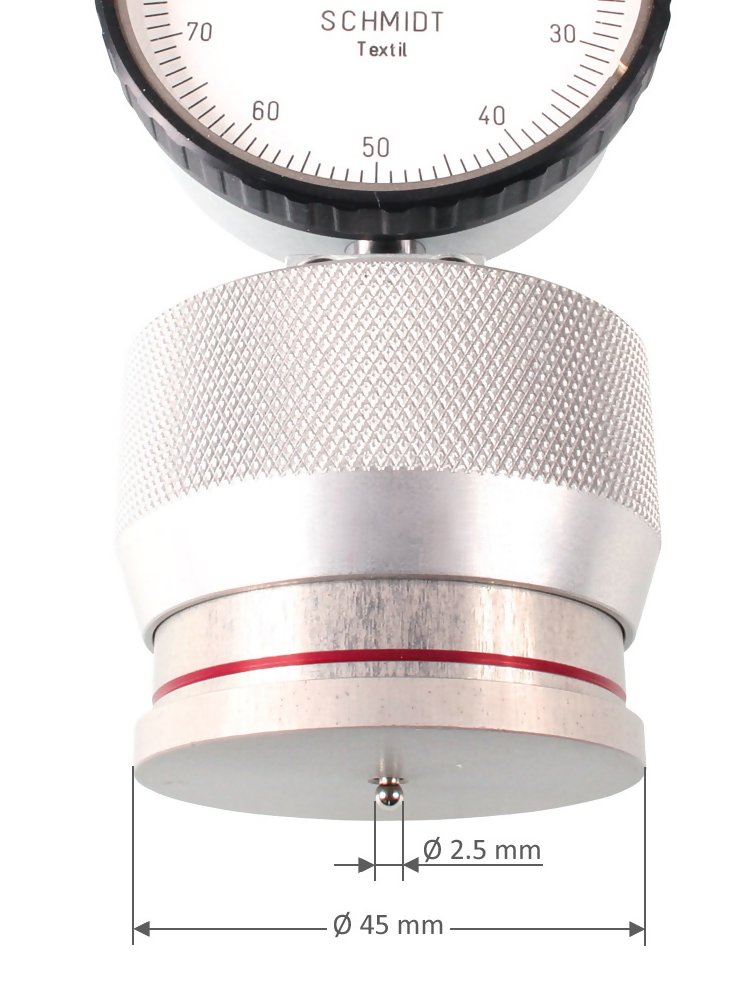

HP-2.52.5 mmClosely wound synthetic, hard finish fibers and filaments.

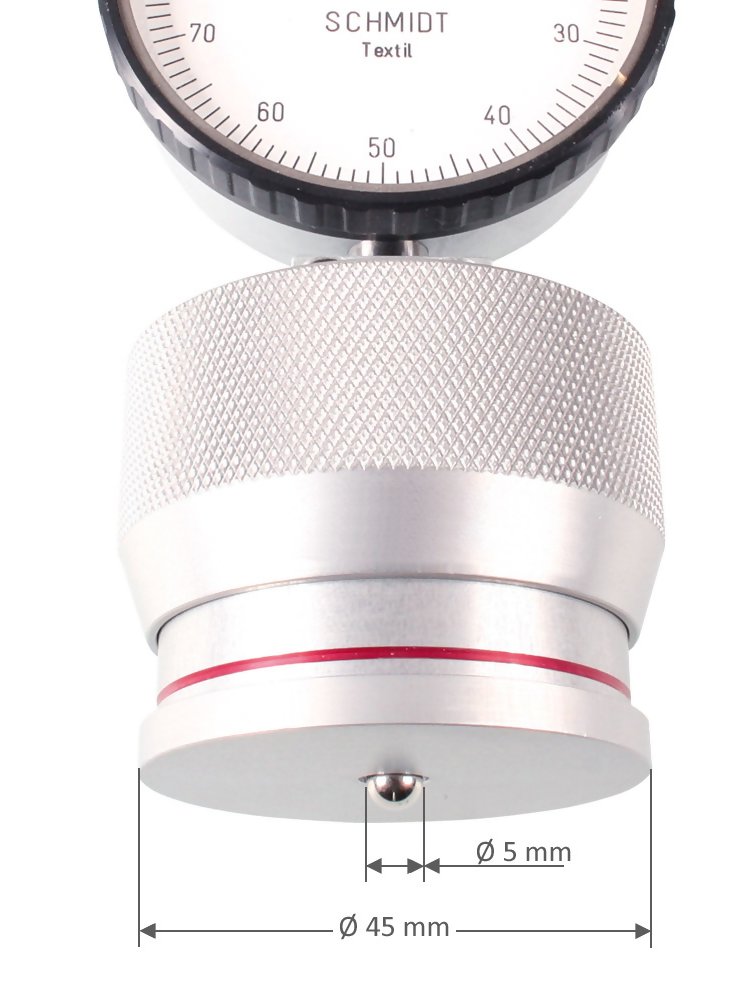

HP-55.0 mmAverage yarns, threads, fibers, etc., wound with moderate winding density.
HP-5F5.0 mmSame as HP5, except with flat base for large yarn packages over 15" (380 mm) in diameter.

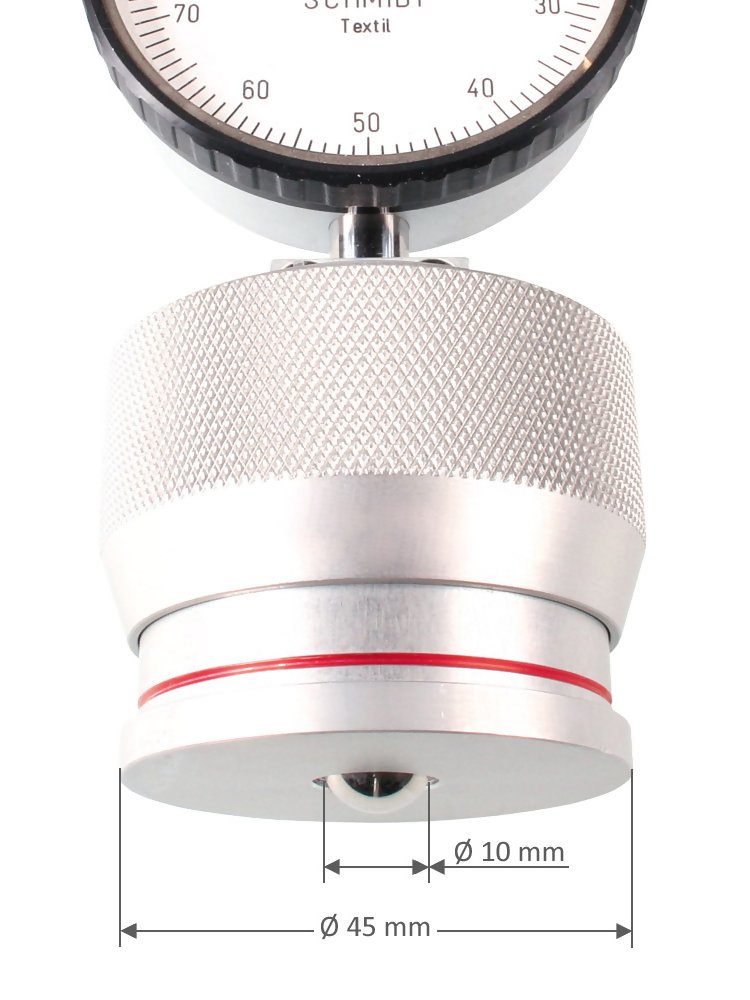

HP-1010.0 mmLoosely wound spools of natural or synthetic yarns and fibers, bulky yarns.
HP-10F10.0 mmSame as HP10, except with flat base for large yarn packages over 15" (380 MM) in diameter.

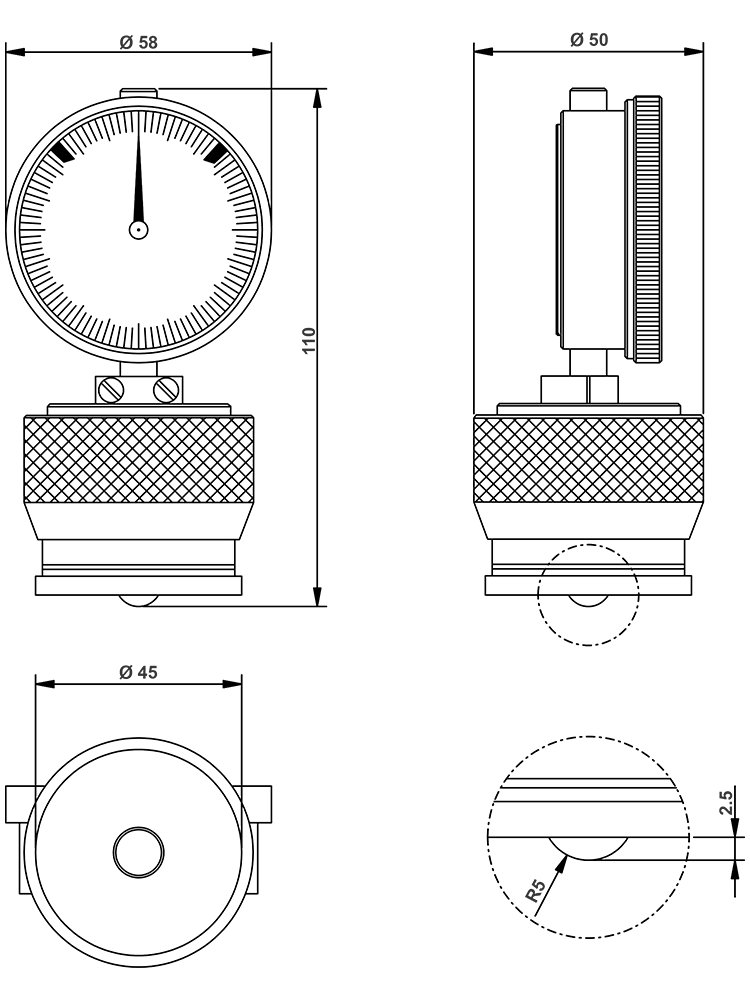

line Dimensions
line


line
Downloads
line

Checkline HP Textile Durometer - Data Sheet
Checkline HP Textile Durometer - Instruction Manual
