Product Description

Checkline MLT Portable Yarn Tension and Rate Meter

Shorter setup times because existing items can be called up and repeated

Uniform stitch length ensures a uniform fabric structure

The Checkline MLT Portable Yarn Tension and Rate Meter is a stand-alone electronic apparatus for accurately measuring and displaying three (3) quality-critical parameters involved in knitting, namely, yarn consumption, yarn tension and yarn speed. All contribute to producing repeatable, uniform quality fabric and products from circular knitting machines with rotating needle cylinders and flat knitting machines, including all body, hosiery and sock machines.

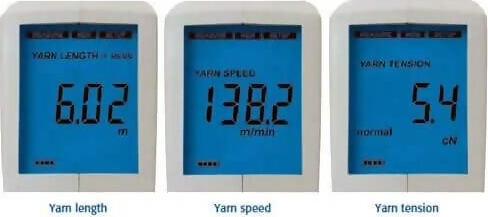

The Checkline MLT Portable Yarn Tension and Rate Meter displays the Normal, Average and Peak values for yarn tension. All values are shown on an easy to read back-lit LCD display.

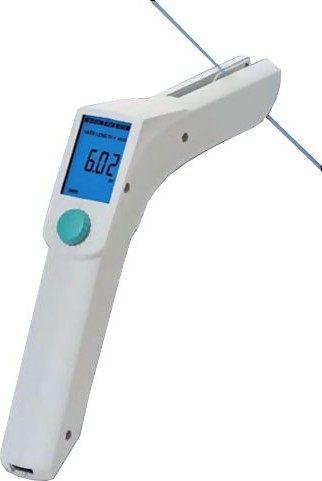

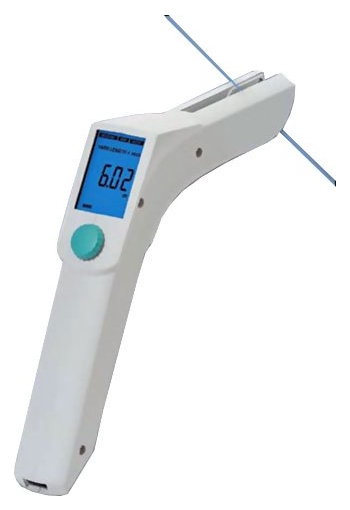

A unique, trigger-operated, yarn access system provides easy and sure yarn access and contact with a yarn tension-sensing pin and a yarn speed wheel, while a machine frame-mounted sensor counts revolutions every time a specific, rotating or moving magnetic part passes it, to provide machine RPM and yarn consumption information

This easy-to-use instrument accumulates the data required to produce repeatable, uniform material and products from one machine to the next, even when using different cylinder diameters.

line
Photo Gallery
line

ABQ ABQ ABQ ABQ

line
Features
line

  • Accurately measures Machine Speed, Yarn Length, Yarn Tension and Yarn Speed, in selectable metric or English units
  • Also displays yarn Normal, Average and Peak Tension values realized during the measuring periodd
  • Battery-powered, lightweight and well-balanced for high portability and easy handling
  • User can adjust the preset cylinder rotation count from 1 to 100 as desired
  • MLT WESCO gauge supplied with Battery Charger, Revolution Sensor, Data Transfer Cable, Sensor Holder, Magnet, Calibration Kit supplied in Carrying Case
  • 1-Year Warranty

line
Specifications
line

Power SupplyTwo 1.2 V rechargeable NiMH batteries
Battery ChargerPrimary, 100 to 240 V AC, 47 - 63 Hz; secondary 5 V, 2 A DC
LCD Digital Display1 to 9,999 metres or inches
Max yarn speed1,000 m/min or 1100 yd/min
Revolution measuring range1 to 100 revolutions
Battery Life50 hours in normal service
Battery stand-by time300 hours
Yarn tension0 - 50 cN (normal, average or peak value)
Accuracy± 1 cm or ± 1 inch


line
Complete Kit
line

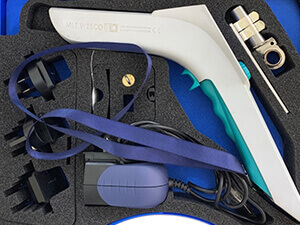

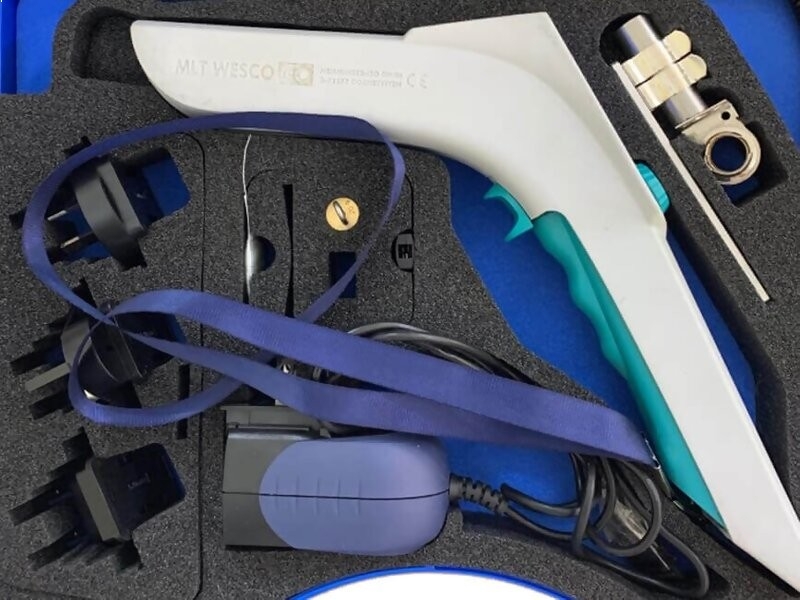

Supplied as a complete kit with MLT WESCO meter, Battery Charger (with US, EU, UK, & Australia Plug Adapters), Revolution Sensor (with cable and plug), Data Transfer cable with plug, Holder for Revolution Sensor, Magnet with holder, Calibration Kit (20g weight + yarn sample) and Instruction Manual – all supplied in a foam-fitted Carrying Case

complete kit

line
Downloads
line

Checkline MLT Portable Yarn Tension & Rate Meter - Data Sheet
Checkline MLT Portable Yarn Tension & Rate Meter - Instruction Manual
Checkline MLT Portable Yarn Tension & Rate Meter - Spare Parts
