Product Description

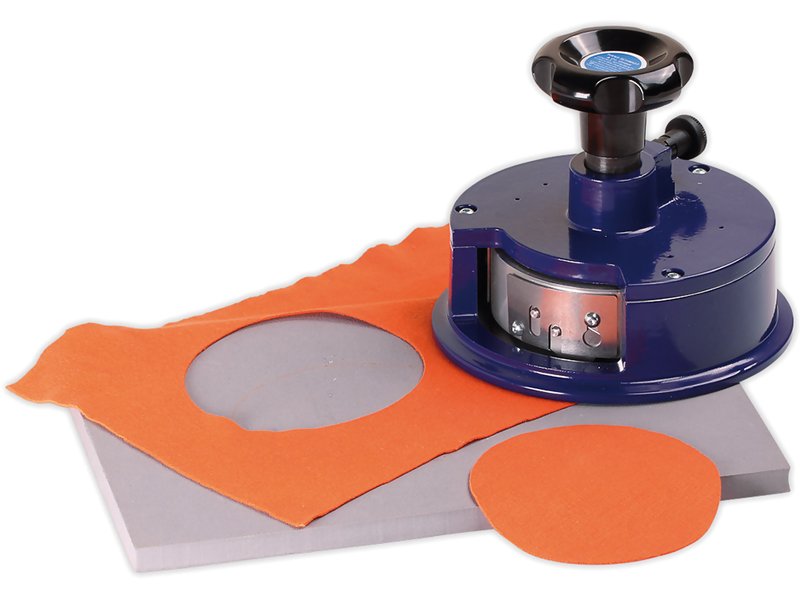

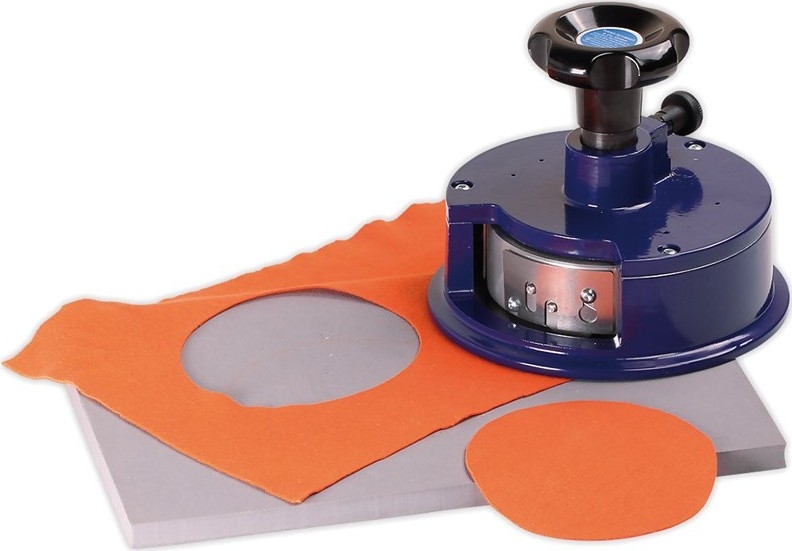

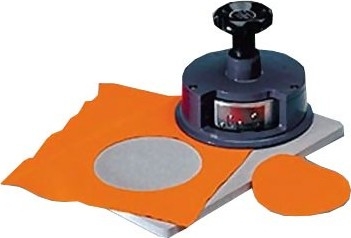

Checkline 200 Series Sample Cutter

Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper

2 models available for cutting material up to 0.4" (10mm) thick

Model 230/100 Cuts material up to .4" (10mm) thick
Model 240/100 Cuts material up to .12" (3mm) thick

The Checkline 200 Series Sample Cutter is designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper.

Typical used to determination weight per unit area of fabric , paper etc.

line
Features
line

  • For quick cuts with size of 100 cm²
  • 4 High quality blades for precision cut
  • Includes cutting board and 4 spare blades

line
Specifications
line

Cutting thicknessModel 240/100: max: .12" (3mm)
Model 230/100: max: .4" (10mm)
Sample cutout100 cm²
Weight3.75 lbs (1700 gr)
DimensionsØ:165 mm, H: 110 mm


line
Operating Procedure
line

The material to be cut is placed under the cutter between the cutting board and the cutter. While holding the cutter with one hand, apply preassure to the handle and rotate by at least 90 degrees.

line
